• High Efficiency Digital Multi-Channel Design
• 12dB/Octave-Variable High Pass Filter
• 12dB/Octave-Variable Low Pass Filter
• DC Auto sense feature
• 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)

Sundown Audio Full Range Marine & Powersports 2 Ch Amp 200W Class D (SDX Series) w/ Bass Knob



This Amplifier has moderate power, tiny size, and ranks at the top-end of Full-Range Class-D fidelity. The controls have a removable cover that bolts down on top. The overall case is a big chunk of cast aluminum to keep temperatures in check!



Features:

- High Efficiency Digital Multi-Channel Design

- 12dB/Octave-Variable High Pass Filter

- 12dB/Octave-Variable Low Pass Filter

- DC Auto sense feature

- 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)

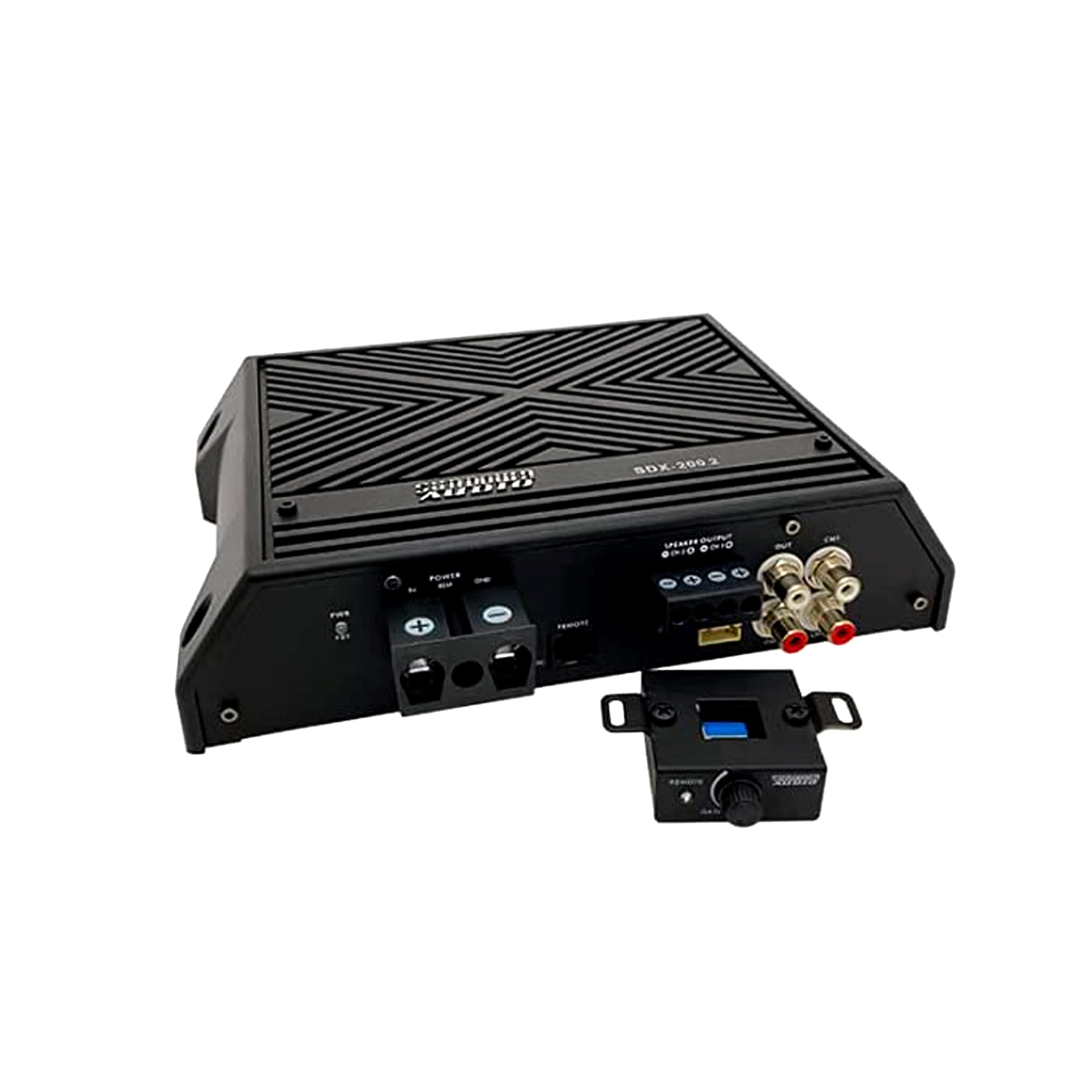

- Optional Wired Remote Control

- Water Resistant

- marine grade



Specifications:

2 Channel Class D Amplifier

2 x 200W @ 4 Ohm

2 x 310W @ 2 Ohm

Bridged @ 4 Ohm: 620W x 1 Ch

S/N:>90 dB

Recommended Fuse Rating: 50A

Cast Aluminum Heat Sync

Input Sensitivity: 6V Max

Working Voltage: 11.5 V - 15 V

Lowpass Variable Filter: 20Hz - 500Hz (-12 dB/8)

Highpass Variable Filter: 20Hz - 500Hz (-12 dB/8)

Gain Adjustment

Suitable for vehicles with start / stop function



Dimensions (L x W x H): 8.9" x 6.5" x 2.1"

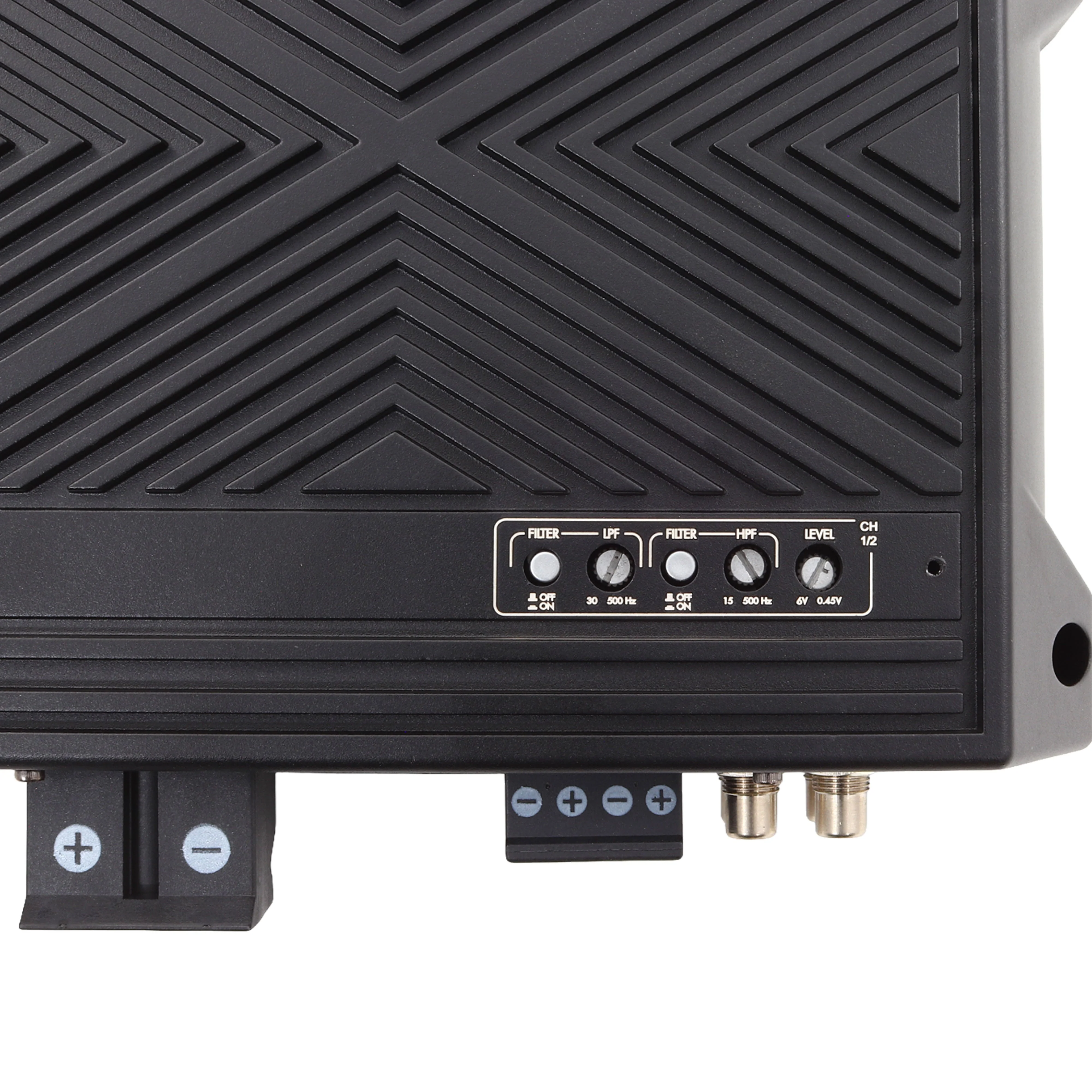

Note: Unscrew the badge using an allen key to access audio settings.
