• High Power Handling: Capable of delivering up to 2000 watts of peak power, ensuring powerful and dynamic bass performance.
• 15-Inch Diameter: Large cone area for improved low-frequency response and deep, impactful sound.
• Dual Voice Coil (DVC): 4-ohm configuration allows for versatile wiring options to optimize your audio setup.
• Durable Construction: Built with high-quality materials to withstand high power levels and prolonged use, ensuring long-term reliability.
• Exceptional Sound Quality: Engineered for accurate and powerful bass, enhancing the overall audio experience in your vehicle.

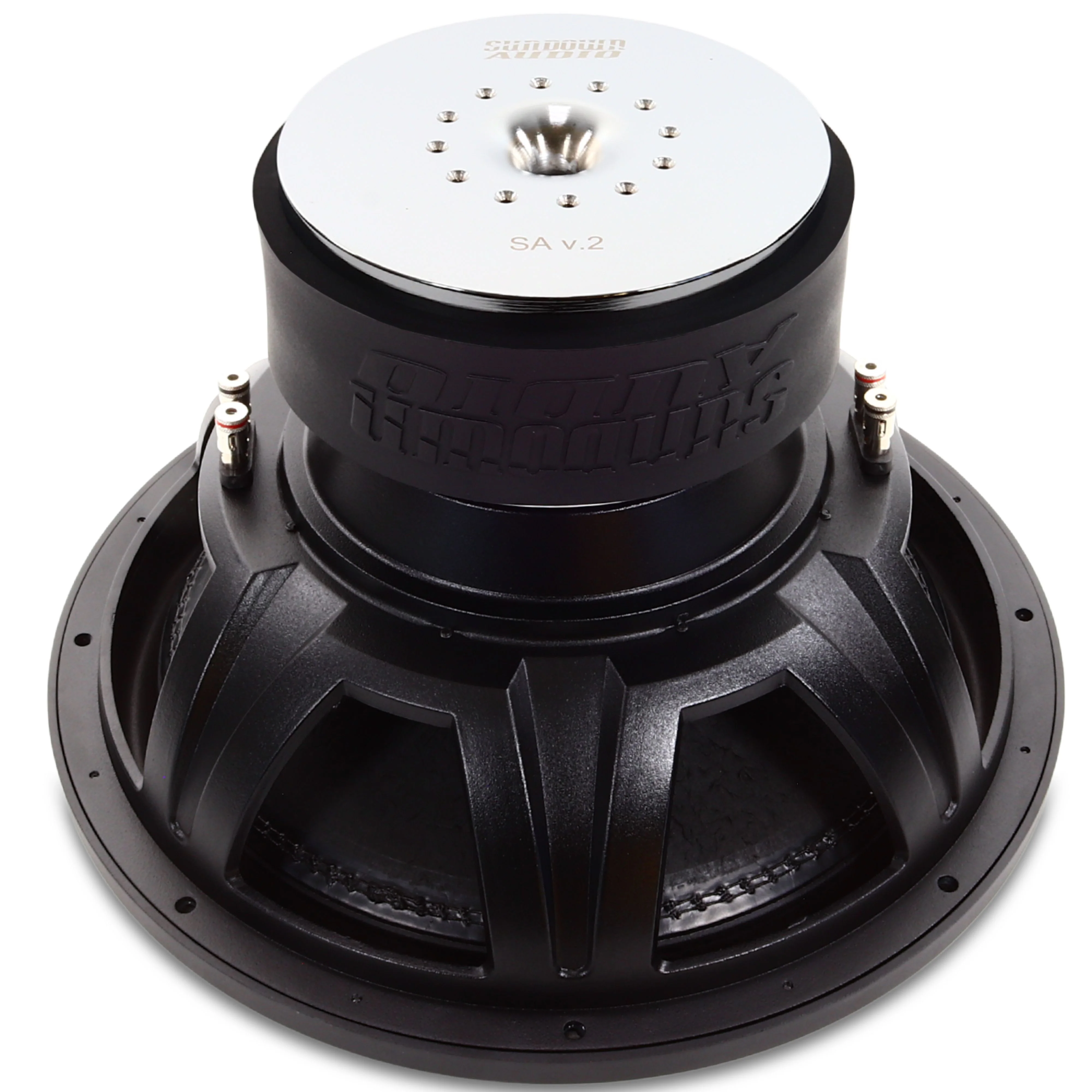

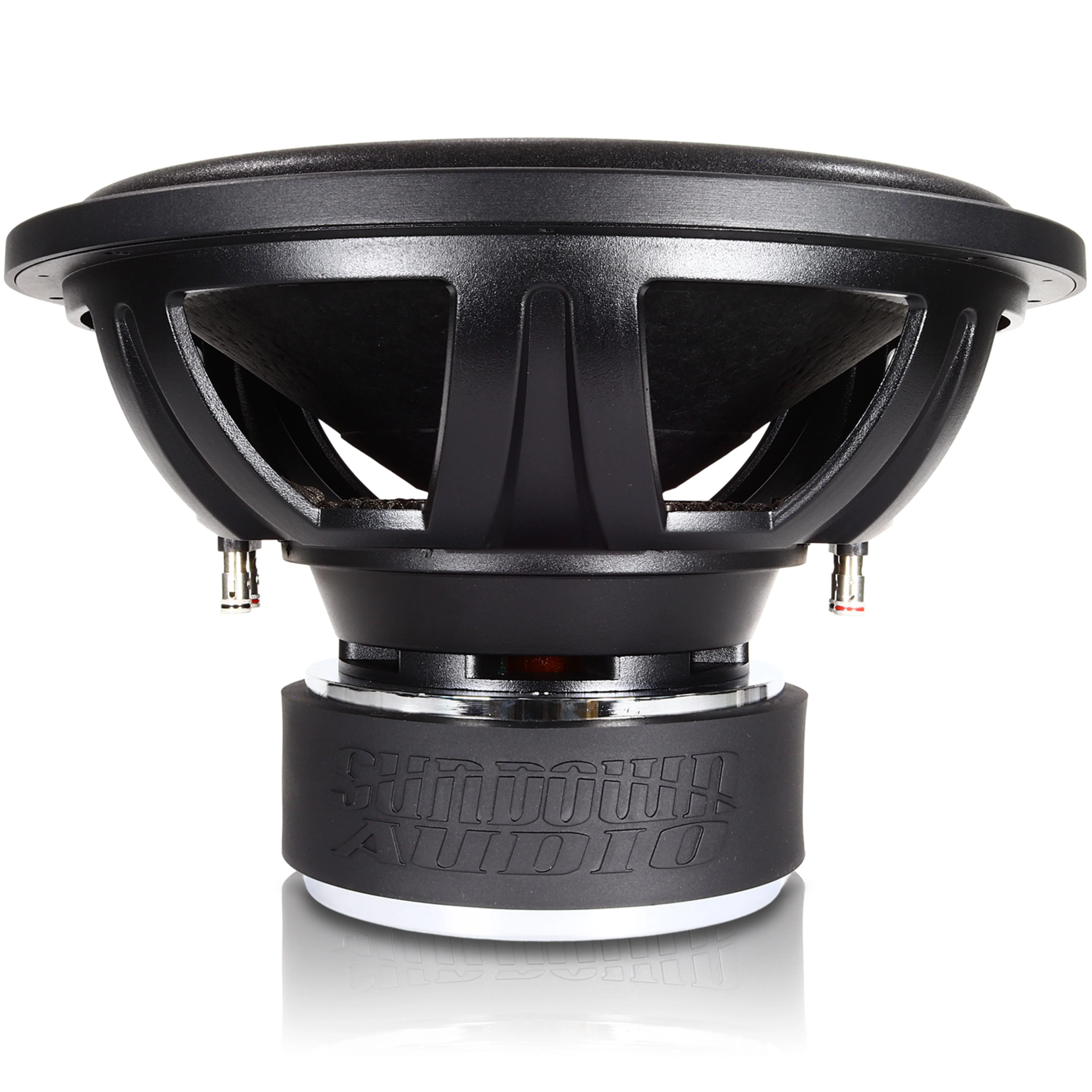

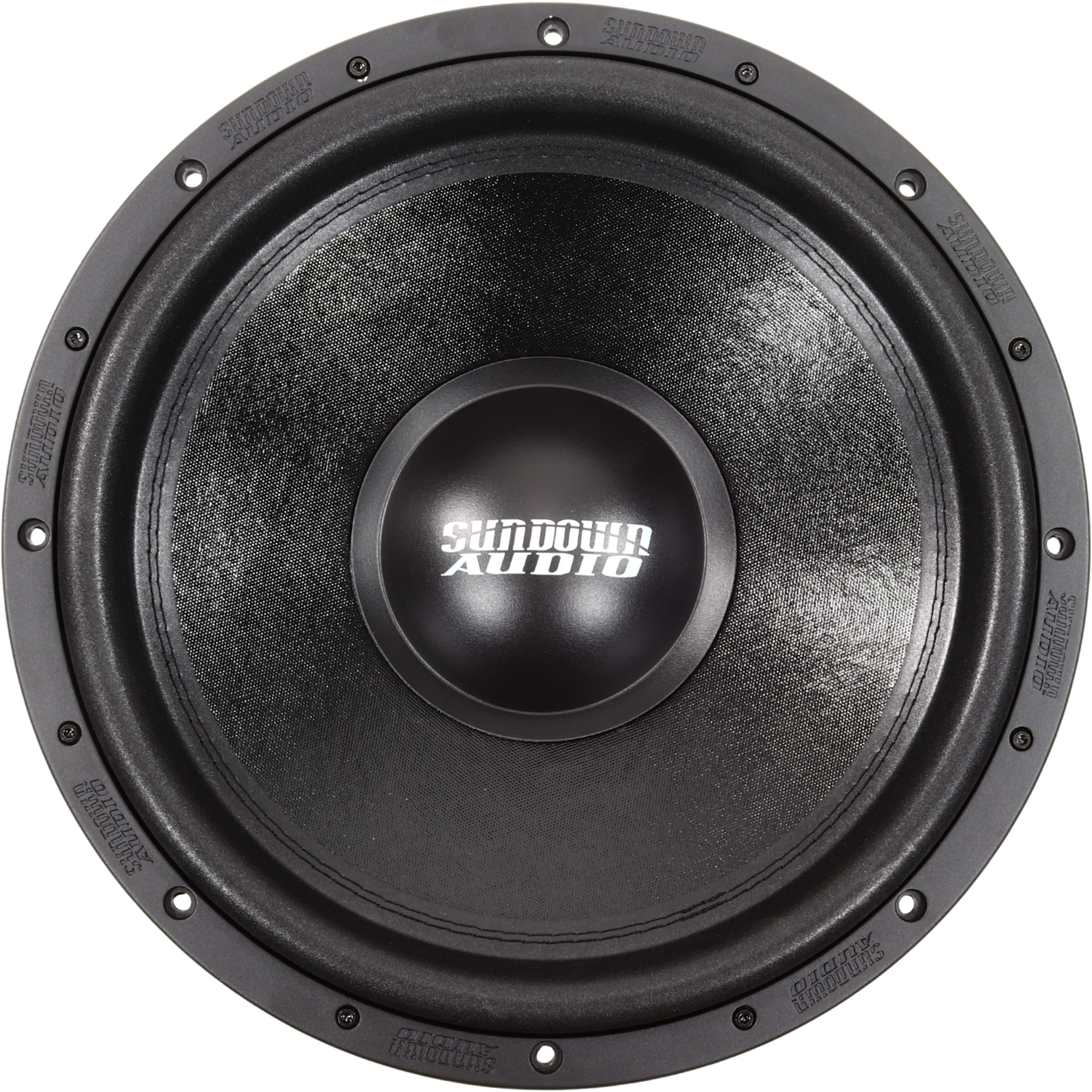

Sundown Audio SA Series 15" 2000W Peak 4-Ohm DVC Subwoofer / SA-15-V2-D4

This Listing Includes

• (1) 15" Dual 4-Ohm VC Subwoofer

Description:

We started with a larger, more powerful motor to drive the larger 2.75" coil and stronger soft parts; this maintains the perfect balance of the original SA series while also increasing the power handling to 1000-watts RMS. FEA optimized motor & coil design capable of 19mm of one-way linear excursion by 70% BL and just over 35mm of x-mech. This motor & coil setup was then mated up to an extremely robust double-layer spider with fully tied-on & doubled-up XL tinsel leads (84-Strands of Conductor per lead), an SPL competition grade paper cone, and a strong foam surround. The motor also features a large magnet ID shorting ring (faraday ring) to reduce distortion causes by inductance & inductance variation over stroke. This system allows our 2.75" coil to match and exceed the thermal performance of many competing 3" coil drivers on the market without requiring the usage of a much heavier voice coil.

Features

• Xmax = 19mm one-way by 70% BL


• RMS Power = 1000-watts


• Vented magnetic gap


• Optimized high-velocity pole vent


• Innovative high-velocity vented frame spacer ring


• Black Aluminum 2.75" voice coil former for superior heat dissipation


• High Temperature copper voice coil wire


• Large aluminum faraday ring (Magnet ID)

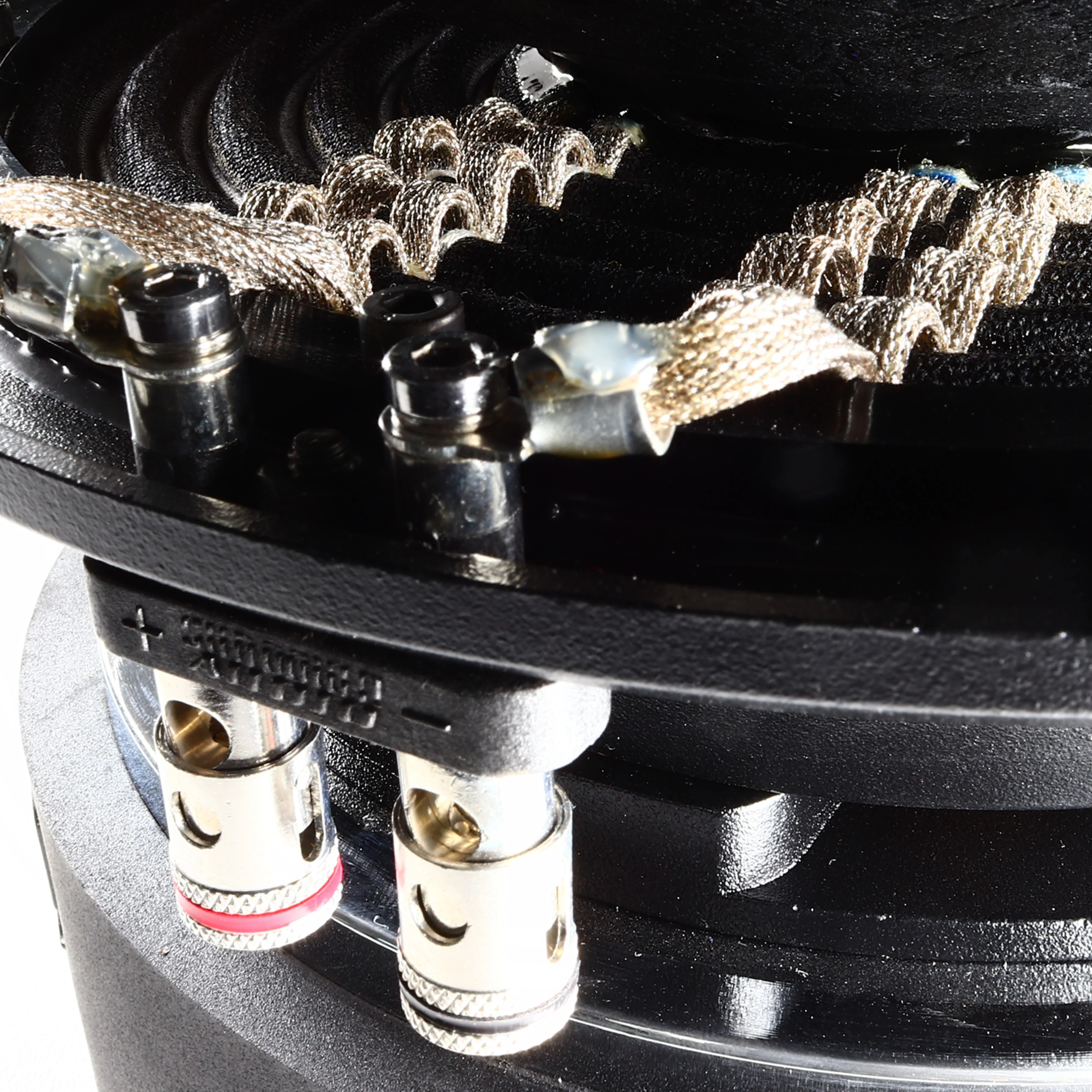

• Stitched-On Double "XL" Tinsel Leads to prevent fatigue and failure


• High strength cast aluminum frame

Specifications

• RE (Ohms) 5.83


• FS (Hz) 37.4160


• VAS (L) 45.3391


• Qes 0.6963


• Qms 5.7094


• Qts 0.6206


• Le (mH) 4.7903


• BL (NA) 29.1578


• Mms (Grams) 431.9464


• Cms (uM/N) 41.8886


• Sens (dB @ 1w/1m) 87.08
