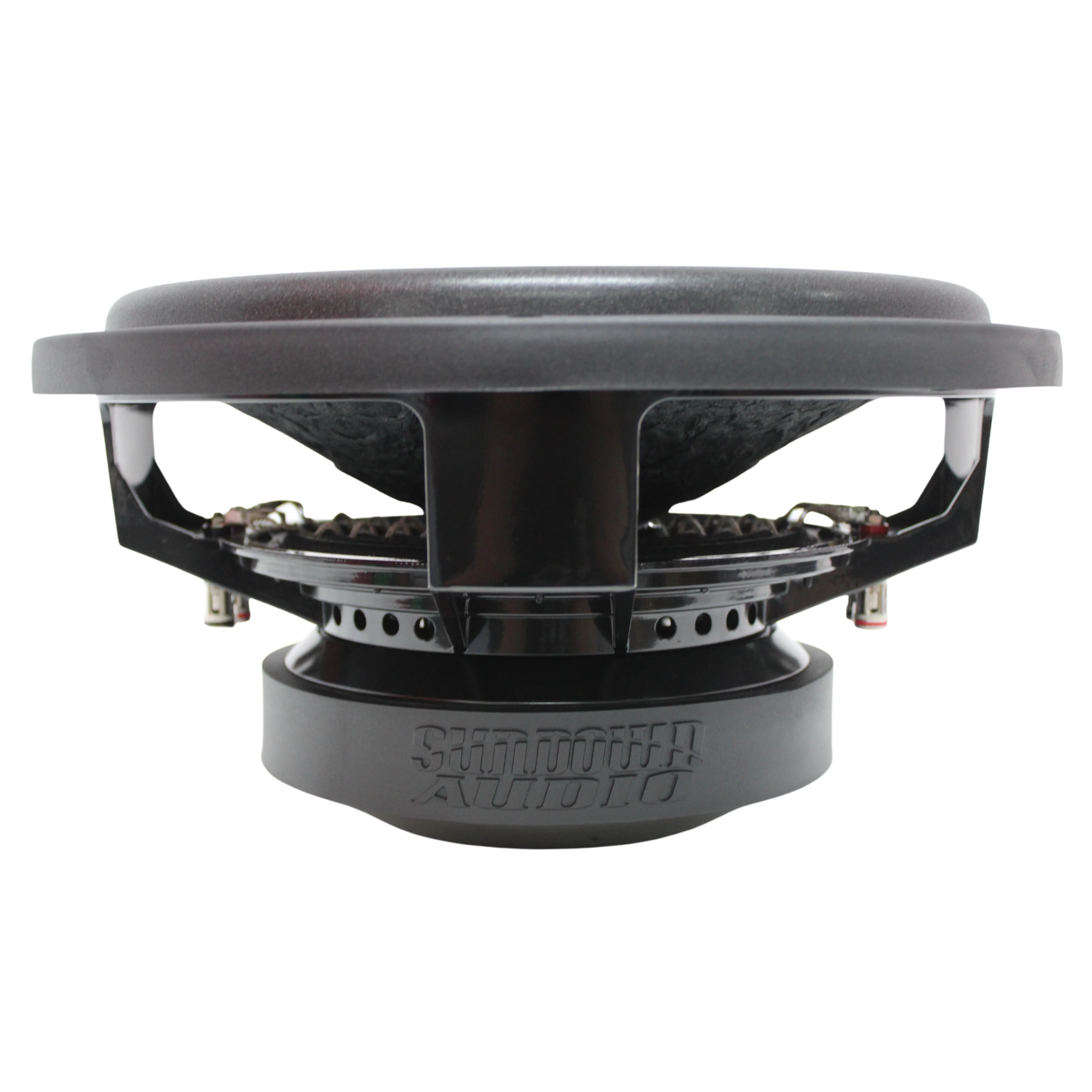

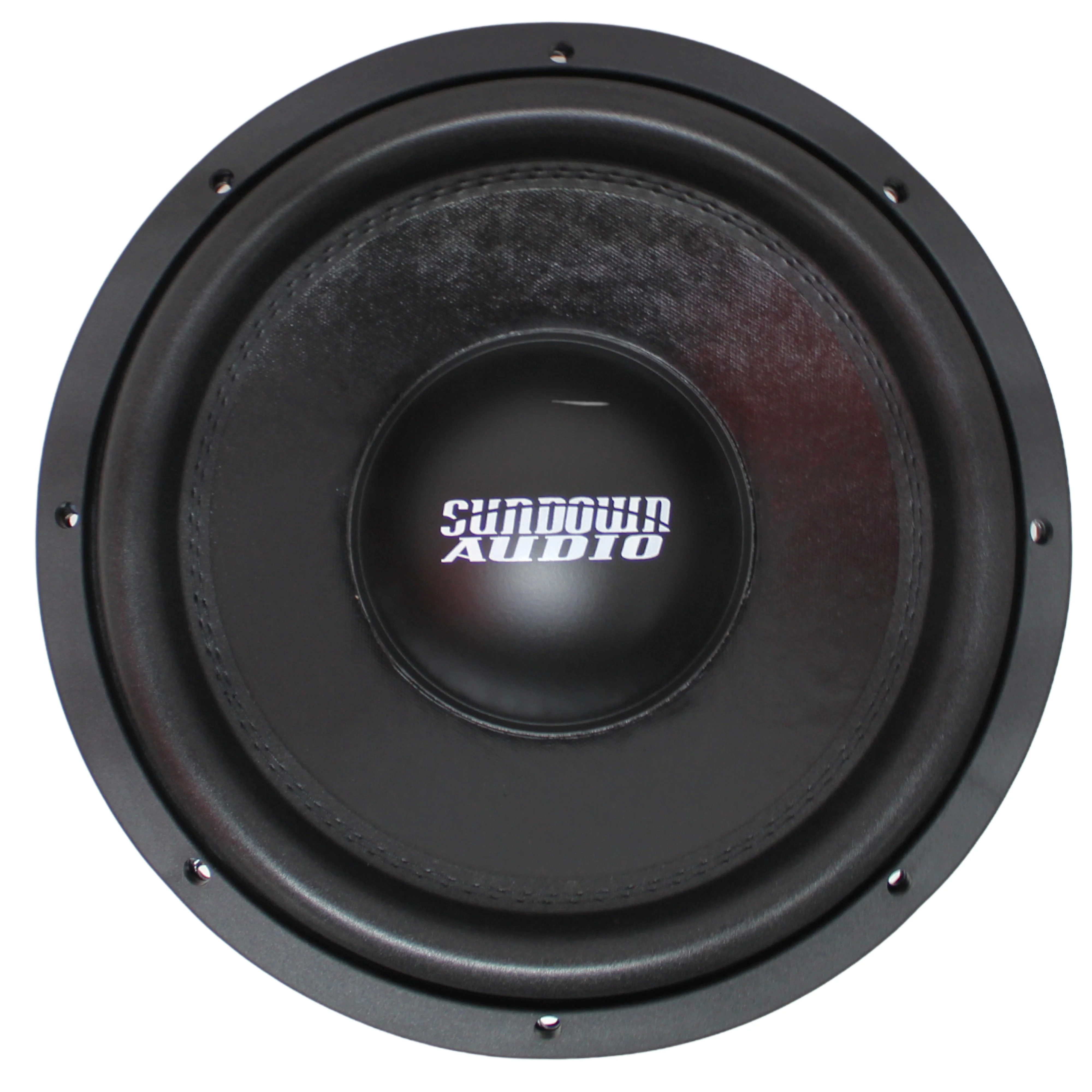

Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
- Black Aluminum 2.5" voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire

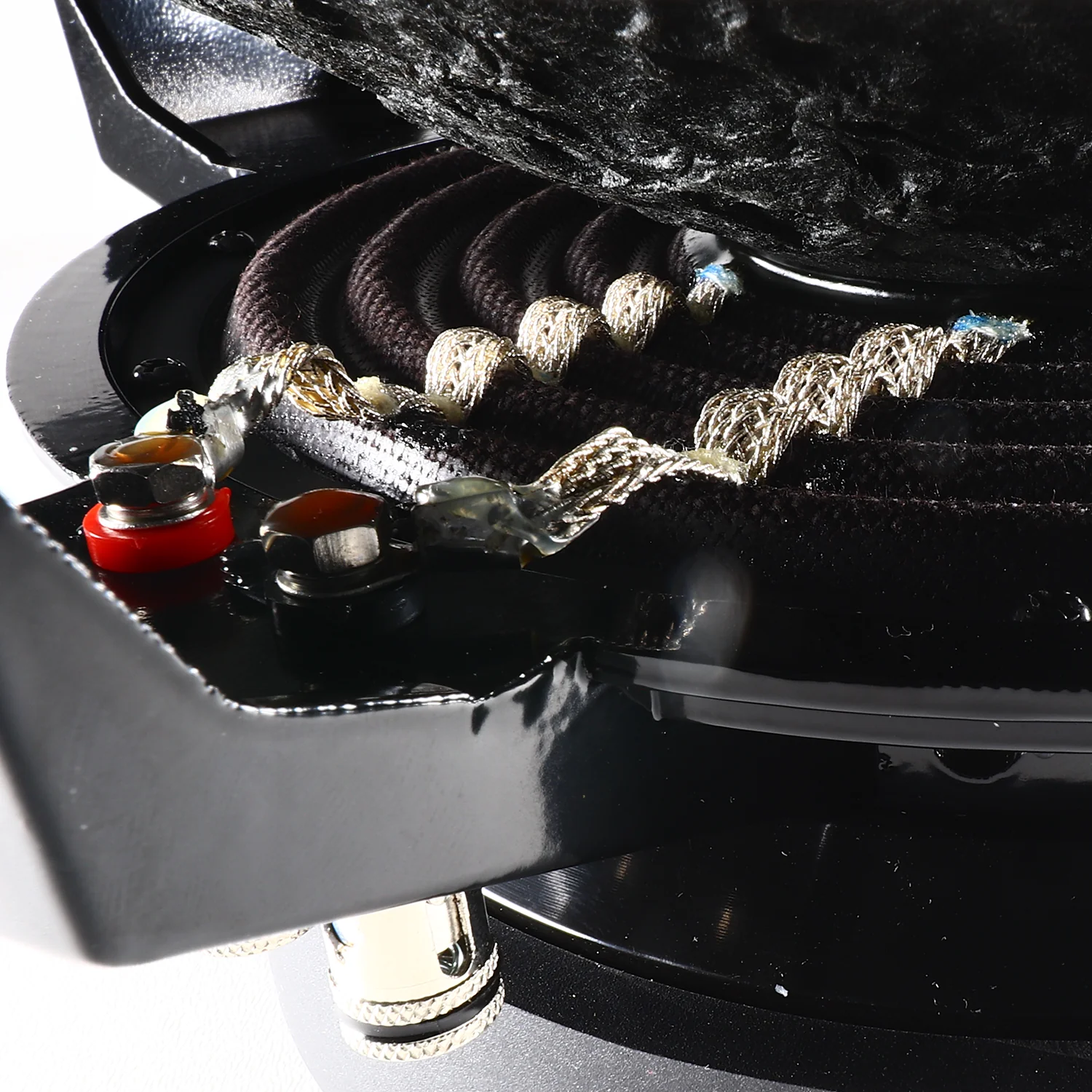

- Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure
- Solid Pole with high velocity vent channels machined around the OD
Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
This listing includes:
- (1) Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
The Sundown SLD series can be considered a "re-boot" of the SD-2 line from 2011. The SD-2 was essentially a "shallow SA v1" by design – meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3) – tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant "shallow" that likes ported boxes back into the line-up!

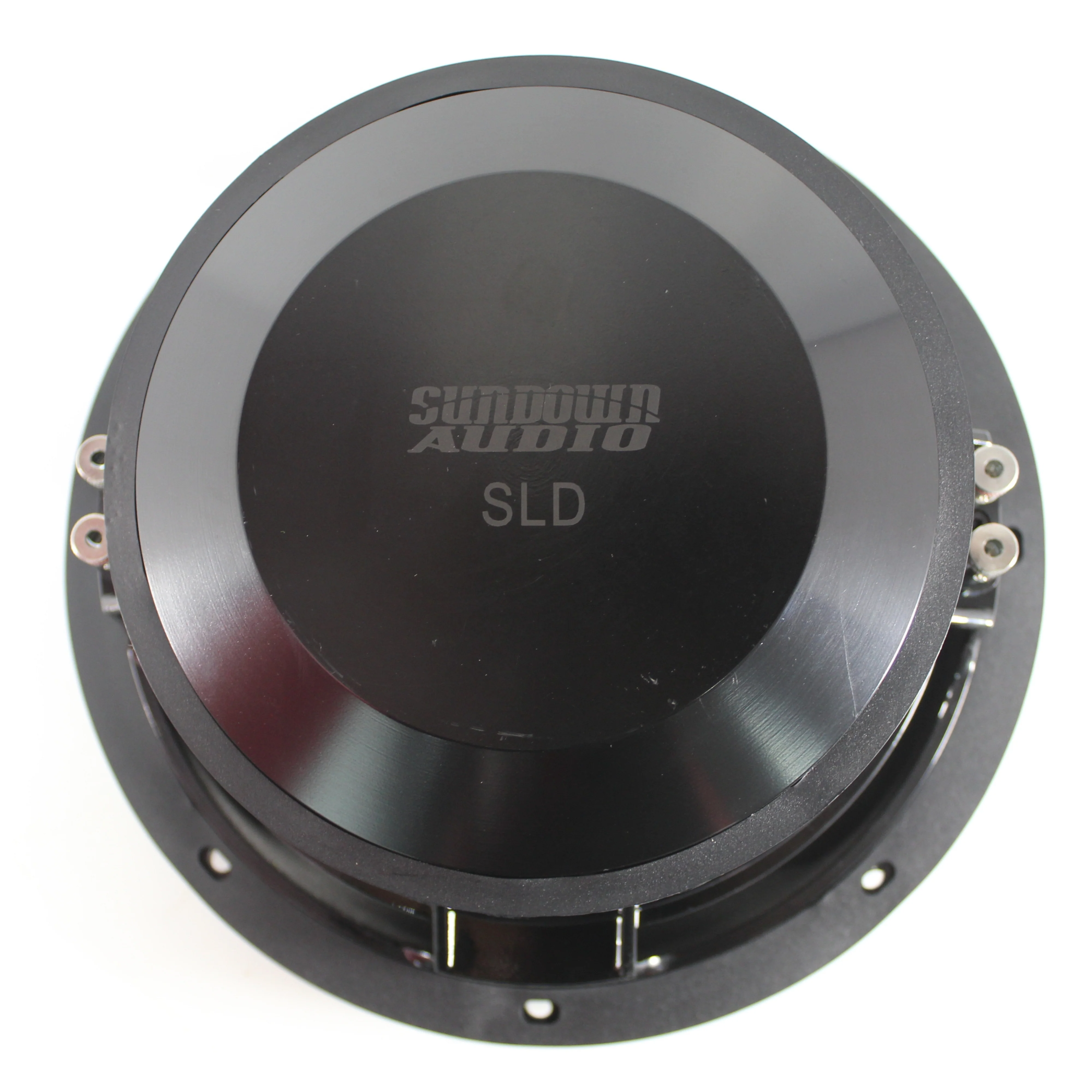

Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate "slits" for better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added "mini-XL" lead wires thus ensuring many years of flawless service.
The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.
Features:
- Xmax = 12mm one-way by 70% BL
- Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
- RMS Power = 600-watts
- Vented, EMD Cut, Top-Plate Design
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures** This motor is bolted through the top so the bolts are not visible from the back like several other models.
- Magnet ID shorting ring
Specifications:
- RE (Ohms): 6.85
- FS (Hz): 45.142
- VAS (L): 29.481
- Qes: 0.619
- Qms: 2.298
- Qts: 0.487
- BL (NA): 23.025
- Mms (Grams): 168.773
- Cms (uM/N): 73.652
- Sens (dB @ 1w/1m): 88.3
- Black Aluminum 2.5" voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure
- Solid Pole with high velocity vent channels machined around the OD
Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
This listing includes:
- (1) Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
The Sundown SLD series can be considered a "re-boot" of the SD-2 line from 2011. The SD-2 was essentially a "shallow SA v1" by design – meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3) – tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant "shallow" that likes ported boxes back into the line-up!
Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate "slits" for better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added "mini-XL" lead wires thus ensuring many years of flawless service.
The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.
Features:
- Xmax = 12mm one-way by 70% BL
- Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
- RMS Power = 600-watts
- Vented, EMD Cut, Top-Plate Design
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures** This motor is bolted through the top so the bolts are not visible from the back like several other models.
- Magnet ID shorting ring
Specifications:
- RE (Ohms): 6.85
- FS (Hz): 45.142
- VAS (L): 29.481
- Qes: 0.619
- Qms: 2.298
- Qts: 0.487
- BL (NA): 23.025
- Mms (Grams): 168.773
- Cms (uM/N): 73.652
- Sens (dB @ 1w/1m): 88.3
Original: $27,500.00
-70%$27,500.00
$8,250.00Description
- Black Aluminum 2.5" voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure
- Solid Pole with high velocity vent channels machined around the OD
Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
This listing includes:
- (1) Sundown Audio SLD-12 D4 12" 600 Watt Dual 4 Ohm Shallow Subwoofer
The Sundown SLD series can be considered a "re-boot" of the SD-2 line from 2011. The SD-2 was essentially a "shallow SA v1" by design – meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3) – tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant "shallow" that likes ported boxes back into the line-up!
Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate "slits" for better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added "mini-XL" lead wires thus ensuring many years of flawless service.
The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.
Features:
- Xmax = 12mm one-way by 70% BL
- Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
- RMS Power = 600-watts
- Vented, EMD Cut, Top-Plate Design
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures** This motor is bolted through the top so the bolts are not visible from the back like several other models.
- Magnet ID shorting ring
Specifications:
- RE (Ohms): 6.85
- FS (Hz): 45.142
- VAS (L): 29.481
- Qes: 0.619
- Qms: 2.298
- Qts: 0.487
- BL (NA): 23.025
- Mms (Grams): 168.773
- Cms (uM/N): 73.652
- Sens (dB @ 1w/1m): 88.3
