• RMS Power = 500-watts
• Xmax = 11mm one-way by 70% BL
• Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
• ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
• Product Dimensions:

This Listing Includes:

• (1) Sundown Audio SML 10" 500W RMS Dual 2 Ohm Subwoofer SML-10-D2

Features:

• Xmax = 11mm one-way by 70% BL


• Xmech is a hard limit of 25mm one-way for 12s and 20mm one-way for 10s


• RMS Power = 500-watts


• Black Aluminum 2.5" voice coil former for superior heat dissipation


• High Temperature 4-Layer copper voice coil wire

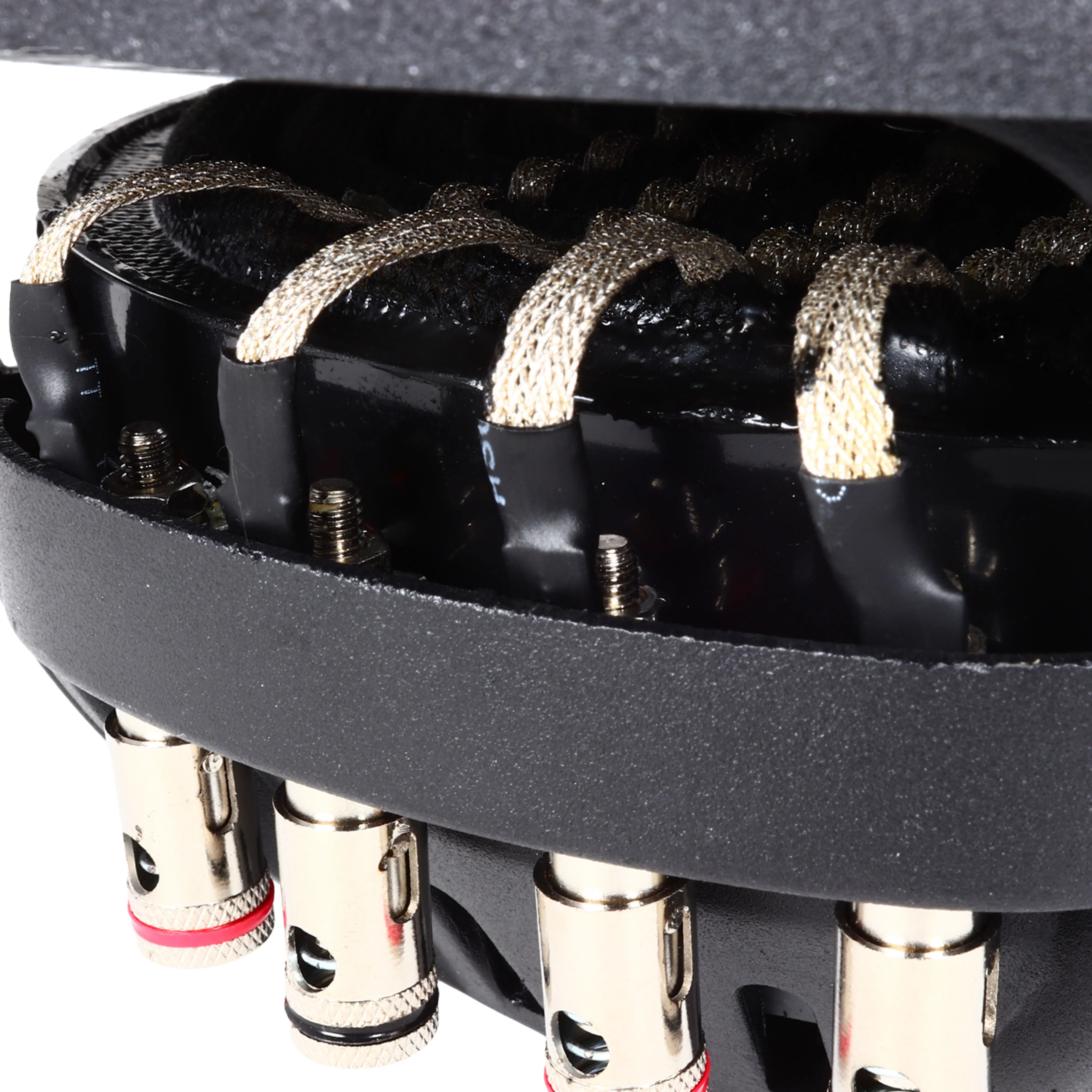

• Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure


• Vented Pole-Piece and Multi-Vented Magnetic Gap


• Dual-Magnet Design for appropriate motor force factor and mid QTS


• Custom tooled cone shape for reduced mechanical noise over high excursion

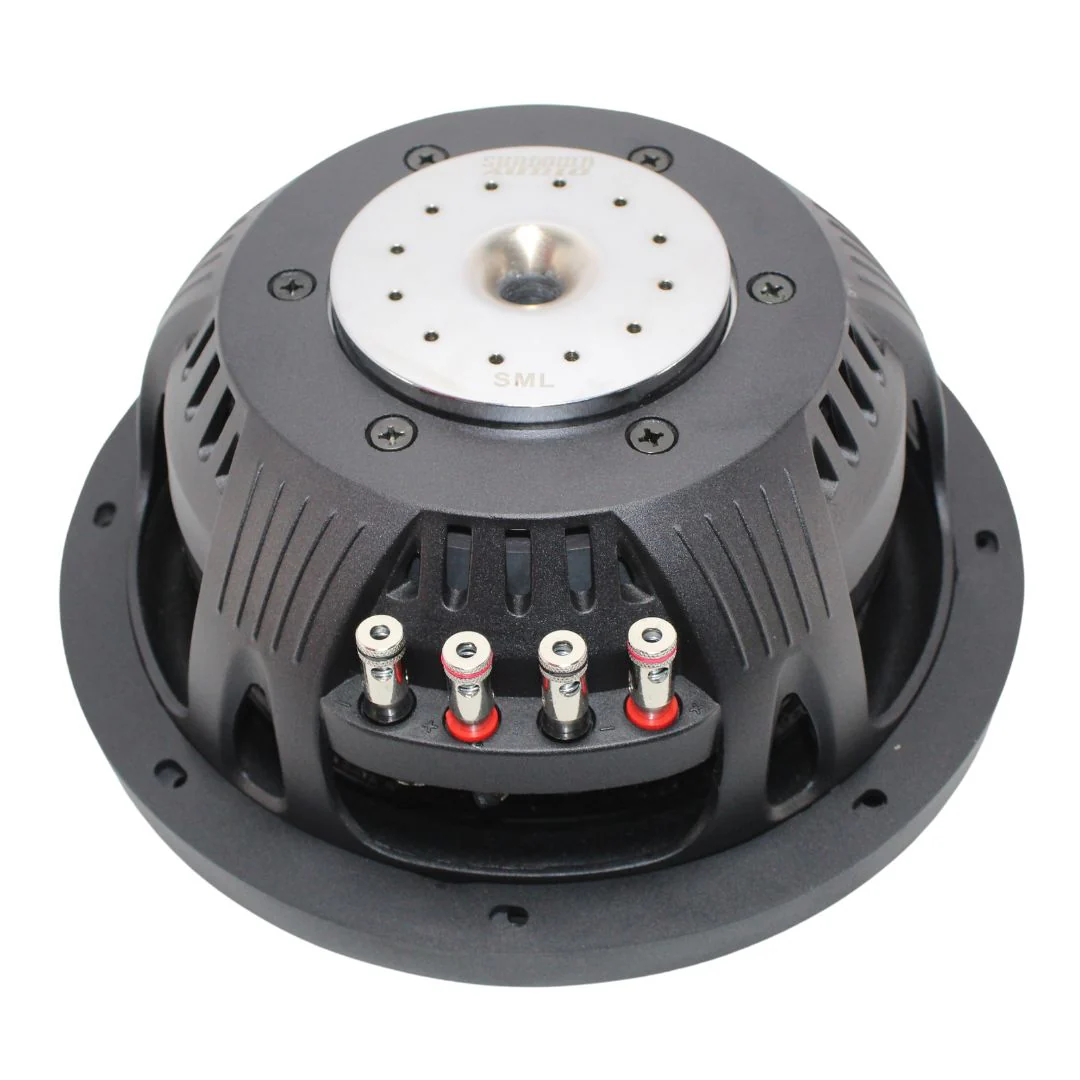

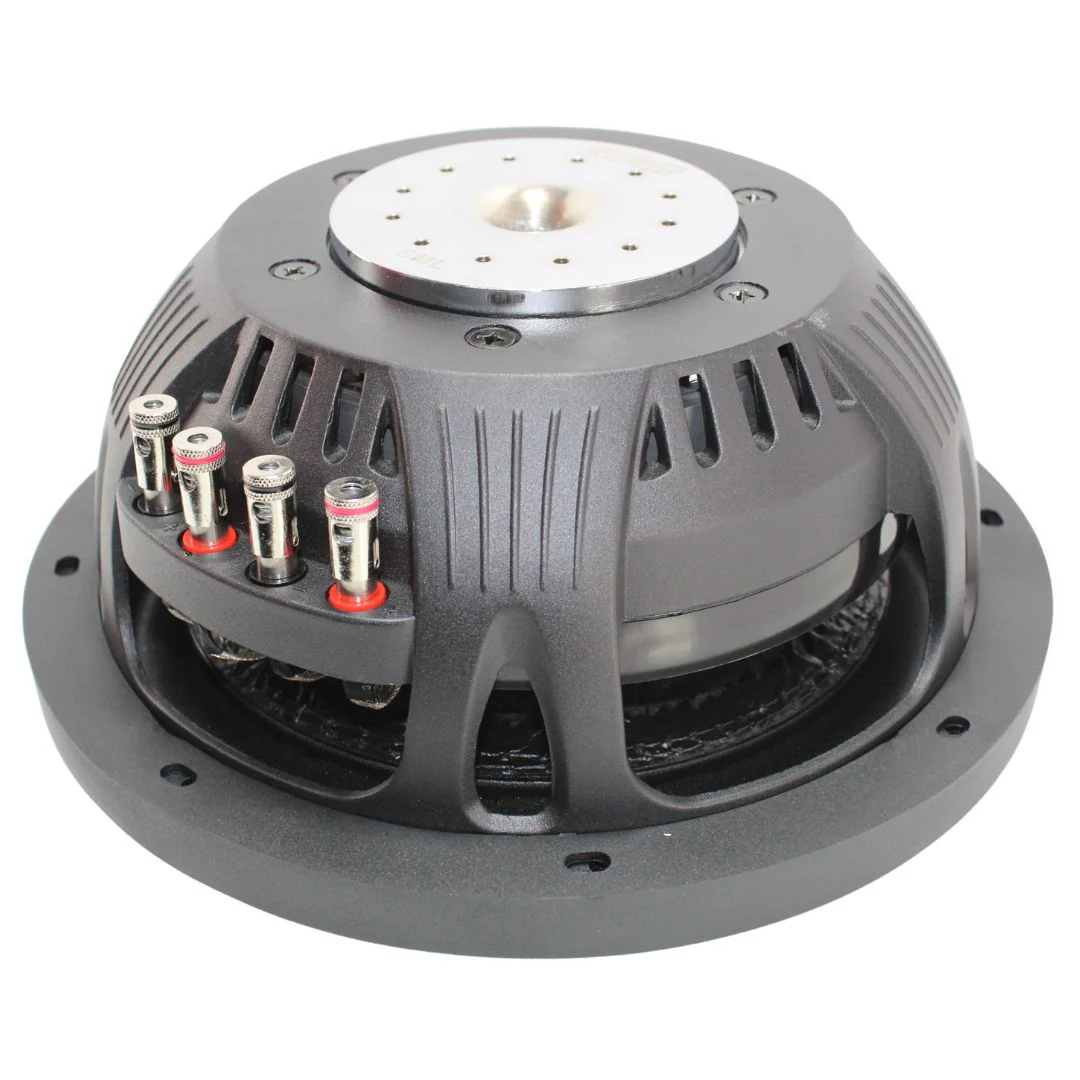

• Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures

  ** This motor is bolted through the top so the bolts are not visible from the back like several other models.


• Magnet ID shorting ring

Subwoofer Specifications:

• RE (Ohms): 3.650


• FS (Hz): 35.210


• VAS (L): 23.679


• Qes: 0.931


• Qms: 2.703


• Qts: 0.341


• BL (NA): 17.431


• Mms (Grams): 146.986


• Cms (uM/N): 139.003


• Sens (dB @ 1w/1m): 86.1dB
