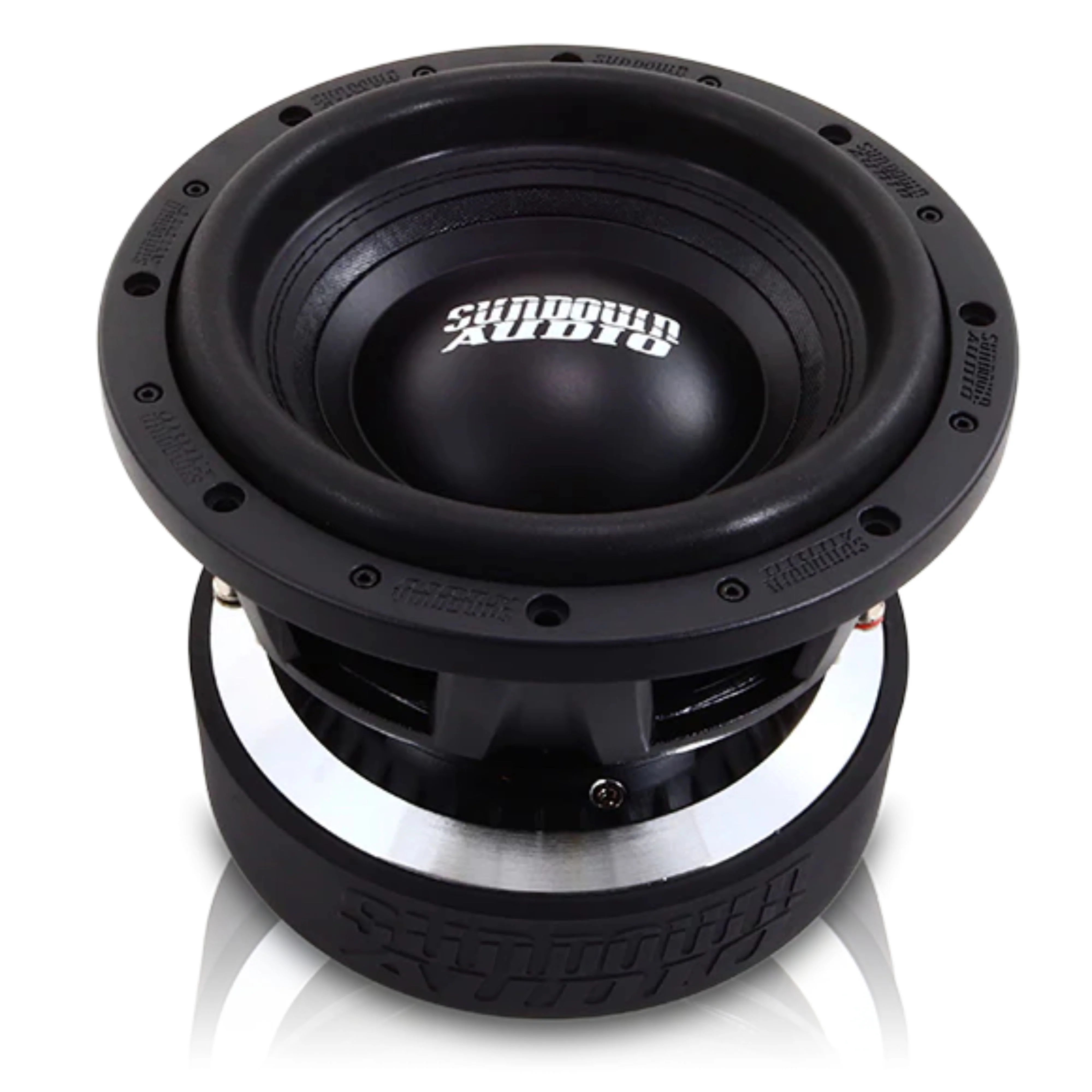

10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Innovative high-velocity cast aluminum vented frame spacer ring
- Black Aluminum 3" voice coil former for superior heat dissipation
- Double stitched surround
10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
This listing includes:
- (1) 10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
Description:
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension†woofer in the Sundown lineup. A double-stacked 9.4-inch-wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom, substantially thicker aluminum frame was designed specifically for the U Series, equipped with heat dissipation ribs. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is kept in check via a high-velocity solid pole / machined pole channels arrangement and a series of 16 direct air-gap vents in the back plate.
Features:
- Black Aluminum 3" voice coil former for superior heat dissipation
- High Temperature Round-Wire ALU voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast baskets - all new, custom-tooled
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
Specifications:
- RE (Ohms): 3.918
- FS (Hz): 49.9826
- VAS (L): 5.6312
- Qes: 0.5327
- Qms: 4.4138
- Qts: 0.4753
- Le (mH): 3.1056
- BL (NA): 26.5116
- Mms (Grams): 304.2236
- Cms (uM/N): 33.3280
- Sens (dB @ 1w/1m): 82.9533
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Innovative high-velocity cast aluminum vented frame spacer ring
- Black Aluminum 3" voice coil former for superior heat dissipation
- Double stitched surround
10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
This listing includes:
- (1) 10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
Description:
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension†woofer in the Sundown lineup. A double-stacked 9.4-inch-wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom, substantially thicker aluminum frame was designed specifically for the U Series, equipped with heat dissipation ribs. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is kept in check via a high-velocity solid pole / machined pole channels arrangement and a series of 16 direct air-gap vents in the back plate.
Features:
- Black Aluminum 3" voice coil former for superior heat dissipation
- High Temperature Round-Wire ALU voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast baskets - all new, custom-tooled
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
Specifications:
- RE (Ohms): 3.918
- FS (Hz): 49.9826
- VAS (L): 5.6312
- Qes: 0.5327
- Qms: 4.4138
- Qts: 0.4753
- Le (mH): 3.1056
- BL (NA): 26.5116
- Mms (Grams): 304.2236
- Cms (uM/N): 33.3280
- Sens (dB @ 1w/1m): 82.9533
Original: $688.00
-70%$688.00
$206.40Description
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Innovative high-velocity cast aluminum vented frame spacer ring
- Black Aluminum 3" voice coil former for superior heat dissipation
- Double stitched surround
10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
This listing includes:
- (1) 10" 2 Ohm 1750W RMS V.2 Dual Voice Coil Subwoofer Sundown U-Series U-10-D2-V2
Description:
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension†woofer in the Sundown lineup. A double-stacked 9.4-inch-wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom, substantially thicker aluminum frame was designed specifically for the U Series, equipped with heat dissipation ribs. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is kept in check via a high-velocity solid pole / machined pole channels arrangement and a series of 16 direct air-gap vents in the back plate.
Features:
- Black Aluminum 3" voice coil former for superior heat dissipation
- High Temperature Round-Wire ALU voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast baskets - all new, custom-tooled
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
Specifications:
- RE (Ohms): 3.918
- FS (Hz): 49.9826
- VAS (L): 5.6312
- Qes: 0.5327
- Qms: 4.4138
- Qts: 0.4753
- Le (mH): 3.1056
- BL (NA): 26.5116
- Mms (Grams): 304.2236
- Cms (uM/N): 33.3280
- Sens (dB @ 1w/1m): 82.9533
