• The Z v.6 features a high-velocity pole vent
• They are designed for the LOWEST level of bass extension possible
• 3" diameter 8-Layer Flat Wire Aluminum Voice Coil
• Power Handling: 2500 Watts RMS
• Dimensions: 20"x20"x20"

This Listing Includes:

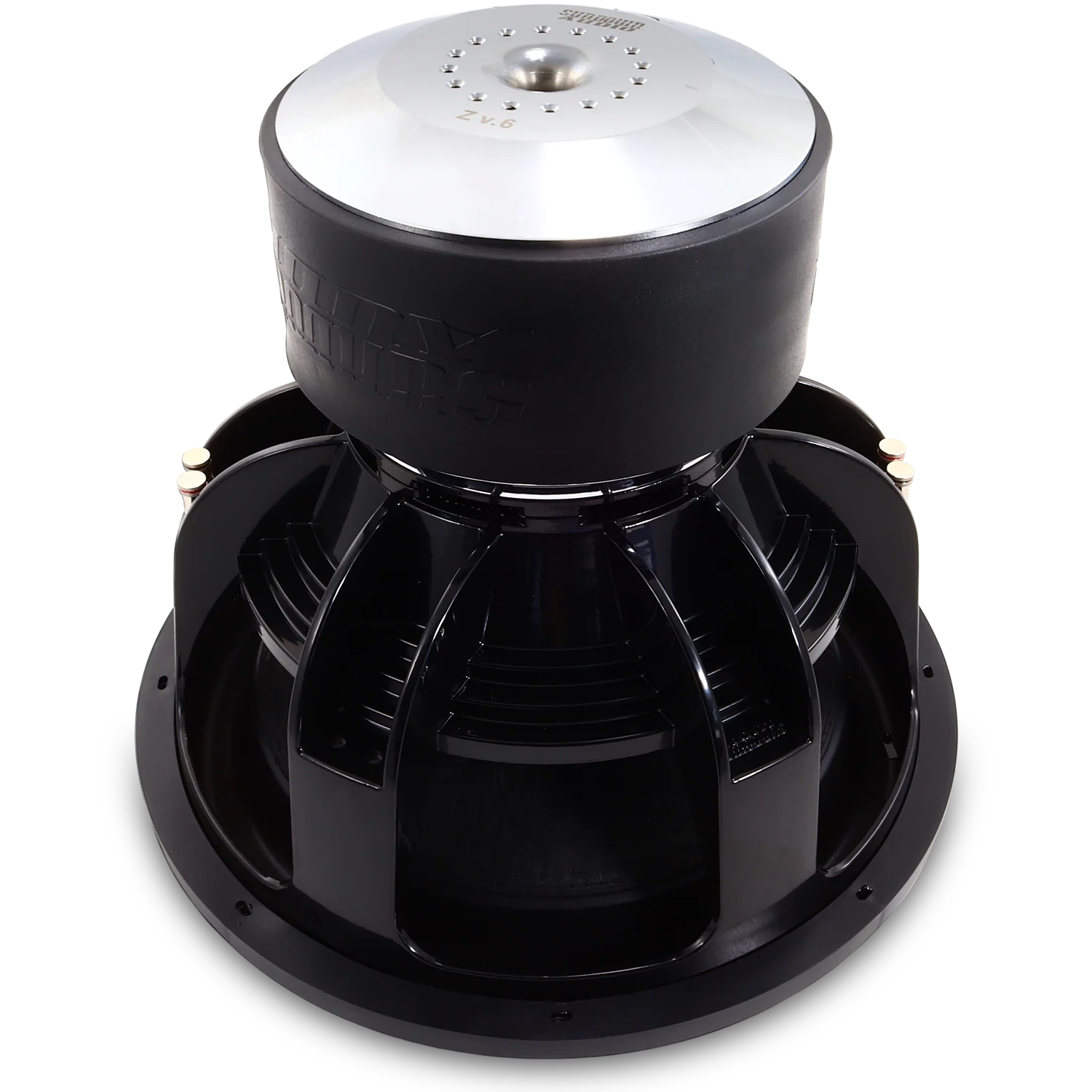

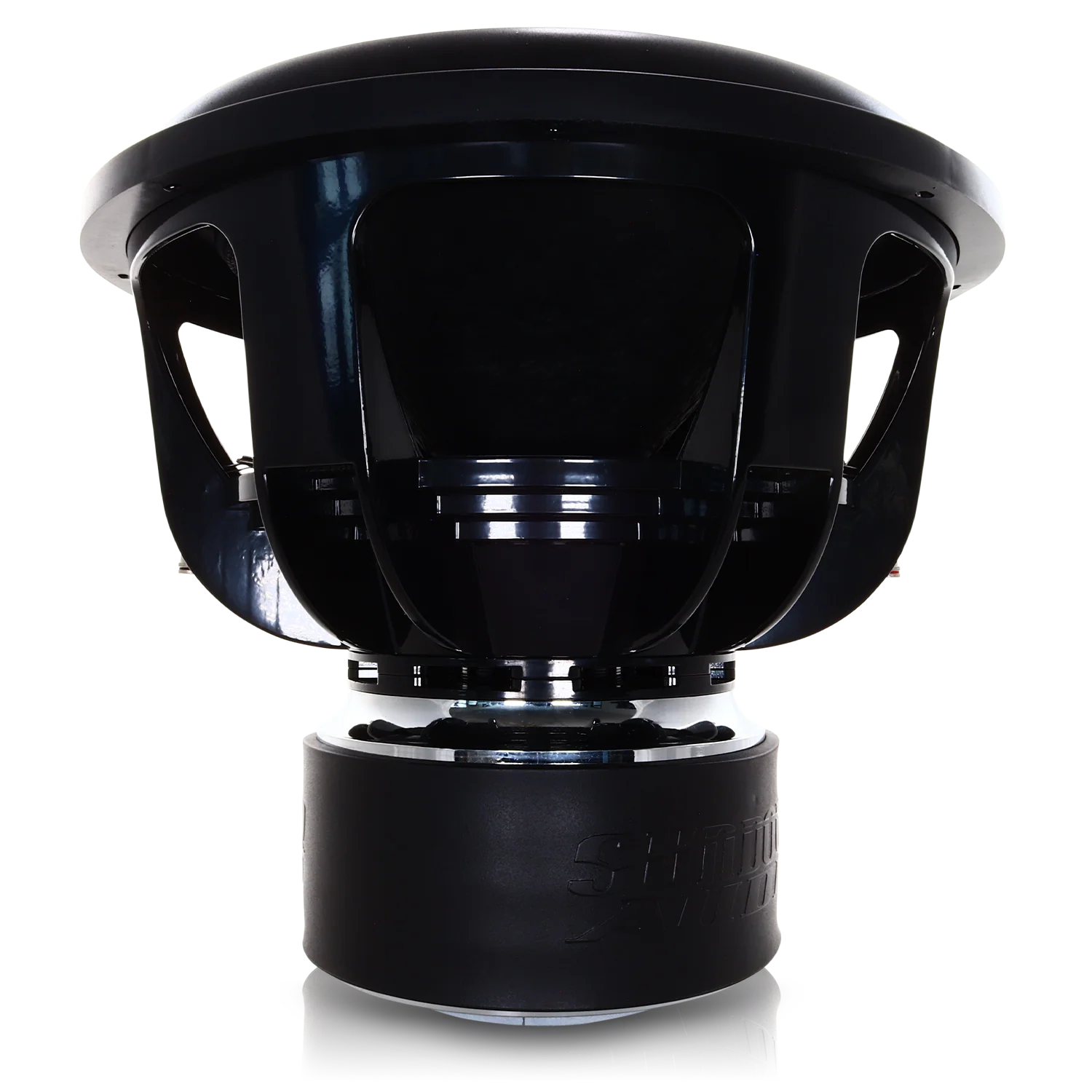

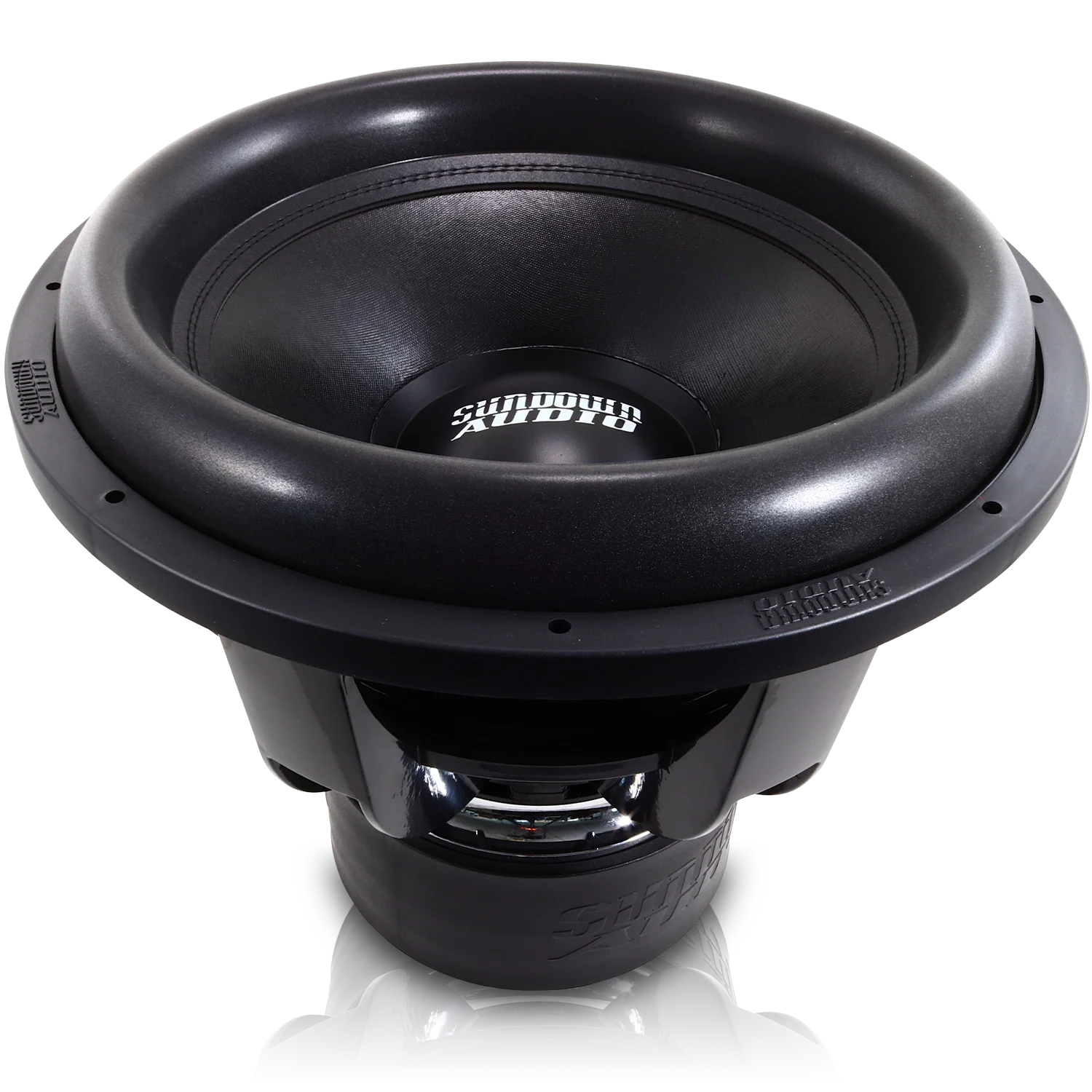

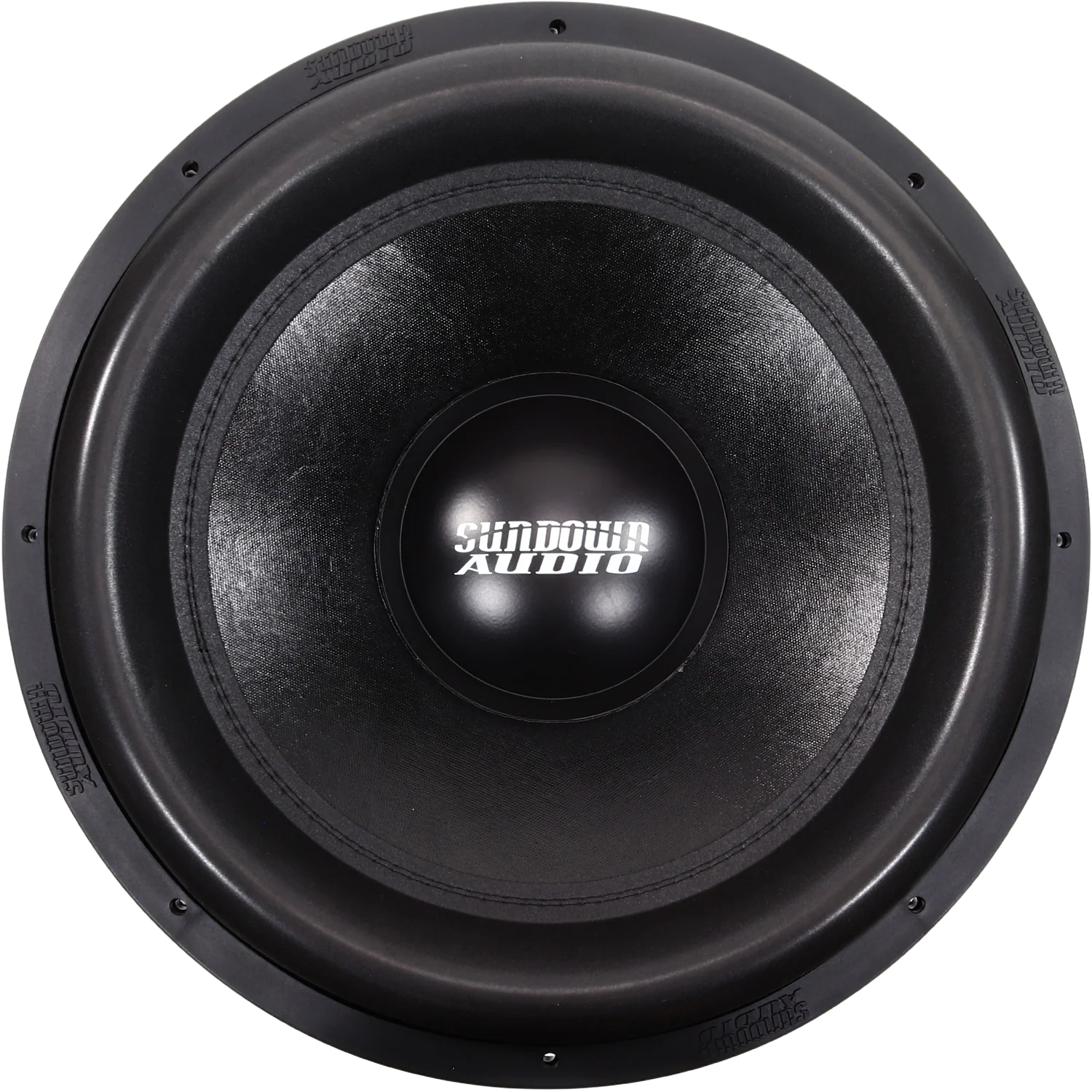

(1) Sundown Audio Z v.6 Series 18" 5000W Peak Dual 2 Ohm VC Car Subwoofer ZV6-18-D2

Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. Features a high-velocity pole vent, a heavily vented magnetic gap, and machined channels in four places around the pole piece itself.

Features:

• Power Handling: 2500 Watts RMS


• Xmax = 35mm one-way by 70% BL


• Heavily vented magnetic gap


• Spring Loaded Terminals


• Optimized high-velocity pole vent


• Innovative high-velocity cast-aluminum vented frame spacer ring


• Black aluminum 3 inch 8-layer voice coil


• Mega-Roll v.2 surround


• Custom tooled basket


• Large aluminum Faraday (shorting) Ring


• Stitched-On XL Tinsel Leads to prevent fatigue and failure


• Custom-tooled ultra-linear spider packs

Specifications:

• RE (Ohms)                 4


• FS(Hz)                        24.123


• VAS(L)                        116.3911


• Qes                              0.4265


• Qms                             5.7355


• Qts                               0.397


• Le(mH)                       4.3519mH


• BL(NA)                        31.2785


• Mms(Grams)             690.5587g


• Cms(uM/N)               63.0341 uM/N


• Sens(dB @ 1w/1m)  87.5806dB

Dimensions: 20"x20"x20"
