• Impedance Dual 1 -or- Dual 2 Ohm
• Power Handling: 3000 Watts RMS
• Radially vented magnetic gap
• Thermally conductive, Aluminum top-gap plate

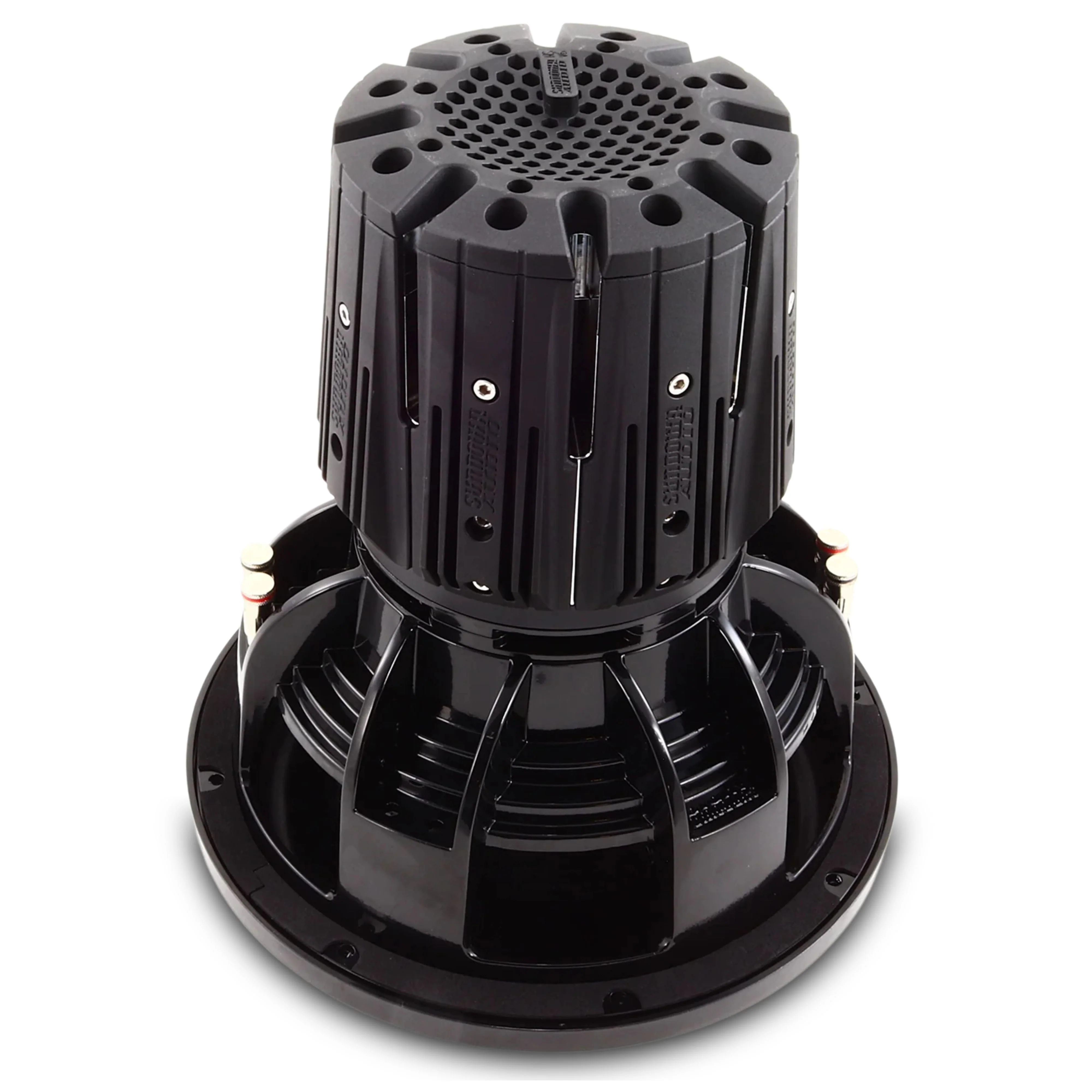

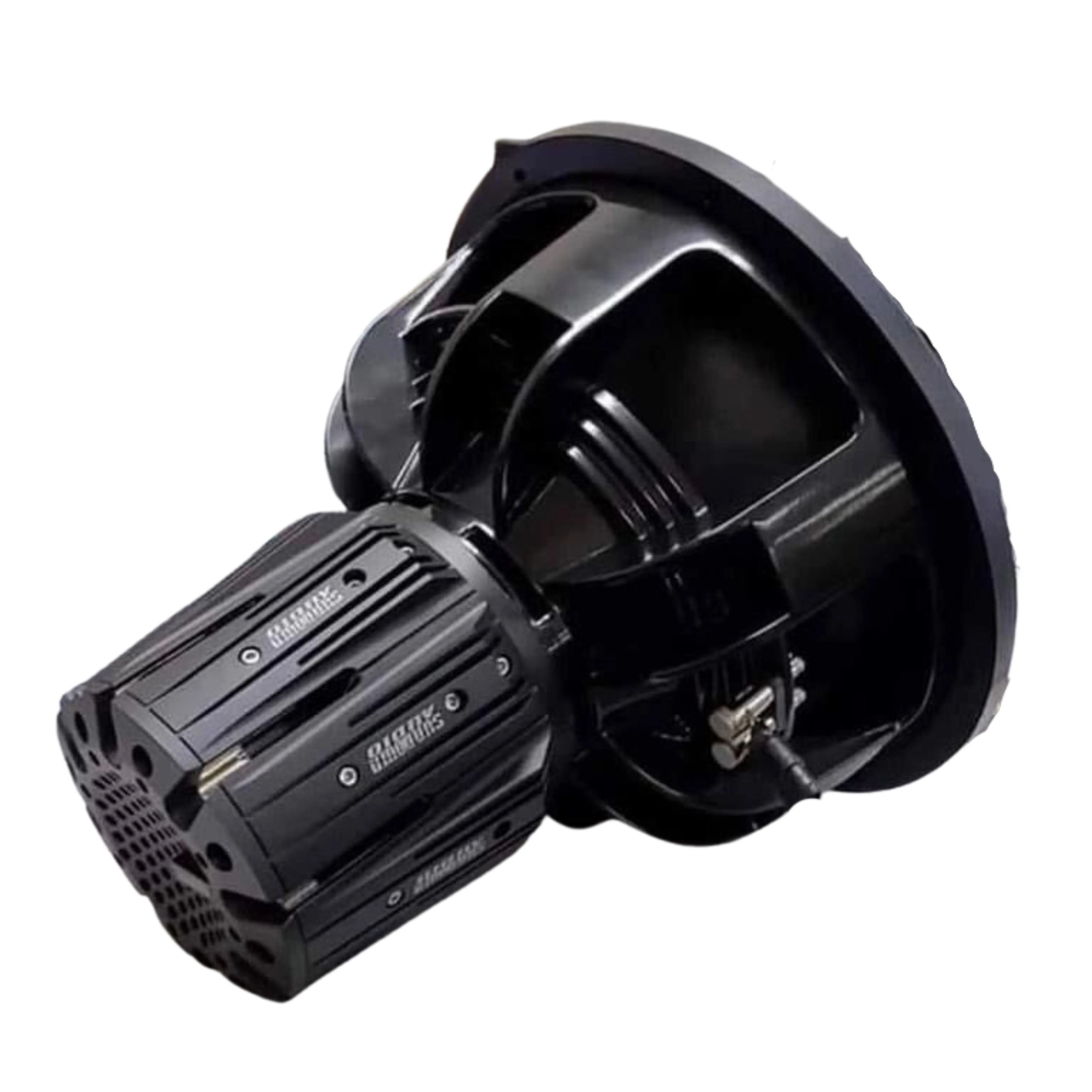

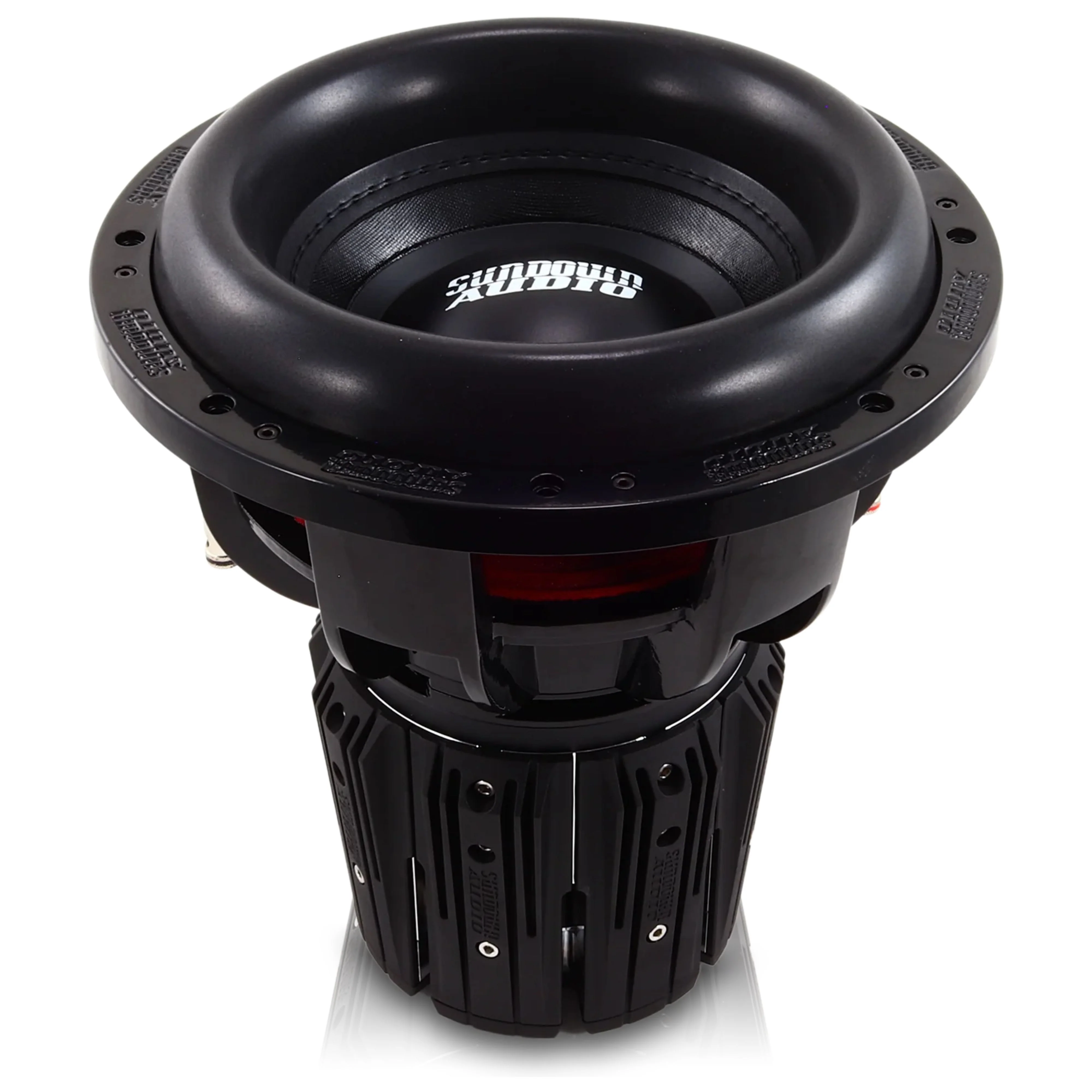

Sundown Car Audio 12" Nightshade Subwoofer Dual 1/2 Ohm V.6 3000W RMS

This Listing Includes:

(1) 12" Nightshade V6 Subwoofer Dual 1 ohm

-or-

(1) 12" Nightshade V6 Subwoofer Dual 2 ohm

The NS v.5 is the absolute top-tier driver in Sundown's "ultra-high excursion" sub-woofer lineup with a 3" coil. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Our proprietary frames allow 4" or more of peak-to-peak mechanical excursion.

D1 Specifications:

• RE (Ohms): 1.8822


• FS (Hz): 39.5505


• VAS (L): 12.002


• Qes: 0.4433


• Qms:6.0739


• Qts:0.4131


• Le (mH): 1.5815


• BL (NA): 20.5672


• Mms (Grams): 400.8850


• Cms (uM/N): 40.3939


• Sens (dB @ 1w/1m): 83.9874

D2 Specifications:

• RE (Ohms):3.3581


• FS (Hz): 38.7336


• VAS (L): 11.6607


• Qes: 0.4327


• Qms: 5.3532


• Qts: 0.4004


• Le (mH): 3.0081


• BL: (NA): 28.5017


• Mms (Grams): 430.1454


• Cms (uM/N):  39.2509


• Sens (dB @ 1w/1m): 83.6950

Features:

• Power Handling: 3000 Watts RMS


• Xmax = 40mm one-way by 70% BL


• Patented S.A.I.N.T. Motor Design – Sundown Exclusive


• Radially vented magnetic gap


• Spring Loaded Terminals


• Solid Pole-Piece with Four Vent Channels


• Innovative high-velocity cast-aluminum vented frame spacer ring


• Thermally conductive, Aluminum top-gap plate


• Black aluminum 3 inch 8-layer voice coil


• Mega-Roll v.2 surround


• Custom tooled basket


• Large aluminum Faraday (shorting) Ring (over 2 lbs)


• Stitched-On XL Tinsel Leads to prevent fatigue and failure


• Custom-tooled ultra-linear spider packs
