• Impedance Dual 1 ohm -or- Dual 2 ohm
• Power Handling: 3000 Watts RMS
• Radially vented magnetic gap
• Black aluminum 3 inch 8-layer voice coil
• Custom-tooled ultra-linear spider packs

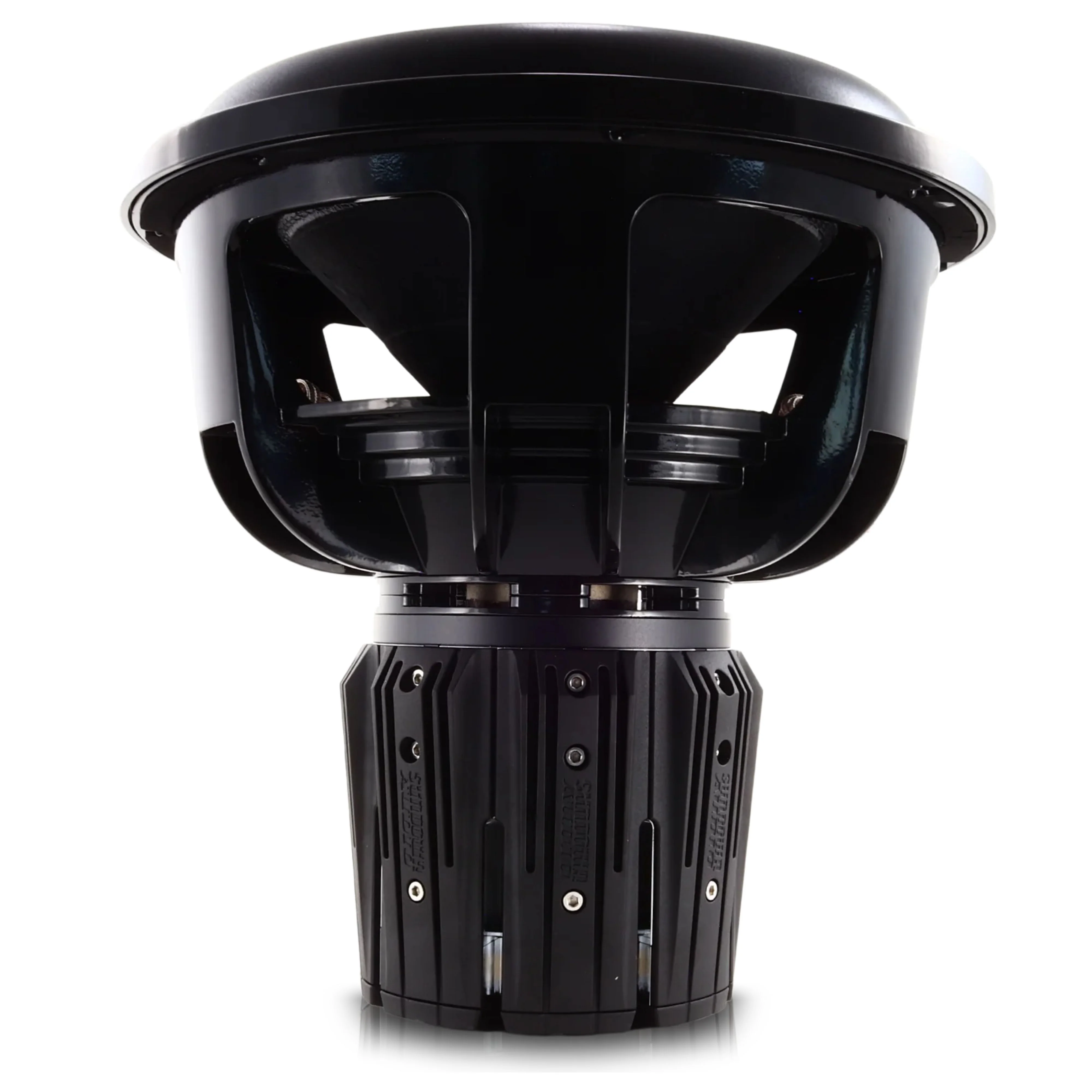

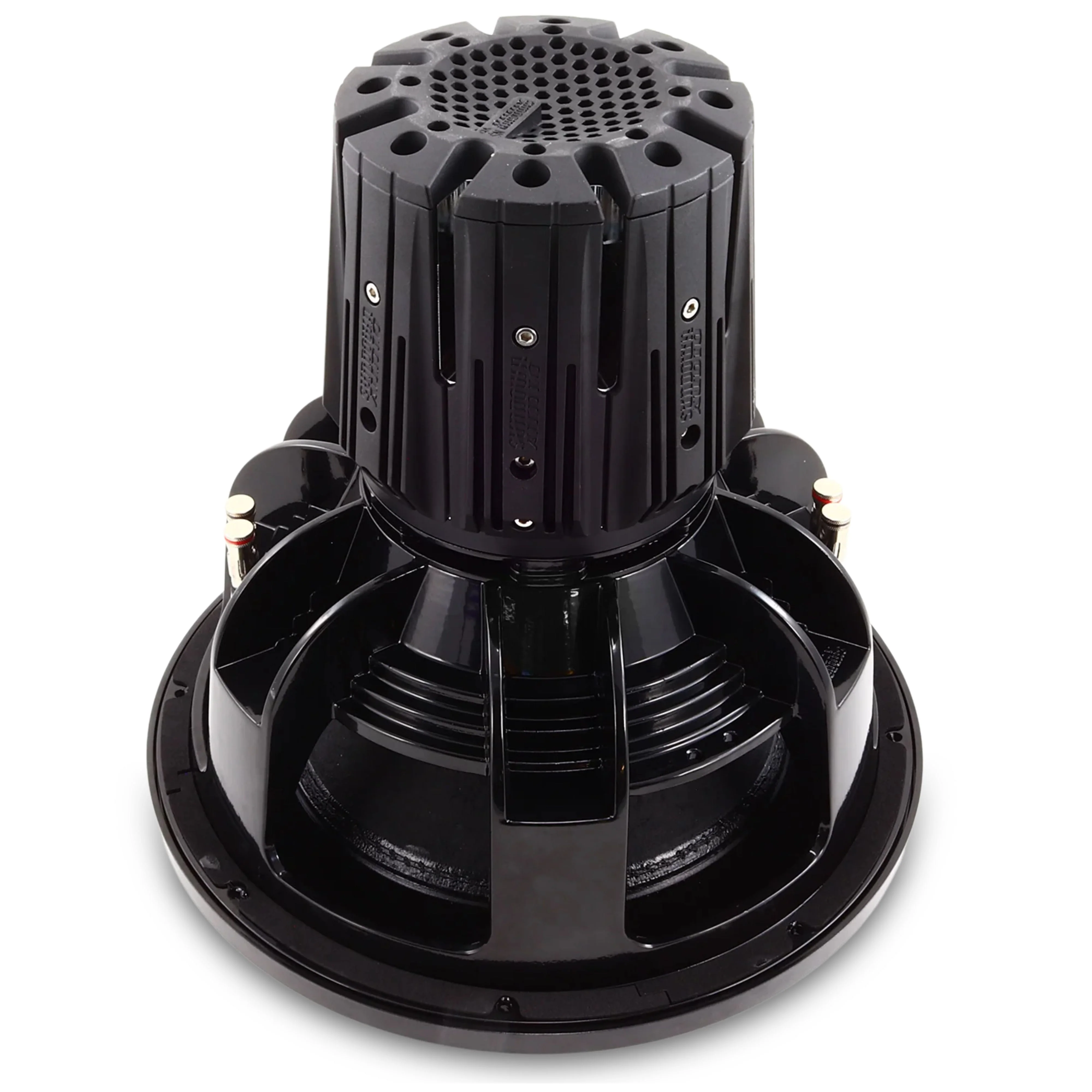

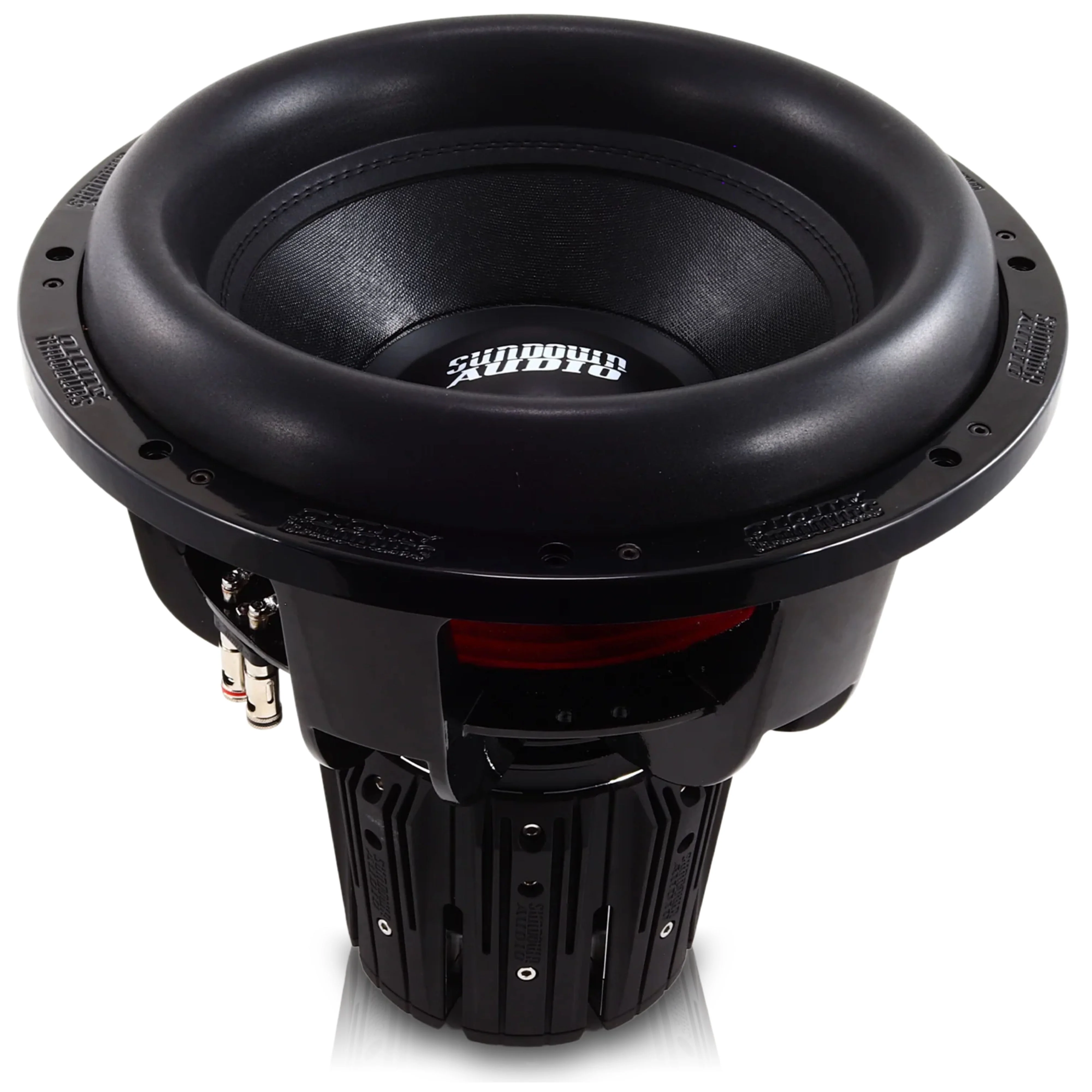

Sundown Car Audio 15" Nightshade Subwoofer Dual 1/2 Ohm V.6 3000W RMS

This Listing Includes:

(1) 15" Nightshade Subwoofer V6 Dual 1 ohm

-or-

(10 15' Nightshade Subwoofer V6 Dual 2 ohm

The NS v.5 is the absolute top-tier driver in Sundown's "ultra-high excursion" sub-woofer lineup with a 3" coil. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Our proprietary frames allow 4" or more of peak-to-peak mechanical excursion.

D1 Specifications:

• RE (Ohms): 1.7837


• FS (Hz): 36.3627


• VAS (L): 29.7918


• Qes: 0.4957


• Qms: 5.3017


• Qts: 0.4533


• Le (mH): 1.5238


• BL (NA): 19.9953


• Mms (Grams): 486.3356


• Cms (uM/N): 39.3906


• Sens (dB @ 1w/1m): 86.3559

D2 Specifications:

• RE (Ohms):3.5859


• FS (Hz): 35.9790


• VAS (L): 28.4285


• Qes: 0.5076


• Qms: 5.6081


• Qts: 0.4655


• Le (mH): 3.2513


• BL: (NA): 28.8342


• Mms (Grams): 520.5871


• Cms (uM/N):  37.5880


• Sens (dB @ 1w/1m): 85.9115

Features:

• Power Handling: 3000 Watts RMS


• Xmax = 40mm one-way by 70% BL


• Patented S.A.I.N.T. Motor Design – Sundown Exclusive


• Radially vented magnetic gap


• Spring Loaded Terminals


• Solid Pole-Piece with Four Vent Channels


• Innovative high-velocity cast-aluminum vented frame spacer ring


• Thermally conductive, Aluminum top-gap plate


• Black aluminum 3 inch 8-layer voice coil


• Mega-Roll v.2 surround


• Custom tooled basket


• Large aluminum Faraday (shorting) Ring (over 2 lbs)


• Stitched-On XL Tinsel Leads to prevent fatigue and failure


• Custom-tooled ultra-linear spider packs
