• SHALLOW MOUNT PERFORMANCE, Designed for tight installs with only 3.9 inch mounting depth, perfect for trucks, under seat enclosures, and space limited builds
• 600 WATTS RMS REAL POWER, Handles 600 watts RMS with a 2.5 inch black aluminum voice coil built for daily driven output and thermal stability
• DUAL 4 OHM CONFIGURATION, Flexible wiring options ideal for 1 ohm final loads when paired with a monoblock amplifier
• ADVANCED COOLING DESIGN, Vented motor gap and solid pole piece improve heat dissipation during extended high output sessions
• SUNDOWN BUILD QUALITY, High roll surround, progressive spider, stitched mini XL tinsel leads, and bolt through motor assembly for long term reliability

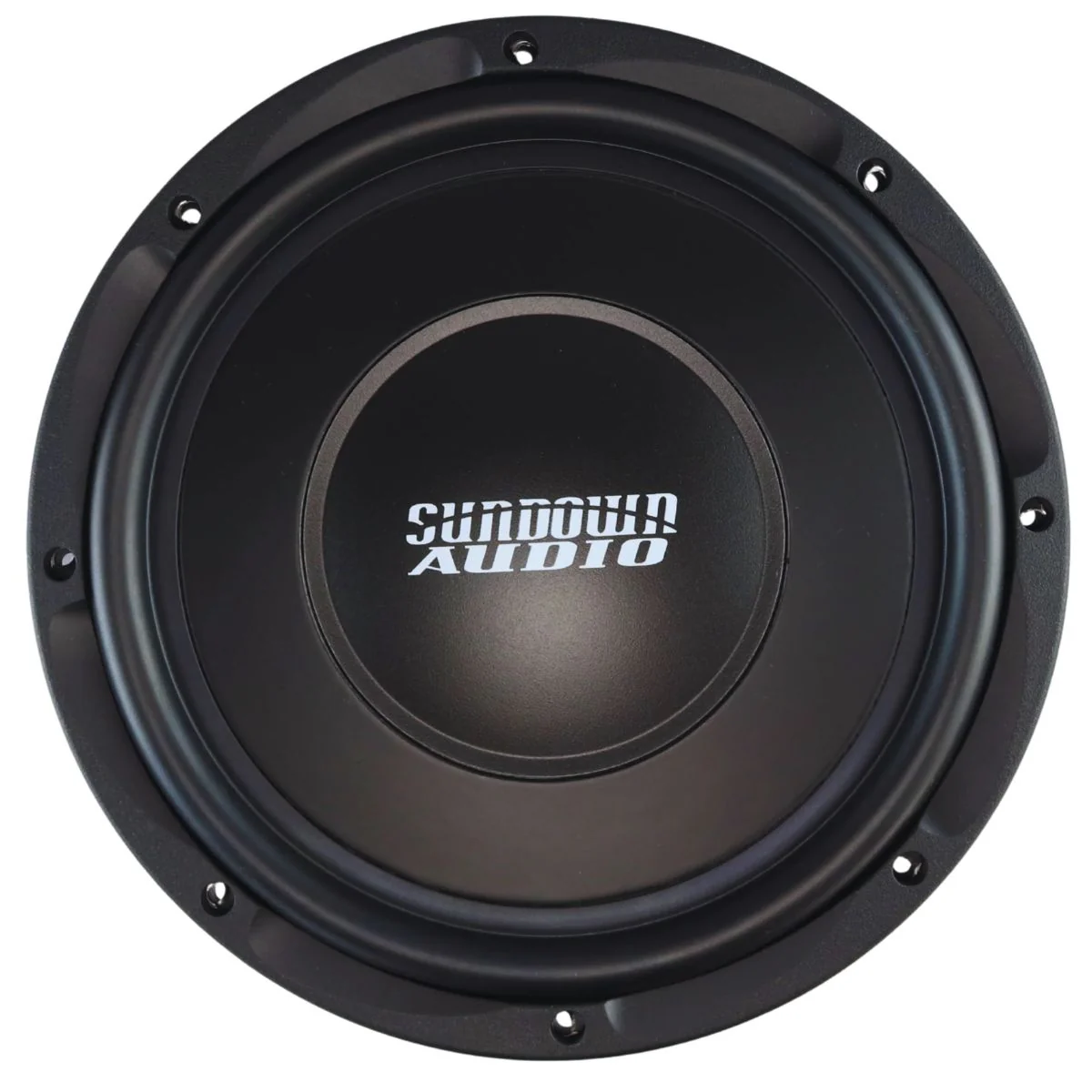

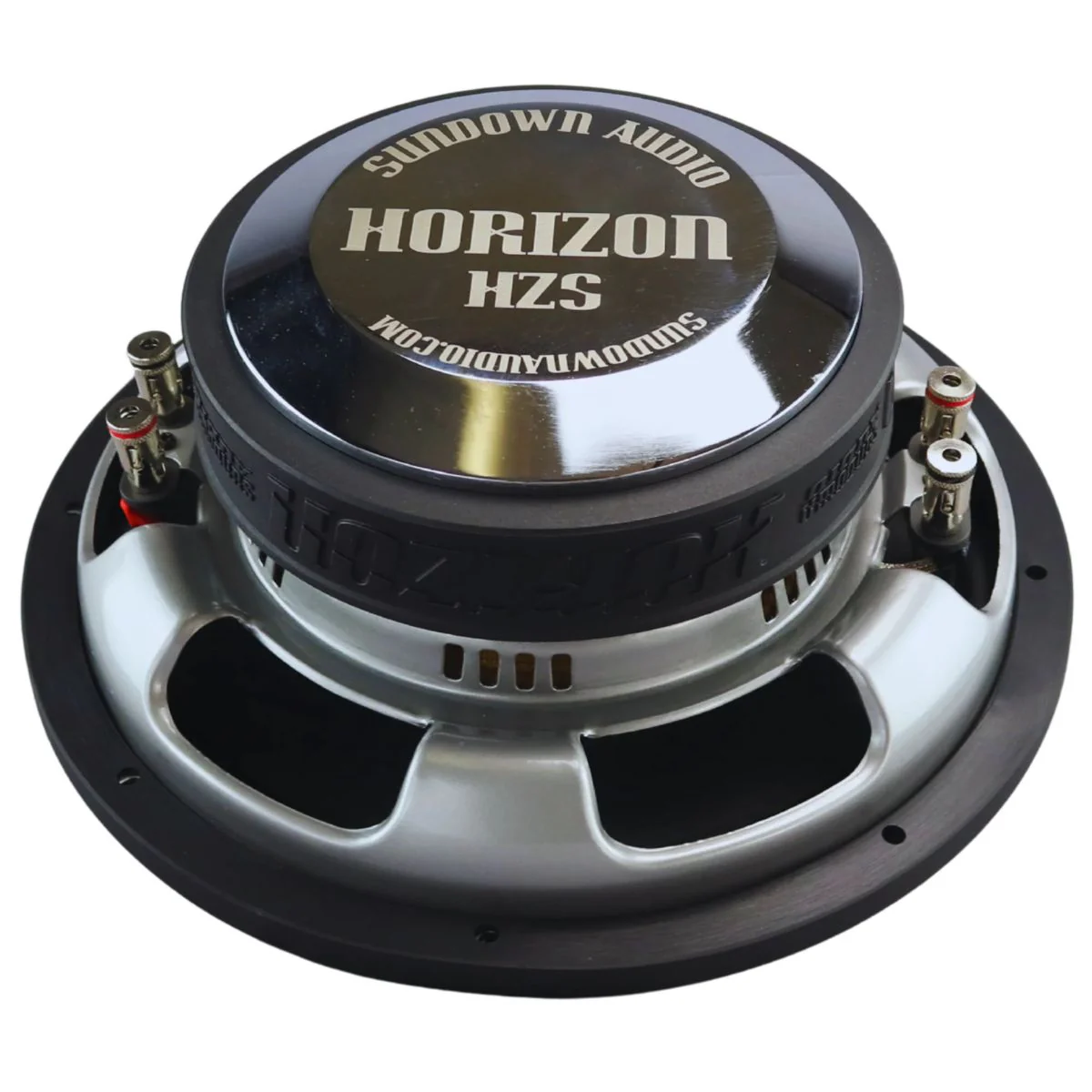

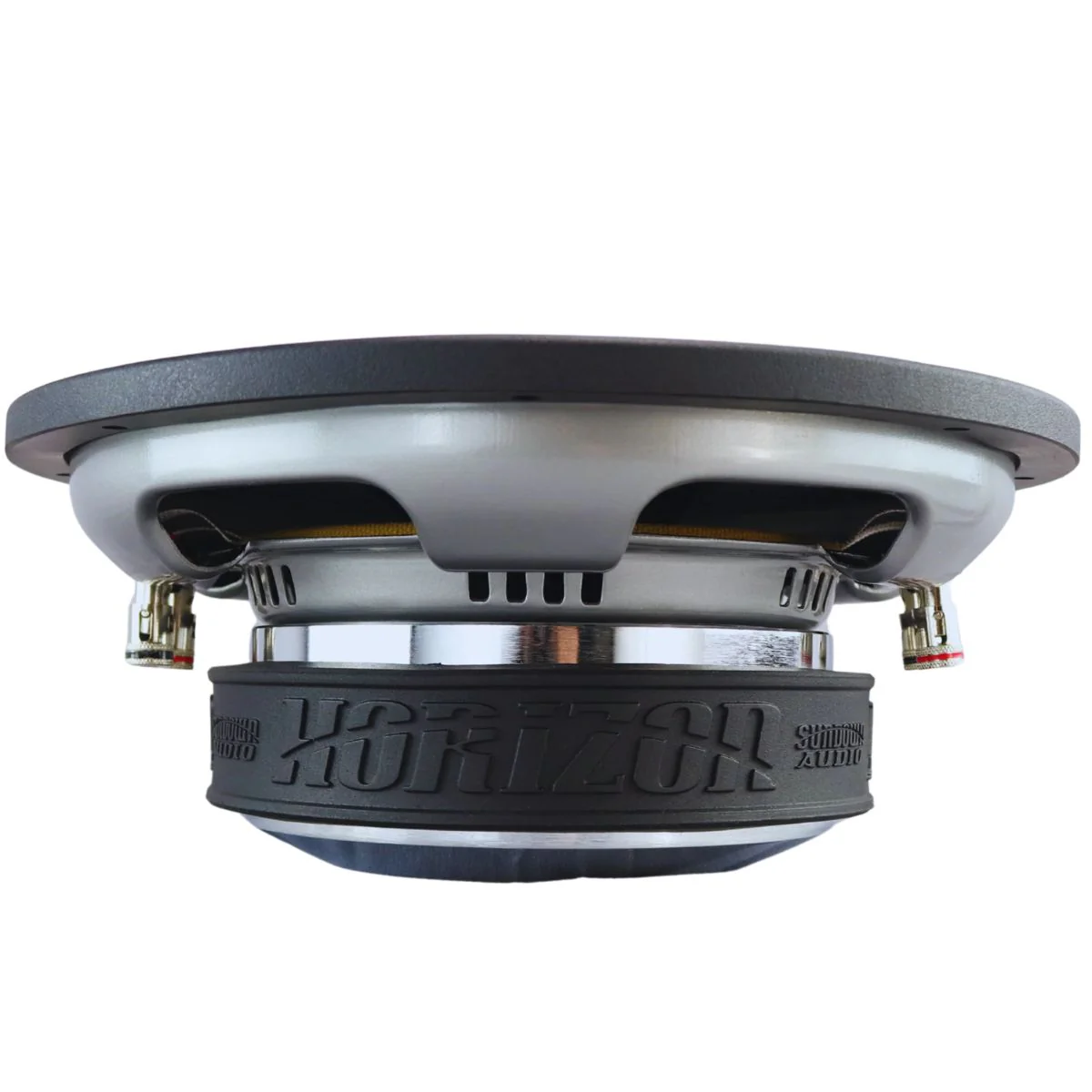

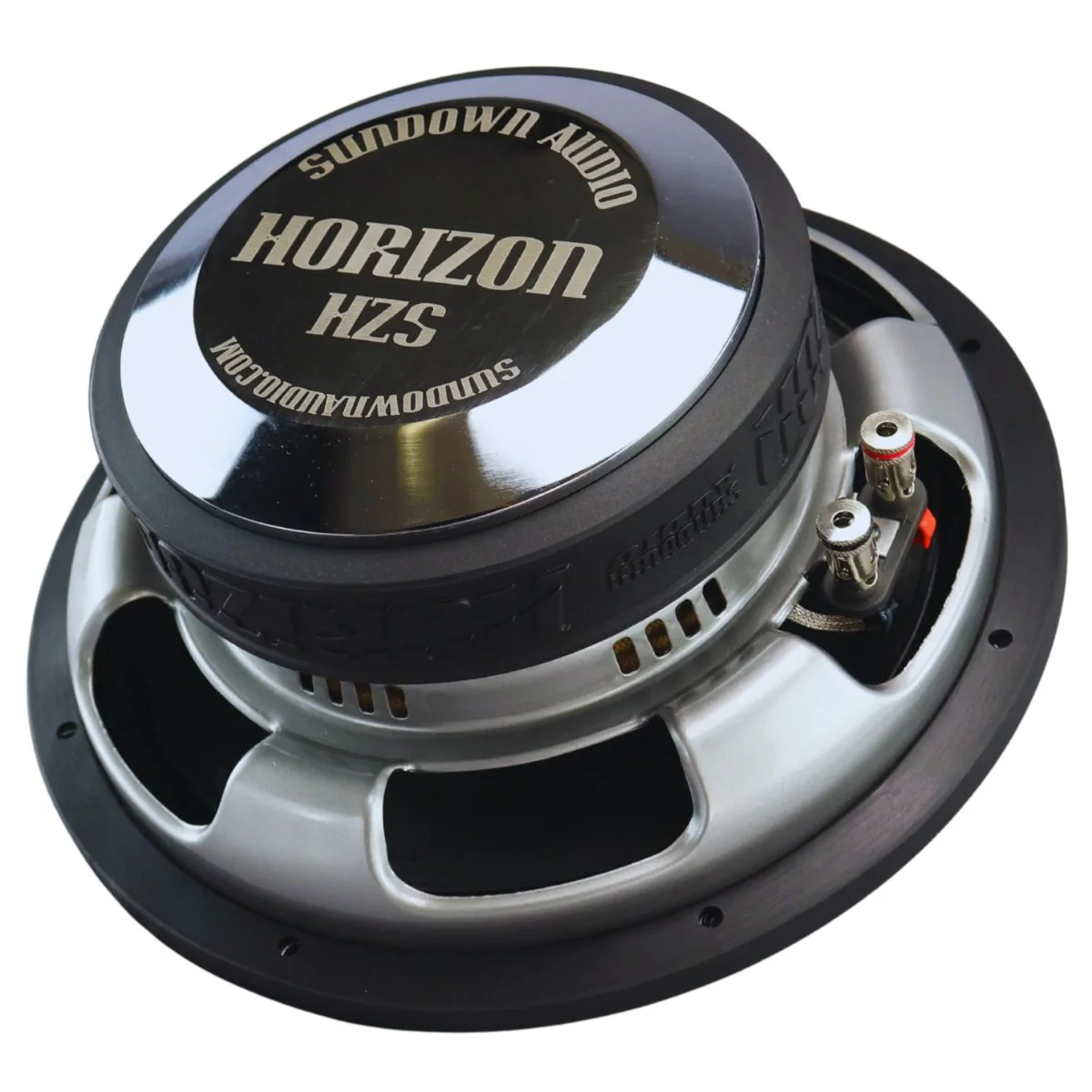

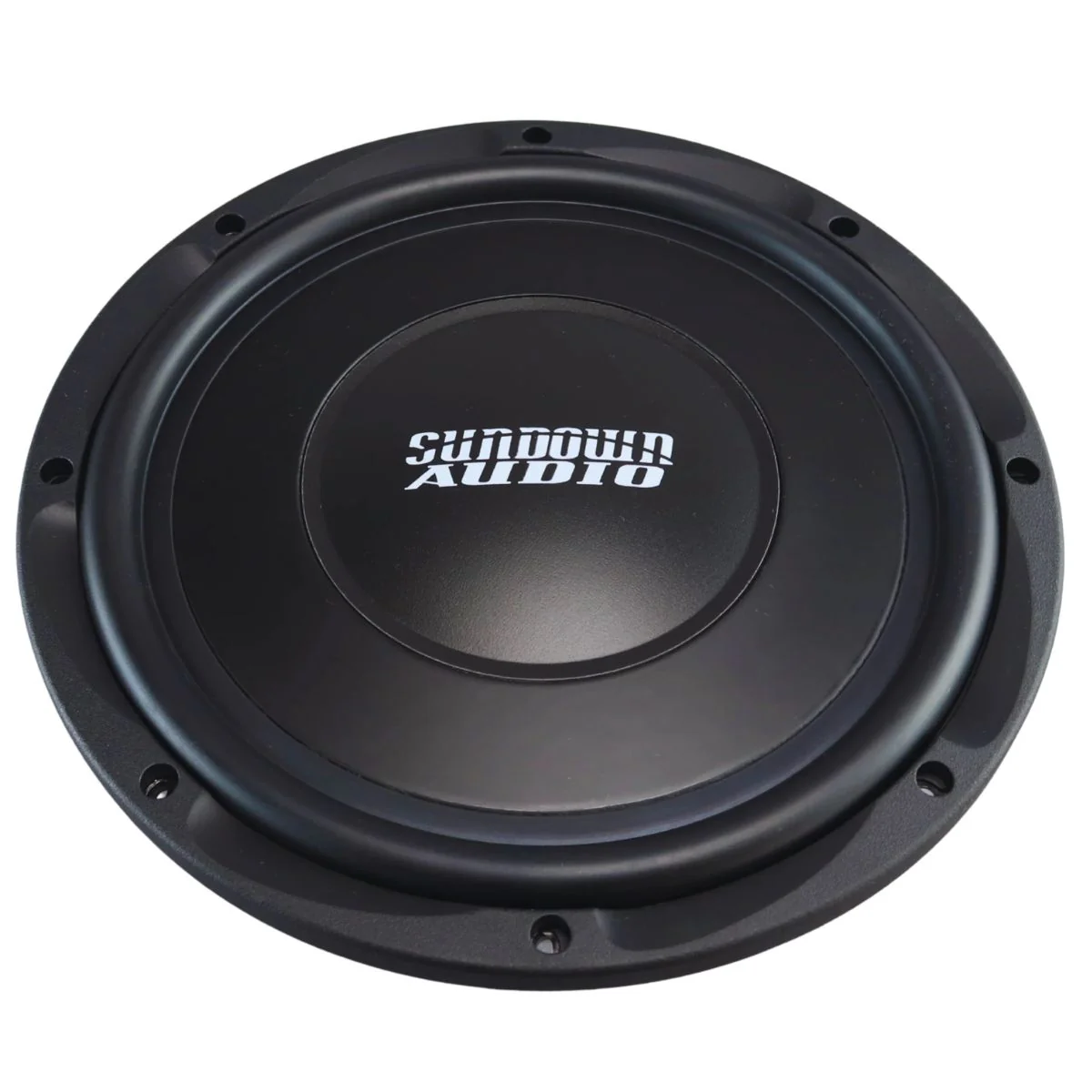

Sundown Horizon 10" 600 Watt RMS Dual 4 Ohm Shallow Mount Subwoofer HZS-10

This Listing Includes:

• (1) Sundown Audio Horizon HZS-10 10" Dual 4 Ohm Subwoofer

The Sundown Audio Horizon HZS-10 Dual 4 Ohm is a purpose built shallow mount 10 inch subwoofer designed for tight installations that still demand real bass performance. Rated at 600 watts RMS, this sub is engineered for compact enclosures behind truck seats, under rear decks, or in stealth builds where mounting depth is limited.

Equipped with a 2.5 inch black aluminum voice coil on a high temperature former, the HZS-10 maintains strong thermal stability during daily high output use. The high roll surround and progressive spider provide smooth, controlled excursion, while stitched mini XL tinsel leads increase long term durability.

The vented motor gap and solid pole piece improve cooling efficiency, and the bolt through motor assembly enhances mechanical strength. Optimized for ported enclosures but fully compatible with sealed designs, this shallow mount sub delivers true Sundown performance without requiring excessive depth.

Specifications:

• RMS Power Handling: 600 Watts RMS


• Voice Coil: 2.5" Black Aluminum Former


• Impedance: Dual 4 Ohm


• Motor Design: Vented Motor Gap with Solid Pole Piece


• Suspension: High Roll Surround with Progressive Spider


• Lead Wires: Stitched Mini XL Tinsel Leads


• Recommended Enclosure: Ported Preferred, Sealed Compatible

T S Parameters:

• Fs: 44.557 Hz


• Vas: 19.254 L


• Qes: 0.578


• Qms: 3.320


• Qts: 0.492


• BL: 20.281 NA


• Mms: 124.028 g


• Cms: 102.871 uM/N


• Sensitivity: 86.6 dB

Dimensions:

• Outer Diameter: 10.3"


• Cutout Diameter: 9.2"


• Mounting Depth: 3.9"


• Motor Diameter: 6.15"
