• High Frequency Driver + 4" x 4" Horn
• 150 Watts Continuous Power, 75 Watts RMS Power
• Impedance: 8 Ohms
• Frequency Response: 1.3 KHz 19 KHz, Sensitivity: 108 dB
• 1" Voice Coil, Phenolic Diaphragm, Ferrite Driver

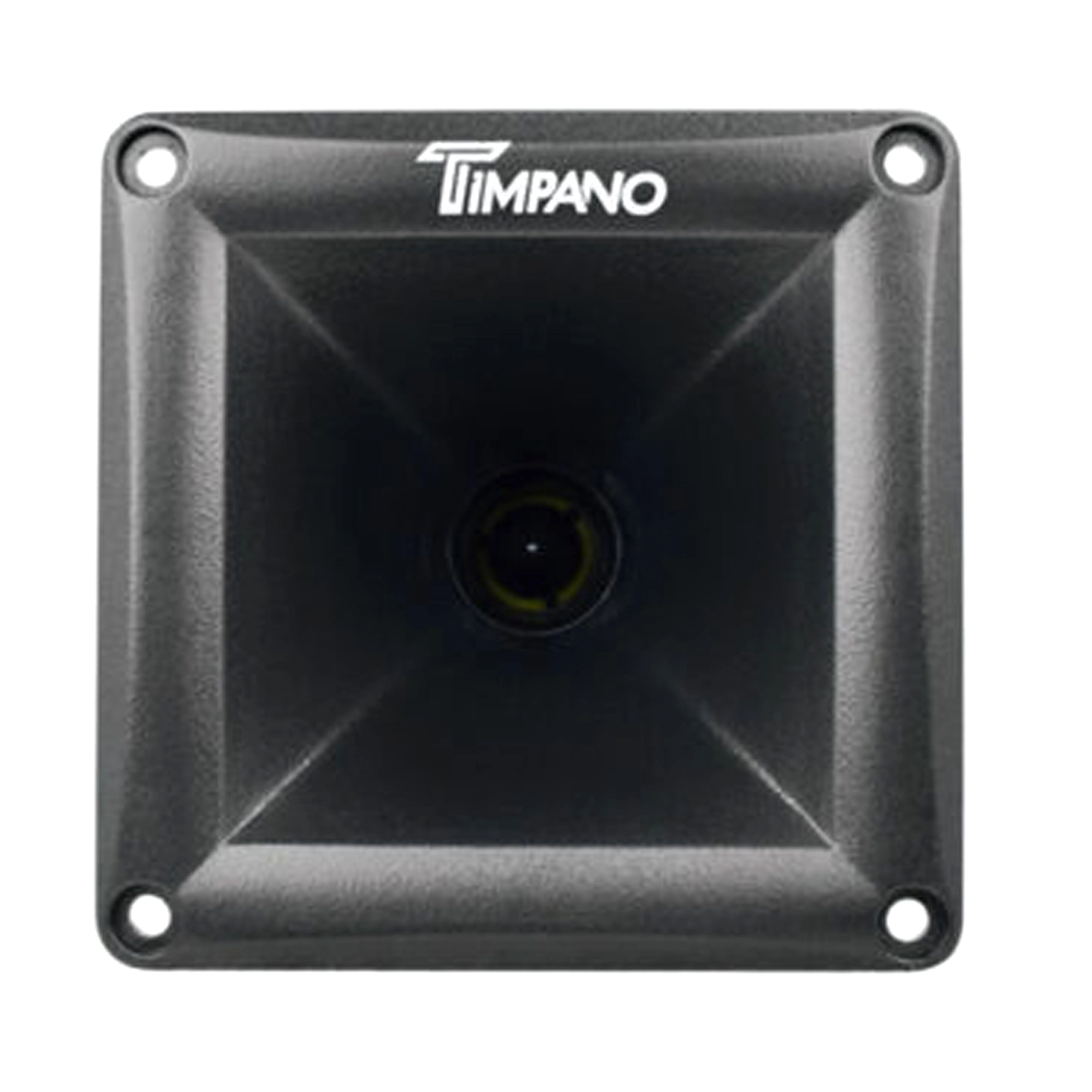

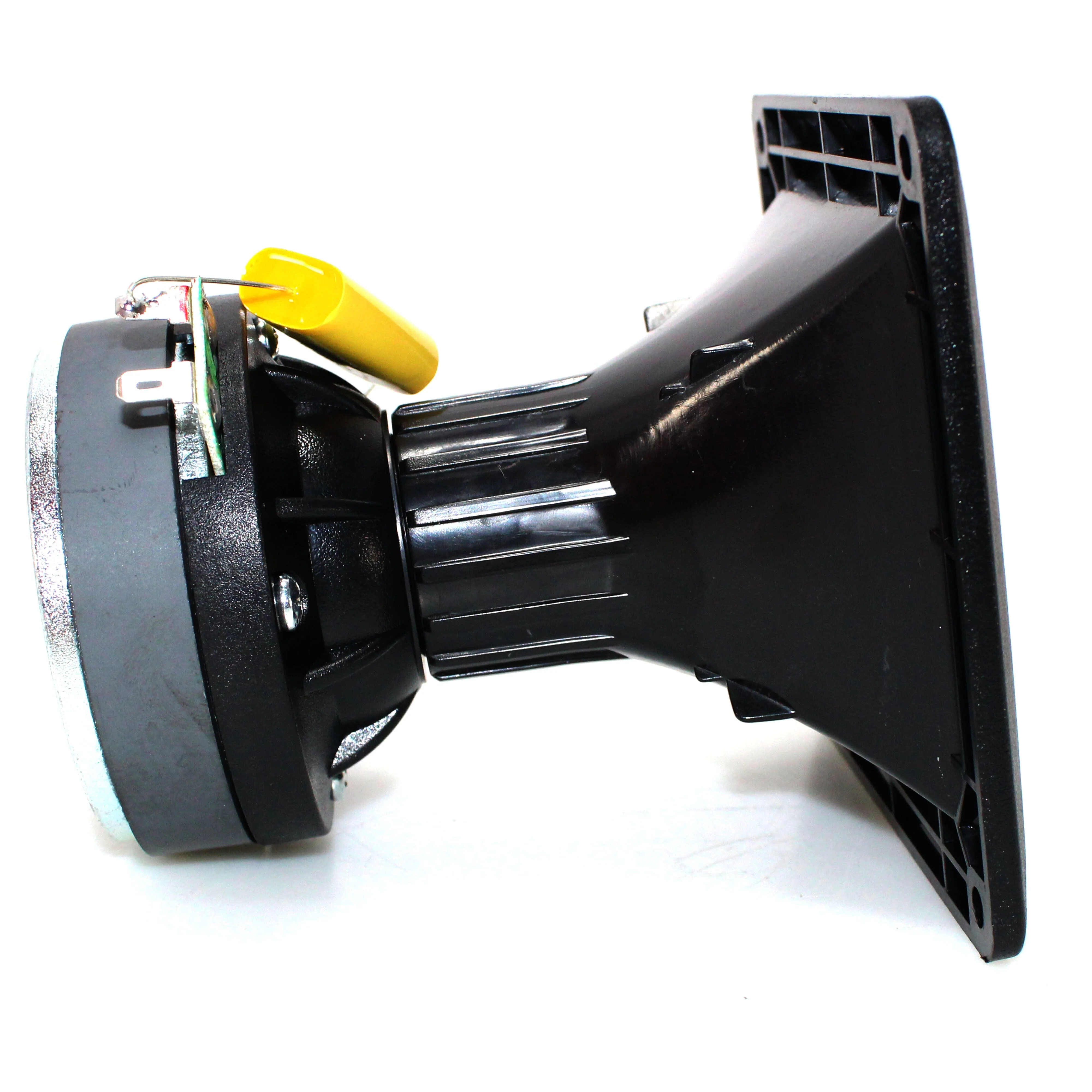

Timpano 4" x 4" Horn 1" 150W 8 Ohm High-Frequency Compression Driver TPT-DH175

This listing includes:

• (1) 4" x 4" Horn 1" 150W 8 Ohm High-Frequency Compression Driver

The Timpano TPT-DH175 is a 1†phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency. Ideal for compact two- and three way systems. The 4.5" x 4.5" horn produces a controlled 45 x 45 dispersion pattern to reduce unwanted reflections while still delivering room filling sound. With a common footprint, this is an excellent tweeter for use as a replacement.

Specifications:

• High Frequency Driver + 44 Horn


• 150 Watts Continuous Power


• 75 Watts RMS Power


• Impedance: 8 Ohms


• Sensitivity: 108 dB


• Frequency Response: 1.3 KHz - 19 KHz


• 1" Voice Coil


• Phenolic Diaphragm


• Ferrite Driver

Dimensions:

• Length: 3.5 inch


• Width: 3.5 inch


• Height: 4.92 inch


• Overall Depth: 4.92 inch


• Mounting Depth: 4.64 inch


• Mounting Cutout Diameter: 3.5 inch
