• CRYSTAL CLEAR HIGHS: These tweeters are capable of generating extremely loud volume you need to keep up in the high SPL environment
• DESIGNED FOR EFFICIENCY: The aluminum diaphragm has been engineered to take the power needed to keep up and maintain crystal clarity
• BUILT IN CROSSOVER: A capacitor that eliminates out all low end frequencies that might otherwise harm the super tweeters
• COMPACT: The terminal of the ST4 are compact for easy installation
• QUALITY YOU CAN TRUST: Engineered and designed in the USA, the ST4 are high compression bullet tweeters that are rated at 250 watts max peak power each. Ready to delivery major concert sound to your sound system.

Timpano 3.5 Inch 240W 4 Ohm 1 Inch VC Black Bullet Super Tweeters Pair TPT-ST4

This listing includes:

• (2) Bullet Super Tweeters 3.5" 240 Watts 4 Ohm in Black


• (4) Mounting Screws

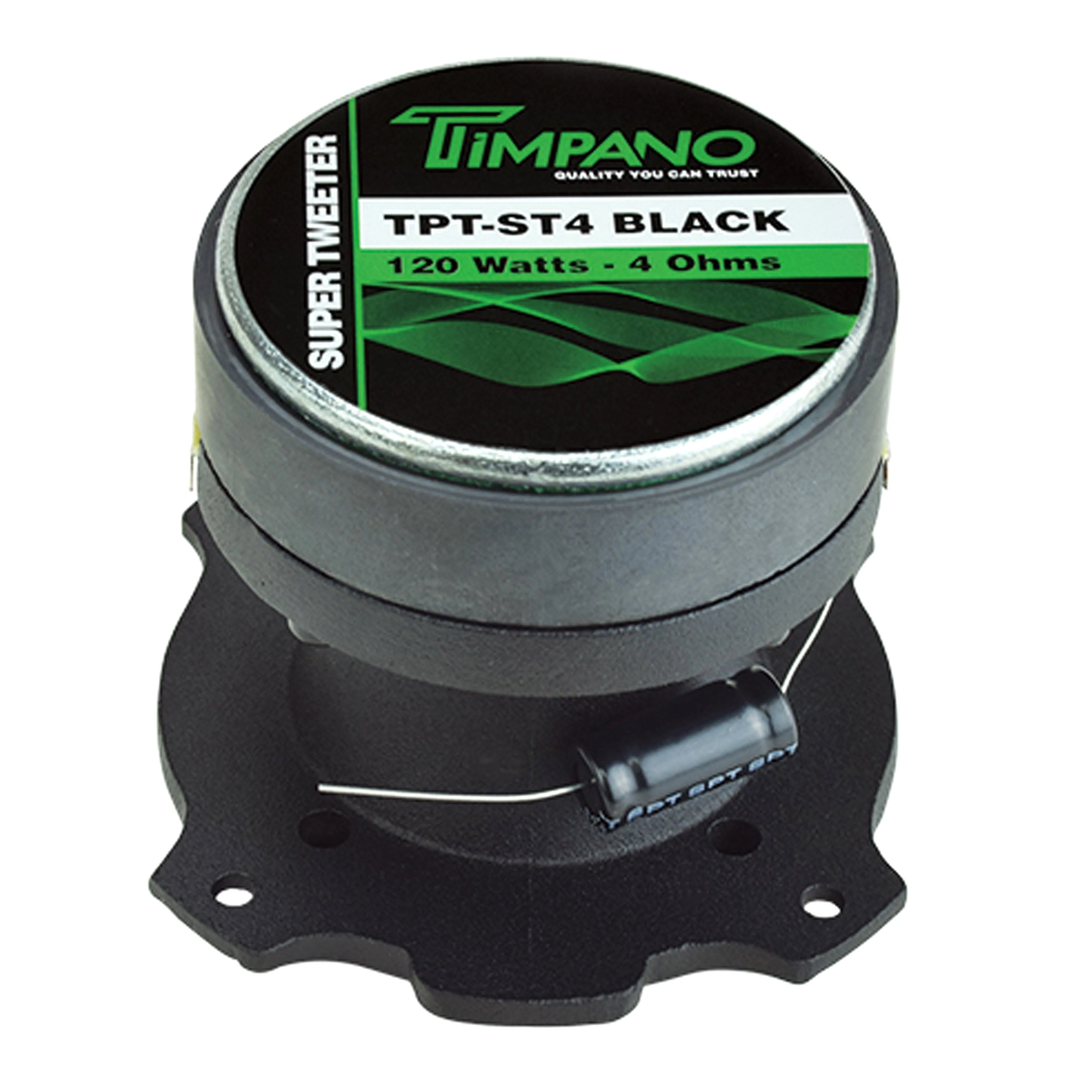

• HPF Capacitor attached per tweeter

These super tweeters are designed to generate extremely loud volume. Built with an aluminum diaphragm, these tweeters are engineered to keep up and maintain crystal clarity. The Timpano 3.5 Super Tweeters come with a built-in crossover capacitor that aids in eliminating low end frequencies. Engineered and designed in the USA by PRV Audio Group, the ST4 are a high-performance pair of 3.5-inch-high compression bullet tweeters that are rated at 250 watts max peak power. Ready to delivery major concert sound to your sound system.

Also Available in Chrome Finish

*Please Note that the sticker on the back of these items state the Continuous Power Rating instead of the Peak Power Rating. *

Features:

• Pair of 3.5 inch Super Tweeters with black bullets


• 500 Watts Max Power per pair of Super Tweeters


• Frequency Response of 2,000 22,000Hz at a maximum of 105 dB


• Built In Crossover capacitor that eliminates all low-end frequencies that might otherwise harm the super tweeters.


• Aluminum Diaphragm with a 1 4 Ohm Voice Coil in each Super Tweeter

Specifications:

• 500 Watts Max Power per pair / 250 Watts each


• 240 Watts continuous Power per pair / 120 Watts each


• 120 Watts RMS Power per pair / 60 Watts each


• Impedance: 4 Ohms each tweeter


• Sensitivity: 105 dB


• Frequency Response: 2,000 - 22,000Hz


• Aluminum Diaphragm with a 1 voice coil


• Replacement Diaphragm: TPT-RPST4

Recommended High Pass Filter on TPT-SP4BT DSP, Based on Power per Tweeter:

• 7500 Hz under 120 Watts of Amplifier RMS Power with 18dB Slope


• 6000 Hz under 60 Watts of Amplifier RMS Power with 12dB Slope

Item Dimensions Each Tweeter:

• Overall Diameter: 3.75 inch


• Overall Depth: 2.75 inch


• Mounting Depth: 2.39 inch


• Mounting Cutout Diameter: 2.79 inch
