XS Power 6 Pack DIY Kit White 40AH LTO Cell Bank 2.3v W/ Dog Bones & Balancer
- Unleash Unrivaled Power: With advanced LTO cell technology boasting a 40Ah capacity, this kit provides the raw power needed to fuel your most demanding applications.
- Complete Control with Dog Bones & Balancer: The included XS Power Dog Bones and Balancer empower you to optimize performance and ensure the longevity of your power system.
- DIY Convenience: Designed for easy installation and customization, this kit puts you in the driver's seat, allowing you to tailor your power solution to your specific needs.
- Versatile Applications: Whether you're upgrading your car audio system or powering your off-grid adventures, this kit is versatile enough to handle any challenge you throw its way.
- Reliable Performance: Engineered for durability and reliability, the XS Power 6 Pack DIY Kit delivers consistent performance, keeping you powered up and ready for action whenever you need it most.
XS Power 6 Pack DIY Kit White 40AH LTO Cell Bank 2.3v W/ Dog Bones & Balancer

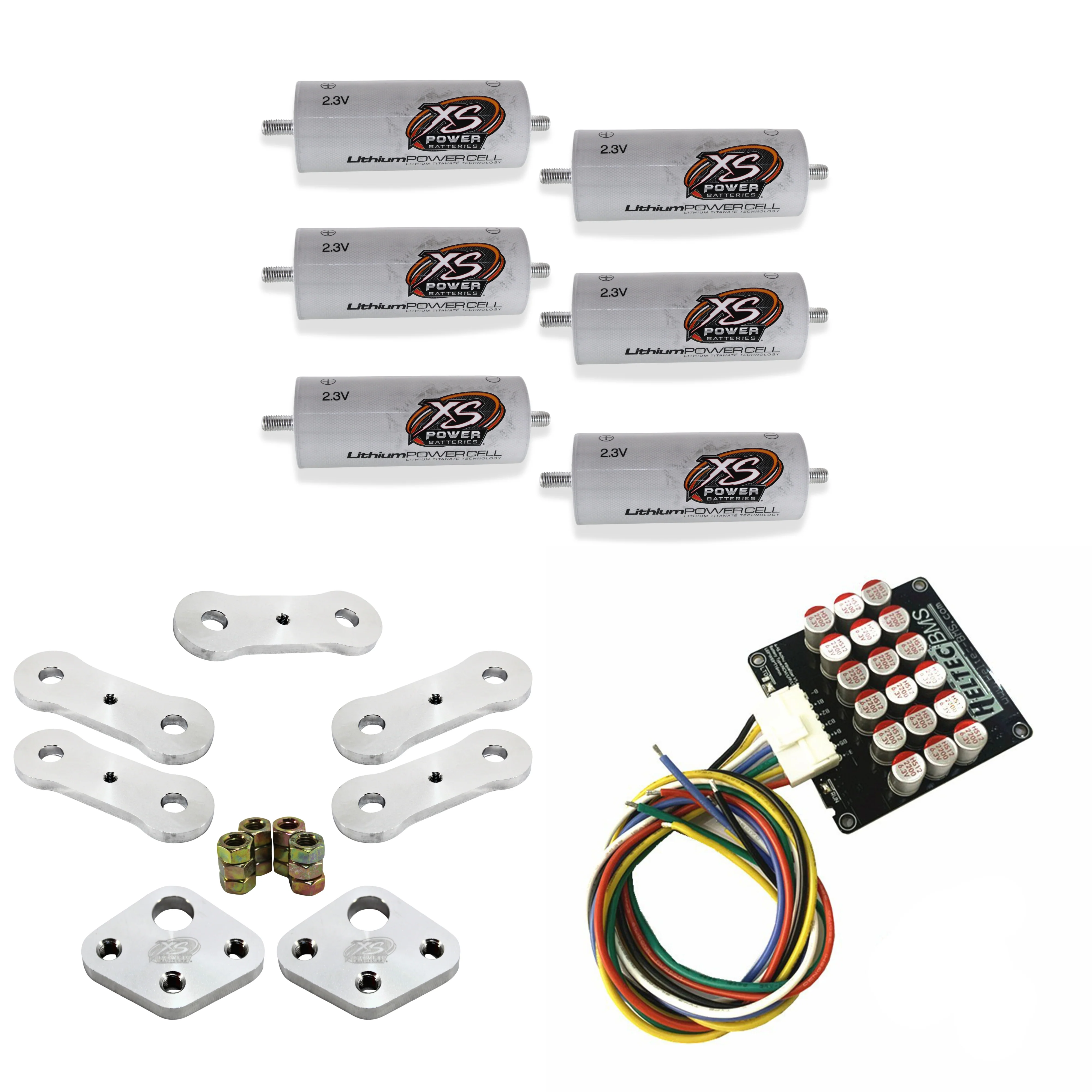

This Listing Includes:
- (1) XS-DOGBONE
- (6) XS-40AHCELL-W
- (1) 6S-BALANCER
Description:
Introducing the XS Power 6 Pack DIY Kit, your gateway to unrivaled power and performance! Crafted for enthusiasts who demand nothing but the best, this kit features cutting-edge LTO cell technology boasting a 40Ah capacity and operating at 2.3V. With the included XS Power Dog Bones and Balancer, you're not just getting a battery packyou're gaining complete control over your power needs. Whether you're powering a high-performance car audio system or fueling your off-grid adventures, this kit ensures you stay powered up and ready for action. Don't settle for ordinary power solutions; elevate your performance with the XS Power 6 Pack DIY Kit today!

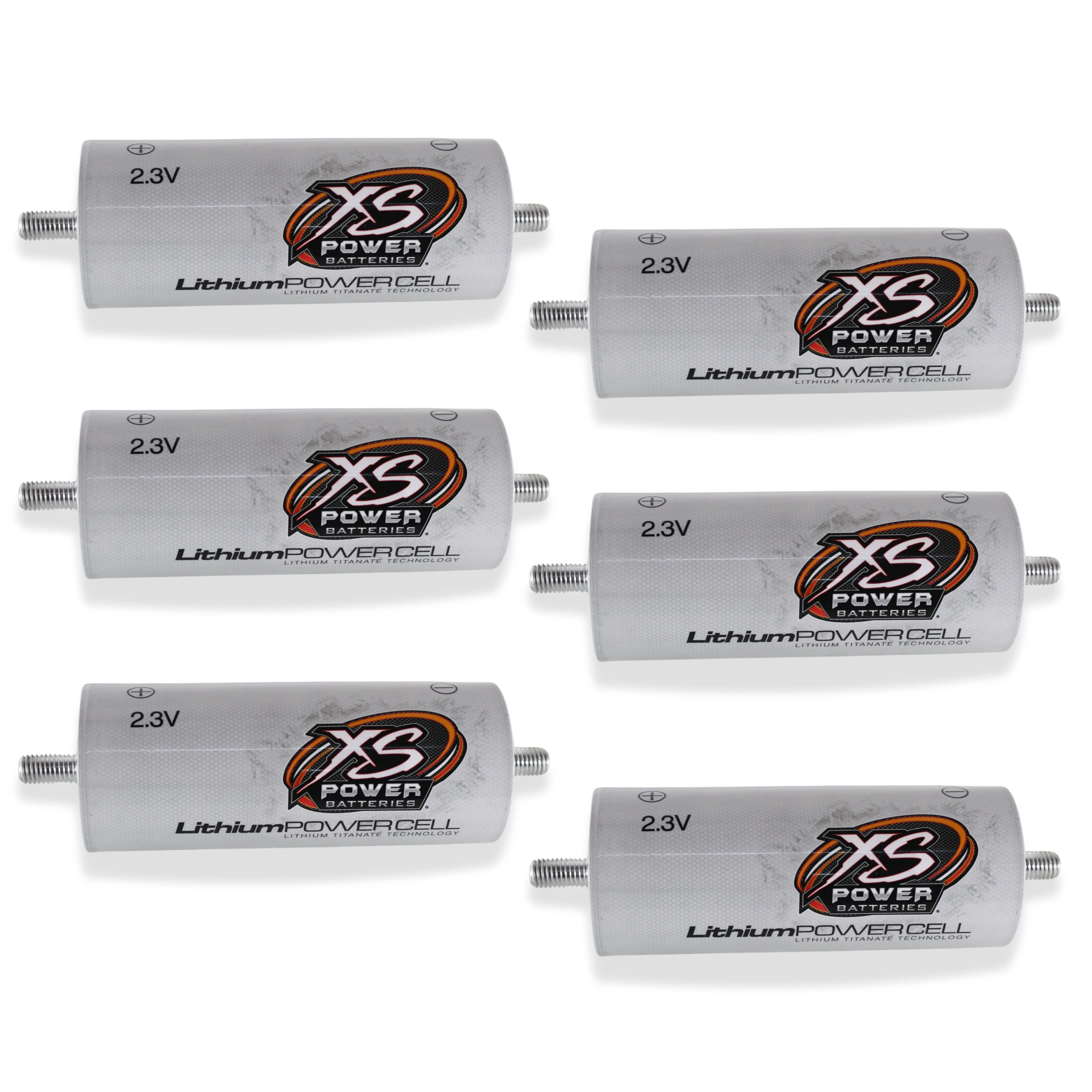

Cell Specifications:
- Weight Lbs. 2.75lbs
- Length 10 in
- Height 3 in
- Width 3 in
- Charging Voltage 2.3-2.7V
- Amp Hour 40Ah
- Cell Type Lithium Titanate Cylindrical (LTO)

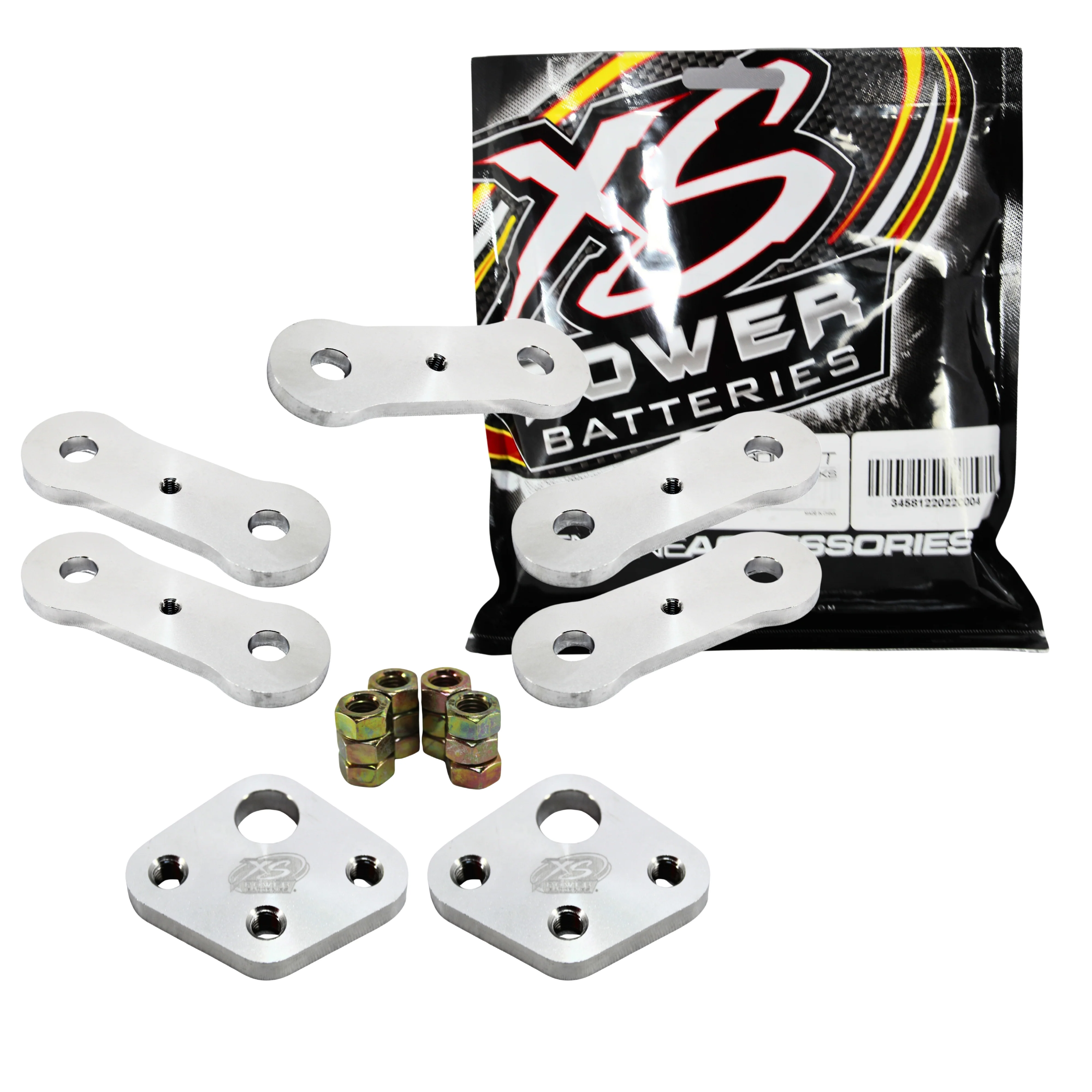

XS Power Set of Dog Bone Bars For 6 Cell LTO Battery Banks DIY Kit XS-DOGBONE
- (5) Dog Bones
- (2) End Bars
- (12) M12 Nuts

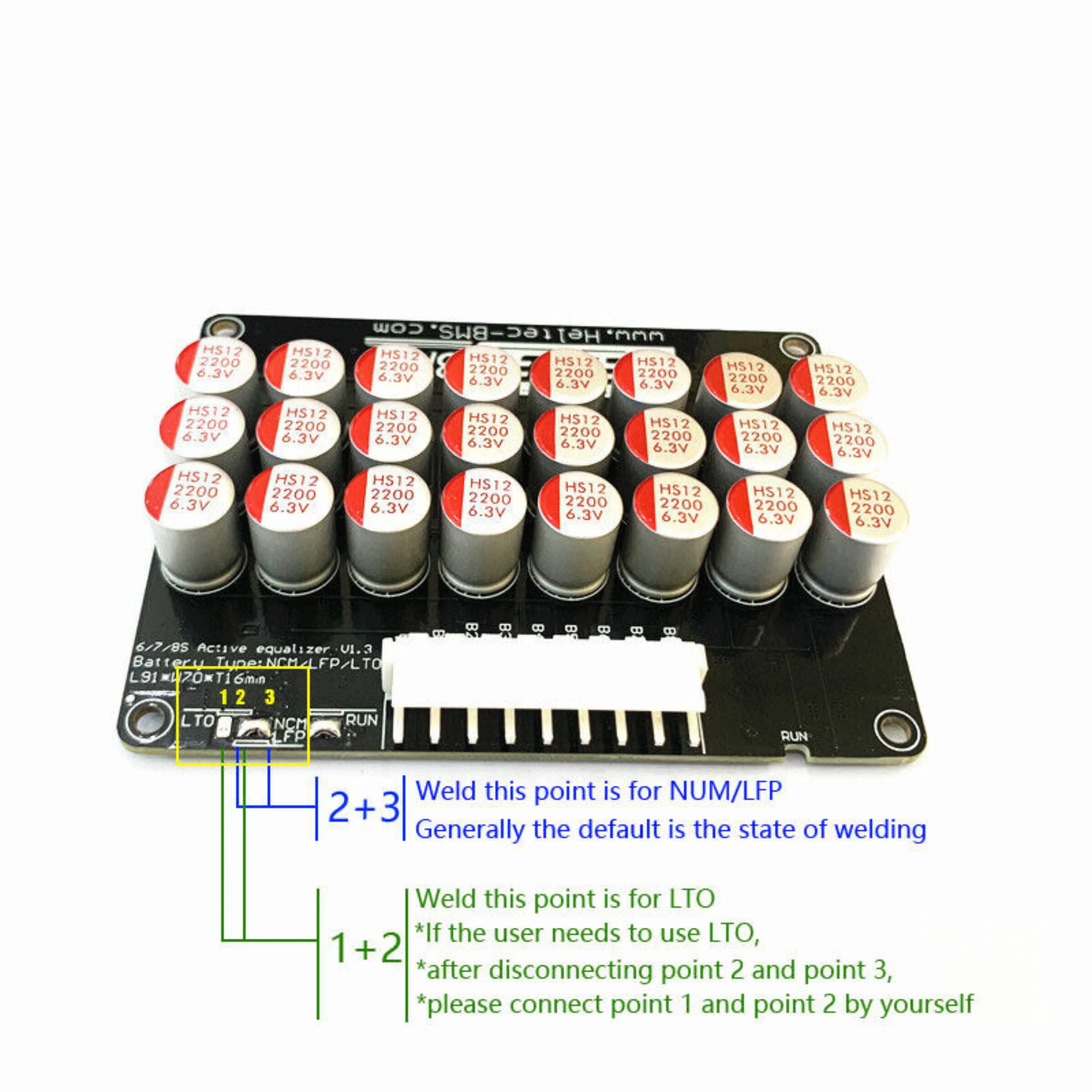

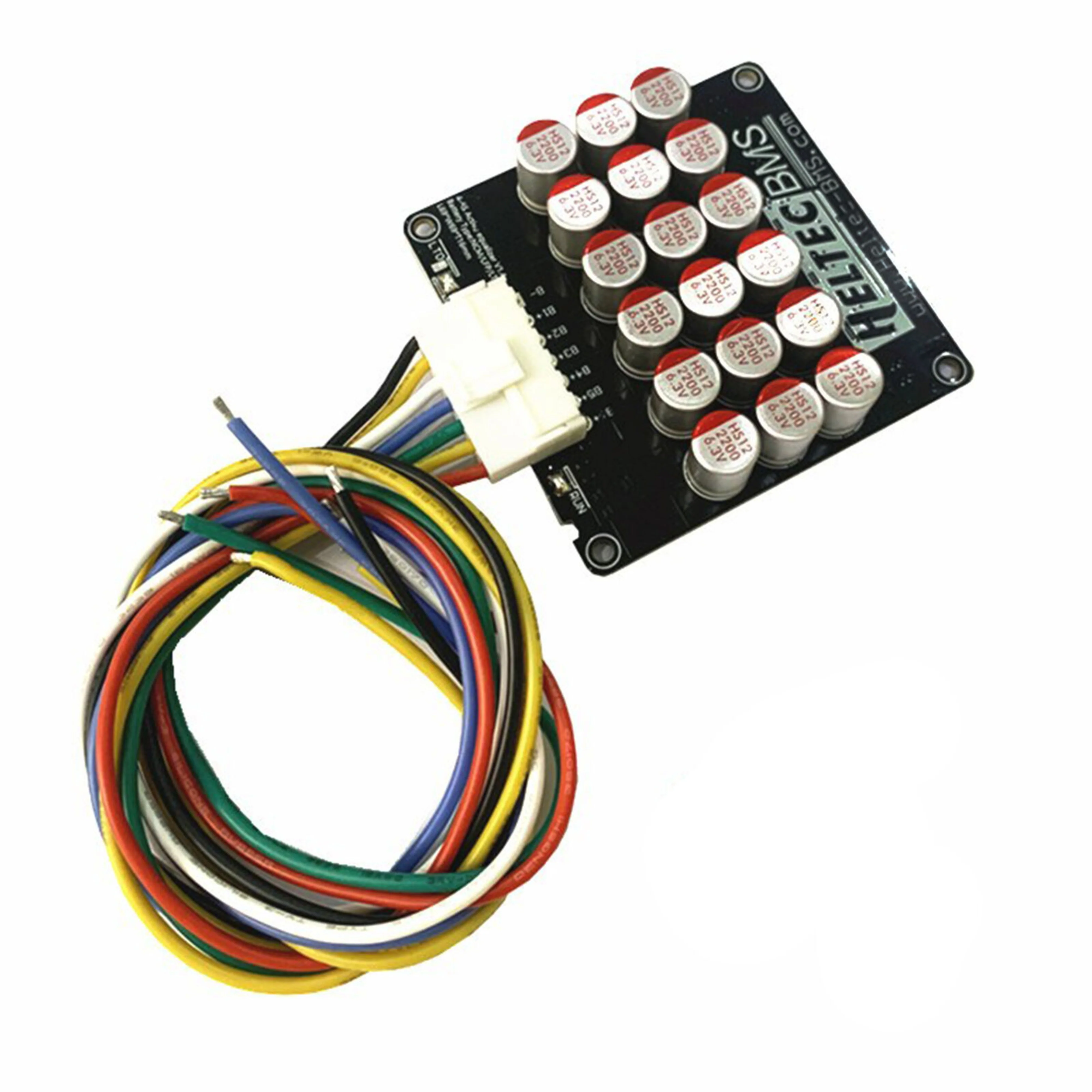

Features for Balancer:
- Working voltage: 1.8V-4.5V
- Suitable for ternary lithium, lithium iron phosphate, lithium titanite.
- The whole battery participates in the active equalization of energy transfer at the same time
- 0.1V differential voltage 1A equalizing current. The differential voltage is bigger than equalizing current is bigger. The maximum allowable working current is 5.5A
- Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
- Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
- The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
- With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
Recommended XS Power Charger: XS-LI1408
