• High-Speed Half-Bridge Architecture for strong performance
• Toroidal Power Supply for efficient power delivery
• Heavyweight DD Aluminum Chassis for durability
• Remote Control Included for easy adjustment

1 Ohm 1100 Watt Monoblock Compact Full Range Amplifier with ZVL Input

This Listing Includes:

• (1) DD Audio SS100 Monoblock Amplifier

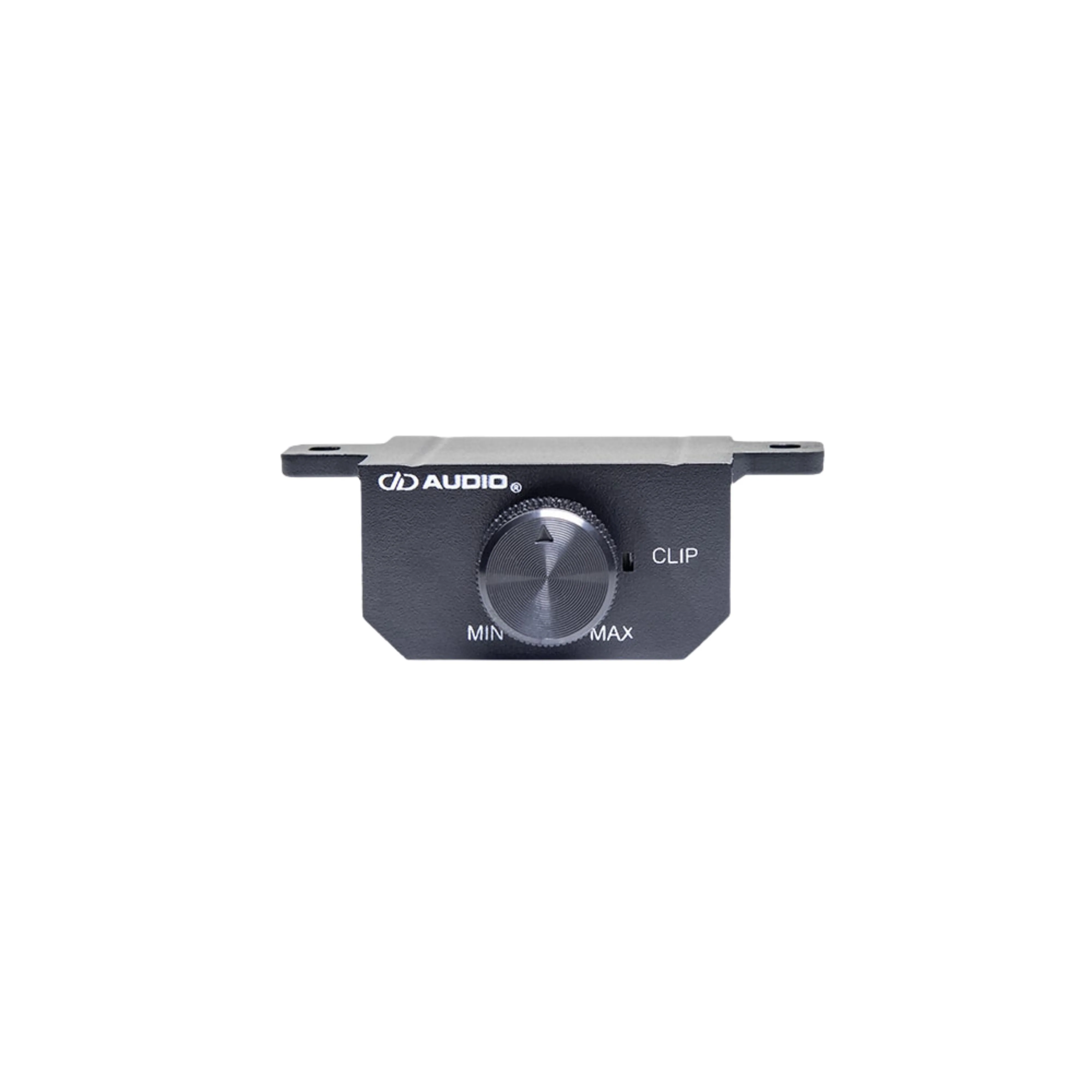

• (1) Remote Control

The DD Audio SS1100 amplifier is designed to deliver maximum efficiency and power from stock electrical systems. With over 1100 Watts RMS under 1% THD, it’s capable of driving single, dual, or even triple subwoofers to high output levels. Featuring an over-spec power supply and high-speed half bridge architecture, the SS1100 ensures strong, impactful performance that surpasses the limitations of budget full-bridge designs.

Features:

• ZVL Linking Module Input


• High-Level Inputs


• Toroidal Power Supply


• 12dB/Oct High Pass / Low Pass Crossovers


• Heavyweight DD Aluminum Chassis


• Set Screw Power and Speaker Terminals


• Remote Control: Included in box

Specifications:

• 4 AWG Power Terminals


• Operating Voltage: 9-16V


• Test Voltage: 14.4V


• Input Channel(s): 2


• Output Channel(s): 1


• Continuous Wattage @ 2-Ohms : 750W


• Continuous Wattage @ 1-Ohms : 1100W


• Max Current Draw: 100 Amps


• RCA Input Voltage Sensitivity: 6 - 0.25V


• RCA Input S/N: >90dB


• THD: <1%


• Frequency Response: 20Hz - 20kHz


• Sub-Sonic Filter: 20 - 80Hz


• Low-Pass Filter: 80Hz - 20kHz


• ZVL Input: Yes


• Power Wire Gauge: 0 AWG


• Speaker Wire Gauge: 4 AWG

Dimensions:

• Inches: 6.7" x 4.0" x 1.75"


• MM: 170mm x 102mm x 45mm
