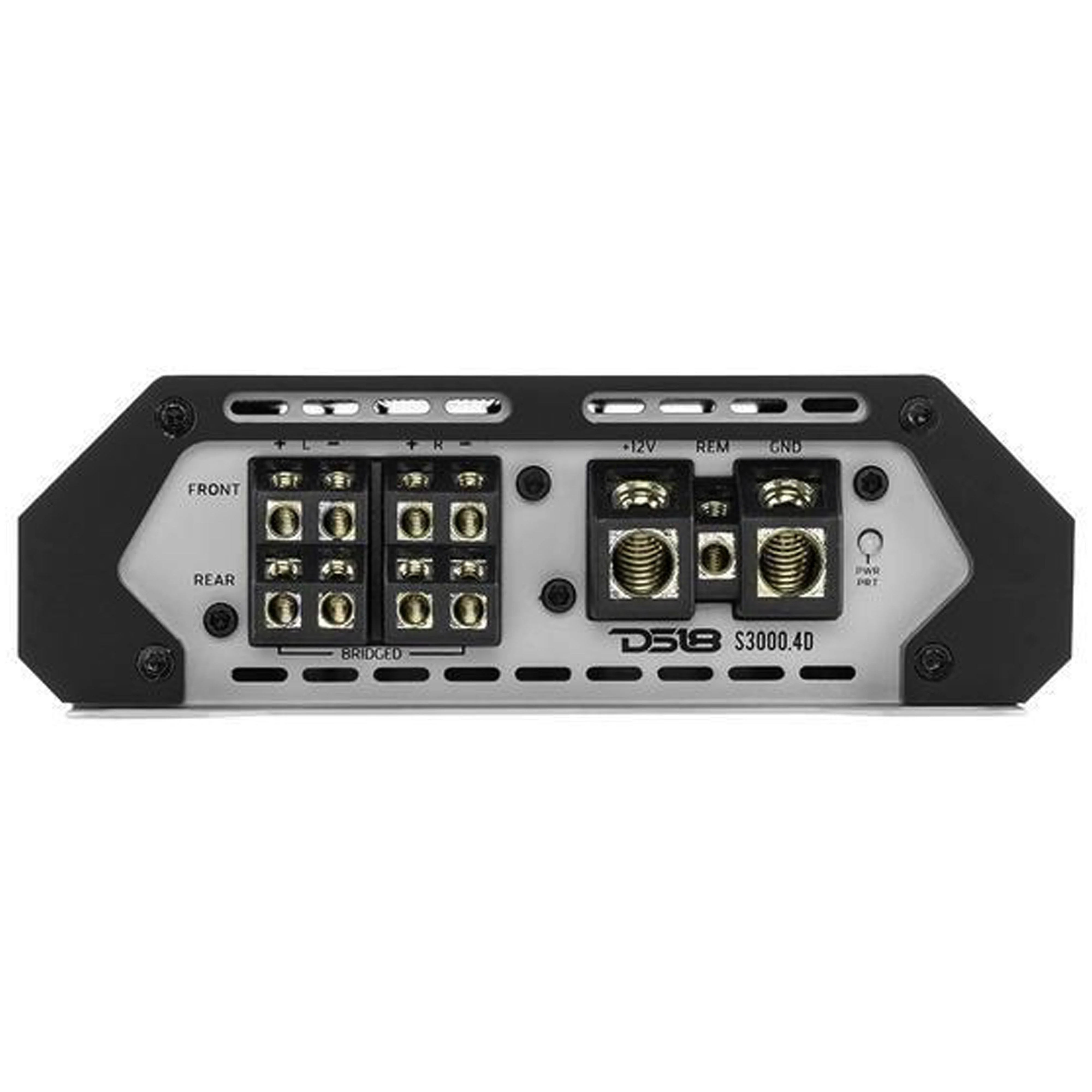

DS18 Car Audio 4 Channel Amplifier Full Range Class D 3000 Watt Silver S3000.4D



DS18s Select series of amplifiers bring elegance and great power for a very nice price point. These amps come in brushed aluminum red or silver to really catch the eye from afar. These amps were designed to bring you maximum output per dollar so you can experience the best without hitting your bank account hard. Each amp will have adjustable crossover settings, gain control, and Hi/Lo pass filters. The S3000.4D is going to have a maximum output of 544Wx4CH bridged at 4 ohms, 190Wx4CH at 4 ohms, and 295Wx4CH at 2 ohms to really bring your sound system to life!



Highlights:

- Surface mount component Technology.

- Audio Precision Quality Control Verification.

- Multilayer PCB Trace Layout.

- Clipping, Power and Protection LED Indicator.

- Short Circuit, Thermal and Voltage Protection.



This listing includes:

(1) DS18 4 Channel Amplifier S3000.4D Silver



SPECIFICATIONS:

Total Watts (Peak): 3000 Watts

RMS Power @ 4 OHM: 4 x 190 Watts

RMS Power @ 2 OHM: 4 x 295 Watts

RMS Power @ 1 OHM: N/A

RMS Power @ 4 OHM Bridge: 2 x 544 Watts



AUDIO SPECIFICATIONS:

Frequency Response: 20Hz ~ 20kHz

Signal To Noise Ratio: >90dB

Total Harmonic Distortion (THD): <0.3%

Input Sensitivity: 0.2 ~ 6V

Crossover Range: 40Hz ~ 400Hz



FEATURES:

Amplifier Class: D

Amplifier Type: Full Range

Number Of Channels: 4

Minimum Impedance: 2 Ohm

Body Color | Finish: Silver



DIMENSIONS:

Overall Length: 9

Overall Width: 5.82

Overall Height: 1.87
