• Powerful Output: Delivers an impressive 3000W RMS at 2 Ohms, providing robust power to drive your speakers and subwoofers with ease.
• Class H Efficiency: Advanced Class H technology ensures high efficiency and minimal distortion, maximizing performance while minimizing heat.
• Precision Control: Features a comprehensive range of controls, including variable crossover settings and bass boost, for tailored sound customization.
• Heavy-Duty Terminals: Equipped with heavy-gauge power and speaker terminals for secure and reliable connections.
• Built-In Protection: Includes multiple protection features such as thermal, overload, and short-circuit safeguards to ensure safe and reliable operation.

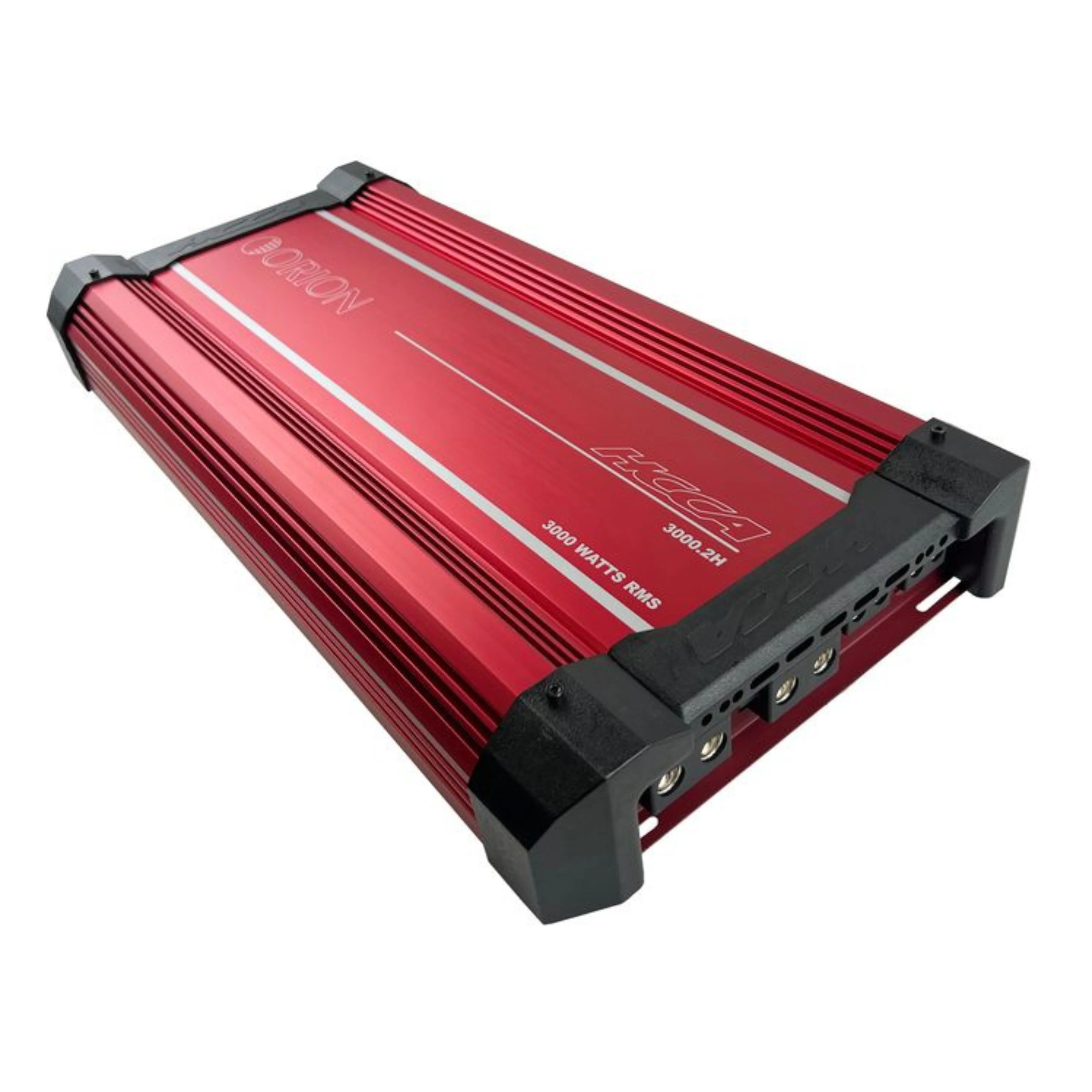

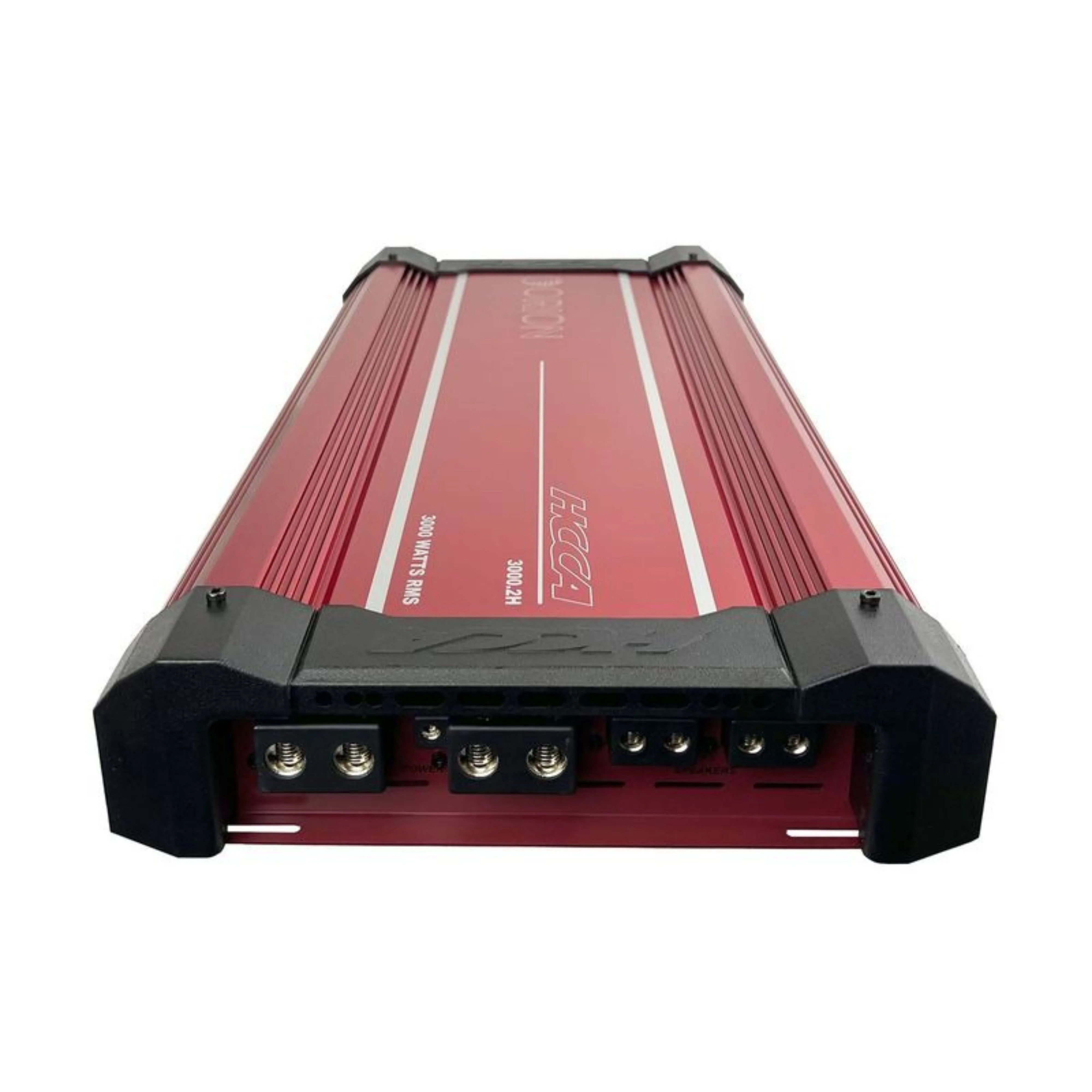

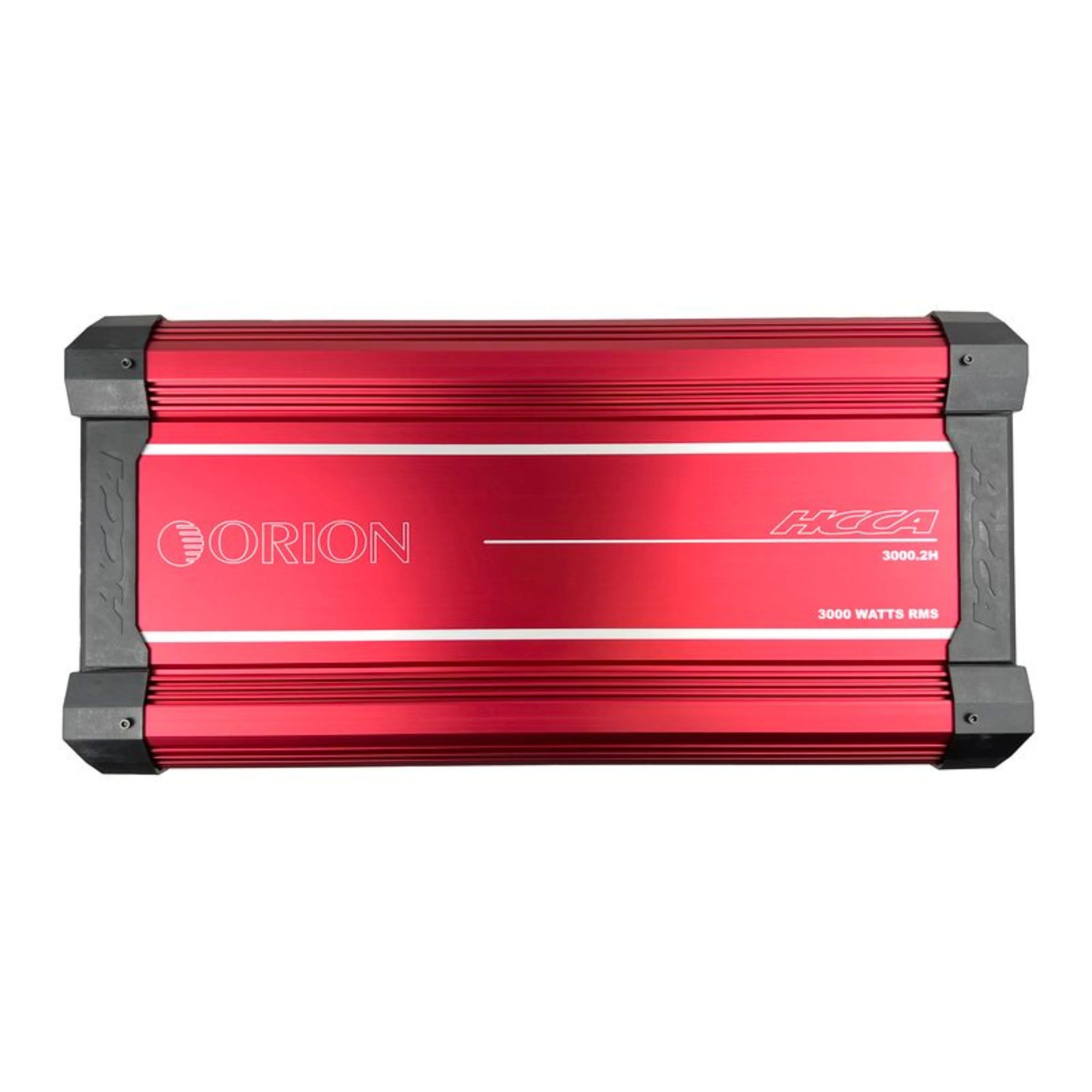

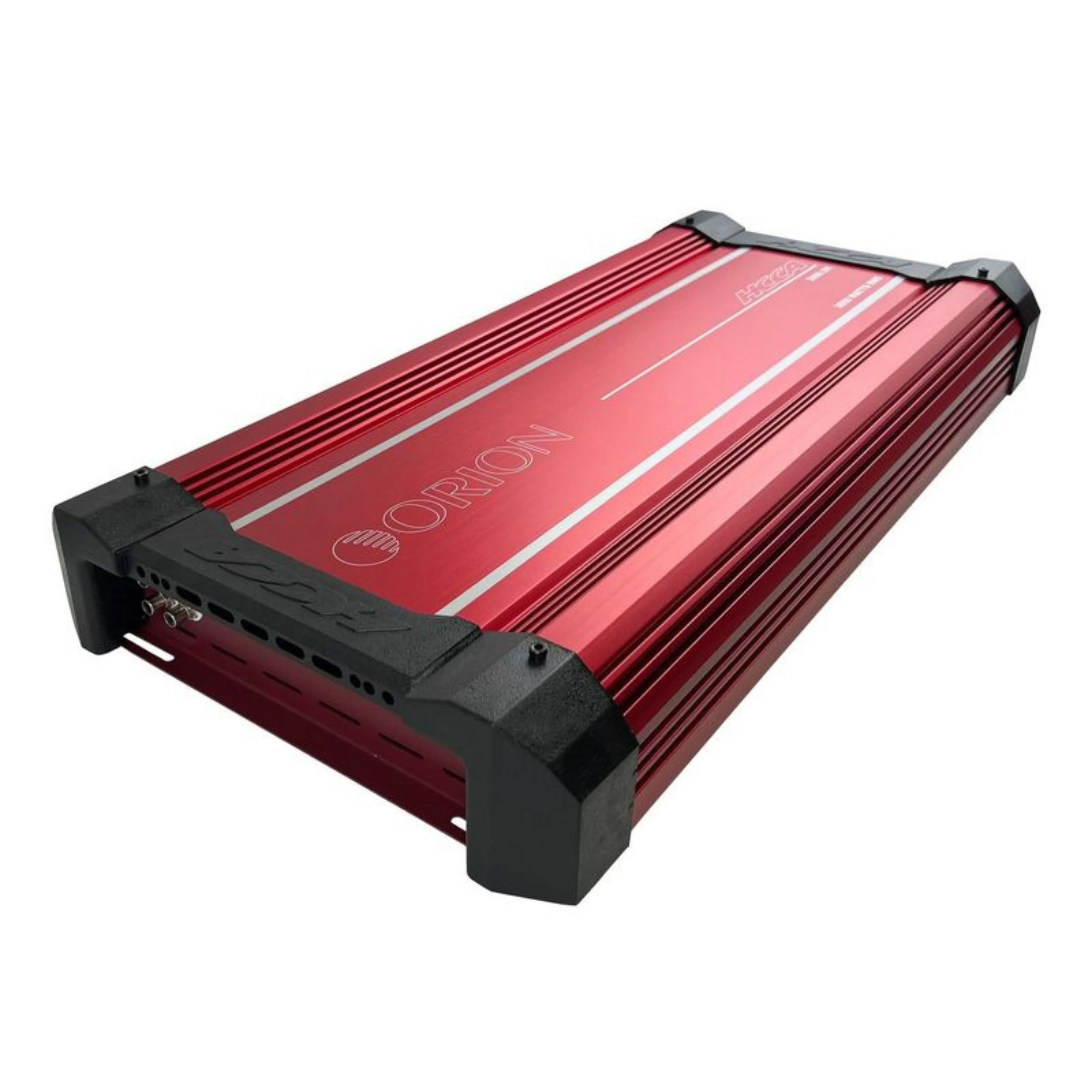

3000W RMS 2-Ohm Class H 2-Channel Amplifier ORION HCCA Series HCCA3000.2H

This Listing Includes:

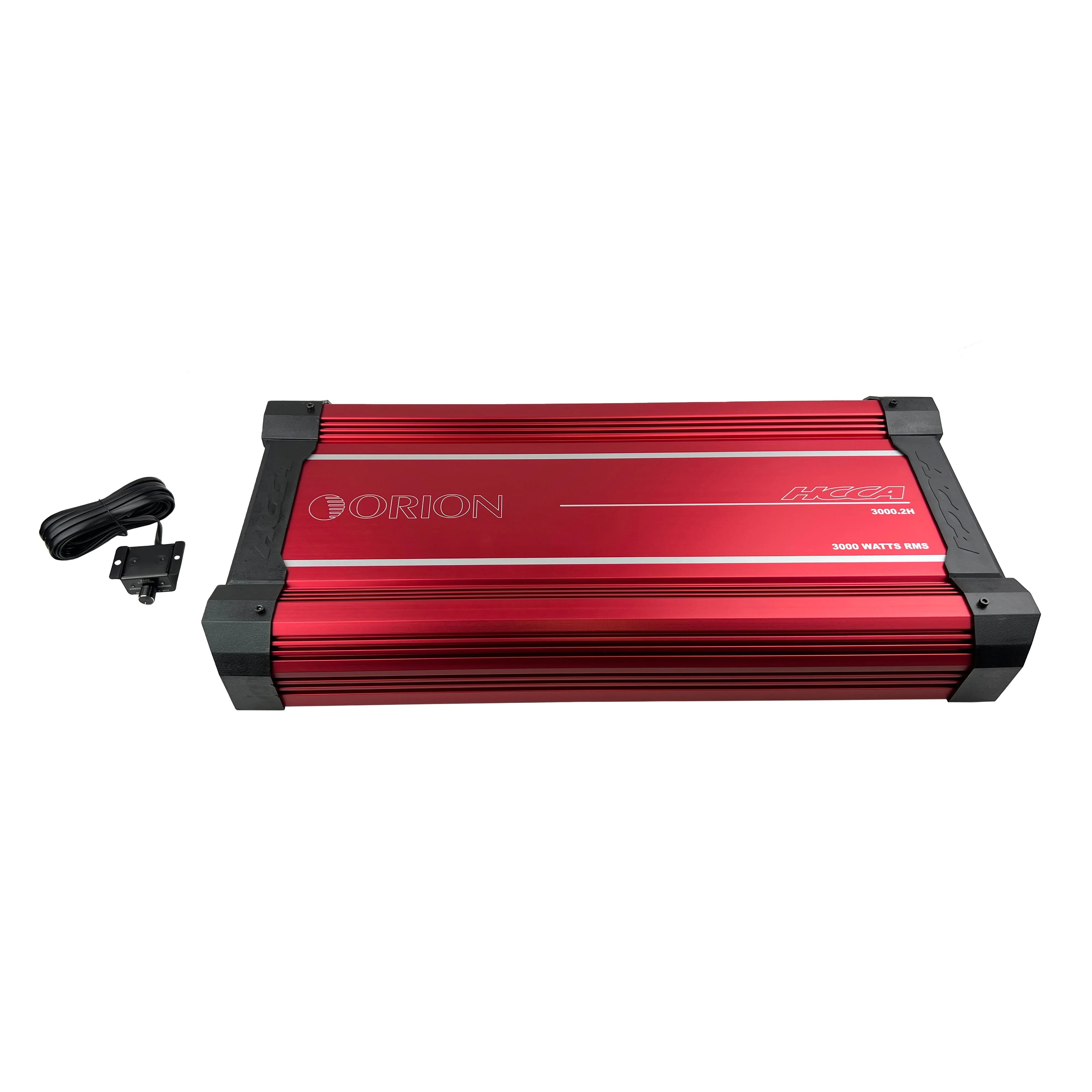

• (1) HCCA3000.2H Amplifier

Description:

Unleash Unmatched Power with the Orion HCCA Series 3000W RMS 2-Ohm Class H 2-Channel Amplifier

Elevate your audio experience with the Orion HCCA Series 3000W RMS 2-Ohm Class H 2-Channel Amplifier, engineered for those who demand peak performance and clarity. This amplifier delivers powerful, distortion-free sound, ensuring every beat hits with precision and impact. Designed with advanced Class H technology, it combines high efficiency with impressive output, making it perfect for high-power audio systems. Whether you're powering high-performance speakers or subwoofers, this amplifier provides the muscle and control you need to take your audio setup to the next level.

Features:

• All MOSFET Power Supply: Ensures efficient power delivery and reliability.


• Remote Gain Control: Convenient adjustment of audio levels from a distance.


• Heavy Gauge Direct-Wire High Current Terminals: For robust and secure power and speaker connections.


• Electronic Crossover Network: Precisely manages audio frequencies for optimal performance.


• Bass Boost Circuitry: Enhances low-frequency output to enrich your audio experience.


• Tri-Mode Capable: Offers versatile operation modes for various audio setups.


• High-Pass/Low-Pass Filter Control: Allows tailored frequency response adjustments.


• Power and Protection LED Indicators: Provides clear status and fault alerts.


• Soft Turn-On/Turn-Off: Reduces power-up and shutdown thumps.


• Balanced Input (CMRR): Minimizes noise and interference for clearer sound.


• 4-Way Protection: Includes thermal, DC offset, short circuit, and under/over voltage safeguards.

Specifications:

• Frequency Response: 10Hz to 35kHz, +/- dB


• Linear Bandwidth: 20Hz to 65kHz, +/-3 dB


• High Pass Crossover: Continuously variable, 40Hz to 1.25kHz / 400Hz to 12.5kHz


• Low Pass Crossover: Continuously variable, 40Hz to 300Hz


• Phase Shift Control: Adjustable from 0 to 180 degrees


• Bass Boost: Variable from 0 to 18dB


• Distortion at Rated Power: 0.005% THD+N


• Damping Factor: Greater than 100


• Input Sensitivity (RMS): 200mV to 6V


• Supply Voltage Range: 9V to 16V


• Input Impedance: 20K Ohms


• Amplifier Efficiency: Greater than 67% into a 2 Ohms load at maximum power


• Signal-to-Noise Ratio (SNR): Greater than 95dB at rated output power and lowest impedance


• Fuses: 250A recommended (not included)


• Dimensions (L x W x H): 24.02" x 11.89" x 3.15" (610 x 302 x 80mm)

Power Ratings:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 2 x 900W


• RMS Power @ 2 Ohms @ 0.5% THD+N: 2 x 1500W


• RMS Power @ 1 Ohm @ 0.5% THD+N: 1 x 3000W

Power Terminal Management:

• Positive Terminals: 1 x 0 AWG


• Negative Terminals: 1 x 4 AWG


• Remote Turn-On Signal: 10 AWG


• Speaker Output Terminals: 10 AWG
