• Immense Power Output: With 3500W RMS at 1 ohm, this amplifier delivers powerful, distortion-free sound that drives even the most demanding subwoofers and speakers.
• Class-D Efficiency: The advanced Class-D circuitry ensures high efficiency and minimal heat, allowing for optimal performance without excessive power drain.
• Monoblock Design: Designed specifically for subwoofers, this monoblock amplifier focuses on delivering deep, impactful bass with precise control.
• Durable Construction: Built with robust materials and a rugged design to withstand high-power demands and provide reliable performance over time.
• Enhanced Cooling System: Features an advanced cooling system to maintain optimal temperature and ensure consistent performance during extended listening sessions.

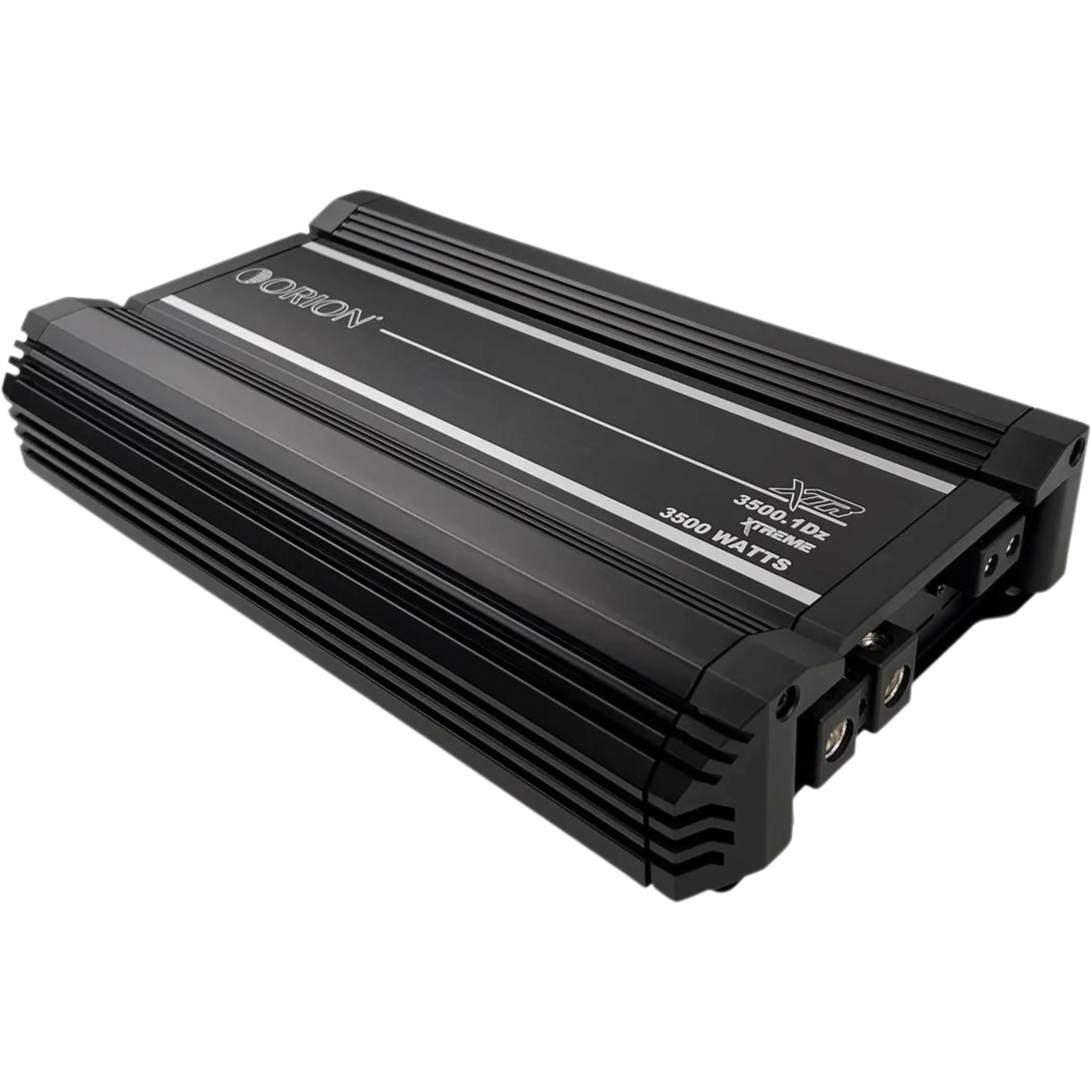

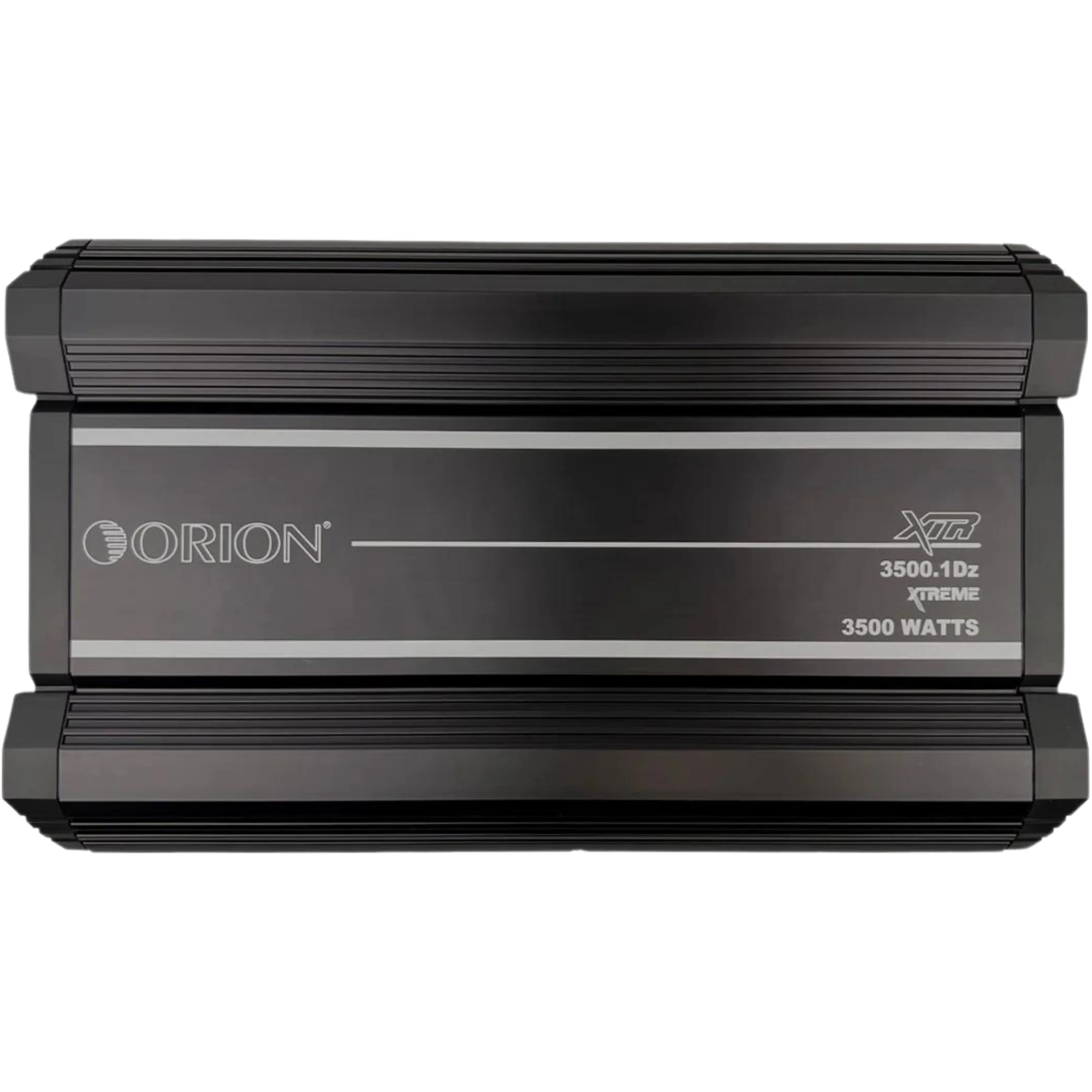

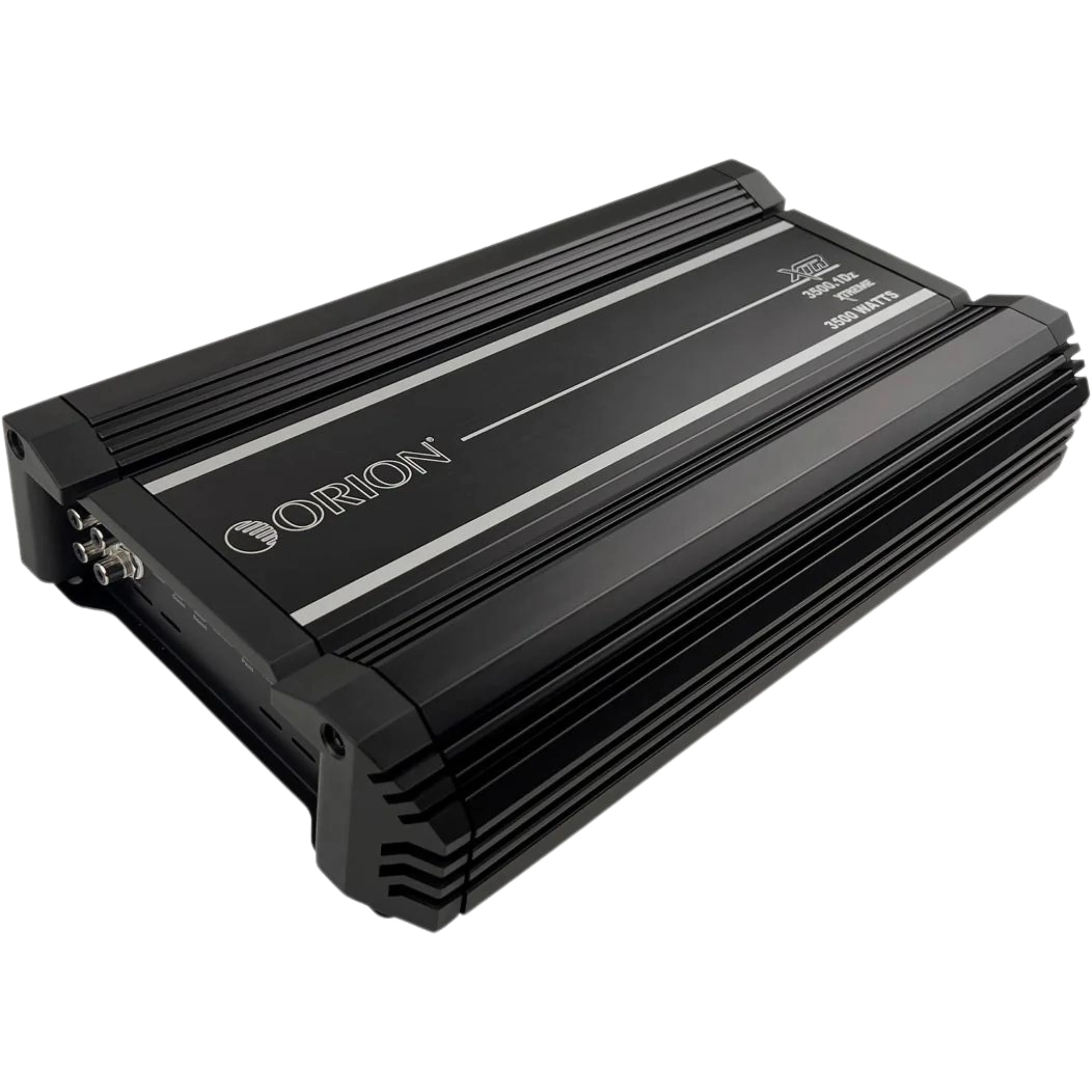

3500W RMS 1-Ohm Class-D Monoblock Amplifier ORION XTR Series / XTR3500.1Dz

This Listing Includes:

• (1) XTR3500.1Dz Amplifier

Description:

Elevate your audio system to unparalleled levels with the ORION XTR Series 3500W RMS 1-Ohm Class-D Monoblock Amplifier. Engineered for those who demand extreme power and precision, this amplifier delivers a jaw-dropping 3500 watts RMS, ensuring your sound system hits every note with explosive energy and crystal clarity. The Class-D design offers incredible efficiency, keeping your system running cool even during intense listening sessions. Whether you're building a show-stopping car audio setup or pushing your system to the max, the ORION XTR Series amplifier provides the raw power and reliability you need to make an unforgettable impression.

Features:

• All MOSFET Power Supply & Output Stage


• Heavy Gauge / High Current Custom Power and Speaker Terminals


• 12dB Octave Low-Pass Filter

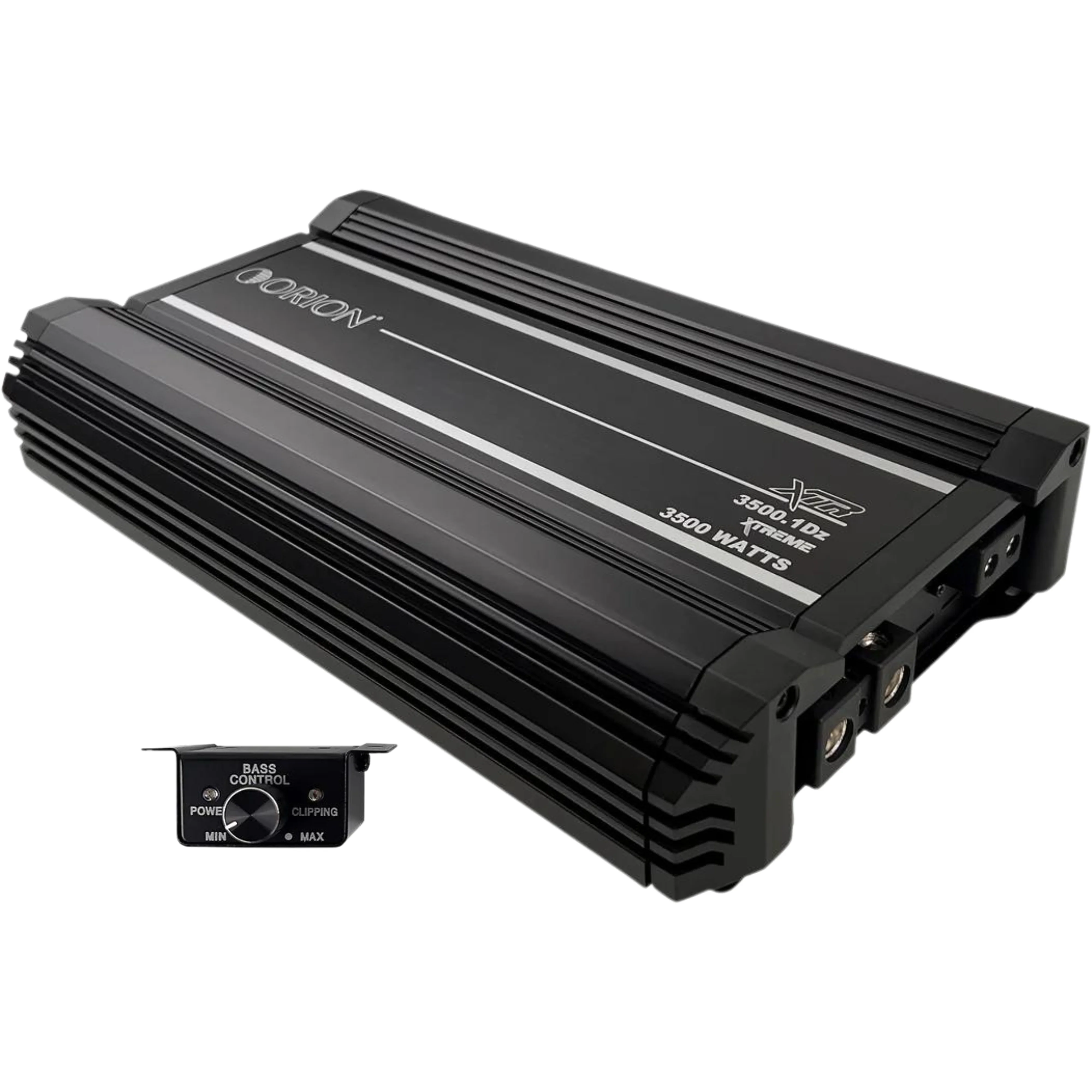

• Remote Gain Controller Included


• Electronic Crossover Network


• Bass Boost Circuit


• Power and Protection LED Indicators


• Soft Turn-on/Turn-off Turn-On Delay


• Fault and Protection Monitoring


• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

• Frequency Response: 20Hz - 250Hz


• Low Pass Crossover: 30Hz - 300Hz


• Supply Voltage: 9 - 16V


• Amplifier Efficiency: >88%


• Damping Factor: 200dB


• Signal to Noise Ratio: >90dB


• T.H.D. & Noise: 0.5%


• Phase Shift: 0 - 180


• Bass Boost: 0-18dB Variable


• Subsonic Filter: Off / 25Hz


• Variable Input Level Control: 0.2V - 6.0V


• Fuses: 300A recommended (not included)


• Dimensions (L x W x H): 15.35" x 9.25" x 2.75" (390x235x70mm)

Power Ratings:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 1450W


• RMS Power @ 2 Ohms @ 0.5% THD+N: 2500W


• RMS Power @ 1 Ohm @ 0.5% THD+N: 3800W


• Linked with identical Amplifier: RMS Power @ 2 Ohms @ 0.5% THD+N: 7600W

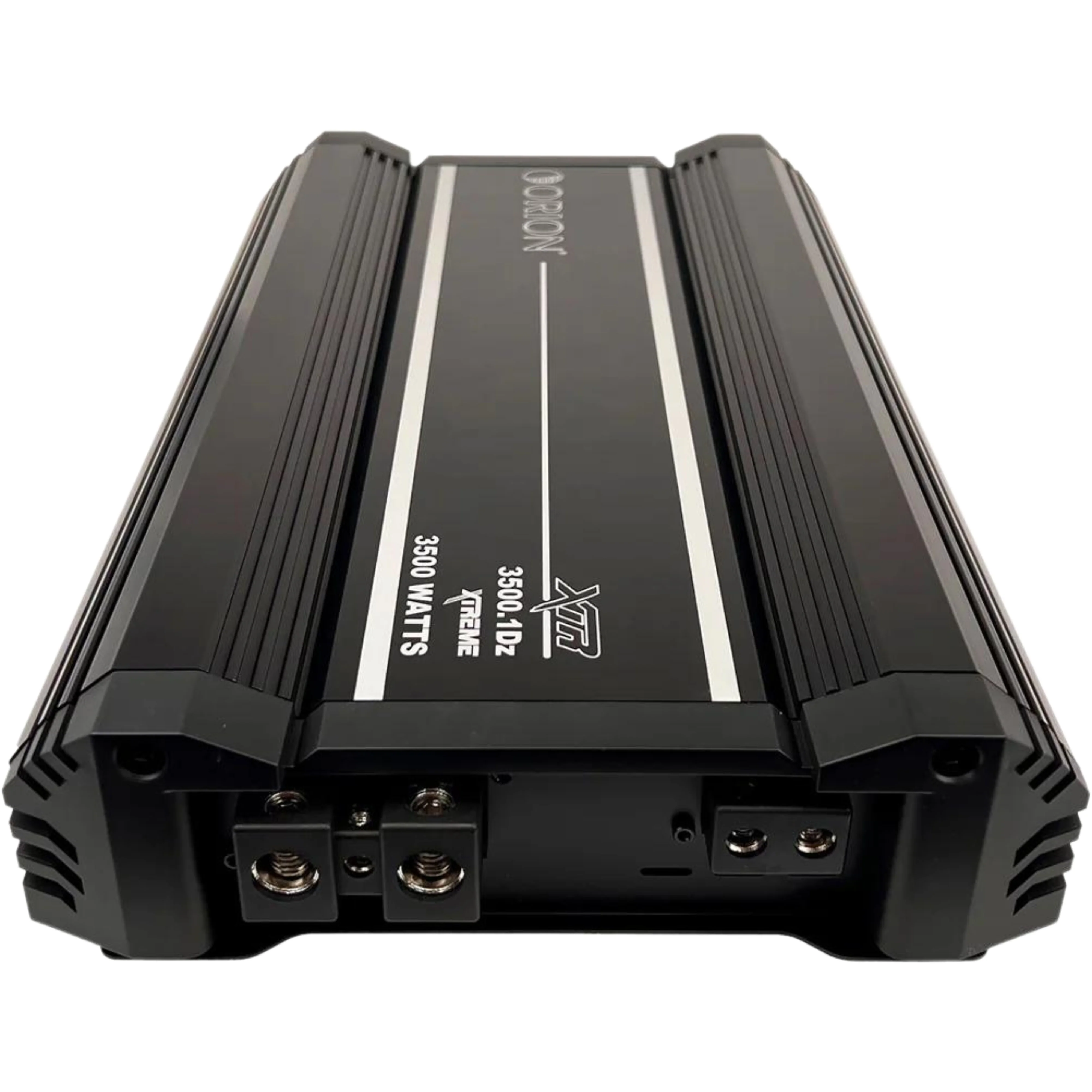

 POWER TERMINAL MANAGEMENT

• Positive Terminals: 1 x 0 AWG.


• Negative Terminals: 1 x 0 AWG.


• Remote Turn-ON Signal: 10 AWG.


• Speaker Output Terminals: 4 AWG.
