• HYBRID 6x9 + TITANIUM COMPRESSION DRIVER: Slim 2-way hybrid loudspeaker combines a water-resistant 6x9 woofer with a 1” titanium compression driver and horn for full-range output from 60Hz to 20kHz.
• LOUD, EFFICIENT PERFORMANCE: Handles 175W RMS / 350W MAX with 97dB sensitivity for strong volume and clean projection, ideal for motorcycles, UTVs, Slingshots, Jeeps, and powersports builds.
• SLIM FIT FOR TIGHT INSTALLS: Compact design with only 3.4” mounting depth installs cleanly in fairings, pods, panels, and custom locations where standard speakers won’t fit.
• IP65 WATER RESISTANT + PROTECTED GRILLE: IP65 rated build with a water-resistant paper cone, treated cloth surround, and included grille with water and sun protection cloth to help protect internal components.
• BUILT TO HANDLE REAL RIDES: Steel basket for strength, ferrite woofer magnet (25.5 oz) plus neodymium compression driver motor, 4-ohm impedance, and recommended high-pass crossover at 80Hz.

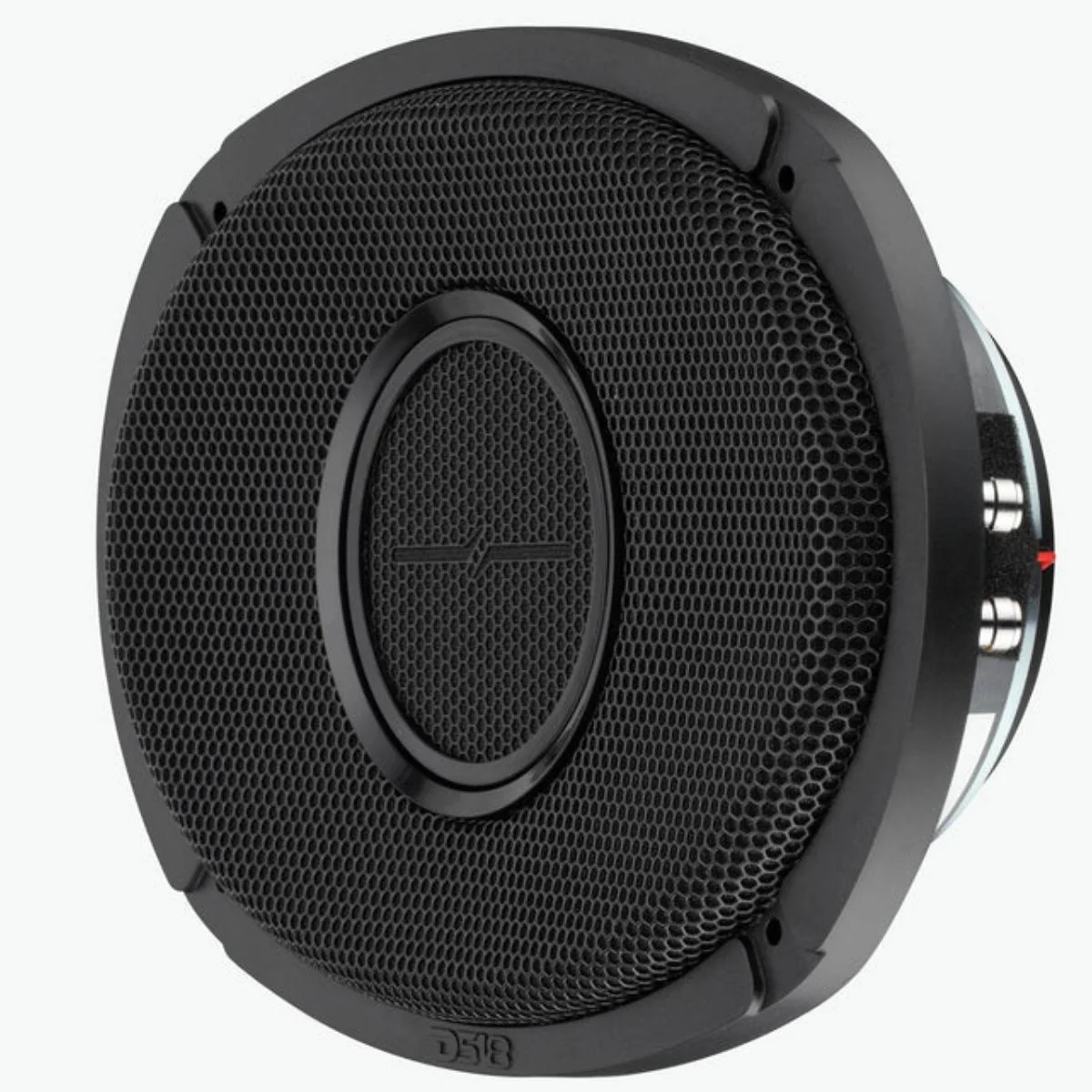

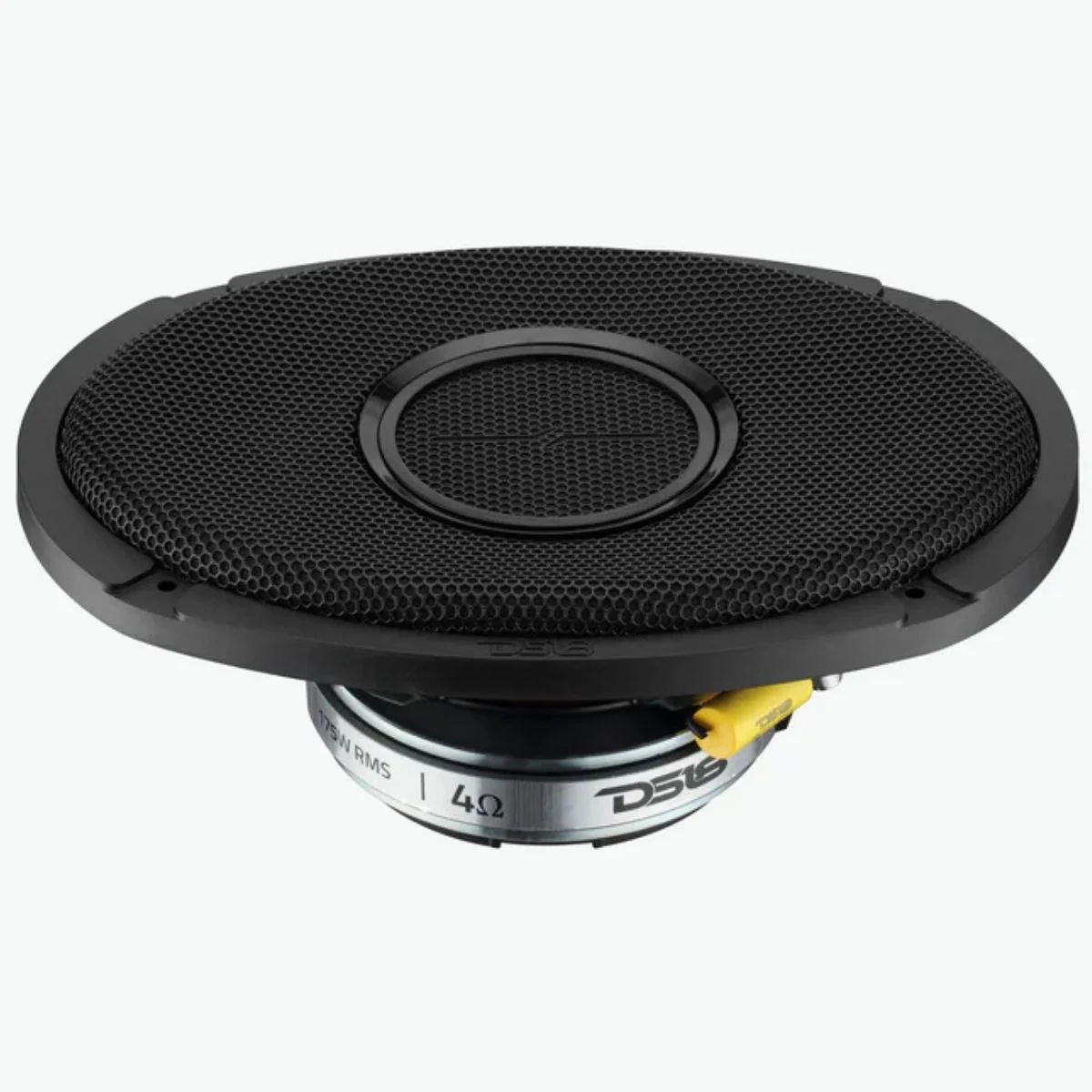

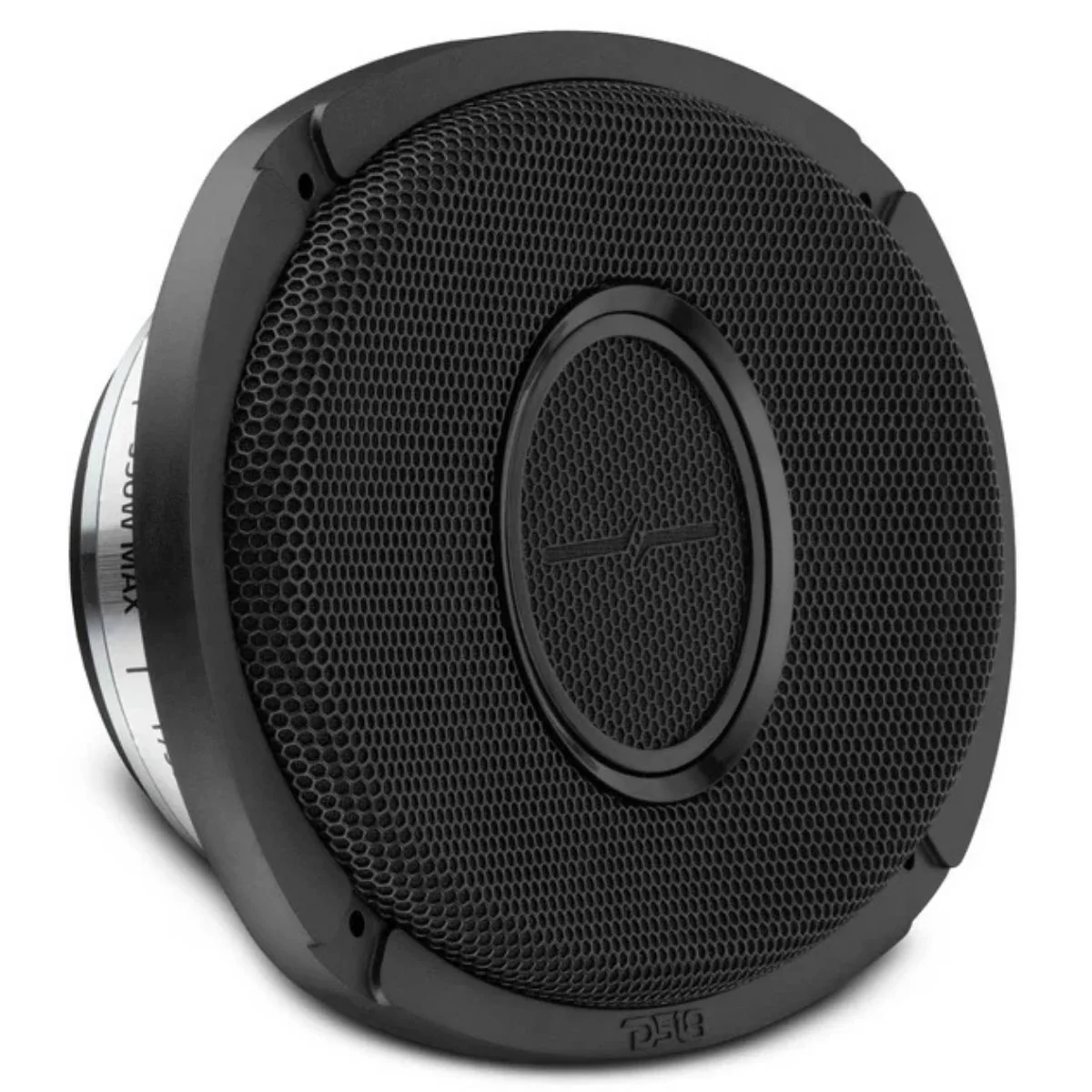

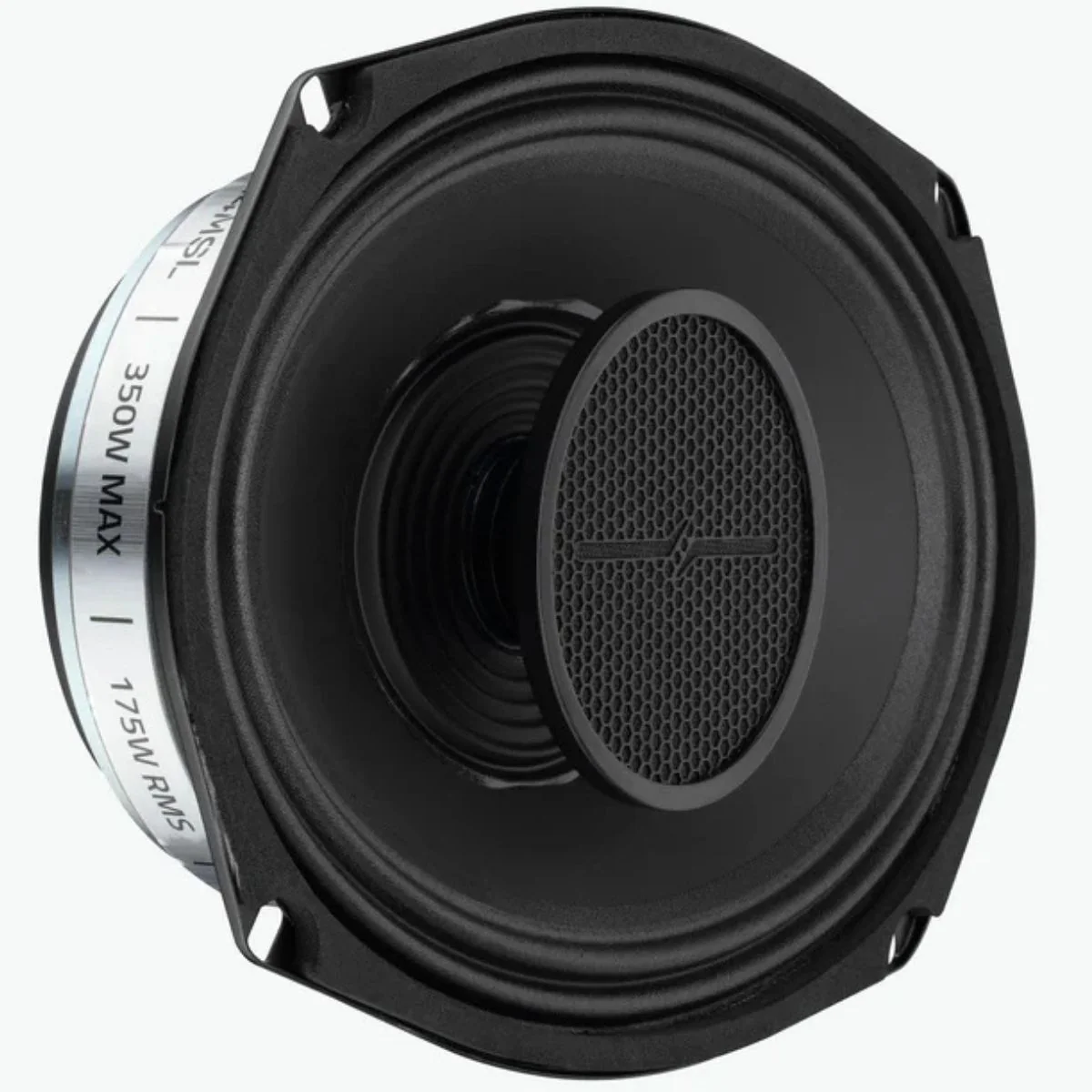

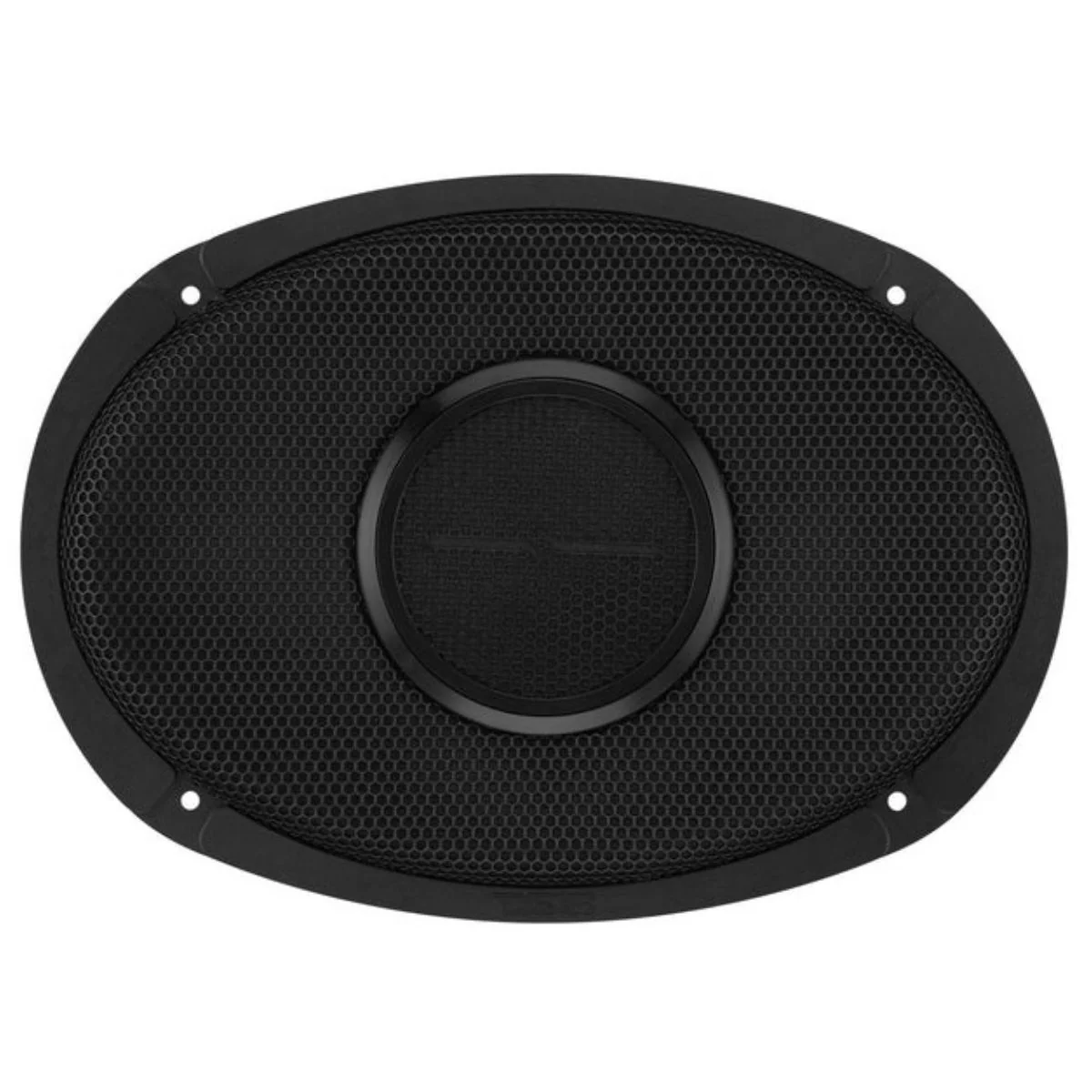

6x9" 175 Watt RMS 4-Ohm Hybrid Slim Loudspeaker w/ Titanium Driver PRO-HY69.4MSL

This Listing Includes:

• (1) 6x9" Hybrid Slim Loudspeaker

The DS18 PRO-HY69.4MSL is a 6x9 inch slim hybrid loudspeaker designed for loud, full-range output in tight installs. Built as a true 2-way hybrid, it combines a water-resistant 6x9 woofer with a 1 inch titanium compression driver and horn, giving you powerful projection with clarity from 60Hz to 20kHz and 97dB sensitivity.

With only 3.4 inches of mounting depth, this speaker fits cleanly in panels, pods, and fairings on motorcycles, UTVs, Slingshots, Jeeps, and other powersports builds where space is limited. It’s IP65 rated for water resistance and includes a grille with built-in water and sun protection cloth to help protect the internal components.

The woofer section features a 1.5 inch voice coil with KSV former and CCAW winding, water-resistant paper cone, treated cloth surround, steel basket, and a 25.5 oz ferrite magnet. The compression driver uses a 1 inch voice coil, Kapton former with CCAW winding, titanium diaphragm, neodymium magnet, and an 80mm horn for strong high-frequency projection. Recommended high-pass crossover is 80Hz.

Specifications:

• Nominal Diameter: 6x9" (152 x 228mm)


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 175W


• Max Power Handling: 350W


• Sensitivity (1W/1M): 97dB


• Frequency Response: 60Hz to 20kHz


• Recommended High-Pass Crossover: 80Hz


• Number of Ways: 2-Way


• Water-Resistant Rating: IP65


• Sold As: Single


• Grille Included: Yes, with Water and Sun Protection Cloth

Woofer Specifications:

• Voice Coil Diameter: 1.5" (38.6mm)


• Voice Coil Former Material: KSV


• Winding Material: CCAW


• Cone Material: Water-Resistant Paper


• Surround Material: Treated Cloth


• Basket Material: Steel


• Basket Color/Finish: Black


• Magnet Material: Ferrite


• Magnet Weight: 25.5 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 5.68L (0.2ft)


• Excursion (one way): 2mm


• Free Air Resonance (Fs): 117Hz


• Mechanical Factor (Qms): 7.821


• Electrical Factor (Qes): 0.979


• Total Factor (Qts): 0.87


• Mechanical Mass (Mms): 15.242g


• Mechanical Compliance (Cms): 0.103 mm/N


• BL Factor (BL): 5.312


• Voice Coil Inductance (Le): 0.59mH


• Cone Area (Sd): 156.2cm


• DC Resistance (Re): 3.2 Ohms


• Mechanical Mass w/o air: 12.3g

Driver Specifications:

• Voice Coil Diameter: 1" (25.4mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 3.15" (80mm)

Dimensions:

• Overall Diameter (Without Grill): 6.4" x 9.2" (164 x 234mm)


• Overall Diameter (With Grill): 7" x 9.9" (180 x 252mm)


• Overall Depth (Without Grill): 3.9" (100mm)


• Overall Depth (With Grill): 4.2" (107mm)


• Front Mount Baffle Cutout: 5.7" x 8.6" (144 x 218mm)


• Mounting Depth: 3.4" (86mm)


• Motor Diameter: 4.7" (120mm)

Fits tight, plays loud, stays tough, this hybrid 6x9 is built for real rides and real volume.
