• SHALLOW MOUNT 8” MIDRANGE: Slim 2.71” mounting depth makes the DS18 PRO-X8.4BMSL perfect for doors, pods, and tight custom builds where standard 8” drivers won’t fit.
• LOUD HIGH OUTPUT PERFORMANCE: Handles 250W RMS / 500W MAX with 95dB sensitivity for strong volume and clarity across an 80Hz to 12kHz frequency range.
• INTEGRATED ALUMINUM BULLET: Built-in aluminum bullet design boosts high-frequency projection without needing separate tweeters, delivering aggressive attack and clean vocals.
• HEAVY DUTY MOTOR + STEEL BASKET: Steel basket keeps the structure rigid at high volume, powered by a 21 oz ferrite magnet for dependable performance.
• HEAT RESISTANT 1.5” VOICE COIL: 1.5” Kapton voice coil former with CCAW winding helps resist heat and distortion when pushed hard, recommended high-pass crossover 120Hz.

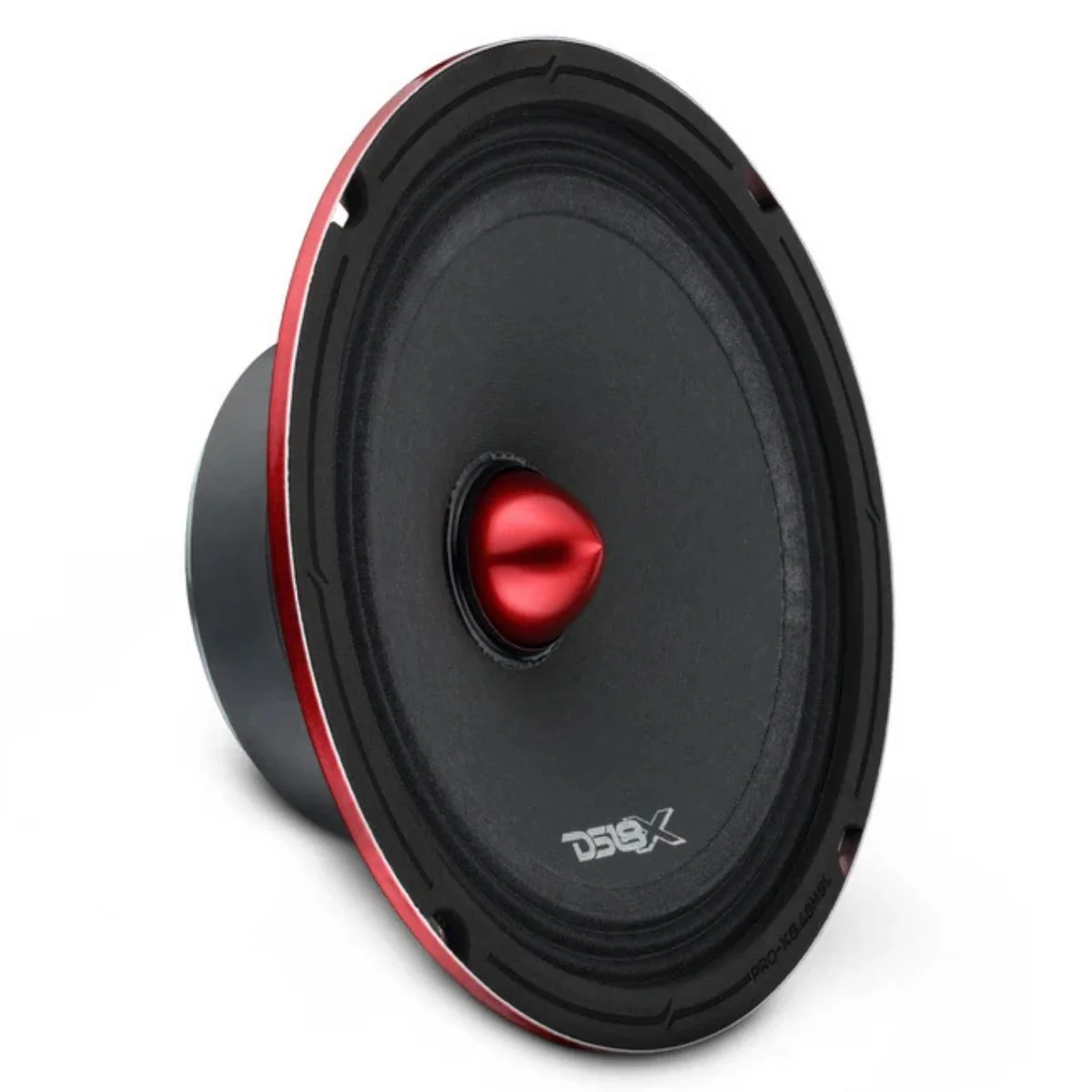

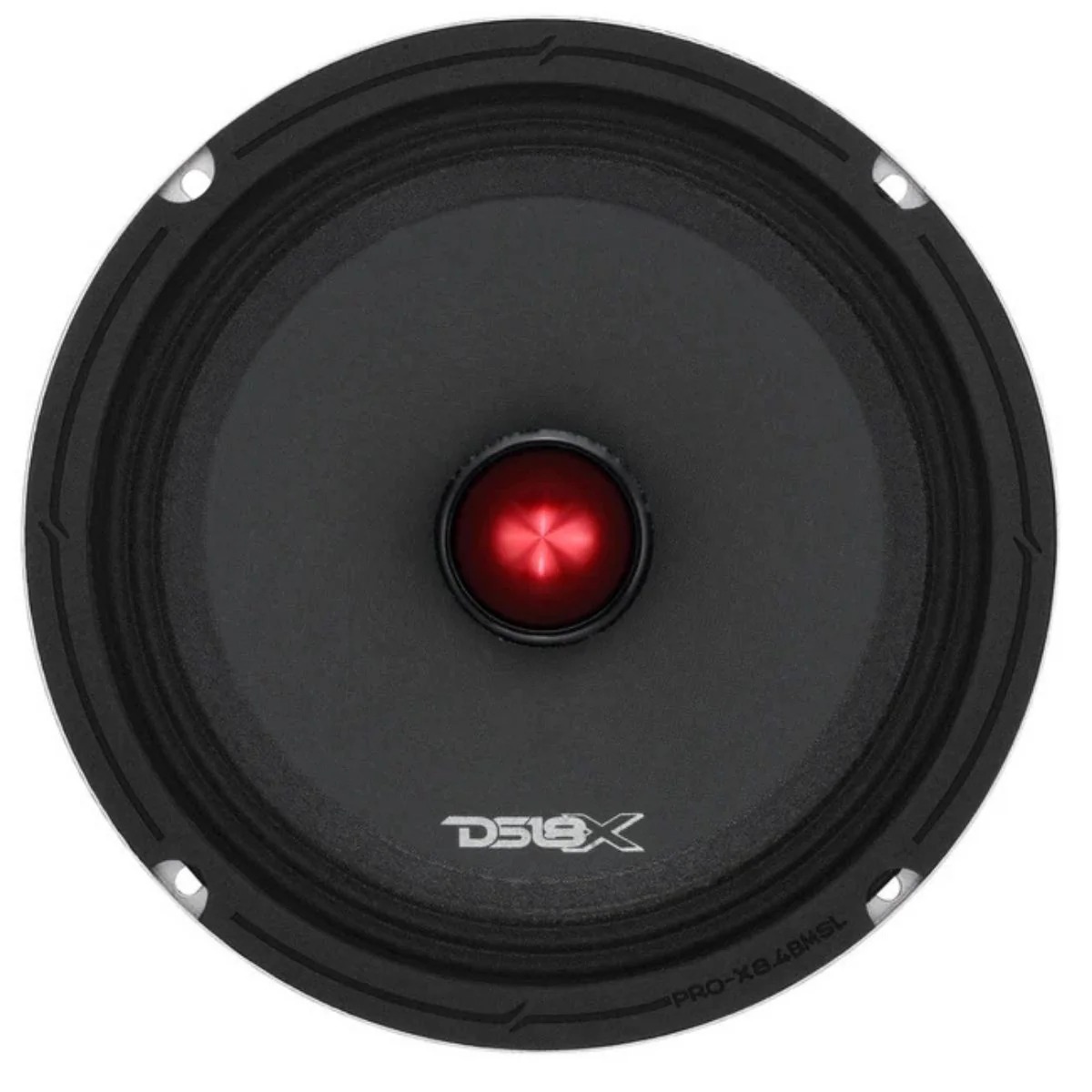

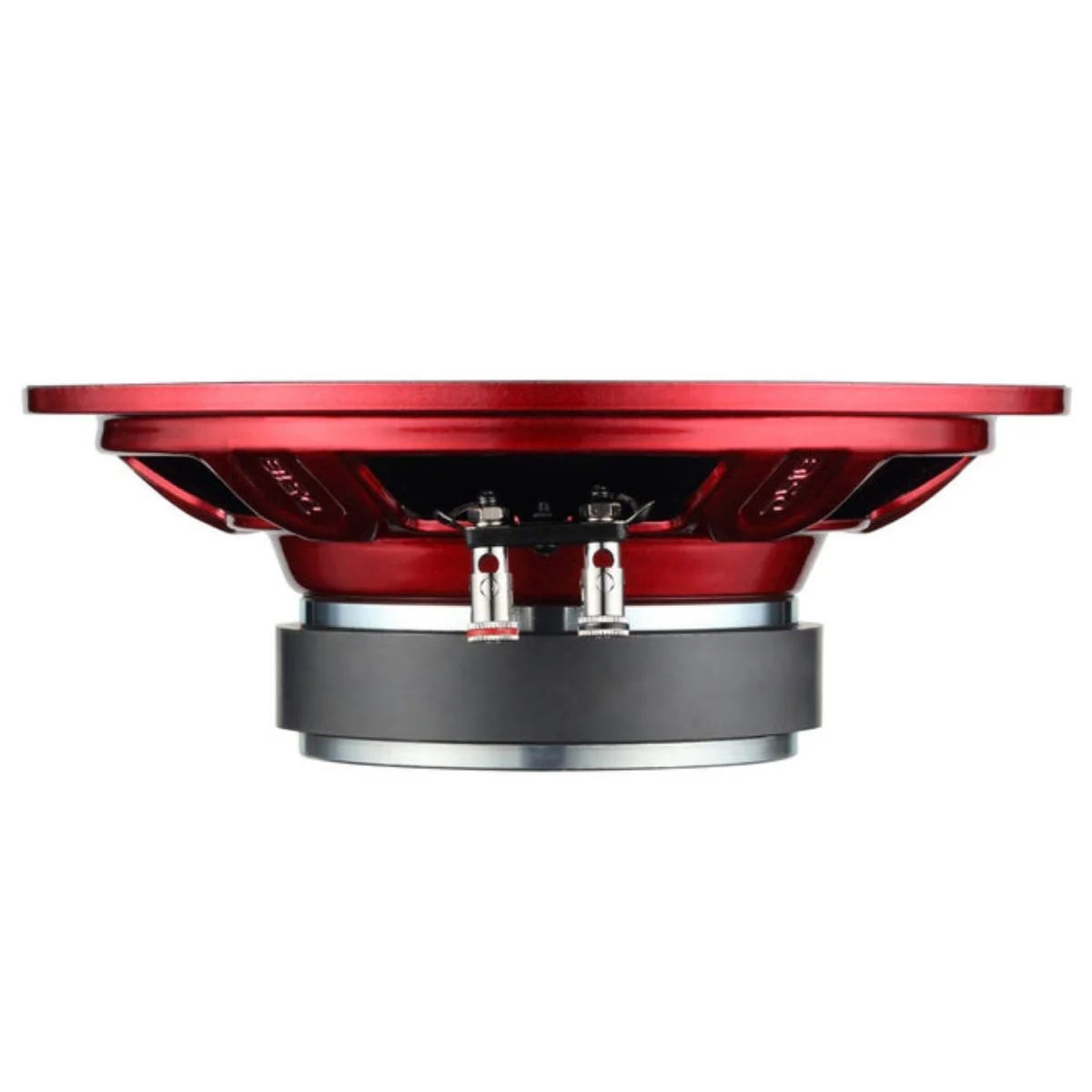

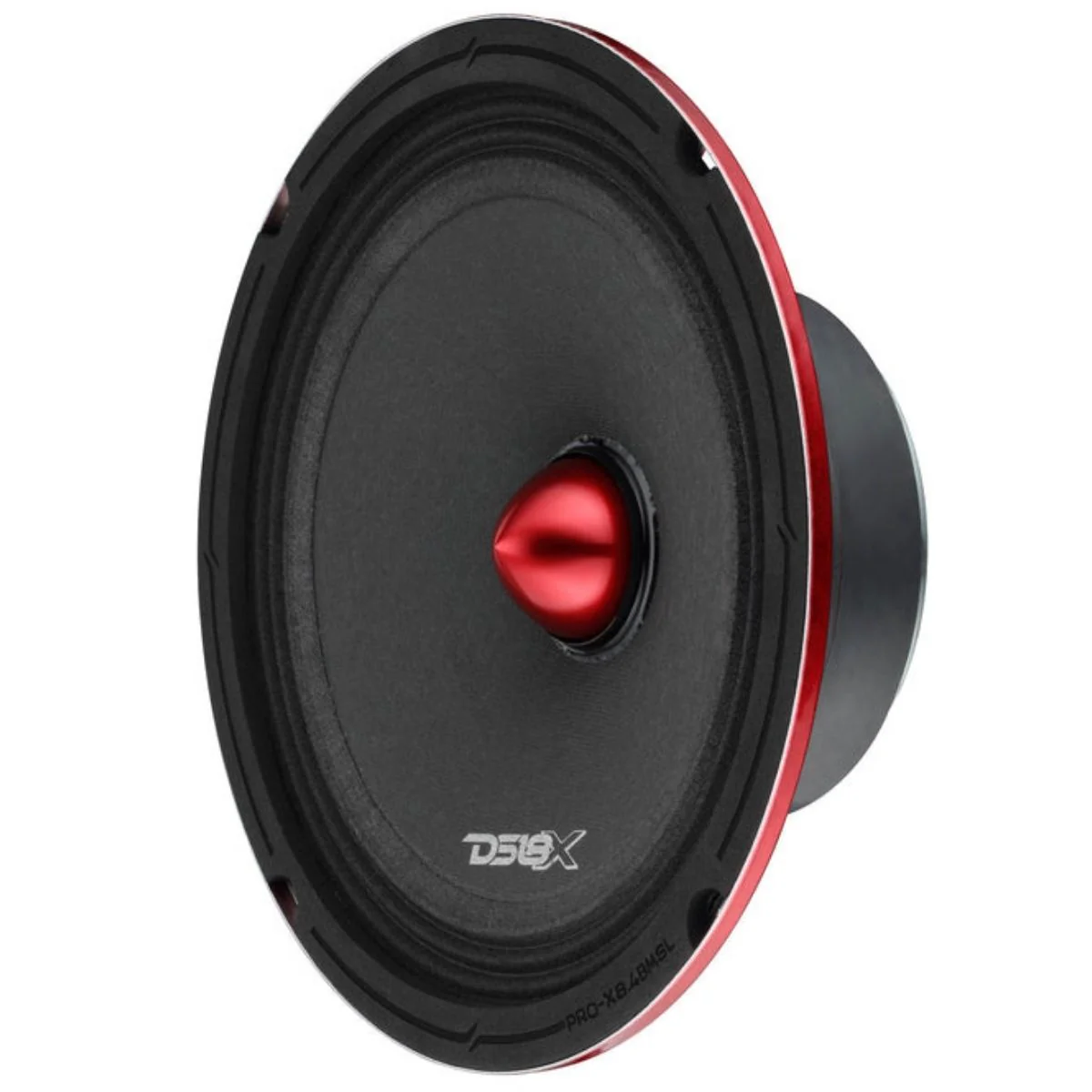

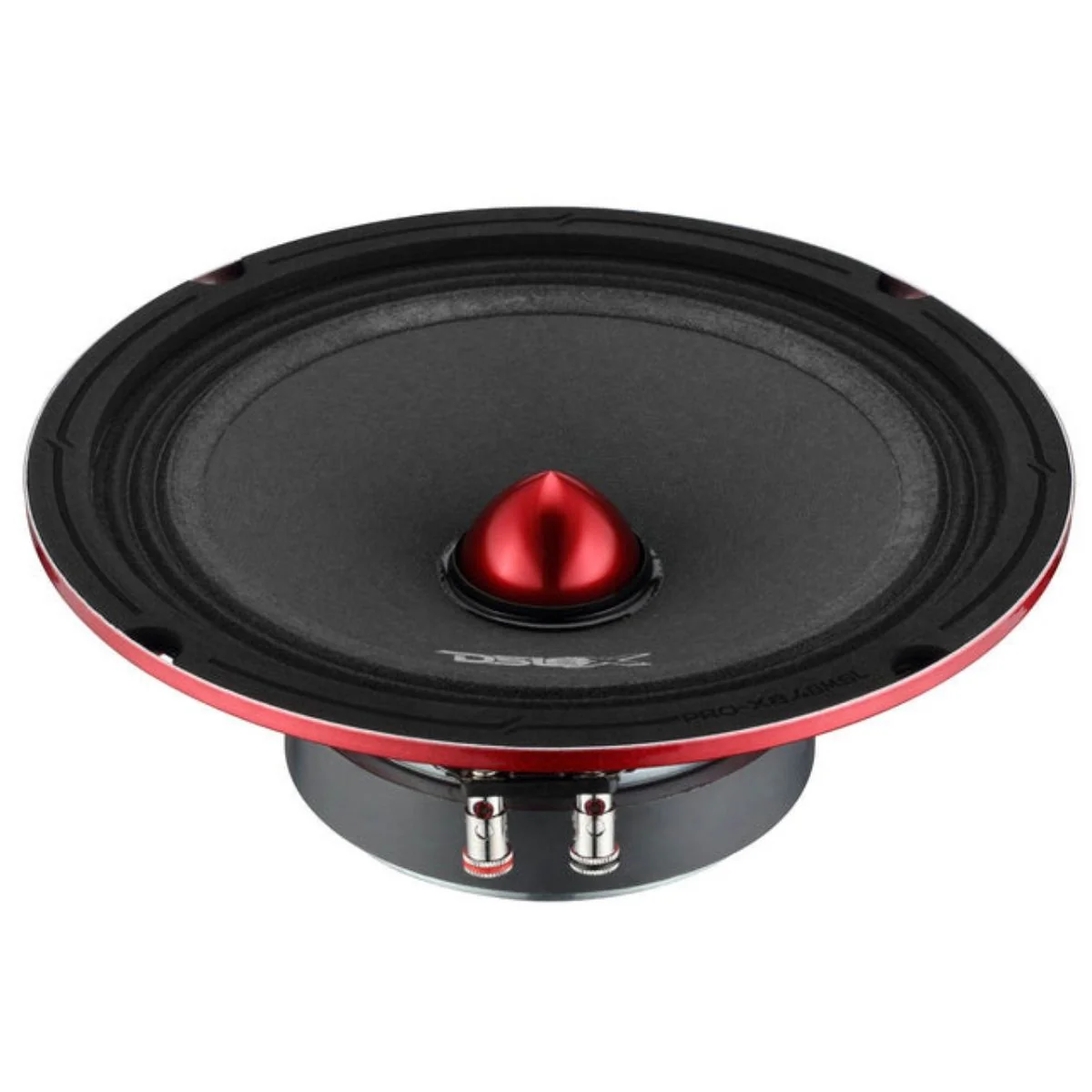

8" 250 Watt RMS 4-Ohm Shallow Mid-Range Bullet Loudspeaker DS18 PRO-X8.4BMSL

This Listing Includes:

• (1) 8" Shallow Mid-Range Bullet Loudspeaker

The DS18 PRO-X8.4BMSL is an 8 inch shallow mid-range bullet loudspeaker built to deliver strong output where full-depth speakers can’t fit. With a slim mounting depth of only 2.71 inches, it’s ideal for doors, pods, and tight custom installs that still demand loud, aggressive mid-range performance.

Rated at 250 watts RMS and 500 watts max power handling with 95dB sensitivity, this speaker plays loud and clear across an 80Hz to 12kHz frequency range. The integrated aluminum bullet boosts high frequency detail without requiring separate drivers, while the non-pressed cone supports clean vocals and strong attack.

This model is built with a steel basket for stability and durability at high volume, powered by a 21 oz ferrite magnet. A 1.5 inch Kapton voice coil former with CCAW winding helps resist heat and distortion when pushed hard. Recommended high-pass crossover is 120Hz. Grill is not included.

Specifications:

• Nominal Diameter: 8" (203mm)


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 250W


• Max Power Handling: 500W


• Sensitivity (1W/1M): 95dB


• Frequency Response: 80Hz to 12kHz


• Recommended HI Pass Crossover: 120Hz


• Sold As: Single


• Grill Included: No

Motor / Materials:

• Voice Coil Diameter: 1.5" (38.1mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-Pressed


• Bullet Material: Aluminum


• Bullet Color / Finish: Glossy Red


• Surround Material: Cloth


• Basket Material: Steel


• Basket Finish / Color: Glossy Red


• Magnet Material: Ferrite


• Magnet Weight: 21 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 13.2L (0.468ft)


• Excursion (one way): 1.5mm


• Free Air Resonance (Fs): 100Hz


• Mechanical Factor (Qms): 9.769


• Electrical Factor (Qes): 0.733


• Total Factor (Qts): 0.682


• Mechanical Mass (Mms): 11.703g


• Mechanical Compliance (Cms): 0.204mm/N


• BL Factor (BL): 5.74


• Voice Coil Inductance (Le): 0.214mH


• Cone Area (Sd): 213.8cm


• DC Resistance (Re): 3.3 Ohms

Dimensions:

• Overall Diameter: 8.23" (209mm)


• Overall Depth: 2.96" (75mm)


• Front Mount Baffle Cutout: 7" (180mm)


• Mounting Depth: 2.71" (69mm)


• Motor Diameter: 4.3" (110mm)
