• Remote Gain Control included for convenient volume adjustment, with set screw power and speaker terminals for secure connections.
• Compact design with a durable DD Audio aluminum chassis featuring extra-thick side walls and long fins for superior cooling.
• High-efficiency toroidal power supply for delivering strong, clean power, outperforming low-cost full bridge designs.
• 850 Watts RMS at 1 Ohm with less than 1% THD, capable of driving single, dual, or triple subwoofers with high output.
• 12dB/Oct High-Pass and Low-Pass Crossovers for precise tuning of subwoofers and mid/high frequencies.

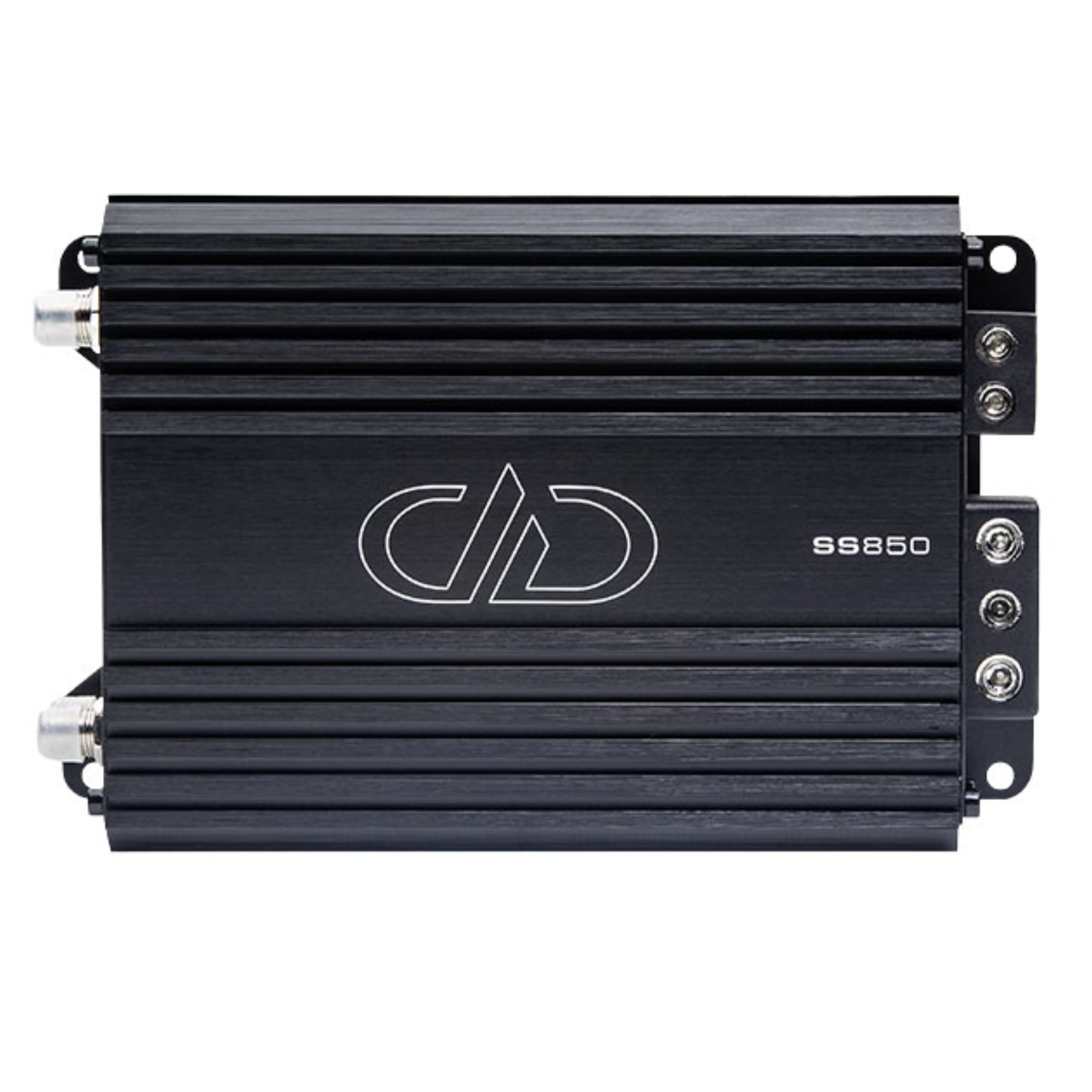

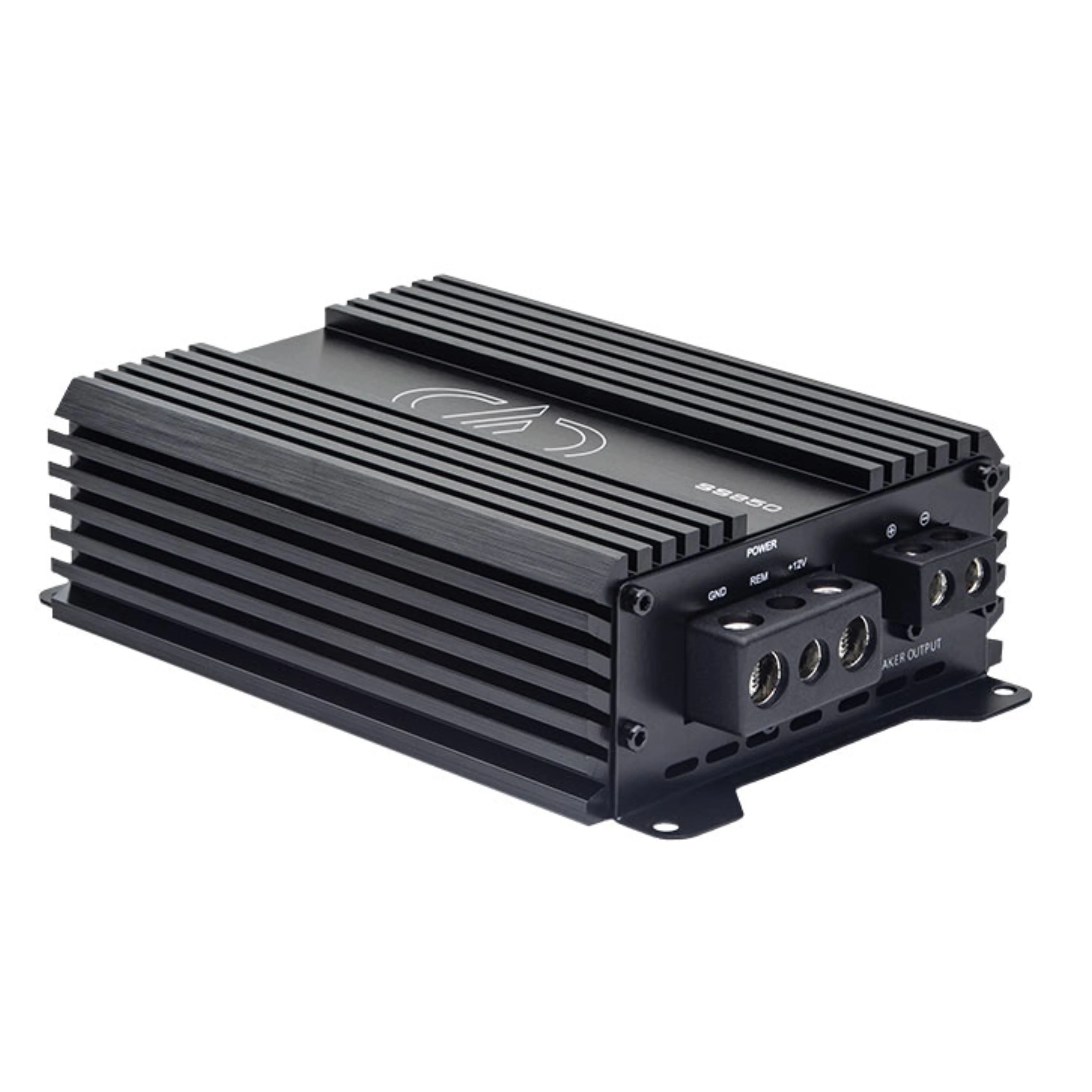

850W 1-Ohm Class-D Compact Monoblock Amplifier DD Audio SS Series SS850

This Listing Includes:

• (1) Compact Monoblock Amplifier DD Audio SS Series SS850

Description:

Maximum efficiency, from stock electrical systems, is the aim of the SS850. Coming in at over 850 Watts RMS under 1% THD, it can drive single, dual or even triple subs to high output levels. Sharing the same architecture as the other high speed, half bridge SS amplifiers, the over-spec power supply delivers the strong impact that low cost full bridge designs fall flat on.

The new SS/SX amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area.

When every Watt matters, the SS850 delivers the best bang for the buck.

Features:

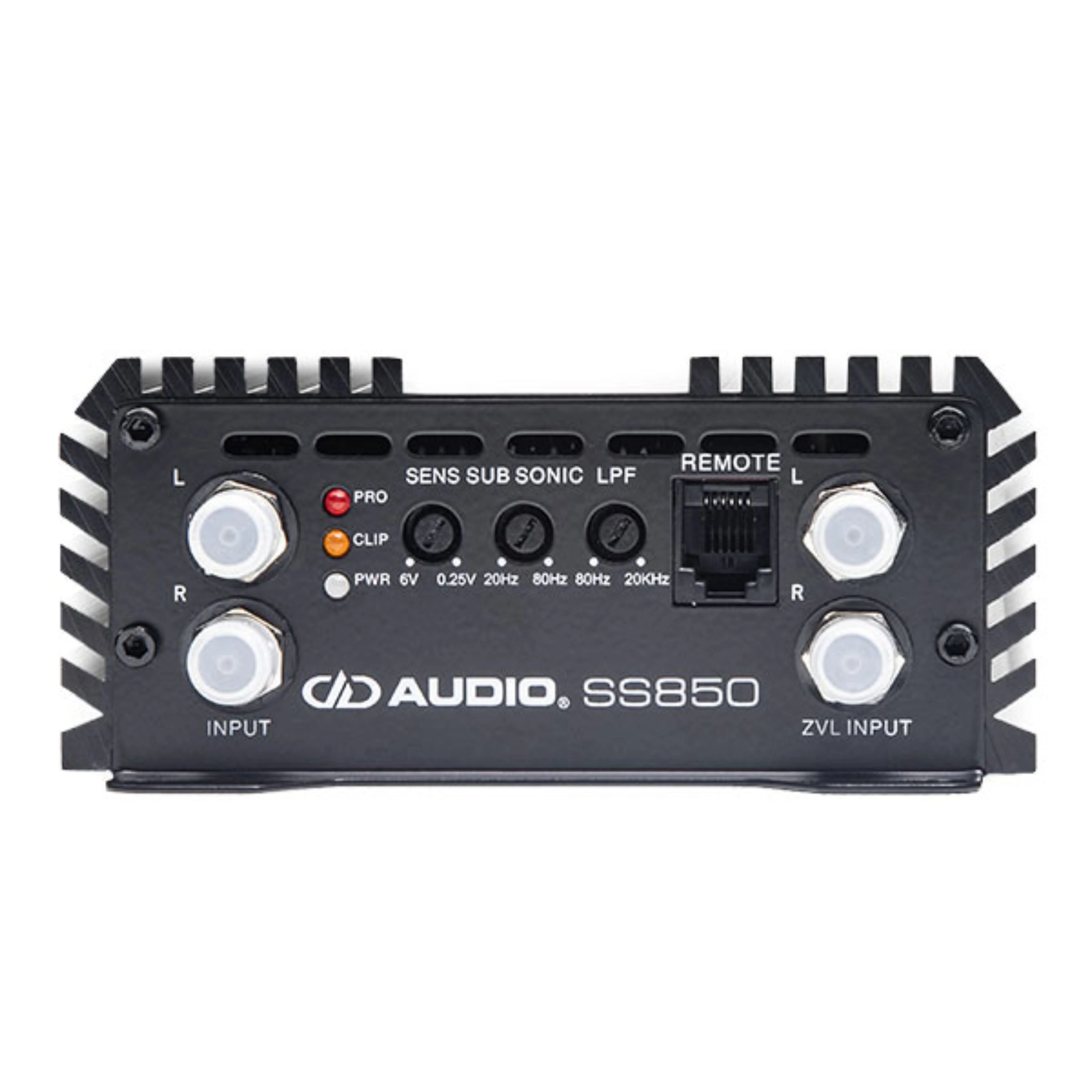

• High Level Inputs


• Toroidal Power Supply


• 12dB/Oct High Pass/Low Pass X-Overs


• Heavyweight DD Aluminum Chassis

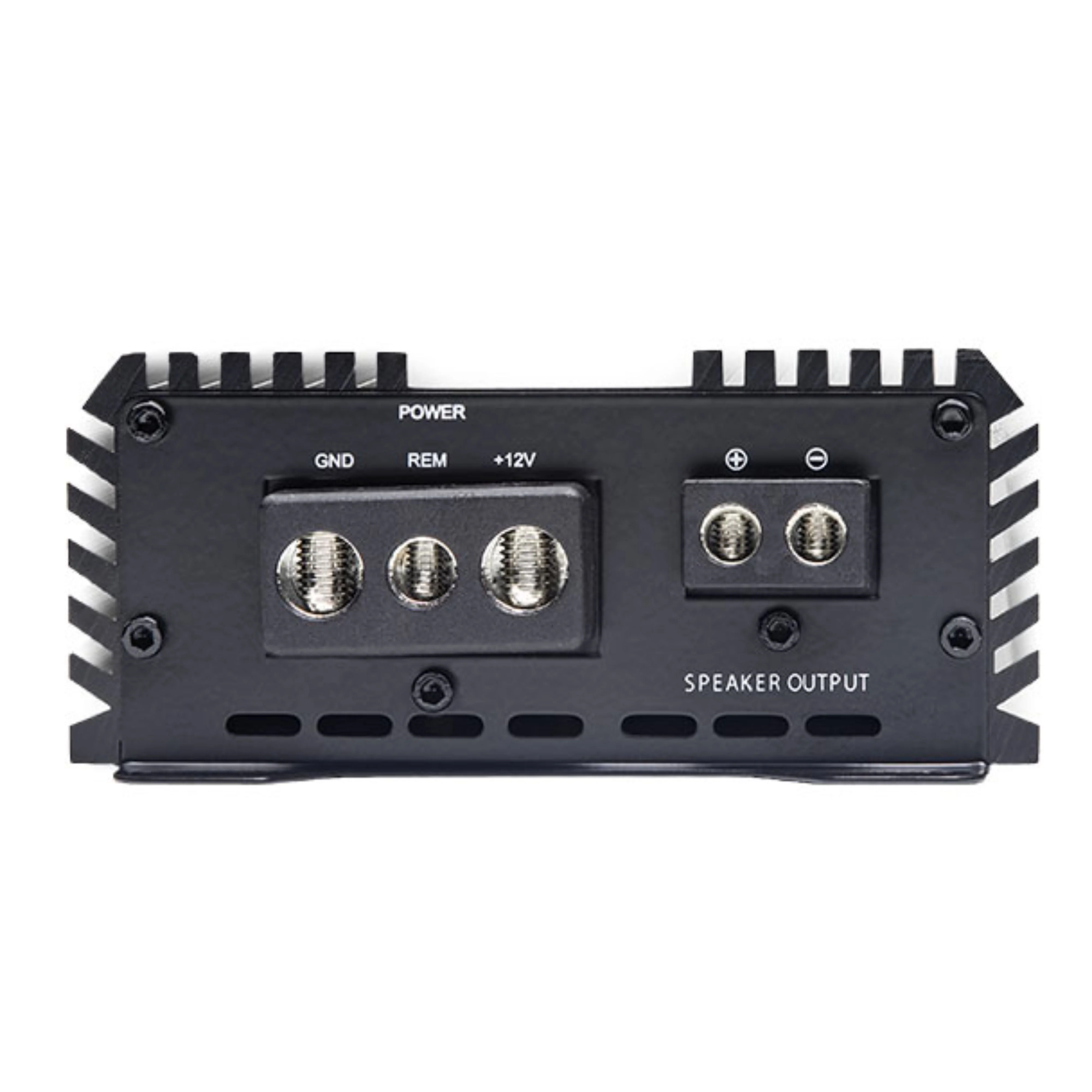

• Set Screw Power and Speaker Terminals


• Remote Gain Control


• 4 AWG Power Terminals

Specifications:

• Operating Voltage: 9 - 16


• Test Voltage: 14.4


• Input Channel(s): 2


• Output Channel(s): 1


• Continuous Wattage @2ohm: 575


• Continuous Wattage @1ohm: 850


• Max Current Draw (Amps): 90


• RCA Input Voltage Sensitivity: 6 - 0.25


• RCA Input S/N: > 95


• Damping Factor: > 100


• THD: < 1.0%


• Frequency Response (Hz): 20 - 20k


• Sub-Sonic Filter: 20 - 80


• Low-Pass Filter: 80 - 20k


• ZVL Input: Yes


• Remote Control: Remote Included in Box


• Power Wire Gauge: 4


• Speaker Wire Gauge: 8

Dimensions (In Inches):

• Length: 5.75"


• Width:4.6"


• Height: 2"
