• Speaker Level Input Accepts Up to 400 Watts RMS
• Bass Enhancer & Bass Compensation
• Frequency Response: 10Hz-100Hz +-1 dB
• Dash Level Control Remote

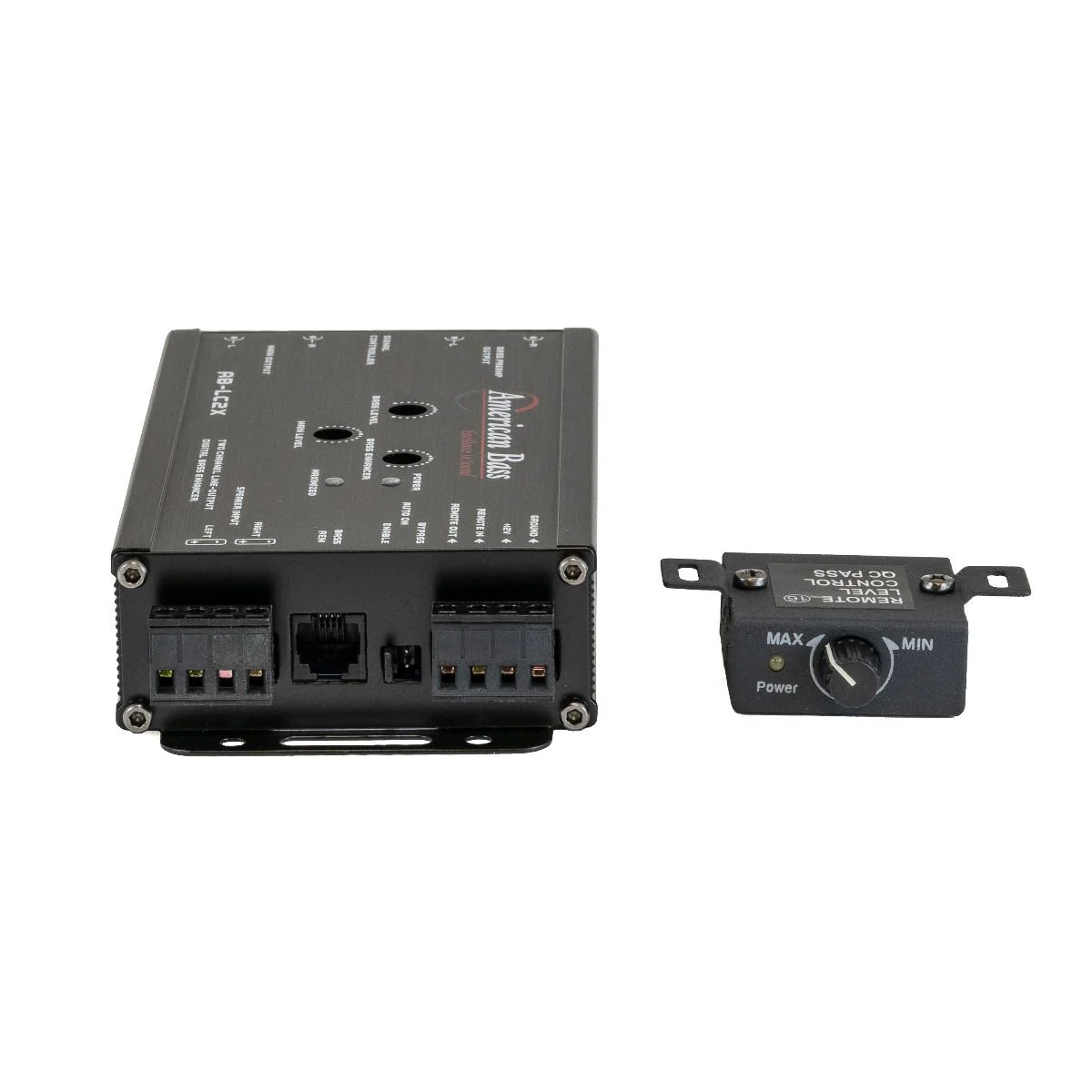

American Bass 2 Channel Line-Output DSP Bass Enhancer w/ Dash Mount Remote LC2X

This listing includes:

• (1) 2 Channel Line-Output DSP Bass Enhancer w/ Dash Mount Remote

Upgrade your car audio experience with the American Bass AB-LC2X Signal Processor. This versatile device fine-tunes your audio system by optimizing equalization, managing crossovers, aligning sound waves with time alignment, correcting phase issues, and providing seamless integration with factory-installed systems. Enhance your bass output and enjoy precise volume control and level matching across all components.

Features:

• Speaker Level Input Accepts Up to 500 Watts RMS


• Bass Enhancer Bass Compensation


• Selectable Audio ON


• 9.5 Volt Pre-out


• 12 Volt Trigger Out


• Dual Amplifier Outputs


• Level Matching Controls


• Dash Remote Level Control

Specifications:

• S/N Ratio: Under 11 dB


• THD: 0.01%


• Input Impredance: 20K Ohms


• Output Impedance: 150 Ohms


• Fuse Rating: 1A


• Power Draw:  150mA

Dimensions:

• Length: 6 inches


• Width: 4 inches


• Height: 2 inches
