• Elevate your car audio experience with the American Bass 5 Band Equalizer, featuring a built-in digital voltmeter and a powerful 7V line driver for optimal audio control.
• Achieve precision in sound customization with the active gain pre-amp, master volume control, and individual left and right sensitivity adjustments.
• The five-band pre-amplifier offers a 12dB boost/cut range, allowing you to fine-tune your audio with unparalleled flexibility.
• Drive your front, rear, and subwoofer amplifiers effortlessly with three stereo RCA outputs, while the dedicated subwoofer level control and adjustable frequency add depth to your bass.
• Maximize your audio potential with a versatile equalizer boasting a wide frequency response (10Hz-50KHz) and superior specifications such as 90 dB S/N Ratio and 0.05% THD.

American Bass 5 Band Equalizer with Built in Voltmeter Digital Display AB-5B-ECV

This listing includes:

• (1) AB-5B-ECV 5 Band Equalizer

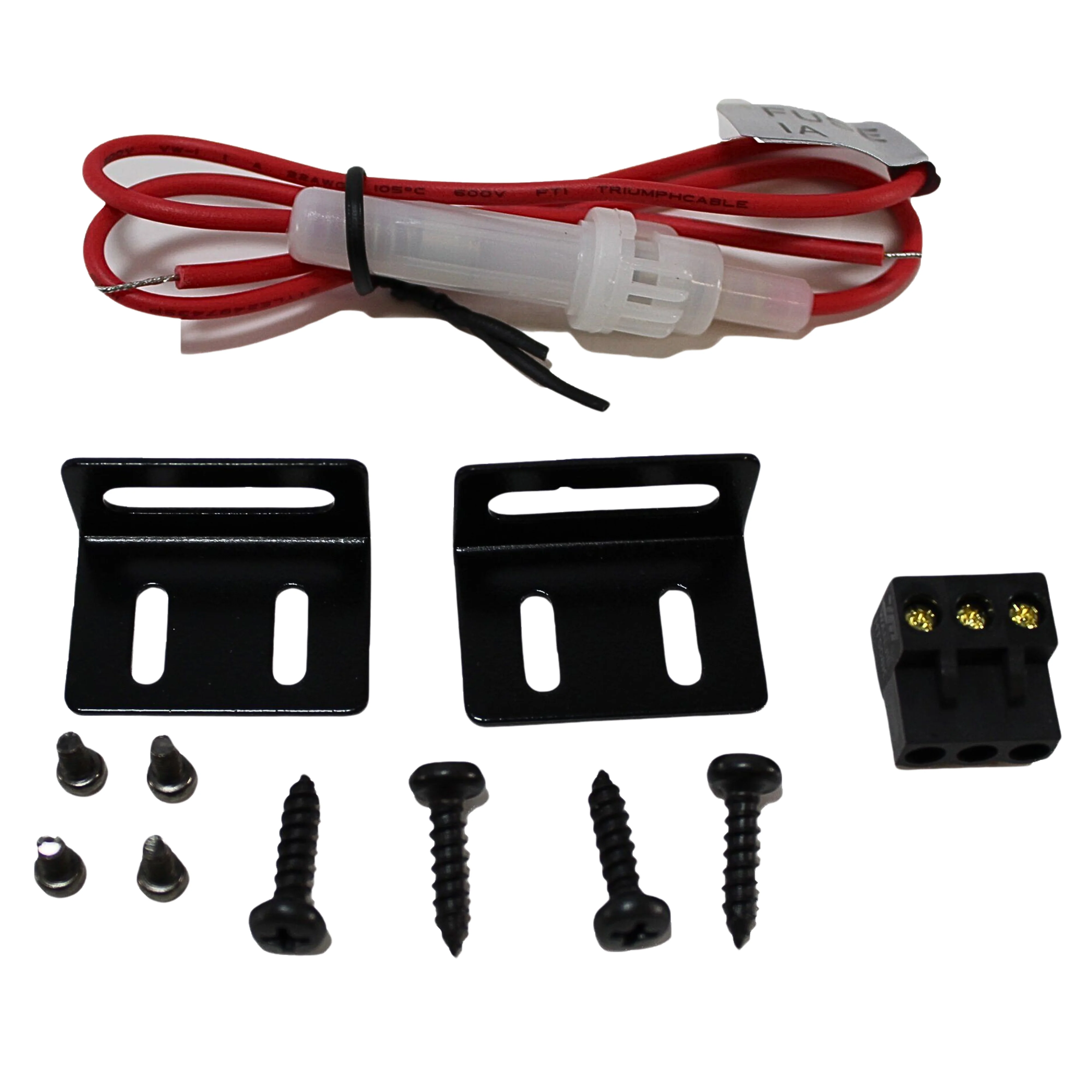

• (1) Mounting hardware


• (1) User's Manual

Introducing the American Bass 5 Band Equalizer, a versatile audio enhancement tool designed to elevate your in-car audio experience. Packed with features, this equalizer comes equipped with a built-in digital voltmeter, a built-in line driver with a powerful 7V output, and a dedicated subwoofer level control with an epicenter. The active gain pre-amp, featuring adjustable input sensitivity, ensures precise control over your audio signals. The master volume control boasts up to 8 volts RMS of output, providing a powerful and dynamic sound. Customize your audio further with individual left and right sensitivity controls and a five-band pre-amplifier offering 12dB boost/cut options. The equalizer also includes three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers.

Features:

• Active gain Pre-Amp with adjustable input sensitivity


• Master volume control with up to 8 volts RMS of output


• Individual left and right sensitivity controls


• Five band pre-amplifier with 12 dB Boost/Cut

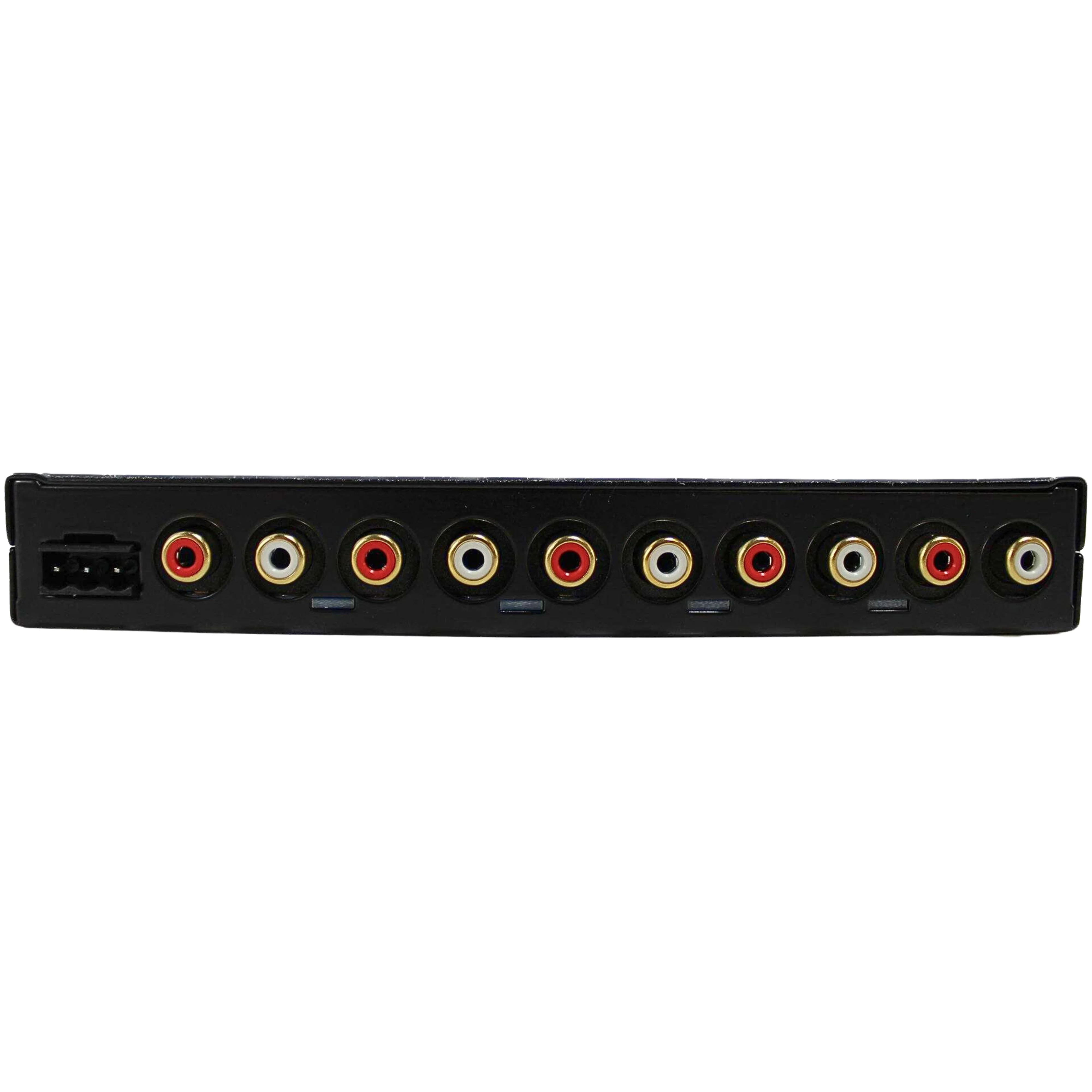

• Three stereo RCA output to drive front, rear, and subwoofer audio amplifier.


• Subwoofer level control


• Subwoofer frequency adjustable


• Input AUX/DVD select switch.

Specifications:

• Power Supply: 11-15 DC Negative Ground


• Max. Output Voltage: 8V


• Pre Graphic Frequency: 50Hz, 120Hz, 900Hz, 2.2KHz, 16KHz


• Equalization Range: +12dB


• Subwoofer Frequency: 10Hz-300Hz


• Input Impedance: 10K ohms


• S/N Ratio: 90 dB


• THD: 0.05%


• Channel Separation: 82dB/1kHz


• Frequency Response: 10Hz-50KHz (-3dB)
