• Unmatched Audio Dominance: Experience explosive sound with aggressive mids and blazing highs, thanks to the RAGE Series' dynamic 6.5" woofers and 1" silk-dome tweeters.
• Precision Crossovers: Advanced crossovers ensure seamless frequency distribution for a balanced, distortion-free sound that brings out every nuance in your music.
• High-Powered Performance: With a 100W power rating, this 2-way component set delivers intense audio that transforms your ride into a sonic powerhouse.
• Premium Build Quality: Built with high-quality materials and craftsmanship, the RAGE61 offers durability and longevity, so you can enjoy your audio system for years to come.
• Easy Installation: Designed for straightforward installation, the RAGE61 is perfect for audio enthusiasts of all levels. Upgrade your sound system quickly and enjoy a whole new level of listening!

B2 Audio RAGE Series 6.5" 2-way 4 Ohm 100W Component Set With Crossovers RAGE61

This listing includes:

• (2) 6.5" Mid-woofers



• (2) 1.6" Tweeters



• (2) Crossovers



• (1) Spec Sheet for Rage 6.1



• Mounting Hardware

Get ready to unleash pure audio power with the B2 Audio RAGE Series 6.5" 2-way 4 Ohm 100W Component Set! This cutting-edge audio system is built to dominate your soundscape and elevate your listening experience to the next level.

Designed to deliver jaw-dropping performance, the RAGE61 boasts aggressive mids, blistering highs, and earth-shattering clarity. Feel the pulse of your music as the 6.5" woofers and 1" silk-dome tweeters create a dynamic soundstage that will leave you speechless.

With advanced crossovers for seamless frequency distribution, the RAGE Series ensures every beat, note, and whisper is delivered with impeccable precision. Whether you crave hard-hitting bass or crystal-clear vocals, this component set is ready to exceed your expectations.

Don't settle for mediocre soundignite your audio system with the B2 Audio RAGE Series! This is more than an upgrade; it's an audio revolution. Experience the power of RAGE61 and transform your ride into a sonic powerhouse!

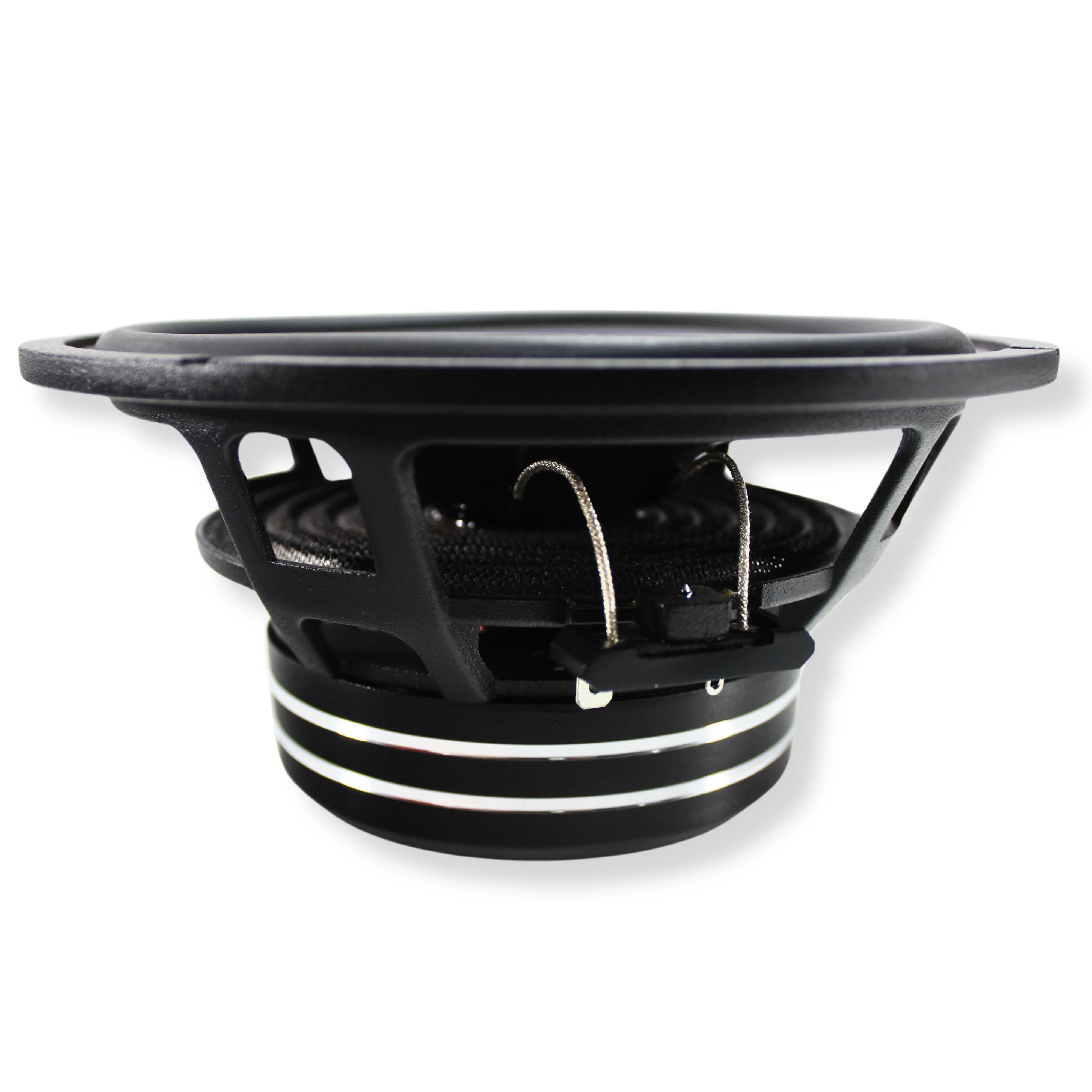

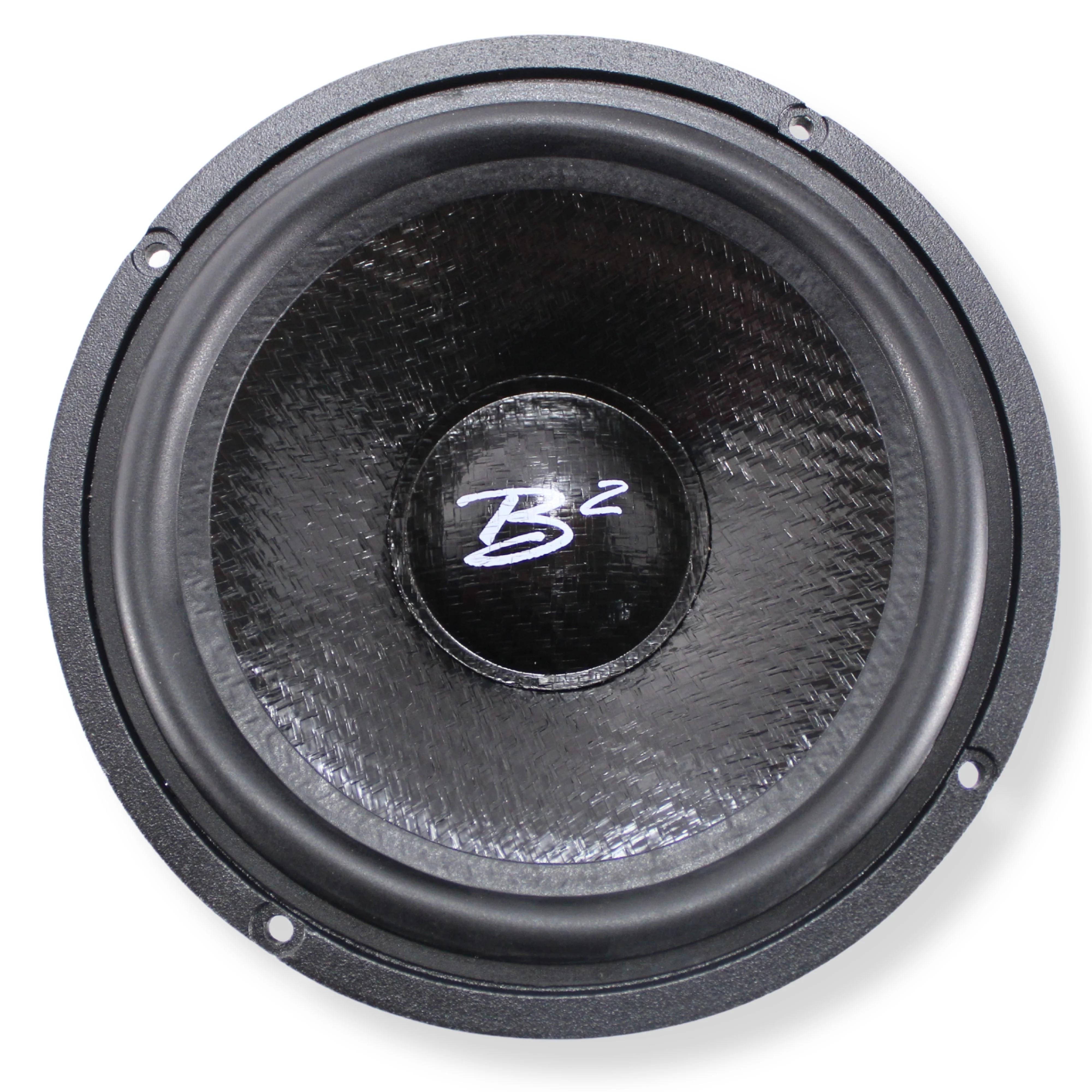

Midrange Specifications:

• RMS Power Handling: 100 w



• Nominal Impedance: 3.9-Ohm



• Voice Coil Diameter: 1.2"



• Magnet: Ferrite Motor Structure



• Frequency Response: 60 Hz - 25 KHz

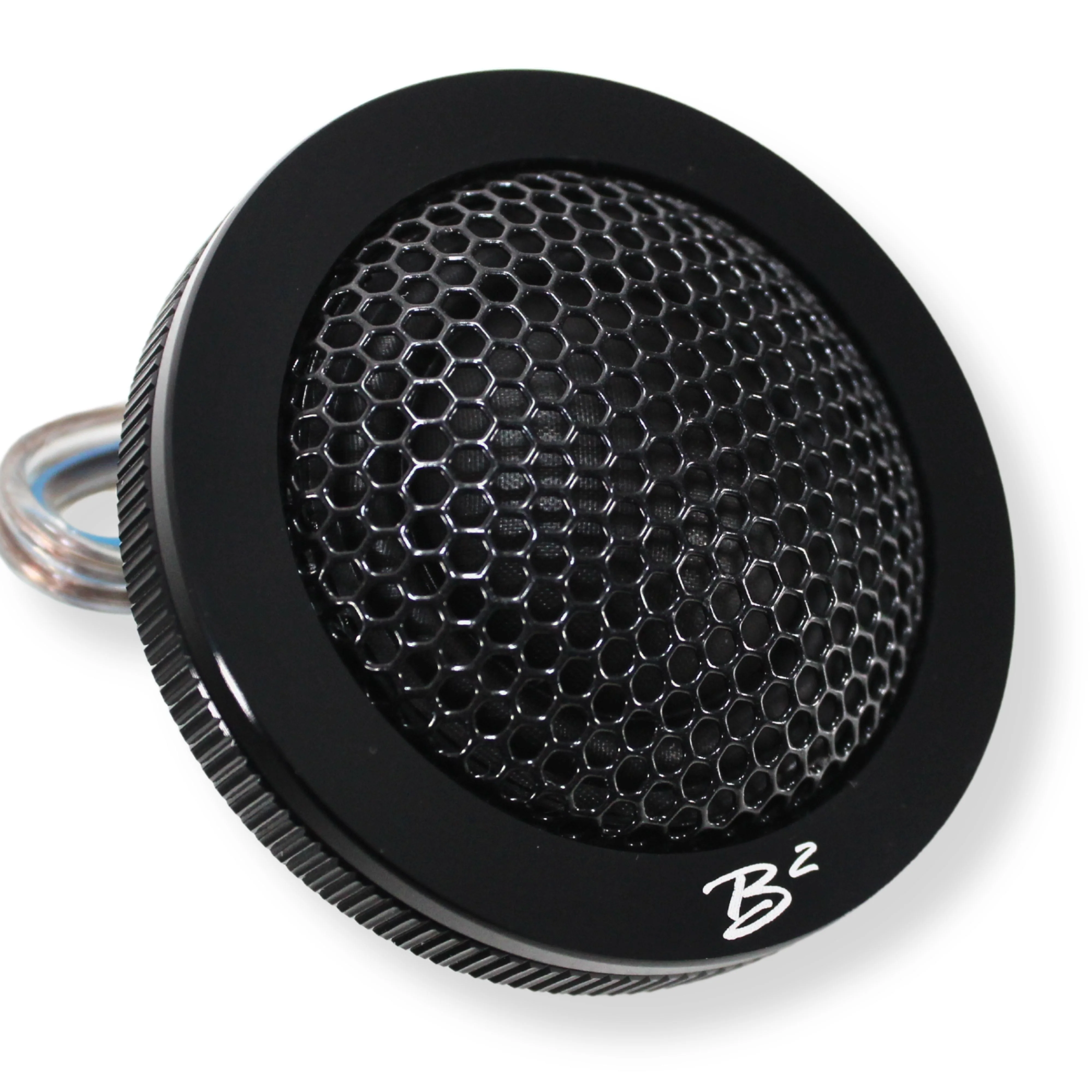

Tweeter Specifications:

• RMS Power Handling: 30 w



• Nominal Impedance: 4-Ohm



• Voice Coil Diameter: 1"



• Magnet: Neodymium Motor Structure



• Frequency Response: 60 Hz - 25 KHz

THIELE AND SMALL PARAMETERS:

Midrange:

• Free Air Resonance (Fs): 60 Hz



• Resistance (Re): 3.6-Ohm



• Mechanical Factor (Qms): 7.21



• Electrical Factor (Qes): 0.9



• Total Factor (Qts): 0.8



• Equivalent Volume (Vas): 7.78



• Compliance (Cms): 305 um/N



• BL Factor (BL): 5.44 TM



• Moving Mass (Mms): 15.85 g



• Sound Pressure Level (SPL): 88 +/-1 dB

Tweeter:

• Free Air Resonance (Fs): 1250 Hz



• Resistance (Re): 3.9-Ohm



• Mechanical Factor (Qms): 0.76



• Electrical Factor (Qes): 2.43



• Total Factor (Qts): 0.58



• Equivalent Volume (Vas): 0.001 L



• Compliance (Cms): 5.7 um/N



• BL Factor (BL): 6 TM



• Moving Mass (Mms): 2.8 g



• Sound Pressure Level (SPL): 84dB

MEASUREMENTS:

Midrange:

• Overall Diameter: 6.5" / 165 mm



• Mounting Diameter: 5.55" / 141 mm



• Overall Depth: 3.19" / 81 mm



• Mounting Depth: 2.83" / 72 mm

Tweeter:

• Overall Diameter: 2.21" / 56 mm



• Mounting Diameter: 1.87" / 47.4 mm



• Overall Depth: 1.02" / 25.8 mm



• Mounting Depth: 0.398" / 10.1 mm
