• Premium Audio Experience: Elevate your driving experience with immersive sound quality and thunderous bass from the B2 Audio RAMPAGE8-D1-V2 8" subwoofer
• Compact Design: Compact form factor makes it easy to install in tight spaces, while still delivering impressive bass performance.
• Enhanced Sensitivity: Offers high sensitivity for efficient power utilization, ensuring maximum output with minimal input power.
• Seamless Integration: Designed to seamlessly integrate into any car audio system, whether it's a custom build or an OEM upgrade.
• Precision Engineering: Engineered with meticulous attention to detail, ensuring optimal performance and reliability in demanding automotive environments.

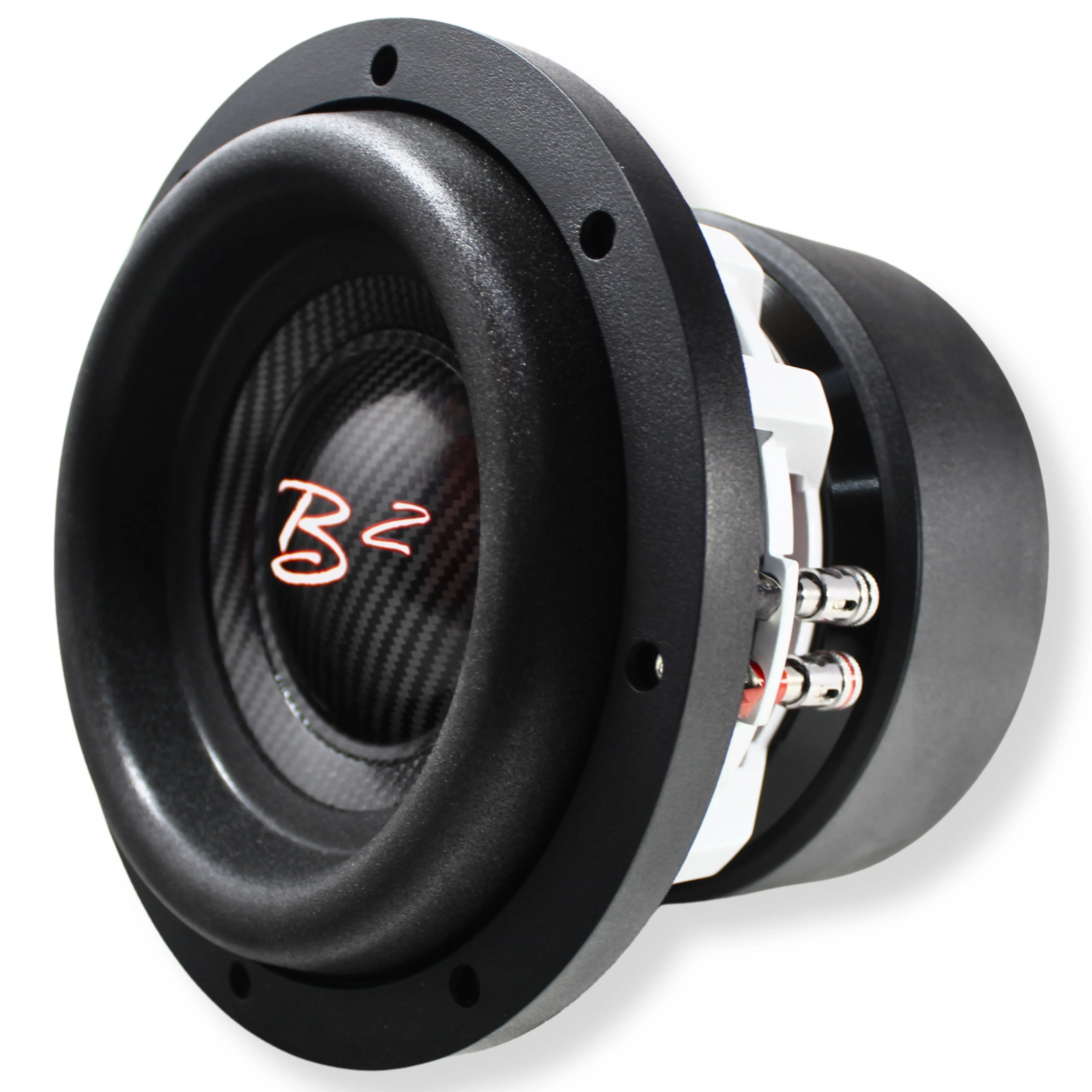

B2 Audio RAMPAGE Series 8" Dual 2-Ohm 2" Voice Coil 1000 Watt RMS Subwoofer

This Listing Includes:

• (1) B2 Audio RAMPAGE8-D2-V2 8" Subwoofer

Get ready for a seismic shift in your audio experience with the B2 Audio RAMPAGE Series 8" Dual 2-Ohm 2000 Watt Peak Subwoofer. This subwoofer is designed to bring earth-shaking bass to your setup, delivering an explosive 2000 watts of peak power. With dual 2-ohm voice coils, you get versatile wiring options to dominate your system and push your amplifier to its limits.

The RAMPAGE subwoofer's robust magnet drives intense, ground-pounding bass that will leave you breathless. Exceptional sensitivity ensures you feel the full impact of your music even at lower power levels, making every note and beat resonate.

Engineered for high-performance handling, this powerhouse subwoofer boasts a wide frequency response, ensuring deep, thunderous bass that brings your favorite tracks to life. Despite its compact 8-inch size, the RAMPAGE subwoofer is a force to be reckoned with, outclassing larger competitors with ease.

Built tough to withstand the most demanding conditions, the B2 Audio RAMPAGE subwoofer's rugged construction ensures it can handle high-volume play. Don't settle for ordinary, elevate your sound system to a new realm of aggressive power and unleash the chaos. The B2 Audio RAMPAGE Series 8" Dual 2-Ohm 2000 Watt Peak Subwoofer is your ticket to dominating the audio landscape with unstoppable force. Feel the surge, command your sound, and revel in the bass-driven frenzy!

Specifications:

• RMS Power Handling: 1000 Watts


• Max Power Handling: 2000 Watts


• Nominal Impedance: Dual 2-Ohm


• Voice Coil Diameter: 2"


• Sensitivity: 87.2 dB


• Magnet Weight: 300 Oz


• Displacement Volume: 3.3 L / .115 cu ft

Thiele & Small:

• Free Air Resonance (Fs): 37.5 Hz


• Resistance (Re): 1.9-Ohm


• Mechanical Factor (Qms): 6.16


• Electrical Factor (Qes): 0.5


• Total Factor (Qts): 0.46


• Equivalent Volume (Vas): 5.2 L


• Compliance (Cms): 90 um/N


• BL Factor (BL): 84.6


• Moving Mass (Mms): 164.6 g


• Excursion Max (Xmax): 20 mm

Measurements:

• Overall Diameter: 8.66" / 220mm


• Mounting Diameter: 7.84" / 199mm


• Front Mount Baffle Cutout: 7.28" / 185mm


• Overall Depth: 7.09" / 180mm


• Mounting Depth: 5.91" / 150mm

Enclosure Suggestions:

Sealed:

• 8.5L / 0.3 cu.ft


• Qtc 0.47

Ported Compact:

• 15L / 0.53 cu.ft


• Port: 2"


• Length : 7.16" / 18.2mm


• FB: 42 Hz

Ported:

• 28L / 0.989 cu.ft


• Port Area: 7.75 sq. in


• Length: 12" / 30cm


• FB: 38hz
