• 2-channel Class A/B amplifier delivering 120 watts RMS of clean, dynamic sound.
• 90 watts RMS per channel at 2 Ohms or bridgeable to 130 watts x1 for subwoofer applications.
• Wide frequency range from 20 Hz to 36 kHz for detailed highs, mids, and lows.
• Adjustable Bass Boost with +6 dB and +12 dB options for powerful low-end control.
• Durable brushed aluminum chassis with 4-way protection circuitry for long-lasting reliability.

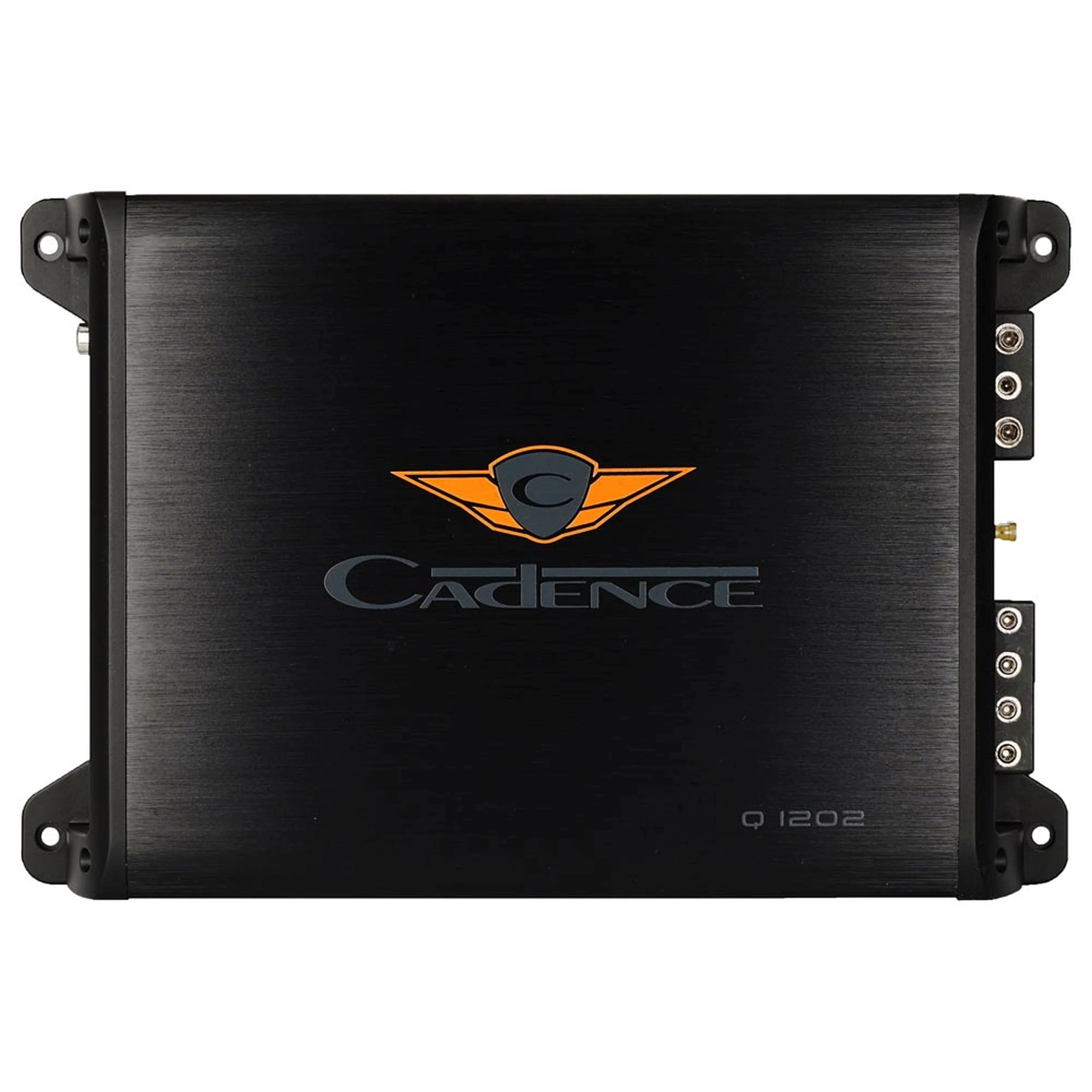

Cadence 120 Watt 2-Channel 2-Ohm Class A/B Car Audio Amplifier Q1202

This Listing Includes:

• (1) Cadence Quartz Core Q Series Q1202 2-Channel Amplifier


• (1) User Manual


• (1) Set of Mounting Screws

The Cadence Q1202 from the Quartz Core Q Series represents the perfect fusion of power, elegance, and clarity. This 2-channel Class A/B amplifier delivers 120 watts RMS of clean, balanced sound with a smooth response that brings out the best in your music. Designed for precision and performance, it’s ideal for front or rear speaker setups, or for bridging into a single, powerful channel for subwoofer use.

With 90 watts RMS per channel at 2 Ohms and up to 130 watts bridged at 4 Ohms, the Q1202 packs reliable strength into a compact design. Its wide frequency range of 20 Hz to 36 kHz captures every nuance, while the adjustable Bass Boost (0 / +6 / +12 dB) lets you dial in extra punch when needed.

Specifications:

• Application Type: Car


• Amplifier Type: Class A/B


• Channel Configuration: 2 Channels


• Model Series: Q Series


• Model Number: Q1202


• RMS Power @ 4 Ohm: 60 W x 2


• RMS Power @ 2 Ohm: 90 W x 2


• Bridged RMS Power @ 4 Ohm: 130 W x 1


• Frequency Response: 20 Hz - 36 kHz


• Input Sensitivity: 200 mV - 2 V


• THD: < 0.05%


• Signal-to-Noise Ratio: > 90 dB

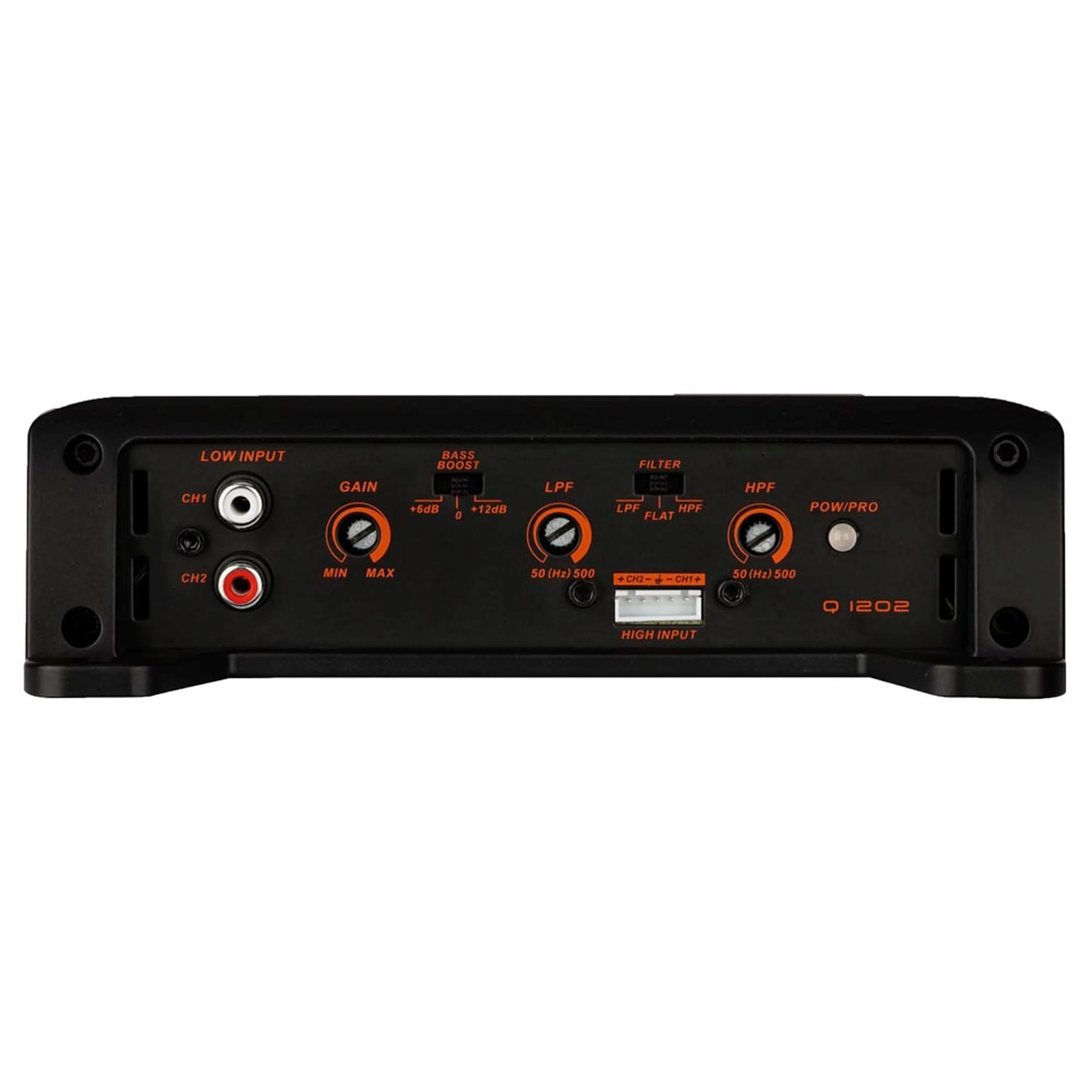

• High Pass Filter (HPF): 50 Hz - 500 Hz


• Low Pass Filter (LPF): 50 Hz - 500 Hz


• Bass Boost: 0 / +6 / +12 dB


• Input Type: RCA, High-Level


• Power Supply: High-Speed MOSFET


• Protection Circuitry: Thermal, Short Circuit, DC, and Overload


• Build Material: Brushed Aluminum Alloy


• Product Category: Amplifier

Dimensions:

• Length: 11.02 in (280 mm)


• Width: 7.10 in (180 mm)


• Height: 2.05 in (52 mm)
