• Featuring an innovative five-channel Class A/B design, the Q4705 delivers 230 watts RMS on the mono channel at 2 ohms, accompanied by 90 watts RMS per channel for the remaining four channels, ensuring seamless integration of subwoofers and speakers for a complete soundstage.
• In bridged mode, this amplifier generates up to 180 watts RMS for the main channels, offering powerful audio output for larger speaker systems or high-performance configurations.
• Its extensive frequency response range of 10 Hz to 36 kHz ensures no detail is overlooked, from deep basslines to sparkling trebles, delivering pure and vibrant audio across all frequencies.
• Powered by a high-efficiency MOSFET power supply, the Q4705 ensures consistent and clean energy distribution, maintaining audio clarity even at high volume levels.

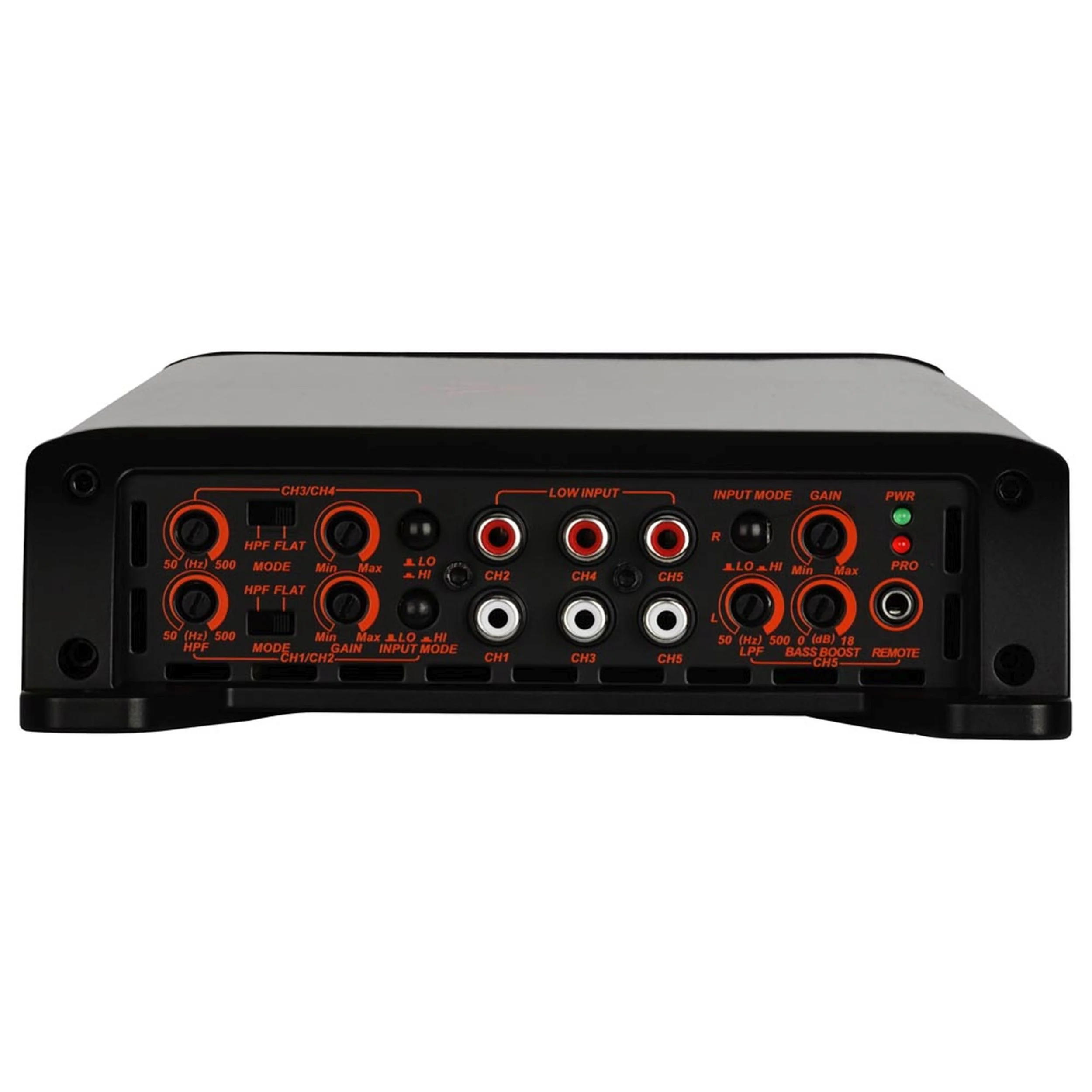

• Personalize your sound with adjustable Bass Boost (0 to 18 dB), low-pass crossover (50 Hz–500 Hz), and high-pass crossover (50 Hz–500 Hz), giving you precise control over your system’s performance.

Cadence 470 Watt 2-Ohm Class A/B 5-Channel Car Audio Amplifier Q4705

This Listing Includes

• (1) Cadence 5-Channel Class A/B Car Audio Amplifier Q4705

Discover the ultimate fusion of performance and versatility with the Q4705, a multi-channel amplifier from the iconic Quartz Core Q Series. With its five-channel design, robust power, and refined craftsmanship, the Q4705 is your gateway to an immersive and balanced audio experience, whether you're seeking crisp highs, rich mids, or thunderous bass.

Features

• Built with advanced 4-way protection circuitry, this amplifier protects against thermal overload, short circuits, DC faults, and overload conditions, ensuring safe and reliable operation.

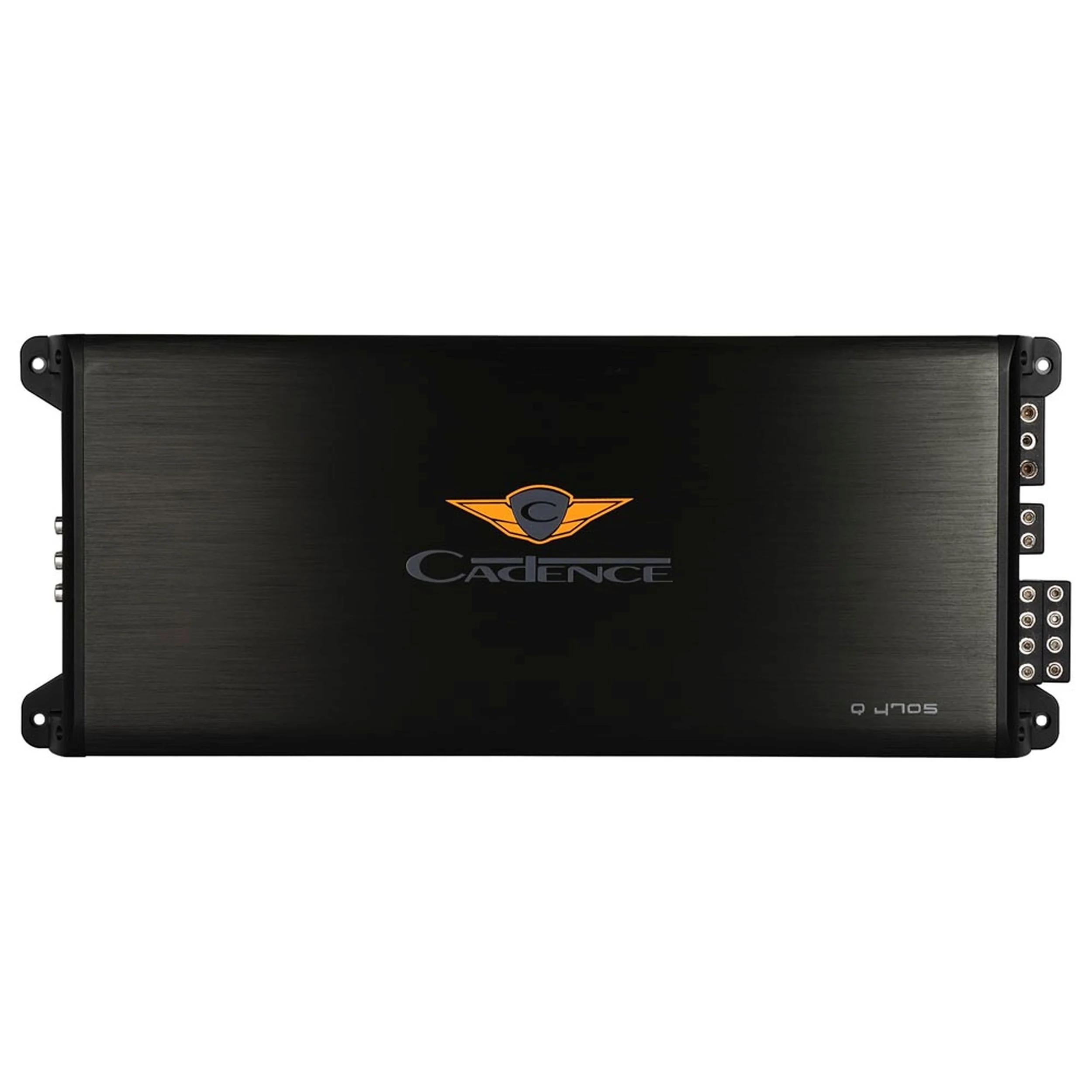

• Encased in a durable brushed black aluminum alloy chassis with the signature orange Cadence logo, its sophisticated design complements any setup, combining aesthetics with durability.


• Compact yet powerful, its dimensions (455 mm x 180 mm x 52 mm) make it easy to install in any environment, offering both style and functionality in a single package.

Specifications:

• Model Series: Q


• Model Number: Q4705


• Channel: 5 Channels


• Amplifier IC: A/B


• RMS Power @ 4 ohm: 60 W x 4 + 150 W x 1


• RMS Power @ 2 ohm: 90 W x 4 + 230 W x 1


• Bridged RMS Power @ 4 ohm: 180 W x 2


• Frequency Response: 10 Hz - 36 kHz


• Input Sensitivity: 250 mV - 5 V


• T.H.D.: < 0.05 %


• S/N: > 90 dB


• HPF: 50 Hz - 500 Hz


• LPF: 50 Hz - 500 Hz


• Bass Boost: 0 - 18 dB


• Connectivity Input: RCA

Dimensions:

• Length: 17.91"


• Width: 7.10"


• Depth: 2.05"

The Q4705 is a testament to the perfect blend of versatility, power, and elegance. Its five-channel flexibility, premium build quality, and refined audio control make it an ideal choice for audiophiles seeking a balanced and immersive listening experience. Elevate your audio journey with the Q4705 - because your music deserves the best.
