• Powerful Output: Delivers 1100 watts of total output with 1-ohm stability, ideal for driving high-performance subwoofers.
• Precision Tuning: Equipped with variable bandpass crossovers and LED clipping indicator for accurate audio adjustments.
• Easy Installation: Features single-side controls and connections, plus auto turn-on options for straightforward setup.
• Rugged Durability: Conformal coated internal circuitry and corrosion-proof switches provide enhanced moisture resistance for marine, bike, and ATV use.
• Robust Construction: Compact design with set screw power and speaker terminals, discrete output sections, and heavy-duty anodized aluminum heatsinks for reliable power management and long-term durability.

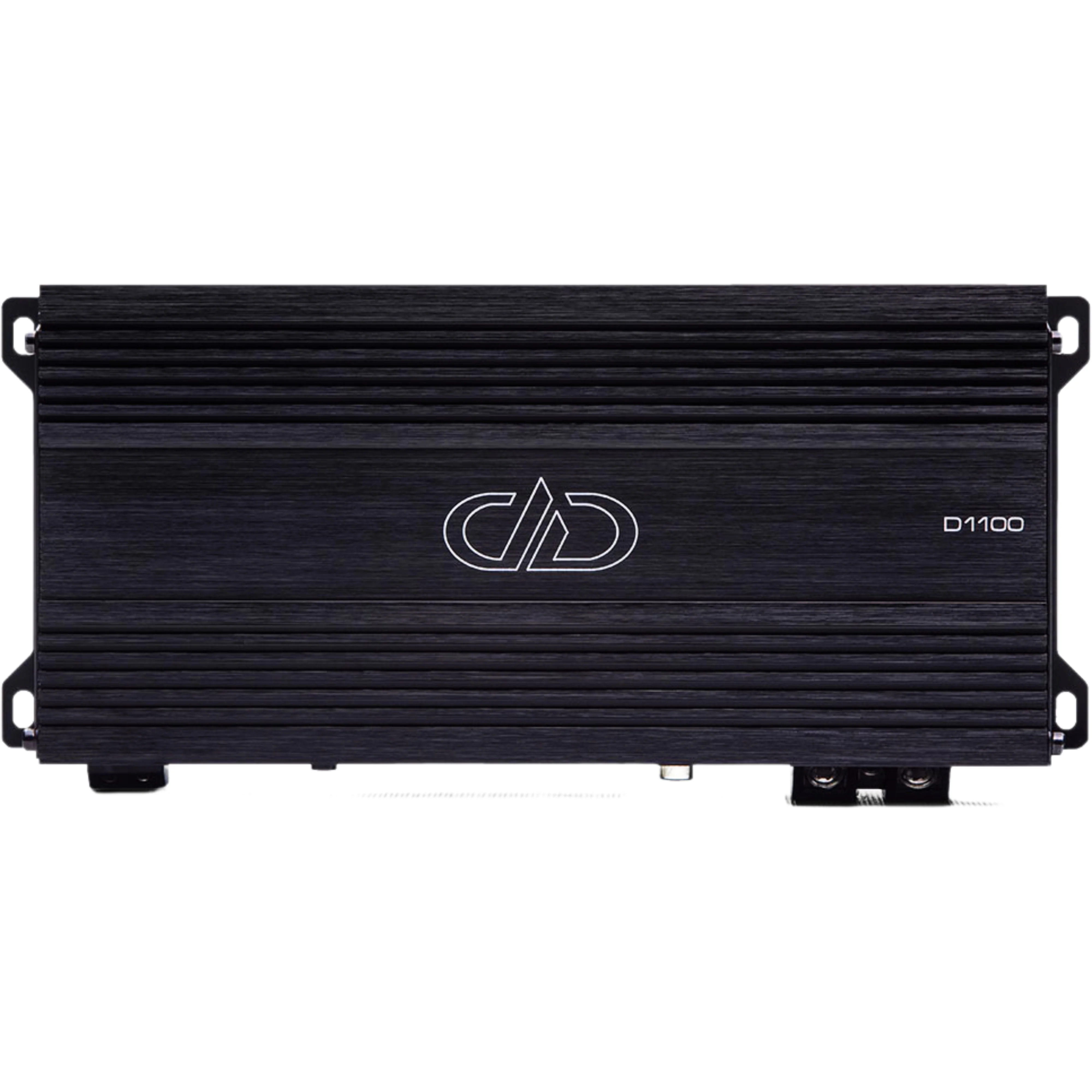

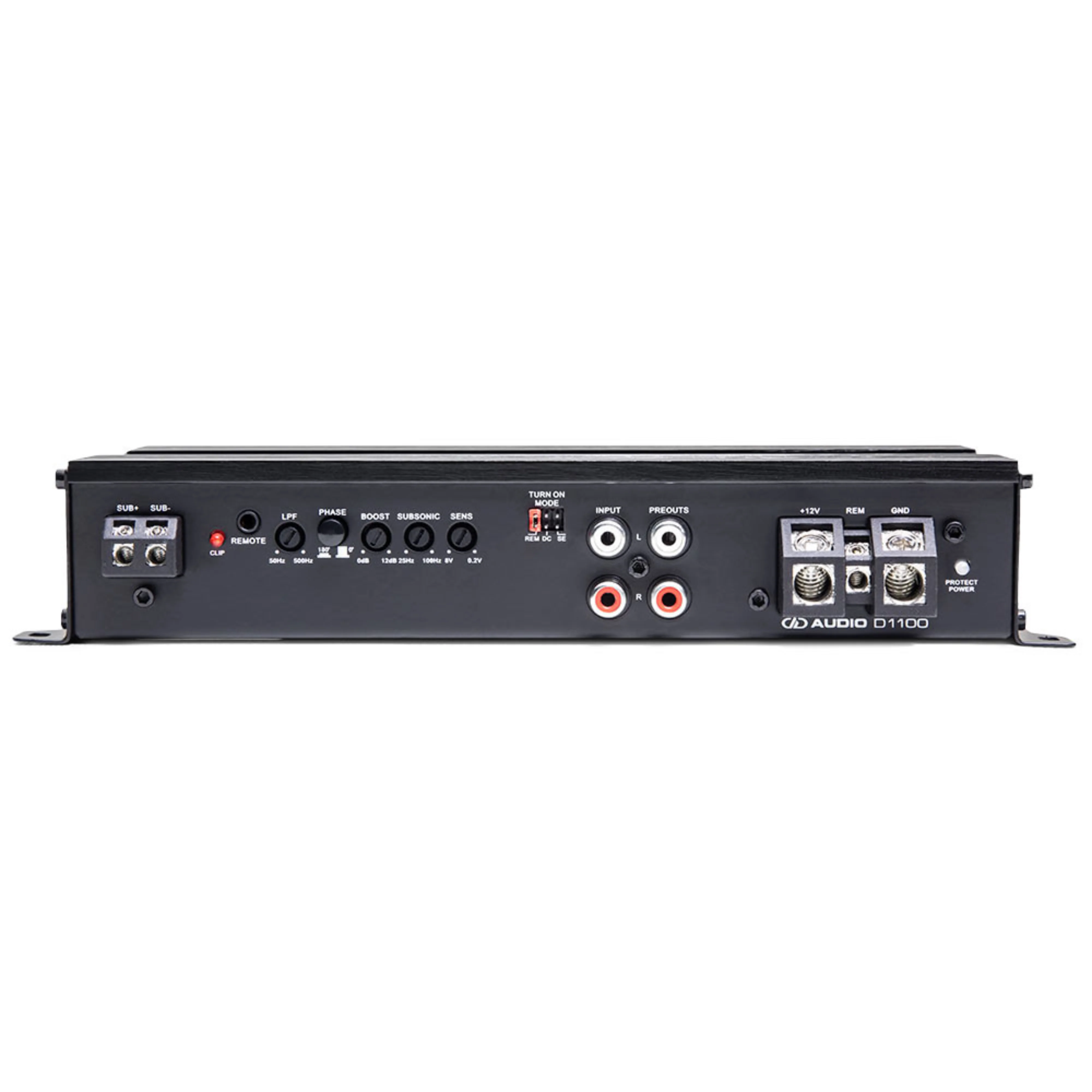

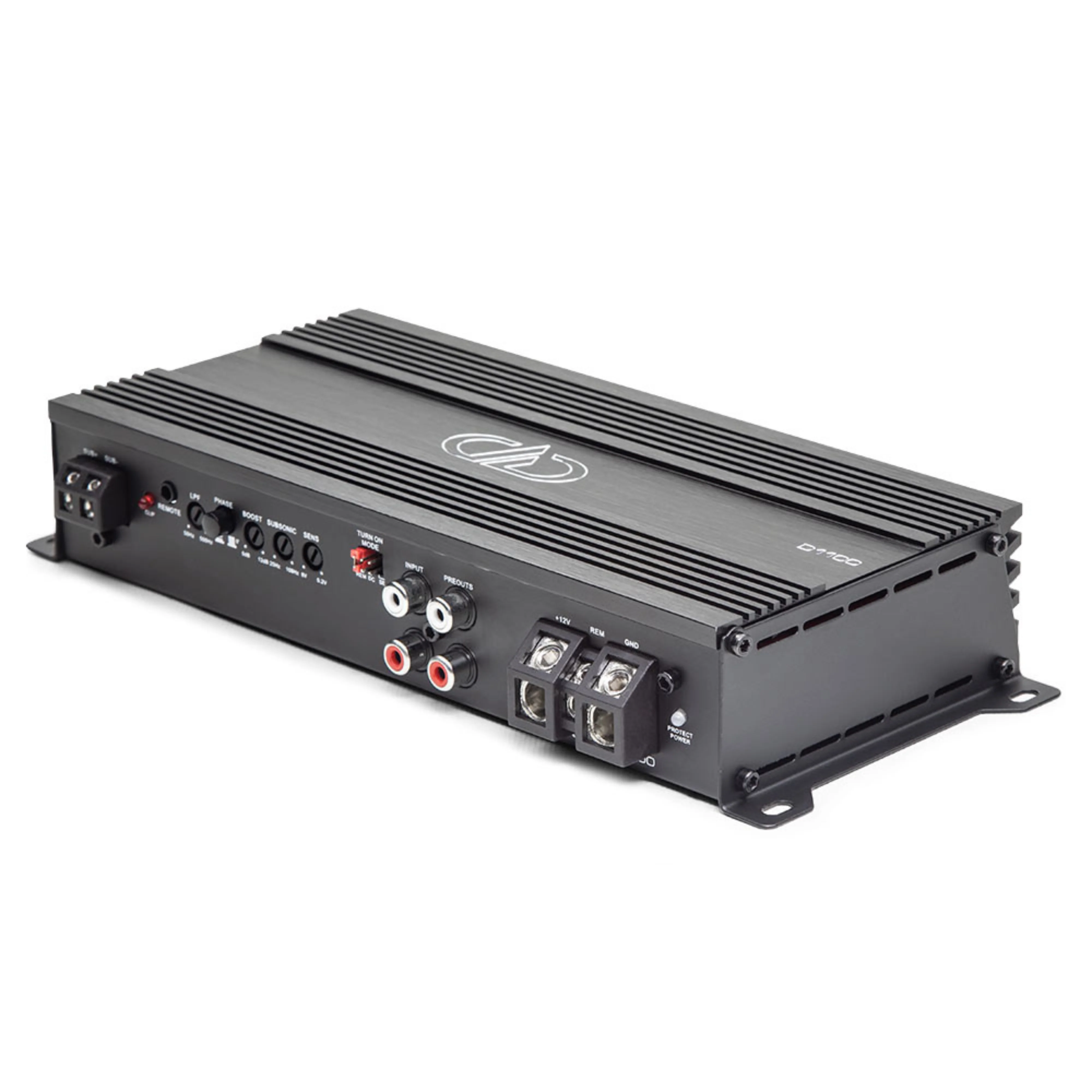

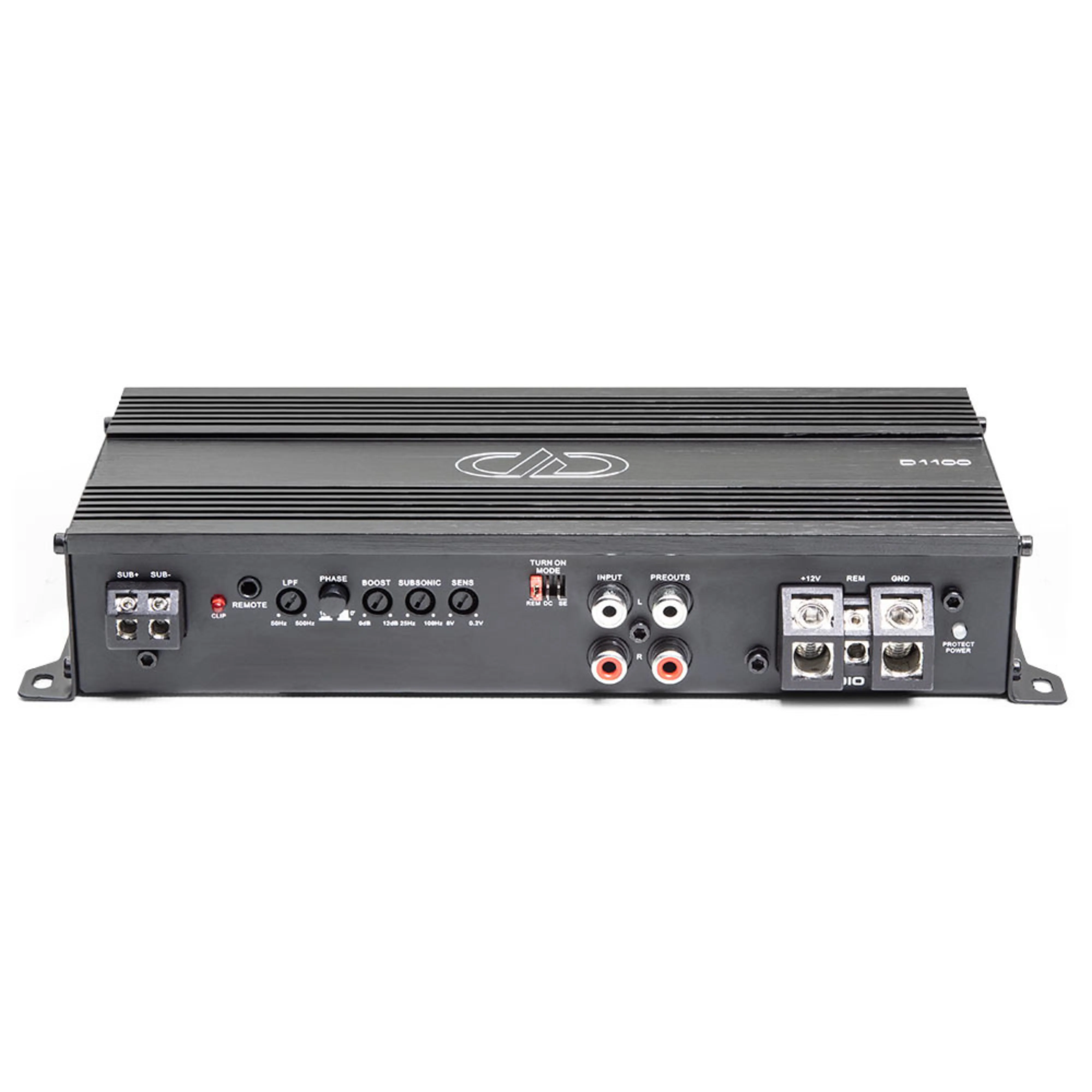

DD Audio D Series 1100W Compact Monoblock Subwoofer Amplifier / D1100

This Listing Includes:

• (1) 1100 Watt D Series Compact Monoblock Subwoofer Amplifier

Description:

The D Series amplifiers combine compact design with full-size features, delivering high performance in a streamlined package. The D1100 is a 1-ohm stable monoblock subwoofer amplifier, capable of producing a powerful 1100 watts of total output. Precision tuning is effortless with its variable bandpass crossovers and LED clipping indicator. Installation is simplified with single-side controls and connections, along with convenient auto turn-on options.

Designed for rugged environments, the D1100 includes conformal coated internal circuitry and corrosion-proof switches, making it suitable for boat, bike, and ATV applications with enhanced moisture resistance. Despite its compact size, the D Series amplifiers feature set screw power and speaker terminals, discrete output sections, and heavy-duty anodized aluminum heatsinks. These elements ensure efficient power management from input to output, providing stability during use and long-term durability.

Features:

• Conformal Coated Internal Circuitry


• Corrosion Proof Switches


• Full Bandpass Crossovers


• Auto Turn-On


• Clipping Indicators


• Differential RCA Inputs


• Signal Pass-Through

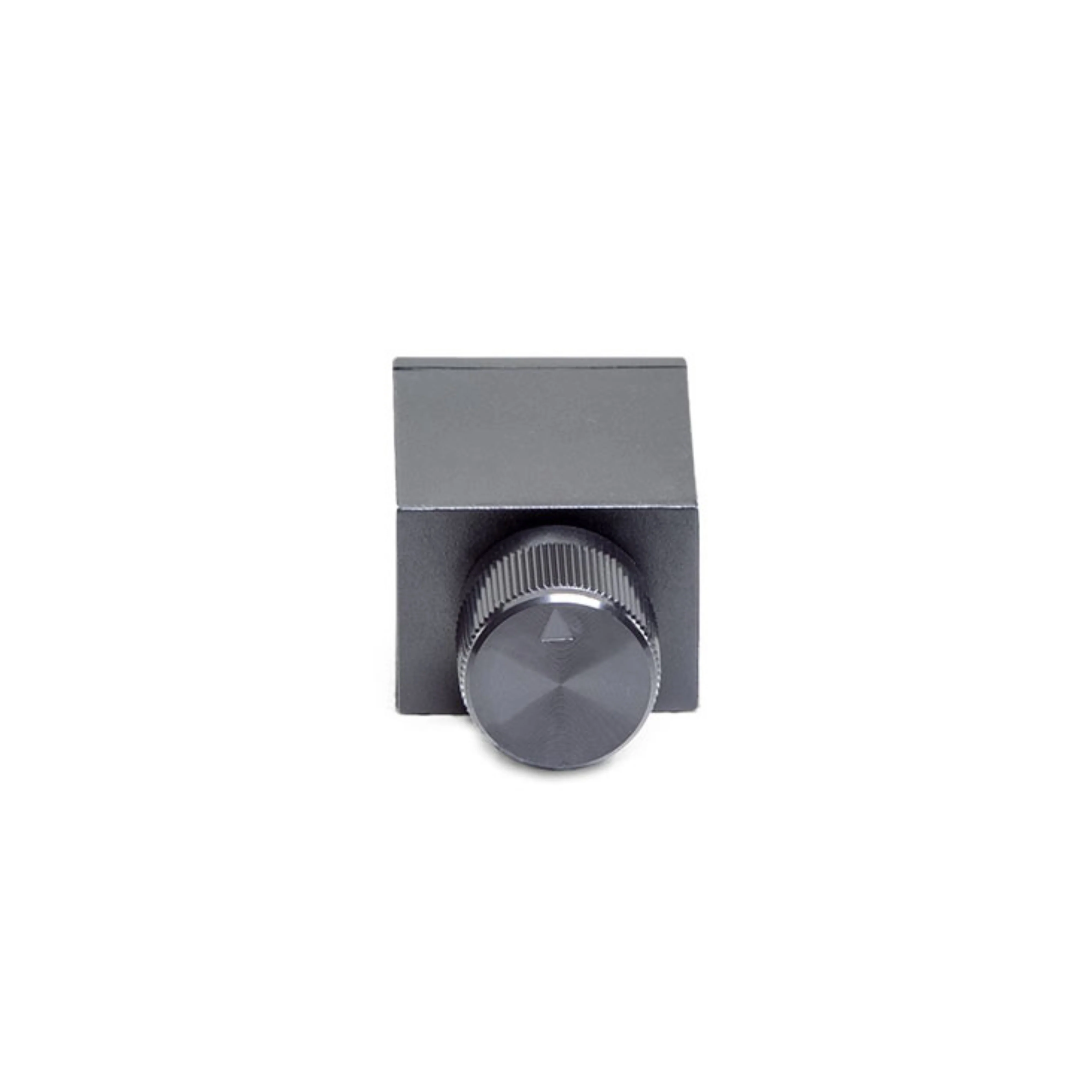

• Remote Level Control

Specifications:

• Operating Voltage: 9 - 16


• Test Voltage: 14.4


• Input Channel(s): 1


• Output Channel(s): 1


• Continuous Wattage @4ohm: 380 x 1


• Continuous Wattage @2ohm: 700 x 1


• Continuous Wattage @1ohm: 1100 x 1


• Max Current Draw (Amps): 110


• RCA Input Voltage Sensitivity: 8 ~ 0.2


• RCA Input S/N: > 80dB


• Damping Factor: > 100


• THD: < 0.2%


• Frequency Response (Hz): 20 ~ 500


• Sub-Sonic Filter: 25 - 100


• Low-Pass Filter: 50 - 500


• Pass Thru Output: Yes


• Remote Control: Remote Included in Box


• Power Wire Gauge: 4


• Speaker Wire Gauge: 12


• Dimensions (Inches): 8.7 x 4 x 1.7


• Dimensions (MM): 220 x 104 x 43
