• Ultra-High Current Power Supply: Ensures maximum efficiency and power delivery.
• Compact and Powerful: Offers a remarkable 5000 Watts RMS in a modestly-sized unit.
• Enhanced Cooling System: Innovative end panel design allows for better ventilation, even on padded surfaces.
• Advanced Sound Control: Features 24dB/Oct bandpass filters for precise audio tuning.
• Versatile Connectivity: Includes ZVL linking module input and a remote for easy control and monitoring.

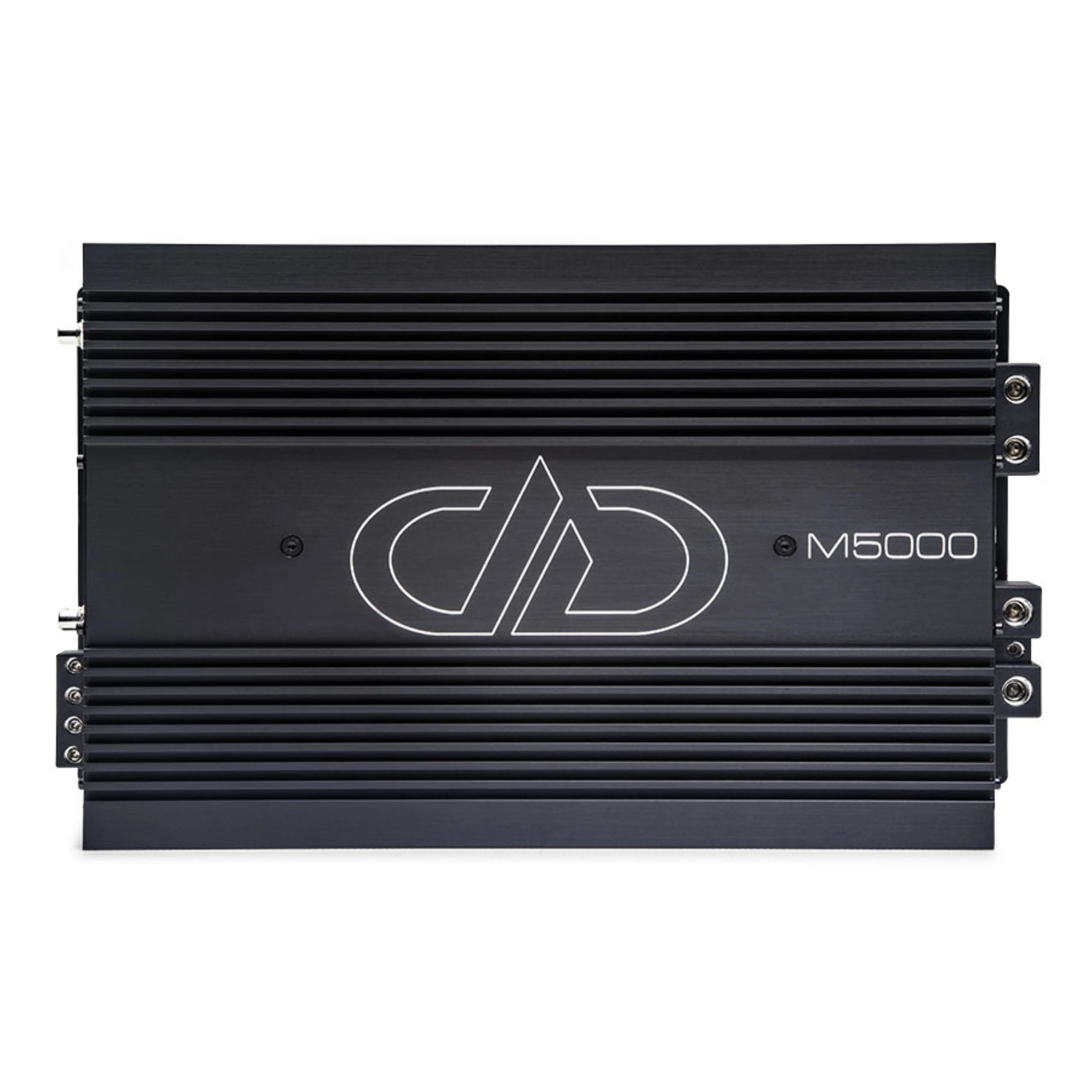

DD Audio Monoblock Amplifier 5000W RMS High-Efficiency Class D M5000

This Listing Includes:

• (1) DD Audio M5000 Monoblock Amplifier

DD Audio enhances its M Series with the M5000, a high-power, high-efficiency monoblock amplifier that maintains a compact size while packing a substantial punch. The M5000, leveraging the latest in ultra-high current device technology, offers optimal performance without expanding its footprint.

Specifications:

• Operating Voltage: 9 - 16


• Test Voltage: 14.4


• Input Channel(s): 1


• Continuous Wattage @4ohm: 1900 Watts


• Continuous Wattage @2ohm: 3000 Watts


• Continuous Wattage @1ohm: 5000 Watts


• Dynamic Wattage: 7000 Watts


• Max Current Draw: 700 Amps


• RCA Input Voltage Sensitivity: 8 - 0.2


• RCA Input S/N: > 97


• Damping Factor: > 400


• Frequency Response: 20 - 500 Hz


• Sub-Sonic Filter: 20 - 250Hz


• Low-Pass Filter: 50 - 500Hz


• ZVL Input: Yes


• Remote Control: Included in Box


• Power Wire Gauge: 2 x 0


• Speaker Wire Gauge: 10


• Dimensions (Inches): 13.4 x 9 x 2.6


• Dimensions (MM): 340 x 230 x 66

Features:

• Optimized Über High Current Power Supply


• Strappable Half Bridge Design


• ZVL Linking Module Input


• 24dB/Oct Bandpass Filters


• Custom Vanity Plate Ready


• Remote / LCD Voltage Display and Clipping Indicator


• 5000 Watts RMS Continuous Power


• Enhanced cooling with new end panels for improved air flow
