• Unleash audio excellence with the MFA-5.1000, a Class D 5-channel amplifier with a broad 10-20000 Hz frequency response.
• Versatile power delivery includes 4 x 80W (channels 1-4) and 1 x 300W (channel 5) at 4 ohms, with options for 2-ohm configurations.
• Bridged mode delivers an impressive 2 x 240W, catering to diverse audio preferences.
• Fine-tune your sound with high and low pass filters, crossovers, and subsonic adjustments for channels 1-4 and 5.
• Compact dimensions make the MFA-5.1000 an ideal fit for any audio setup.

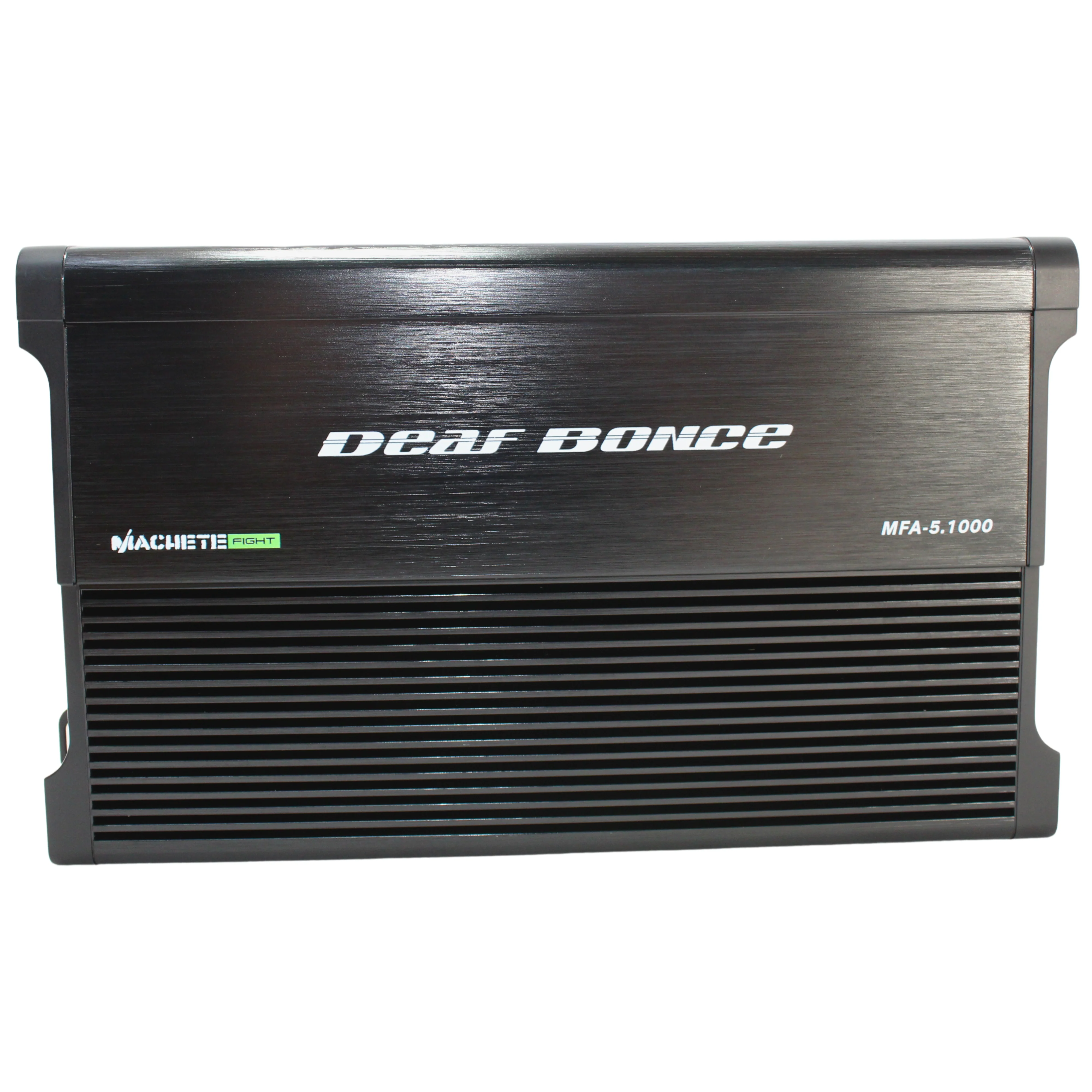

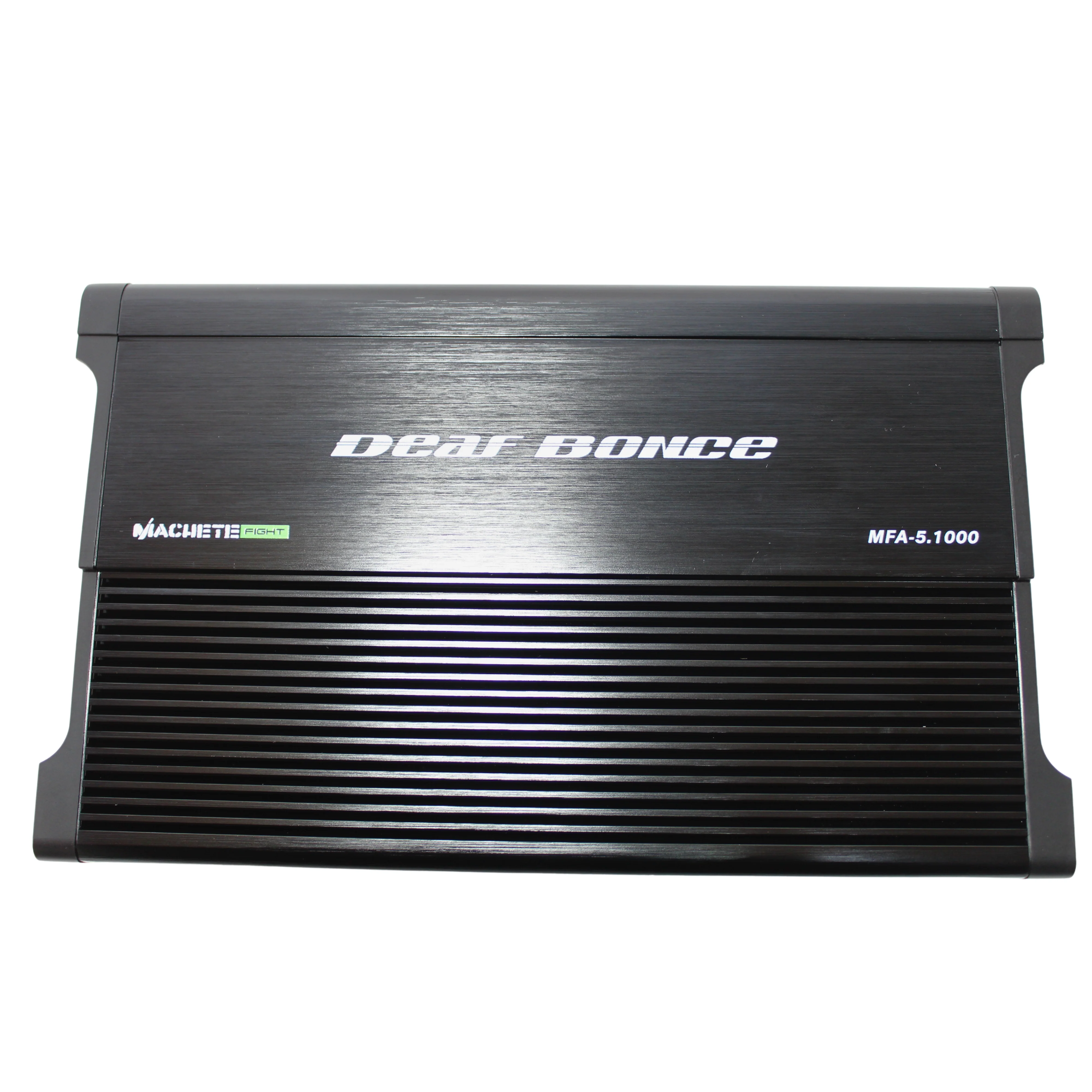

Deaf Bonce 1000W 2-Ohm 5-Channel Class-D Machete Amplifier Full Range MFA-5.1000

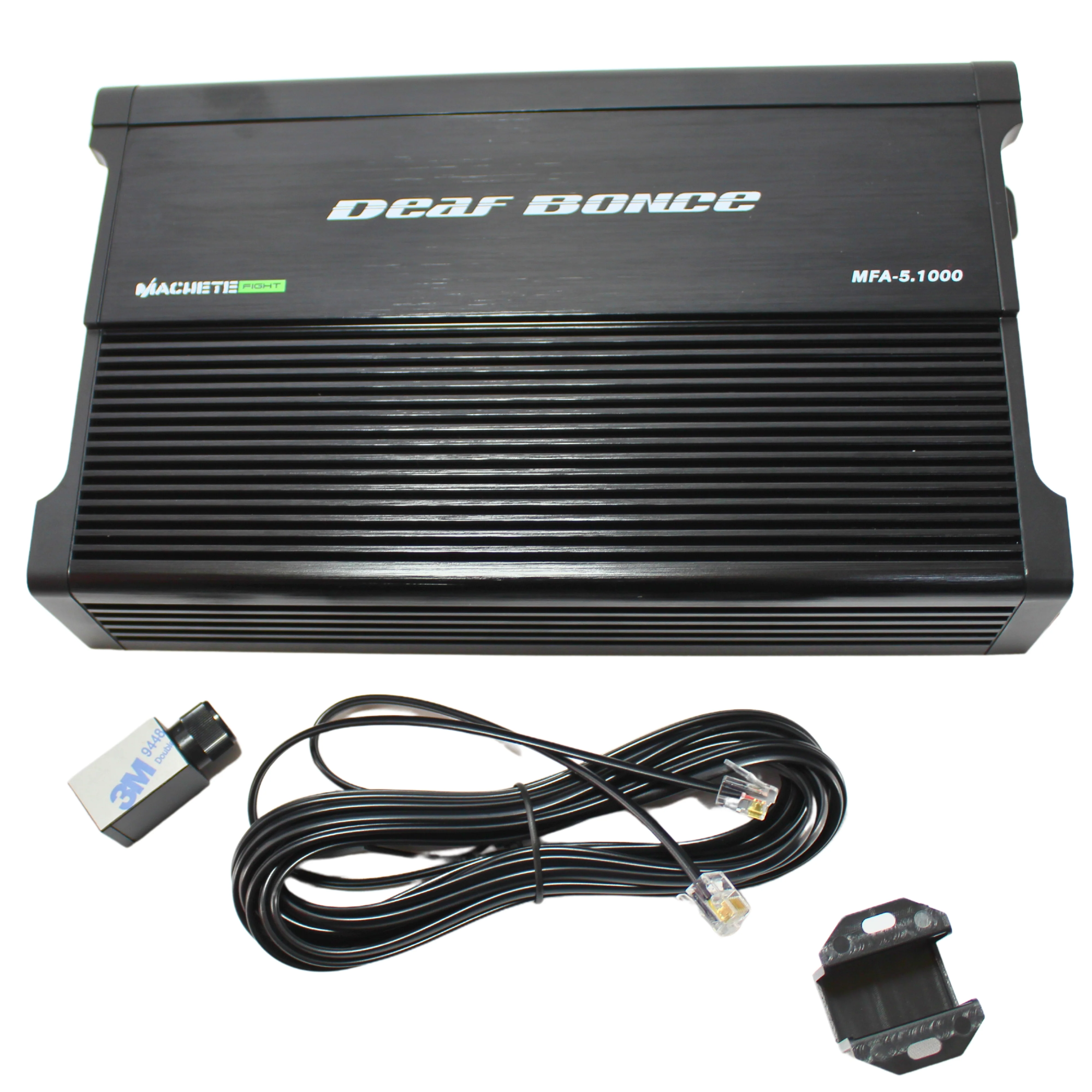

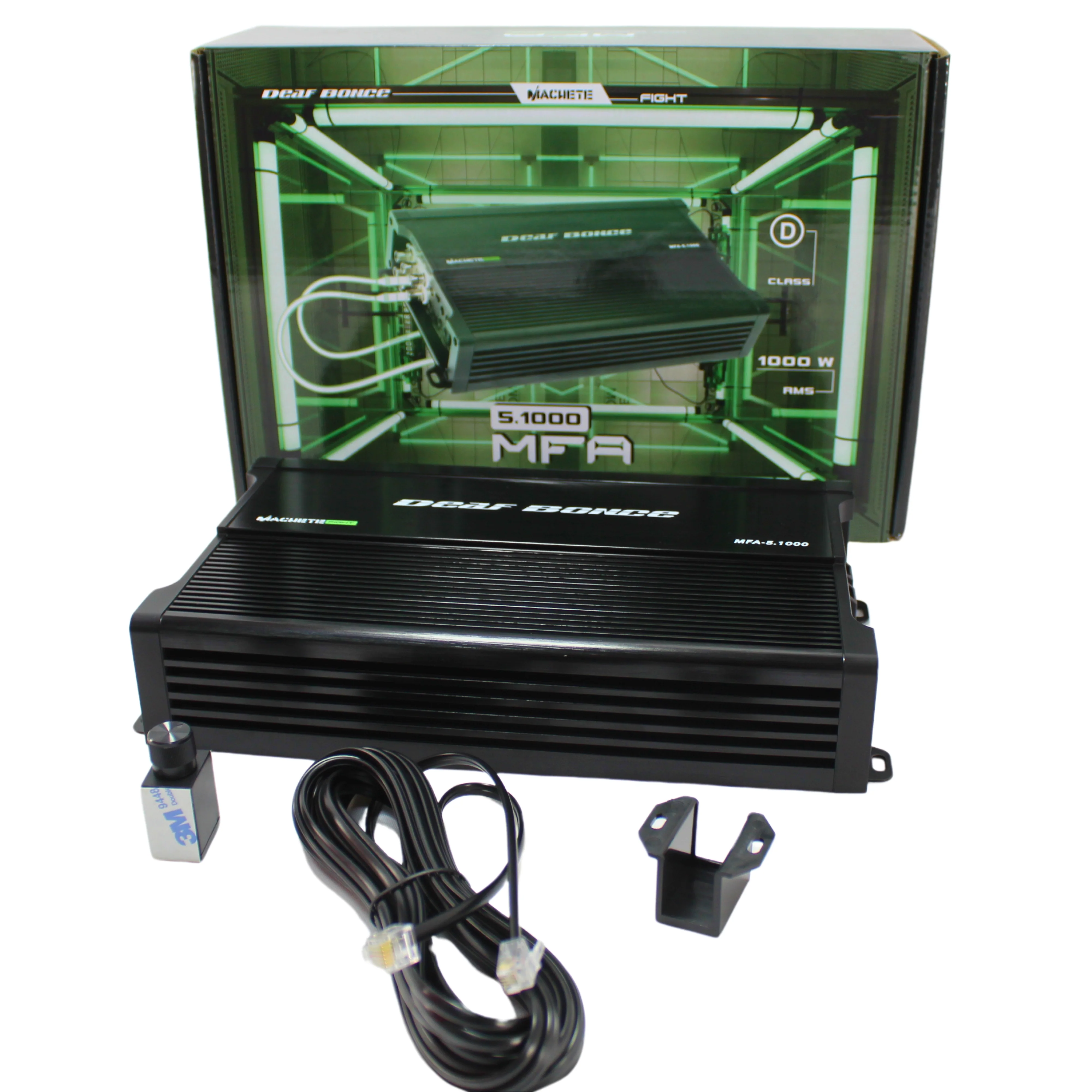

This Listing Includes:

• (1) MFA-5.1000 5-Channel Class D Amplifier

A powerhouse in the Class D category with 5 channels of pure audio excellence. This full range amplifier delivers clear sound. Powering at 4-Ohms, experience 4 x 80W for channels 1-4 and an additional 1 x 300W for channel 5. In 2-Ohms, the performance amps up to 4 x 120W and 1 x 500W, showcasing its versatility. Bridged mode unleashes 2 x 240W for an immersive audio experience. Tailor your audio with high and low pass filters, crossovers, and subsonic adjustments. Operating at a minimum permissible load of 2-Ohms, this amplifier provides flexibility without compromising power. Input SPL ranges from 0.4 to 6V, while the amplifier's compact size ensures seamless integration into any setup.

Specifications:

• Class: D


• Number of Channels: 5


• Frequency Response: 10hz-20kHz


• Power RMS 4-Ohm (W): 4 x 80 + 1 x 300


• Power RMS 2-Ohm (W): 4 x 120 + 1 x 500


• Power RMS 4-Ohm Bridged Mode (W): 2 x 240


• 1-4 Channel High Pass Filter (Hz): 50 - 12000


• 1-4 Channel Low Pass Filter (Hz): 50 - 12000


• 1-4 Channel Crossover (db/oct): 24


• 5-Channel Low Pass Filter (Hz): 50 - 250


• 5-Channel Subsonic (Hz): 10 - 55


• 5-Channel Crossover (db/oct): 24


• Minimum Permissible Load on the Channel: 2-Ohm


• Minimum Permissible Load in a Bridge Connection: 4-Ohm


• LPF and HPF Simultaneous Operation: No


• Input SPL: 0.4 - 6V

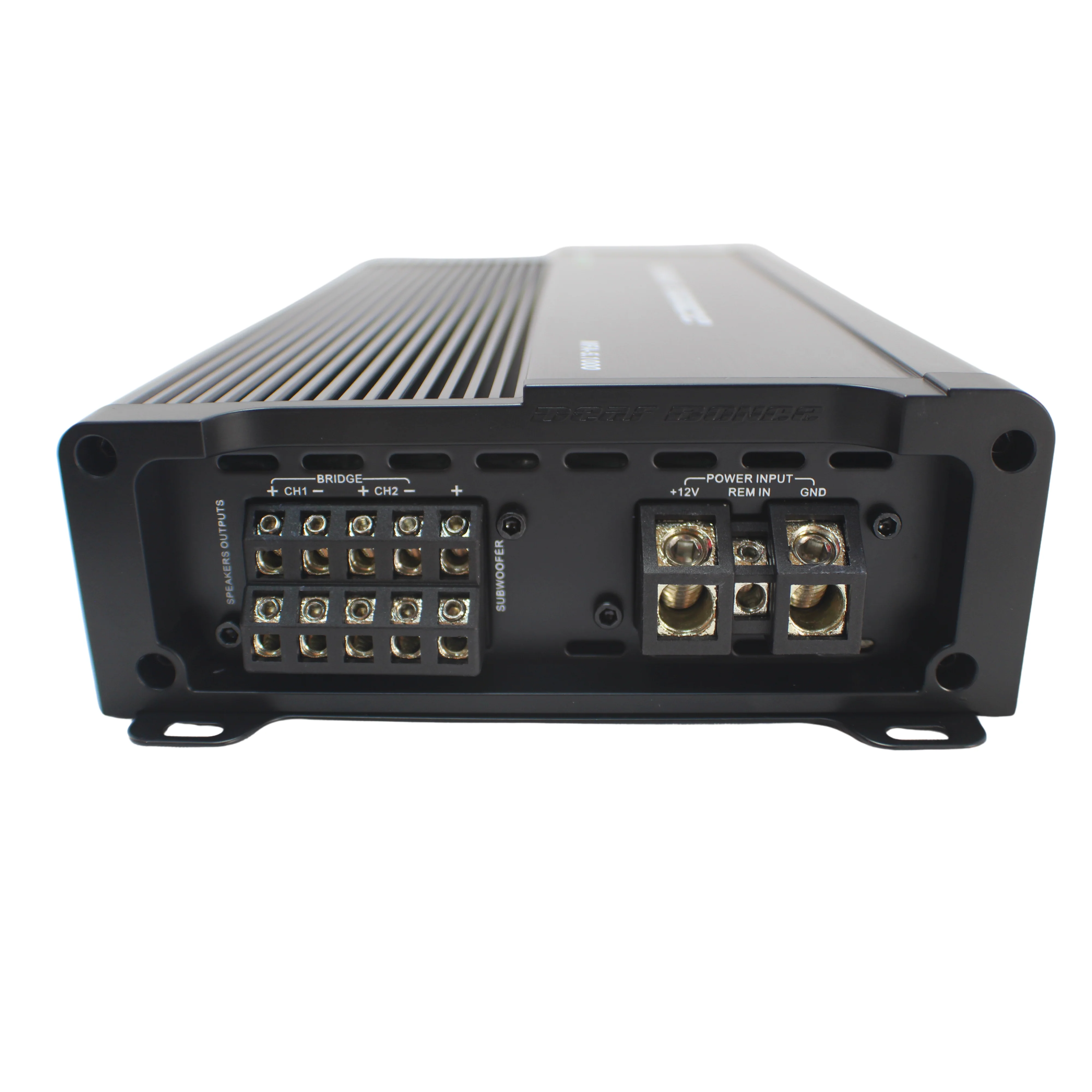

• Input Terminal: 4Ga


• Output Terminal: 8Ga


• Working Voltage: 9 - 15V


• Signal-to-Noise Ratio: > 90 dB

Dimensions:

• Width: 5.98"


• Length: 10.69"


• Height: 2.15"
