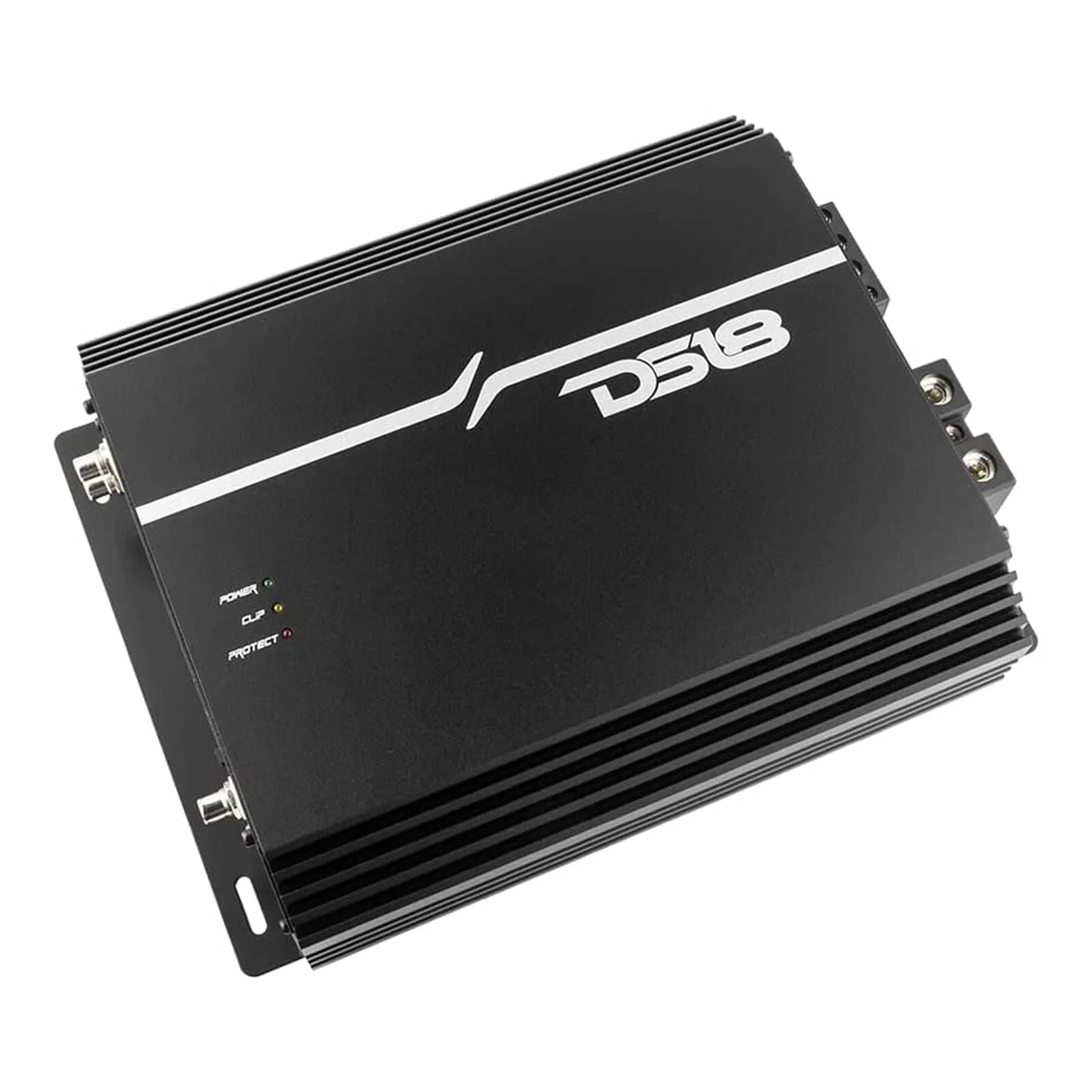

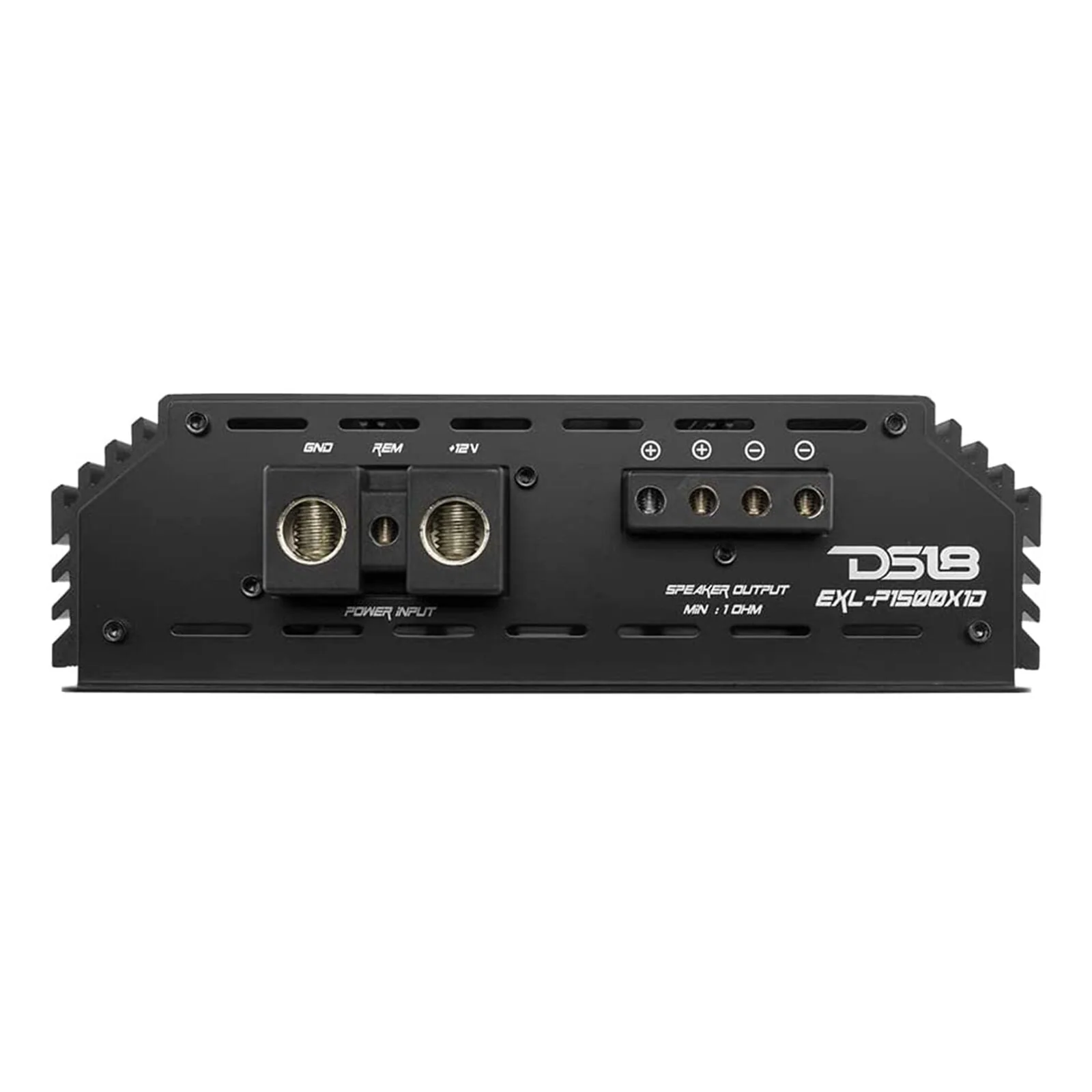

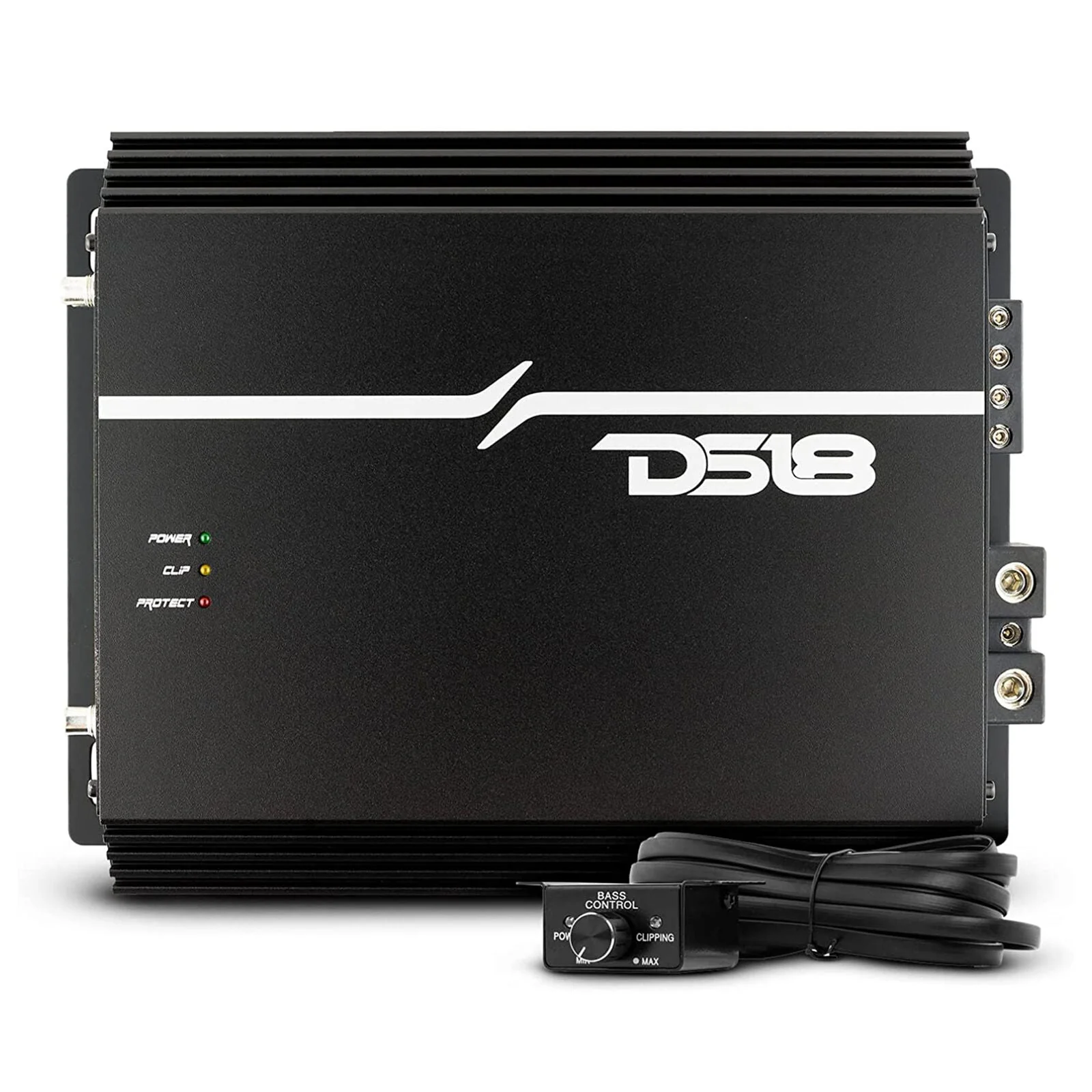

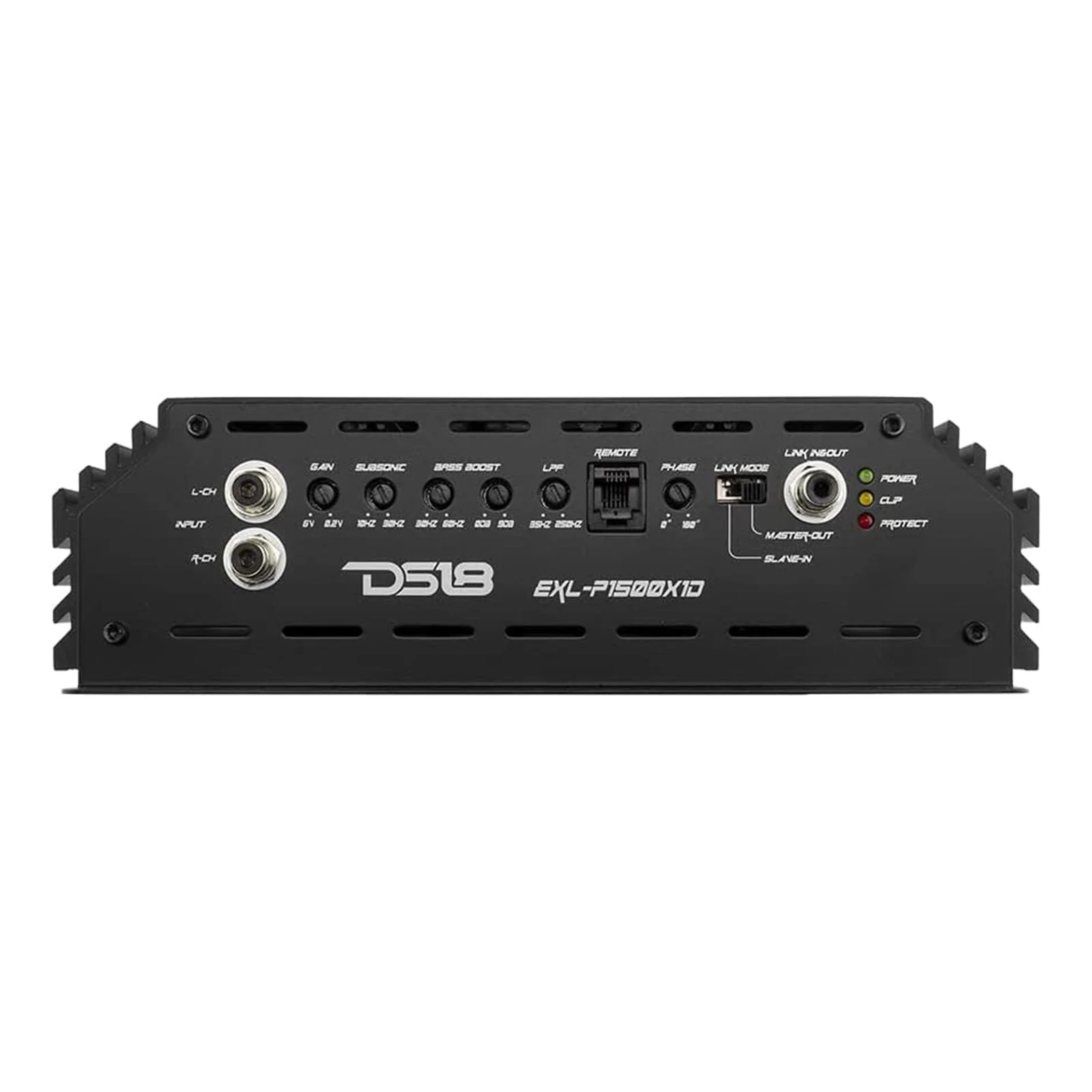

DS18 1 Channel Korean Amplifier Class D w/ Bass Knob EXL-P1500X1D

Blast your music with extreme efficiency and power with this new DS18 EXL-P Series amp for insane loud sound that is driven by Korean Power! Korean amps have been proven time over time to be the best amps if you want pure power driven by high quality parts assembled by the DS18 factory that has the longest proven track history. The DS18 Korean Facilities take more time in the manufacturing process while also using the highest quality parts for the best results. This helps the amplifier live a long life all while producing more than rated power if installed and tuned correctly. These new EXL-P series amps are for enthusiasts that accept no compromises for their sound and power levels for your car. This EXL-P series is made to produce some serious power, 1500 watts @ 1 Ohm! This Monoblock amp will be sure to blast your subwoofers away with high amounts of clean power for maximum sound and bass for car audio.

This Listing Includes:

(1) DS18 1-Channel Class D Amplifier EXL-P1500X1D

(1) Bass Knob with Clipping Indicator

FEATURES:

- Competition SPL Monoblock Class-D Subwoofer Amplifier

- Protection Circuit: Thermal, Over-Load, DC, Short Circuit, Voltage and Clipping

- LED indicate working status: Power/Protection/Clipping

-Platinum finished connectors will ensure the highest connection quality available

- Tiffany RCA Connectors

- Strap Mode Connection

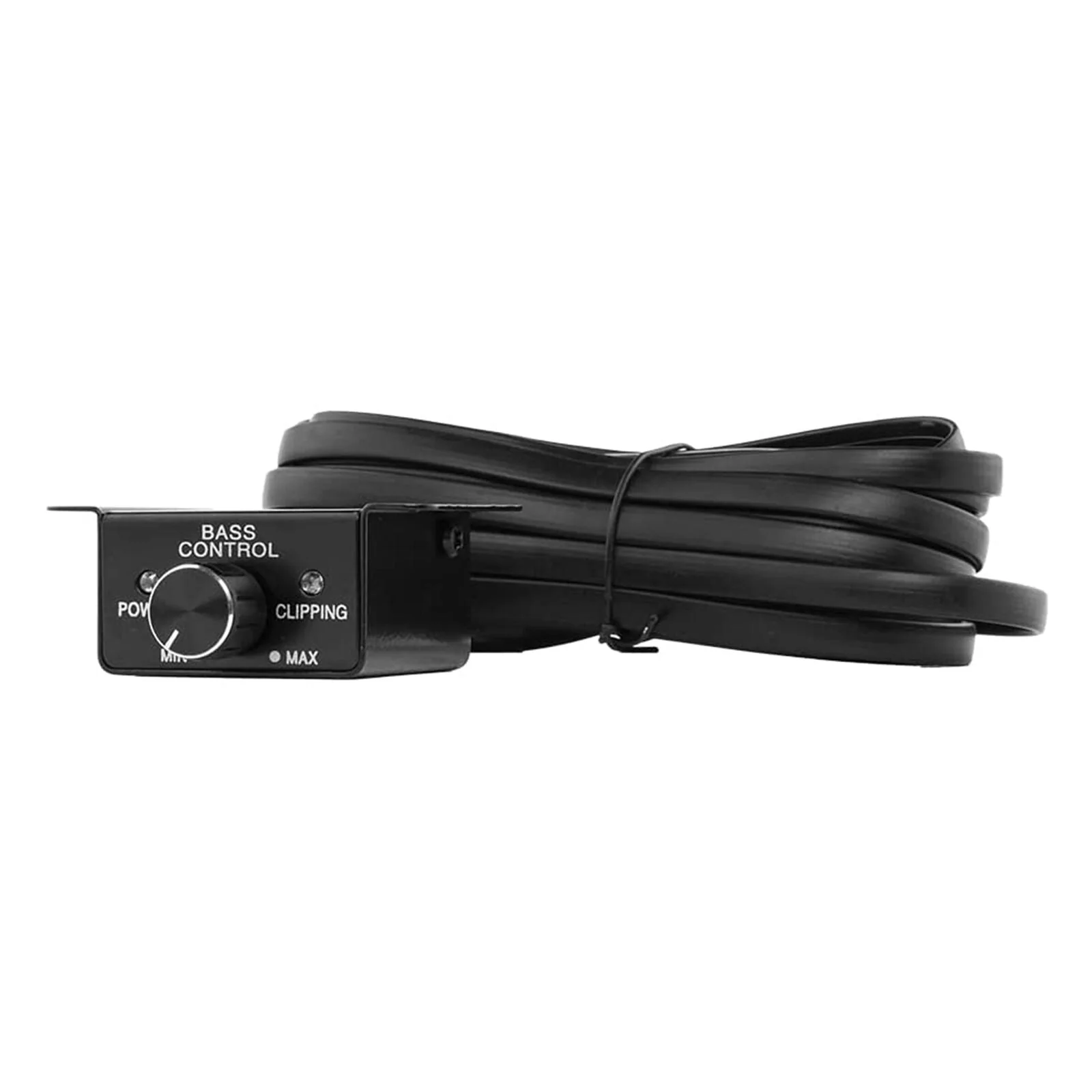

- Remote Bass Knob with Power and Clip LED Indicator included

- Latest SMC and MOSFET Technology

- Reliable Heavy duty Korean Circuit Board design

- Power Input Size: 0 AWG

SPECIFICATIONS:

RMS Power @ 4 Ohm: 650W x 1CH

RMS Power @ 2 Ohm: 1000W x 1CH

RMS Power @ 1 Ohm: 1500W x 1CH

Frequency Response : 15Hz-250Hz

Signal/Noise Ratio: Greater than 98dB

Efficiency@4 0hm: Greater than 85%

Damping Factor: 250

THD : Less than: 0.02%

Low Level Input Range: 200MV-6V

Selectable X-Over: LPF Fixed

X-Over Filter Range: 35Hz - 250Hz

Bass Boost Range: 0-+9dB

Bass Boost Frequency: 30Hz - 60Hz

Infrasonic Filter:10Hz - 30Hz

Phase Selector: 0-180

Class: D (Digital)

Amplifier Type: Monoblock Subwoofer

Channels: 1CH

Minimum Impedance: 1 Ohm

Led Indicator: PWR / CLIP / PROTECT

Power Input Size: 0 AWG

Fuse Rating: 190A

Remote Level Control: Yes - Dash Mount

Cooling Fan: No

Thermal Protection: Yes >75C / 167F

Over-Load Protection: Yes

Dc Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes >15.5V

Clipping Protection: Yes

Body Color / Finish: Black Aluminum

DIMENSIONS:

(L x W x H) 11.5" x 8.77" x 2.67"

HEATSINK LENGTH: 9.84"
