• Ultra compact 2 channel Class D amplifier with built in Bluetooth 5.1 for wireless audio streaming directly from your phone
• Delivers 140W RMS x2 at 4 ohms, 230W RMS x2 at 2 ohms, or 380W RMS bridged at 4 ohms for flexible system setups
• Selectable LPF, HPF, or flat crossover with adjustable range from 40Hz to 400Hz for precise tuning
• Water resistant brushed aluminum chassis with full protection circuitry for motorcycles, powersports, marine, and tight installs
• Automatic input switching between Bluetooth and RCA for easy daily use without a head unit

DS18 140W RMS 2-Channel Class D Full-Range Amplifier with Bluetooth X2BT

This Listing Includes:

• (1) DS18 X Series X2BT 2-Channel Ultra Compact Full-Range Amplifier with Bluetooth

The DS18 X2BT from the X Series is an ultra compact 2 channel full range amplifier designed for modern audio systems that need clean power, wireless streaming, and flexible installation. With built in Bluetooth 5.1, this amp lets you stream music directly from your phone without the need for a head unit, making it perfect for motorcycles, powersports, marine, and tight vehicle installs.

Despite its small footprint, the X2BT delivers impressive Class D output with high efficiency and low heat. It produces 140 watts RMS per channel at 4 ohms, 230 watts RMS per channel at 2 ohms, or 380 watts RMS when bridged at 4 ohms. Full range capability allows it to power mids, highs, or even a compact subwoofer setup with ease.

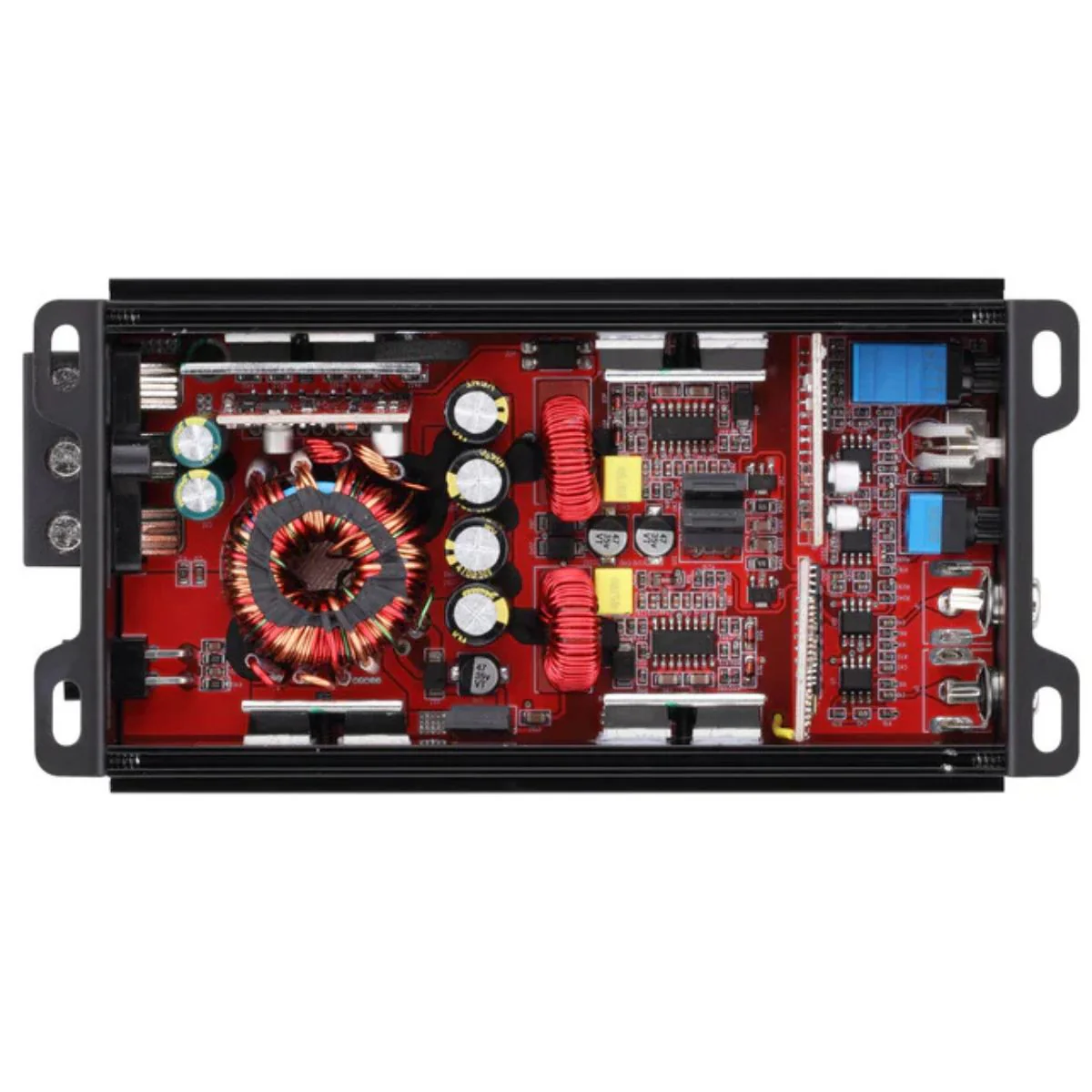

Selectable LPF, HPF, or flat crossover modes give you precise control over your sound, while automatic input switching between Bluetooth and RCA makes daily use seamless. Built with a brushed black aluminum chassis, four layer PCB design, and complete protection circuitry, the X2BT is engineered for long term reliability in demanding environments.

If you are looking for serious power, wireless convenience, and ultra compact size, the DS18 X2BT is a perfect upgrade.

Specifications:

• Amplifier Type: 2-Channel Stereo Full Range


• Amplifier Class: Digital Class D


• RMS Power @ 4 Ohm: 2 x 140 Watts


• RMS Power @ 2 Ohm: 2 x 230 Watts


• RMS Power @ 4 Ohm Bridged: 380 Watts


• Peak Power: 1140 Watts


• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged


• Frequency Response: 20Hz – 20kHz


• Signal to Noise Ratio: 90dB


• Efficiency @ 4 Ohm: 80 Percent


• Damping Factor: 200


• Total Harmonic Distortion: 0.20 Percent


• Low Level Input Range: 0.2 – 5V

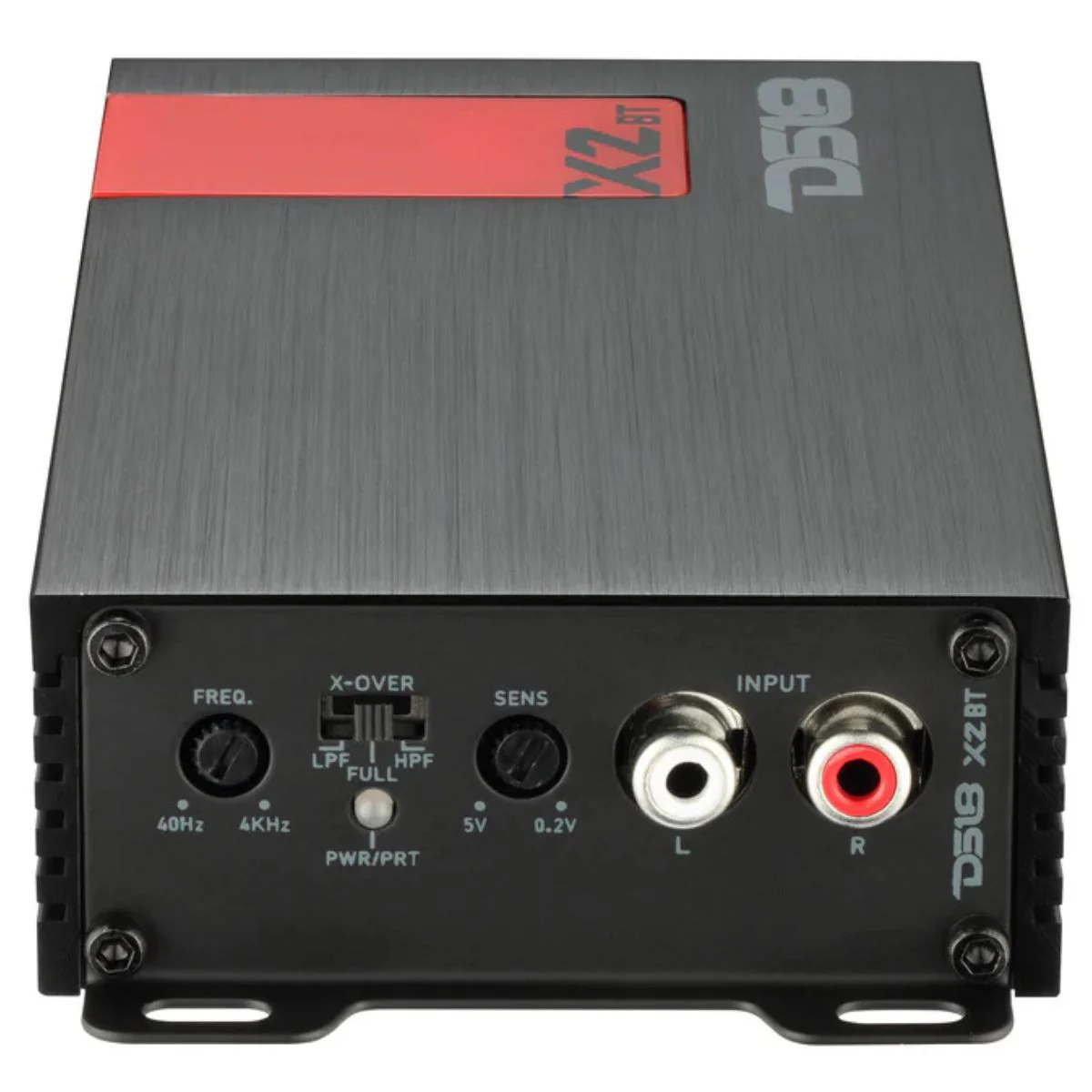

• Selectable Crossover: LPF / HPF / Flat


• Crossover Range: 40Hz – 400Hz


• Bluetooth Version: 5.1


• Bluetooth Profile: A2DP 1.3.1


• Bluetooth Range: Up to 60 ft


• Audio Codec: SBC / AAC

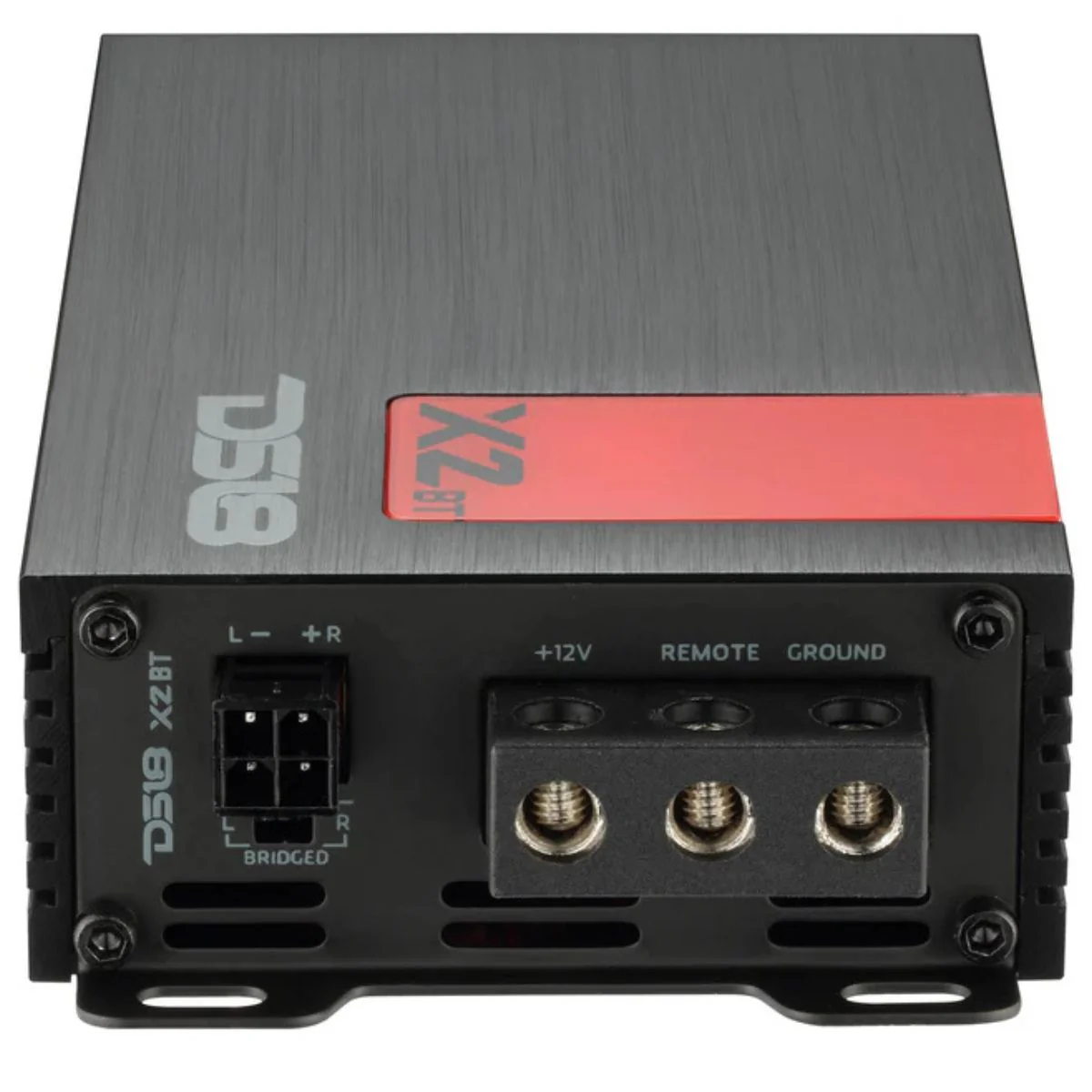

• Power Input Terminal: 8 Gauge


• Fuse Rating: 40A


• LED Indicator: Power / Protect


• Protection: Thermal, Overload, Short Circuit, DC Output, Voltage


• Finish: Brushed Black Aluminum


• Weather Resistant: Yes


• Automatic Bluetooth or RCA Input Switching: Yes

Dimensions:

• Overall Length: 5.54 Inches


• Overall Width: 3.24 Inches


• Overall Height: 1.37 Inches


• Heatsink Length: 4.75 Inches
