• 4 Channel Full Range
• Class D
• 2 ~ 4 Ohm Stable
• 4 x 150 Watts @ 4 Ohm
• Clip/Protection Indicator
• Built in Crossover

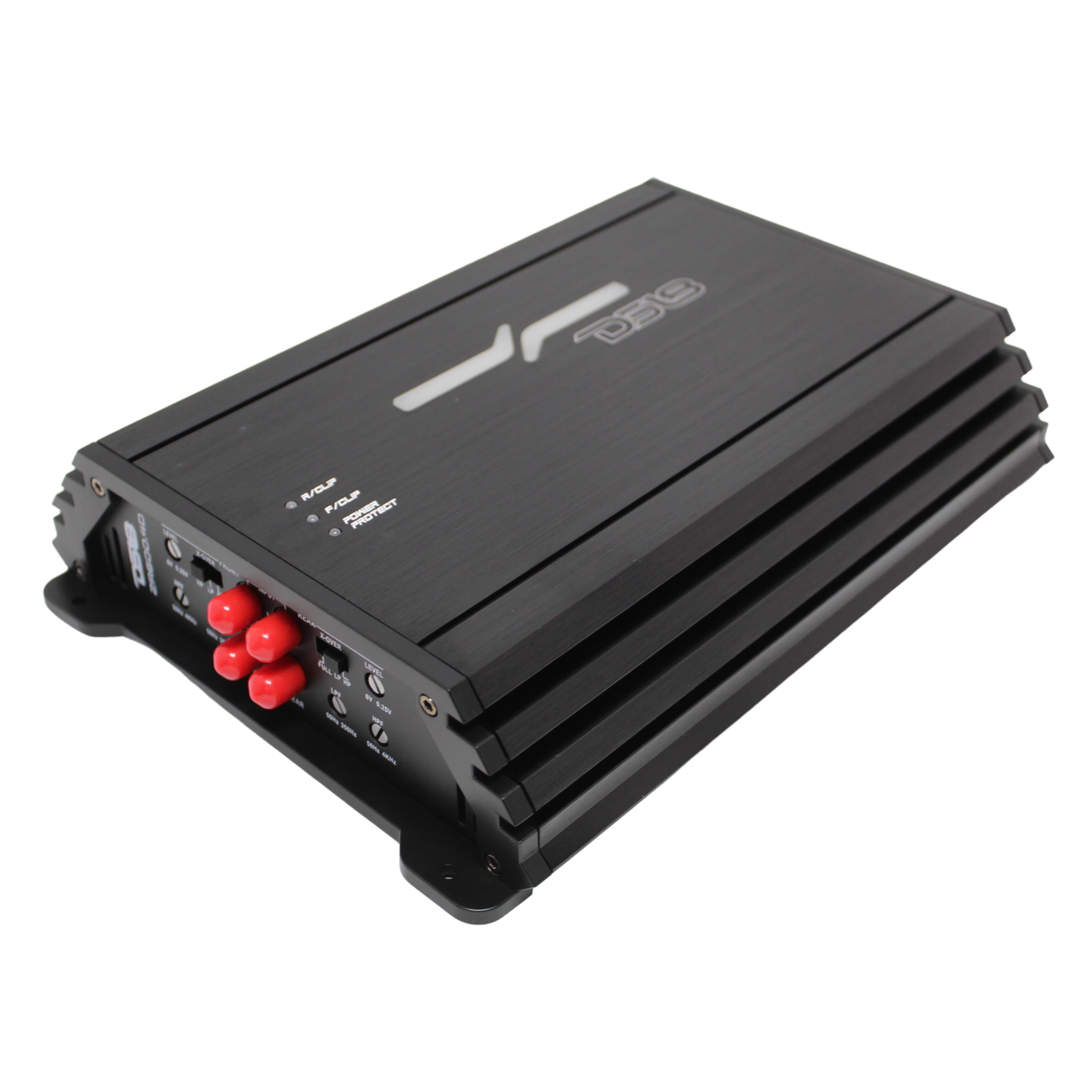

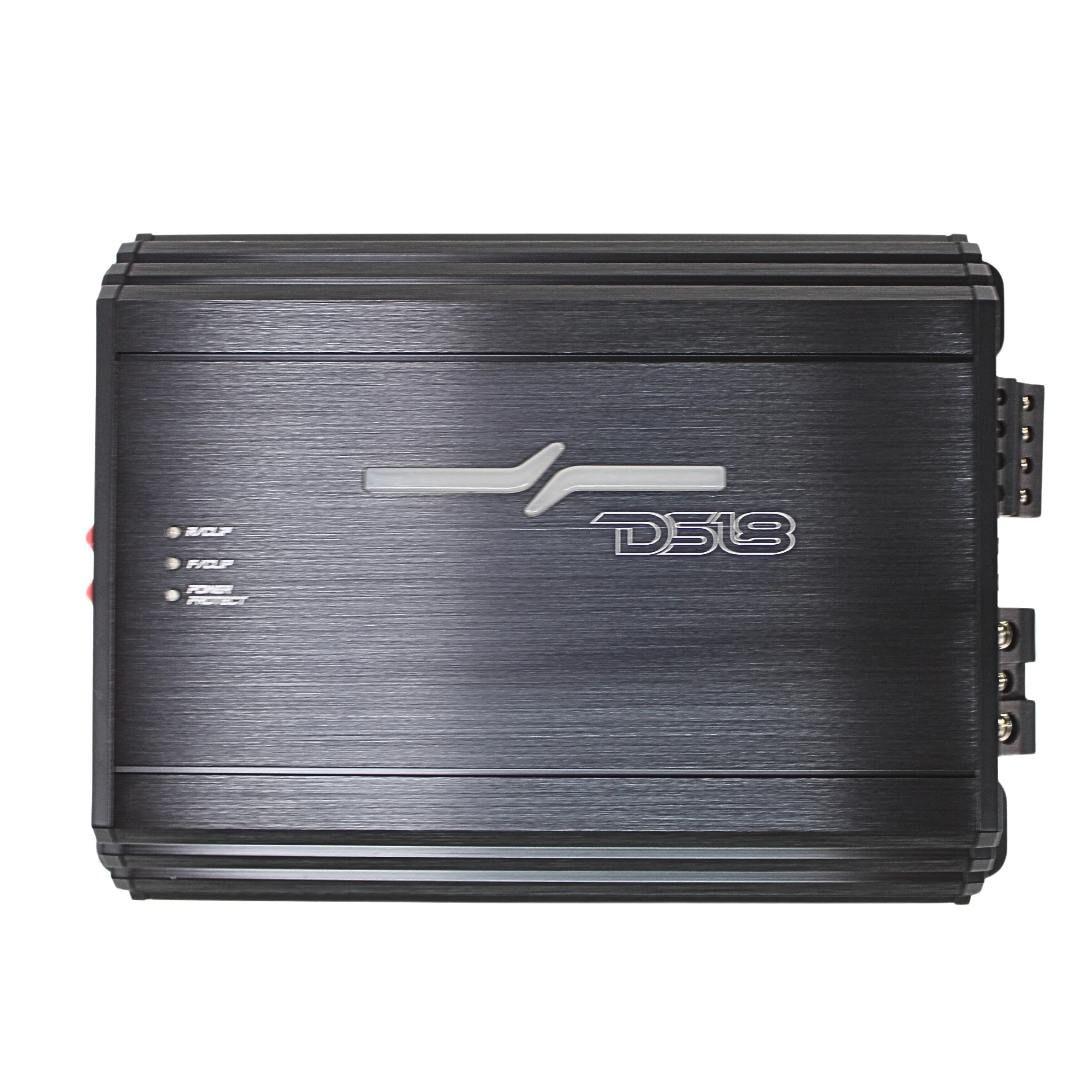

DS18 4 Channel 2400 Watt Class D Full Range Car Audio Amplifier ZR600.4D

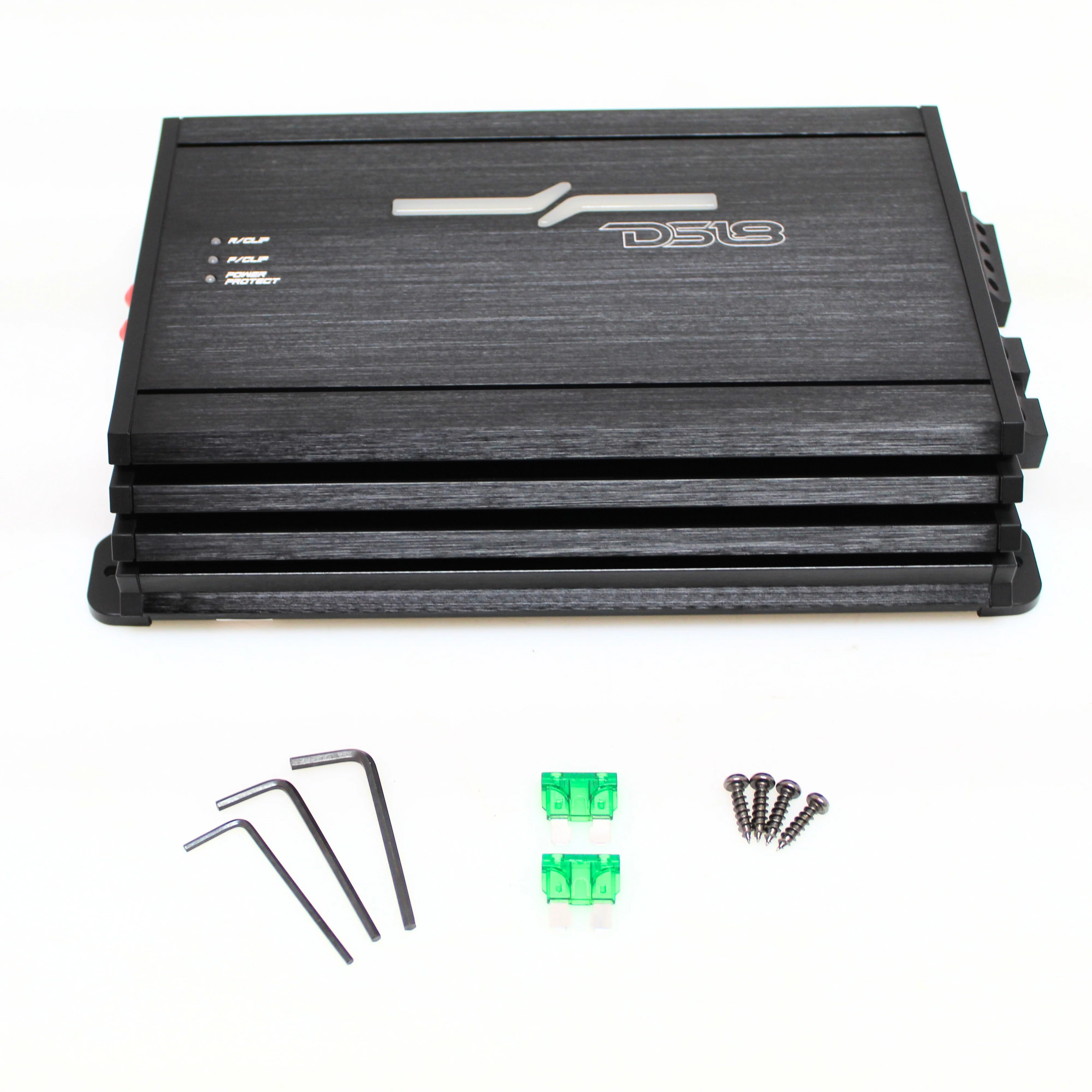

This Listing Includes:

• (1) 4 Channel 2400 Watt Class D Full Range Amplifier

Features:

• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 4


• Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)


• Led Indicator: Clipping/protect/power

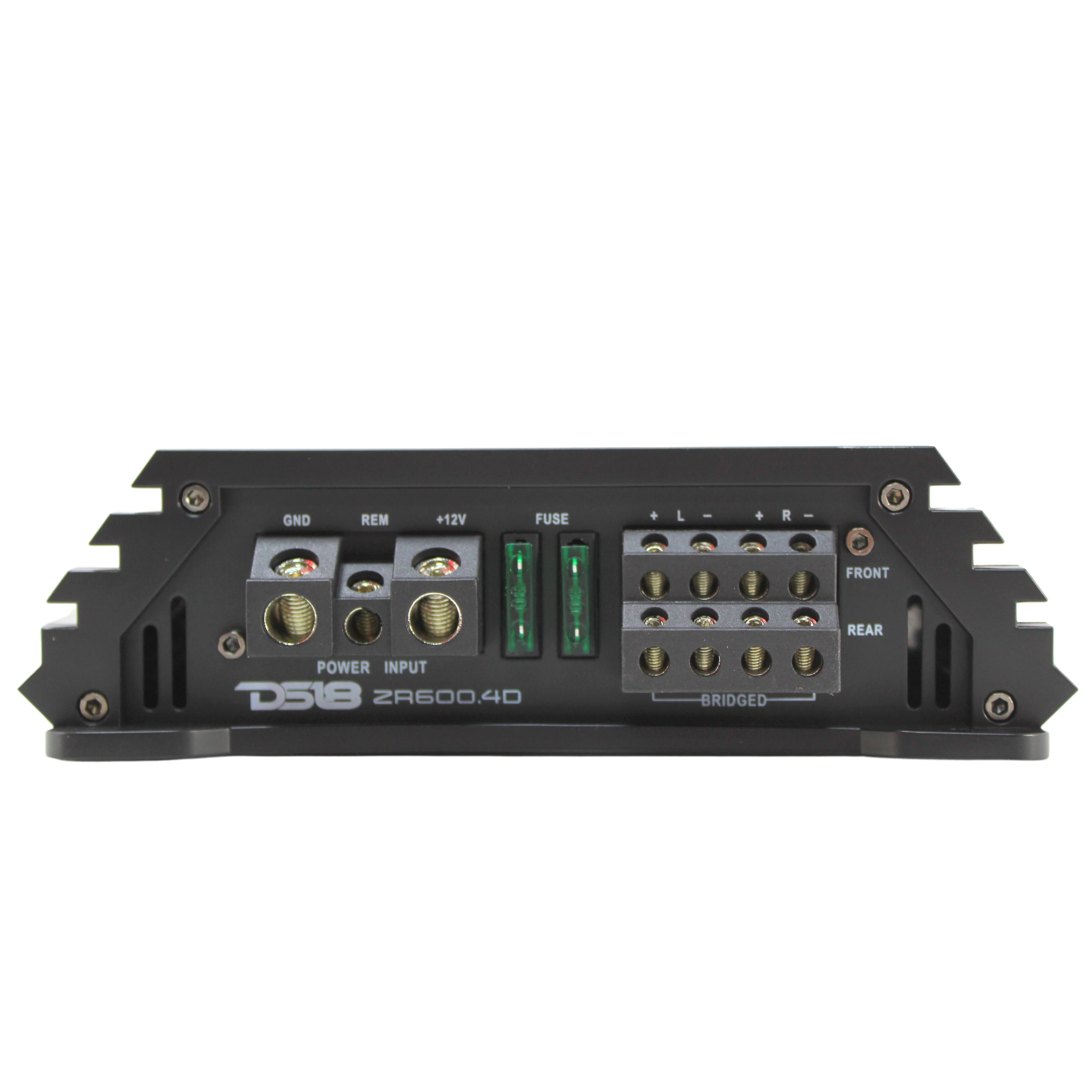

• Power Input Terminal Size: 4GA


• Fuse Size: 2 x 30A


• Thermal Protection: Yes


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes <9 / >16 Volts


• Clipping Protection: Yes


• Body Color / Finish: Black Aluminum Brush

Specifications:

• Total Watts (Peak): 2400W


• RMS Power @ 4 Ohm: 4 x 150W


• RMS Power @ 2 Ohm: 4 x 240W


• RMS Power @ 4 Ohm Bridge: 2 x 400W


• Frequency Response: 20Hz-20KHz


• Signal to Noise Ratio: >90dB


• Efficiency @ 4 Ohm: 90%


• Damping Factor: 160


• Input Impedance: 20K ohm


• Channel Separation: 60dB


• Total Harmonic Distortion (THD): 1.00%


• Low Level Input Range: 0.2-6V


• Selectable X-Over: FULL/LPF/HPF


• X-Over Filter Range: 40Hz-4KHz

Dimensions:

• Overall Length: 10" / 254mm


• Overall Wide: 7.24" / 184mm


• Overall Height: 2" / 53mm


• Heatsink Length: 8.54" / 217mm


• Gross Single Unit Weight: 4.11Lb
