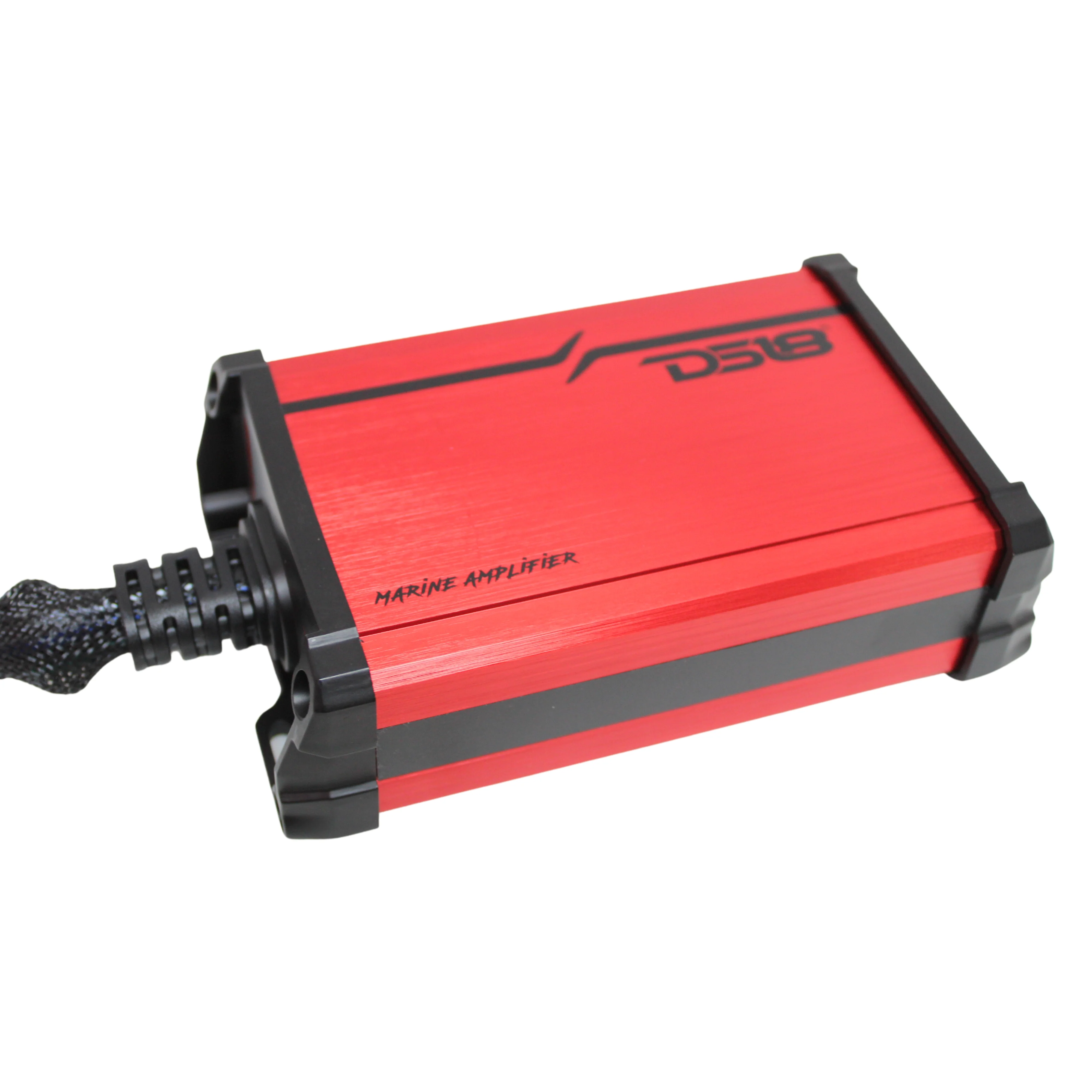

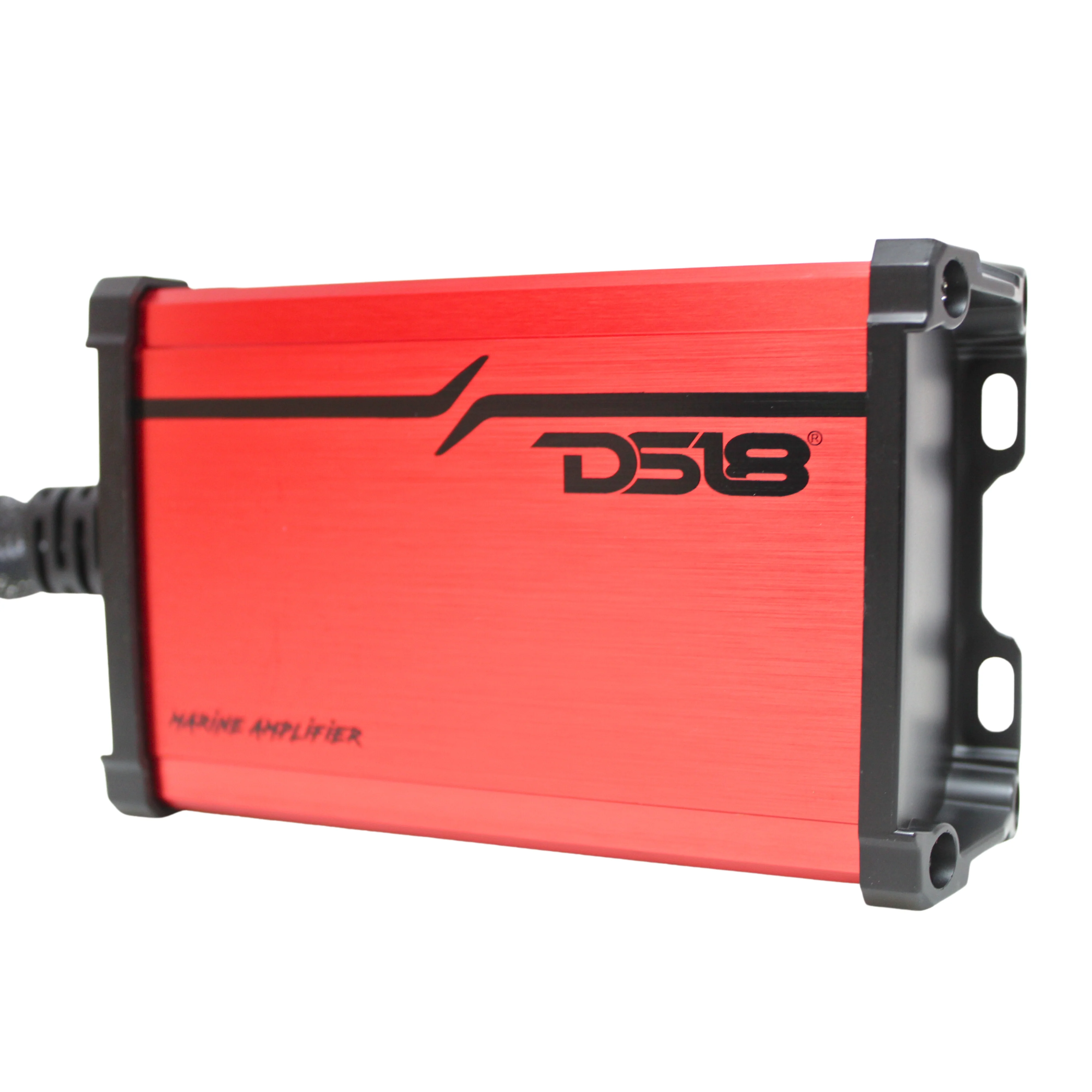

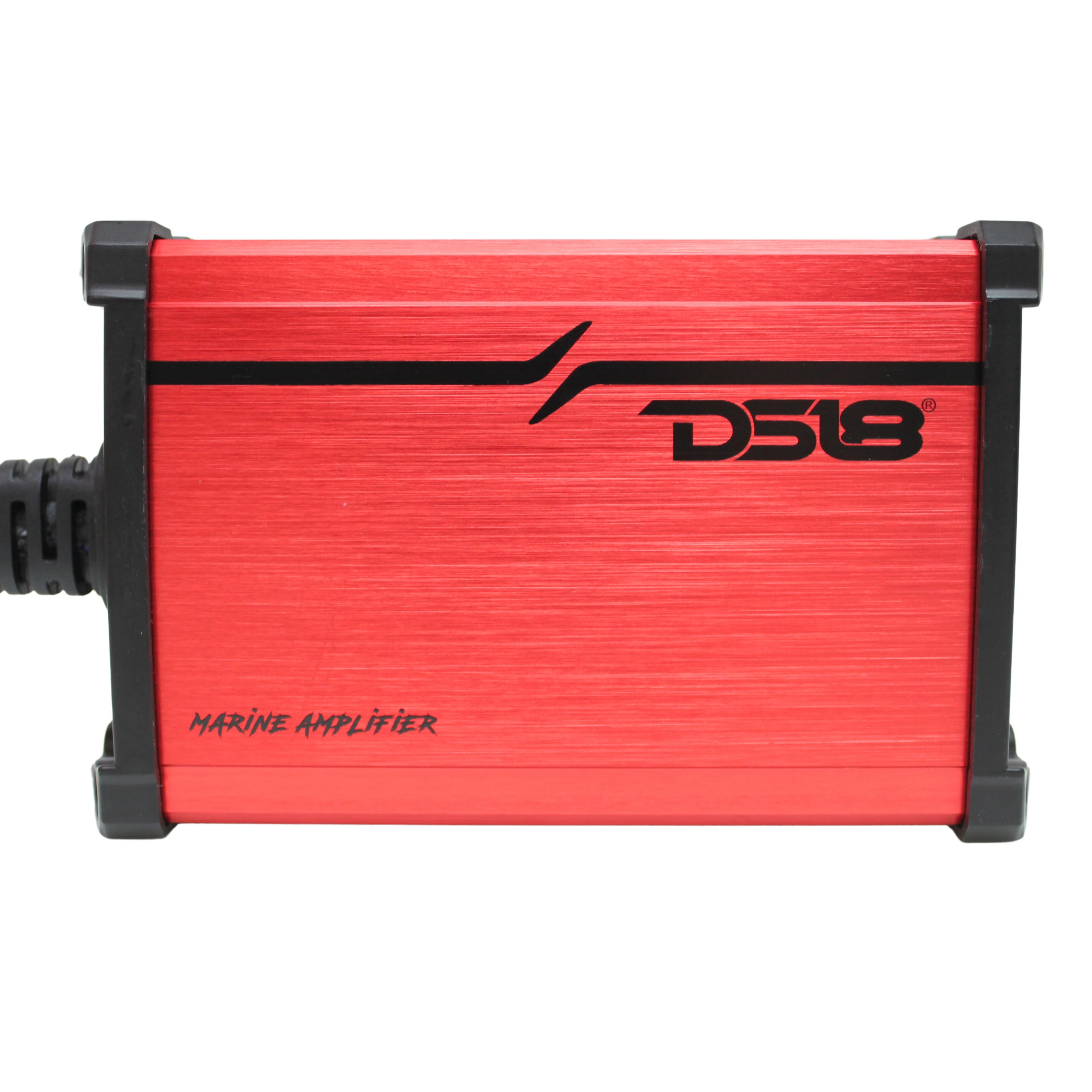

DS18 4 Channel 480 Watts 4 Ohm Class D Full Range Marine Amplifier MP-4A

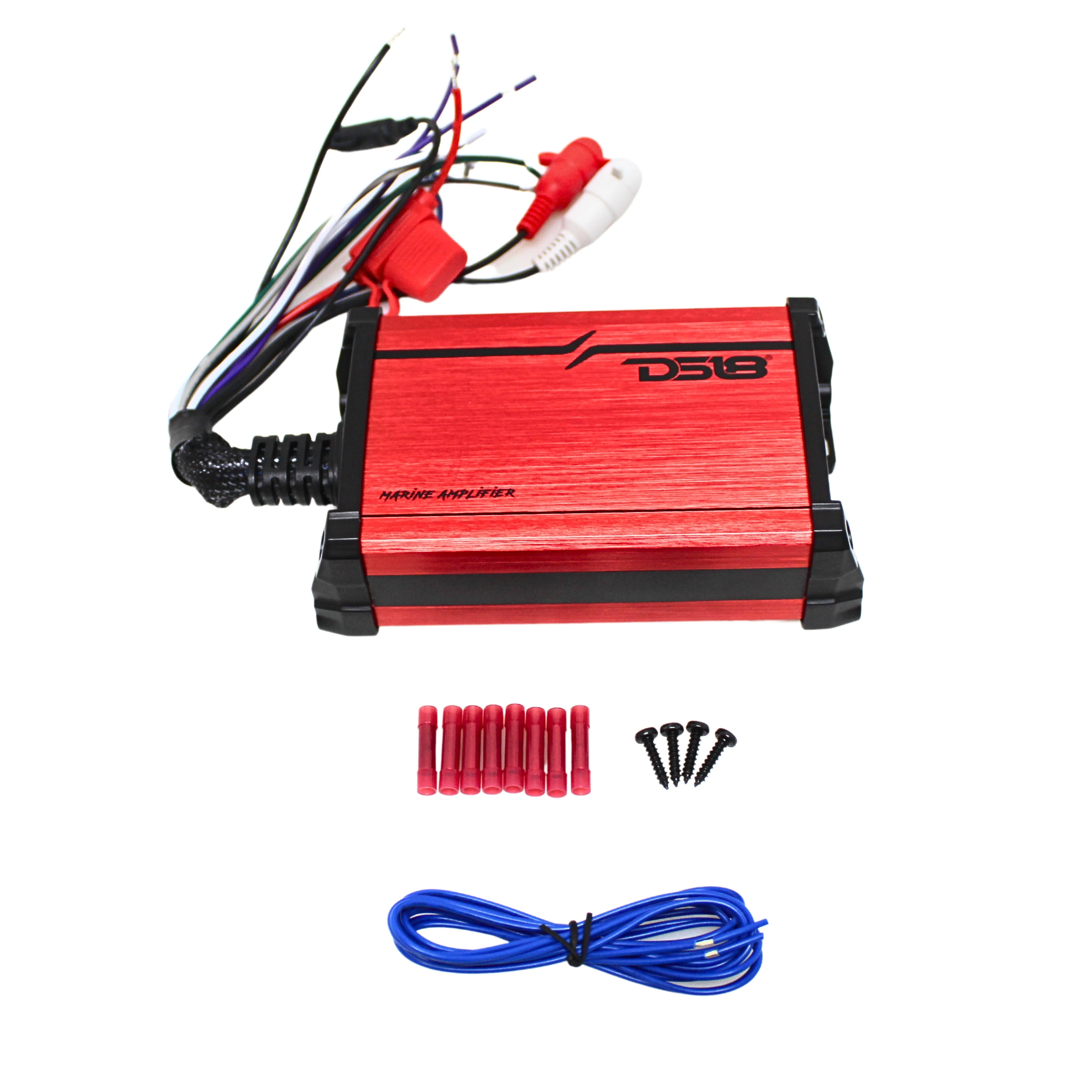

This listing includes:

• (1) 4 Channel 480 Watts 4 Ohm Class D Full Range Marine and Powersports Amplifier

Features:

• Over-Load Protection


• DC Output Protection


• Short Circuit Output Protection


• Brushed Red Aluminum Body


• Waterproof Rating: IPX5


• Salt Fog Protection

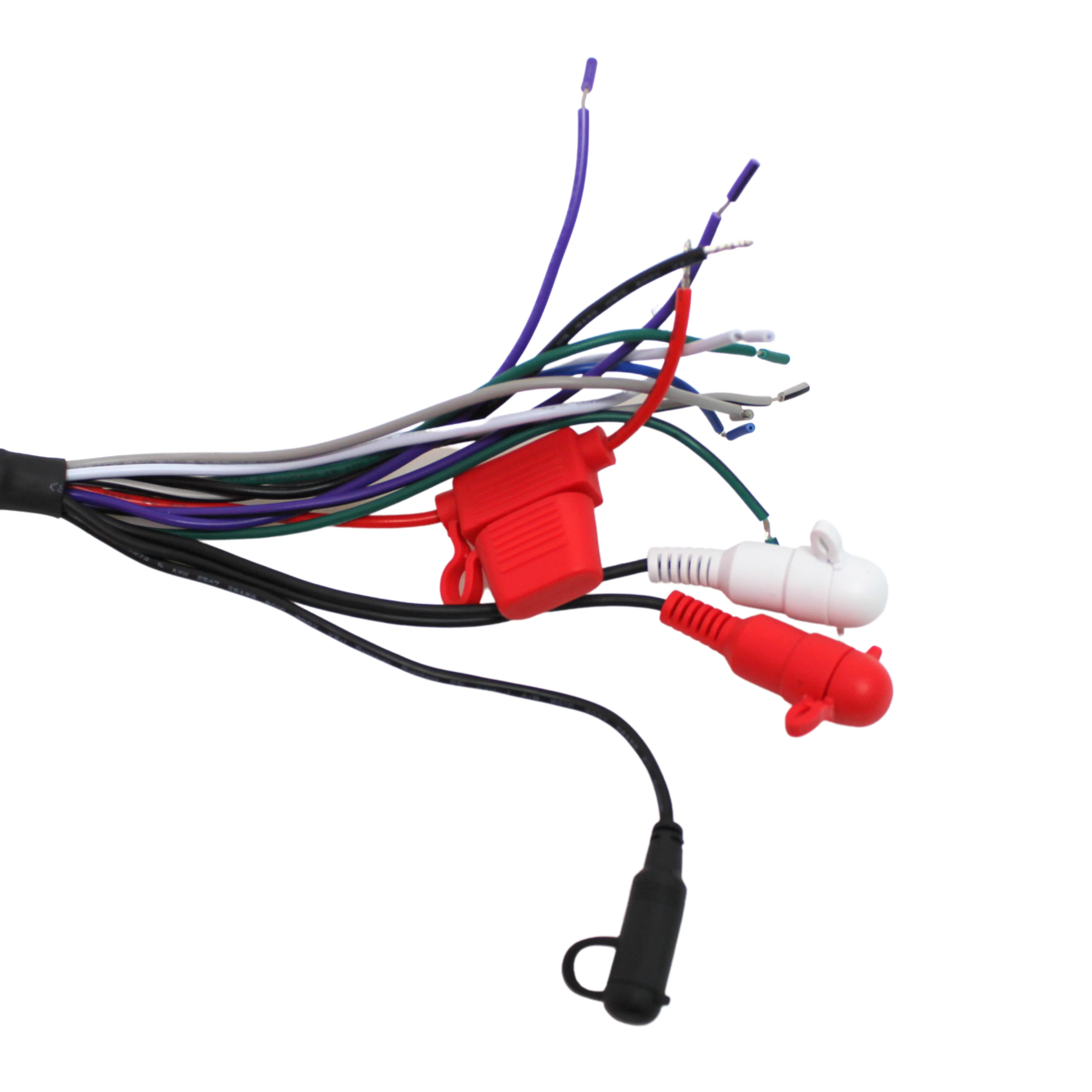

• Power Direct Harness Design


• Surface Mount Component Technology


• Marine Grade Fuse Holder

Specifications:

• Amplifier Class: Digital (D)


• Amplifier Type: Stereo Full Range


• Number of Channels: 4


• Minimum Impedance: 4 Ohm Stereo (Not Bridgeable)


• Total Watts (Peak): 480 W


• RMS Power: @ 4 ohm 4 x 40W


• Frequency Response: 20Hz-20kHz


• Signal to Noise Ratio: 82dB


• Efficiency @ 4ohm: 80%


• Damping Factor: 200


• Total Harmonic Distortion (THD): 0.10%


• Low Level Input Range: 2.5V (Fixed)


• Power Input Terminal Size: 16Ga


• Fuse Size: 20A


• Voltage Operation: 9-15V DC


• Thermal Protection: >75 C / 167 F (+/-5)


• Voltage Input Protection: (<9.2V / >16V)


• Input Audio Connector: 3.5mm jack


• Audio Output: RCA left and right
