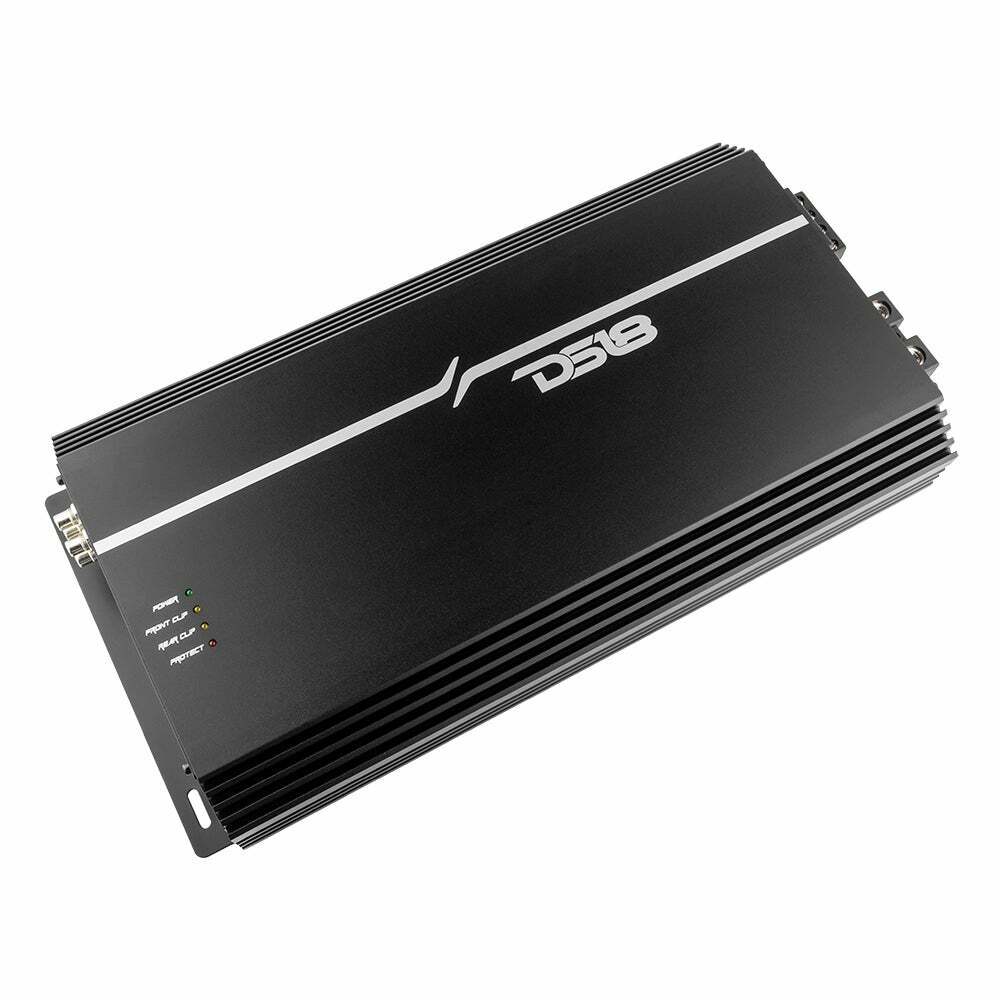

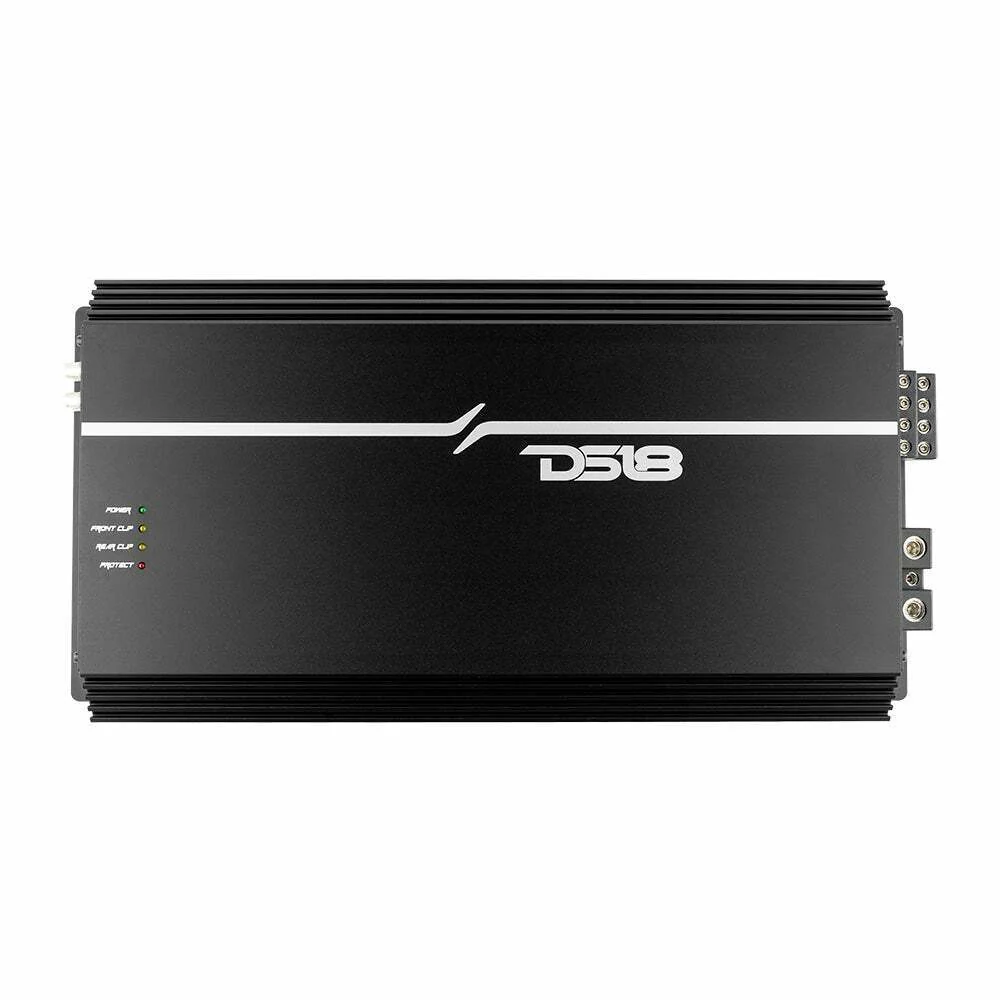

DS18 4 Channel Korean Amplifier Class AB Full Range w/ Bass Knob EXL-P2000X4

Blast away your music with extreme efficiency and power with our NEW EXL-P series amps for crazy loud sound that is driven by Korean Power. Korean amps have been proven time over time to be the best amps if you want pure power driven by high quality parts assembled by our factory that has the longest proven track history. Our Korean Facilities take a more time in the manufacturing process while also using the highest quality parts for the best results. This helps the amplifier live a long life all while producing more than rated power if installed and tuned correctly. These amps are for enthusiasts that accept no compromises for their sound and power levels for car audio.

The EXL-P series is made to produce some serious power. These 4 channel amps will be sure to blast your speakers away with high amounts of clean power for maximum sound for your car.

This Listing Includes:

(1) DS18 1-Channel Class AB Amplifier EXL-P2000X4

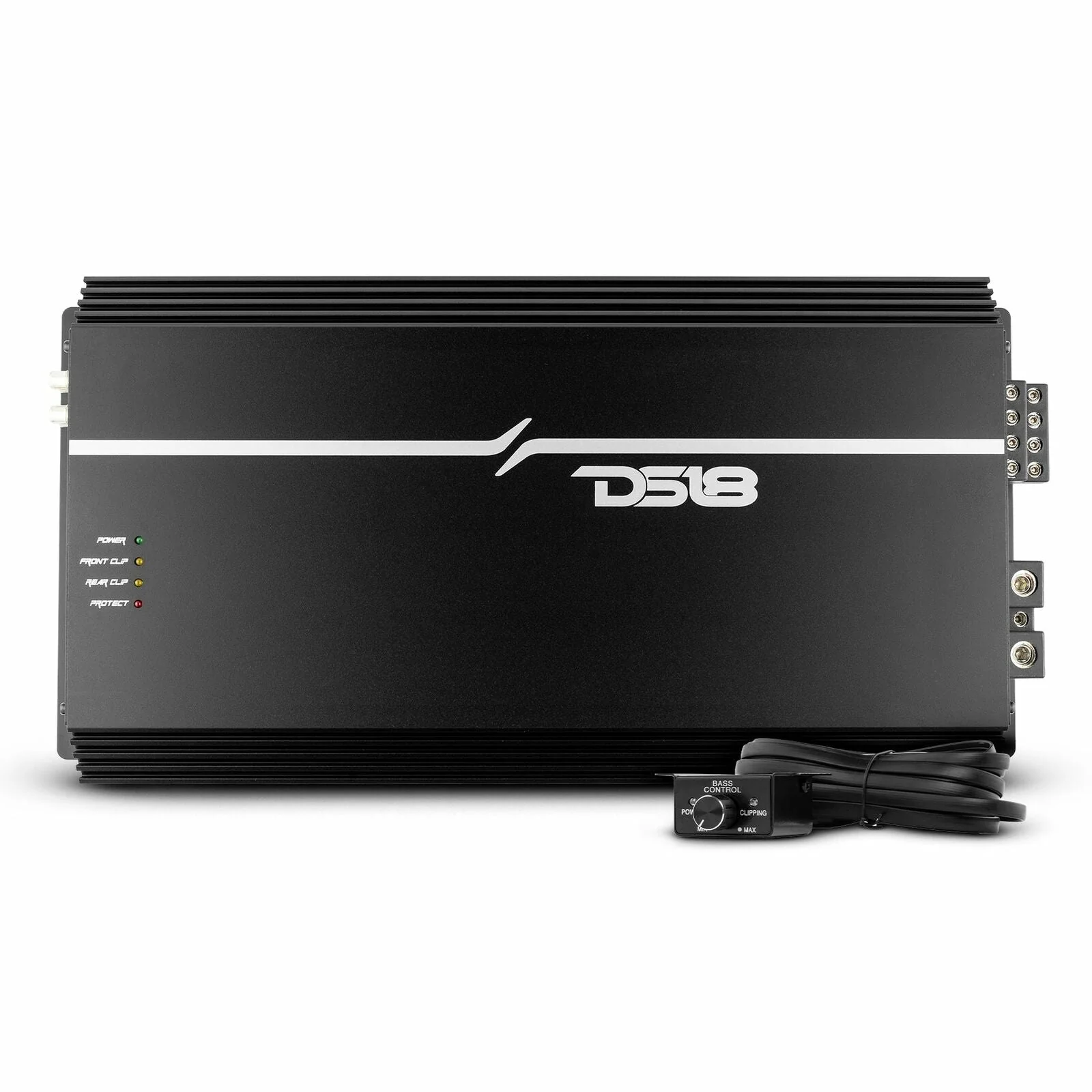

(1) Bass Knob with Clipping Indicator

FEATURES:

- Competition SPL Monoblock Class-D Subwoofer Amplifier

- Protection Circuit: Thermal, Over-Load, DC, Short Circuit, Voltage and Clipping

- LED indicate working status: Power/Protection/Clipping

-Platinum finished connectors will ensure the highest connection quality available

- Tiffany RCA Connectors

- Strap Mode Connection

- Remote Bass Knob with Power and Clip LED Indicator included

- Latest SMC and MOSFET Technology

- Reliable Heavy duty Korean Circuit Board design

SPECIFICATIONS:

RMS Power @ 4 Ohm: 275W x 4CH

RMS Power @ 2 Ohm: 500W x 4CH

RMS Power @ 1 Ohm: 1000W x 2CH

Frequency Response : 20Hz-20KHz

Signal/Noise Ratio: Greater than 98dB

Efficiency@4 0hm: Greater than 65%

Damping Factor: 180

THD : Less than: 0.10%

Low Level Input Range: 200MV-6V

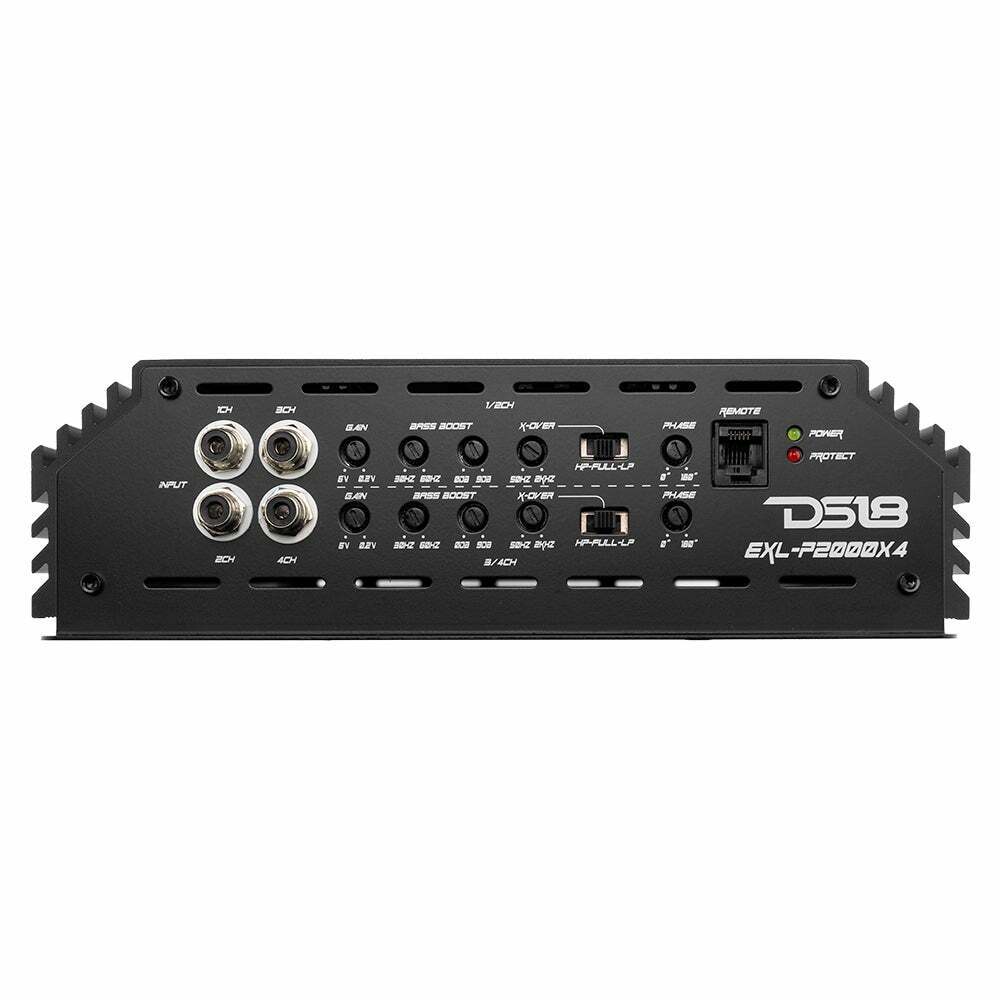

Selectable X-Over: Yes, HPF/FULL/LPF

X-Over Filter Range: 50Hz-2KHz

Bass Boost Range: 0-+9dB

Bass Boost Frequency: 30Hz - 60Hz

Infrasonic Filter: No

Phase Selector: 0-180

Class: AB (Analog)

Amplifier Type: Stereo Full - Range

Channels: 4 CH

Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)

Led Indicator: PWR / CLIP / PROTECT

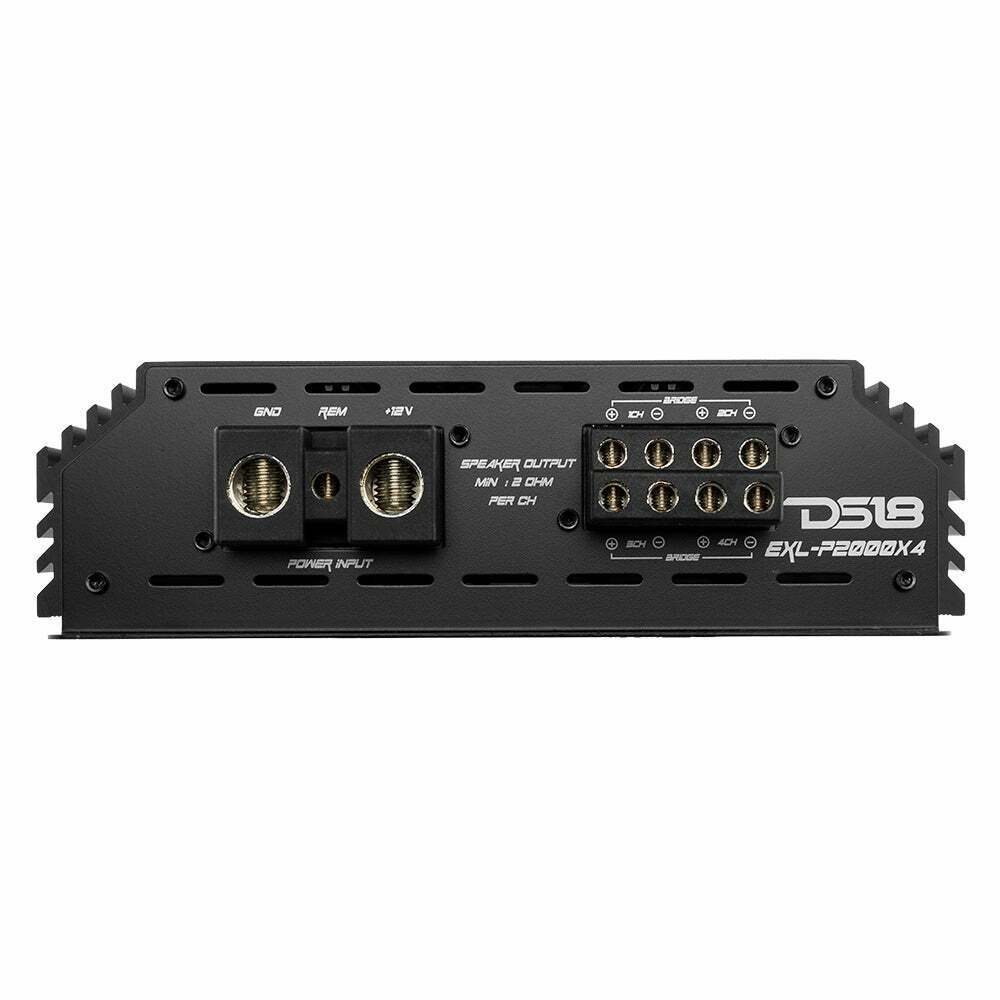

Power Input Size: 4 AWG

Fuse Rating: 200A

Remote Level Control: Yes - Dash Mount

Cooling Fan: Yes

Thermal Protection: Yes >110C / 230F

Over-Load Protection: Yes

Dc Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes >15.5V

Clipping Protection: Yes

Body Color / Finish: Black Aluminum

DIMENSIONS:

(L x W x H) 17.4" x 8.77" x 2.67"

HEATSINK LENGTH: 15.75"
