• High Power Handling – 60W RMS / 260W MAX lets you upgrade your factory system with stronger, distortion-free sound.
• Premium Build – Glass fiber cone and rubber surround deliver durability and accurate mid-bass response.
• Clear, Crisp Highs – 0.8” neodymium tweeter with Mylar diaphragm ensures smooth treble and detailed vocals.
• Engineered for Daily Driving – 3-ohm impedance, 87dB sensitivity, and wide 80Hz–22kHz frequency response make it ideal for OEM replacement or aftermarket setups.
• Built to Last – Rugged steel basket and 9oz barium magnet provide long-term reliability in any vehicle.

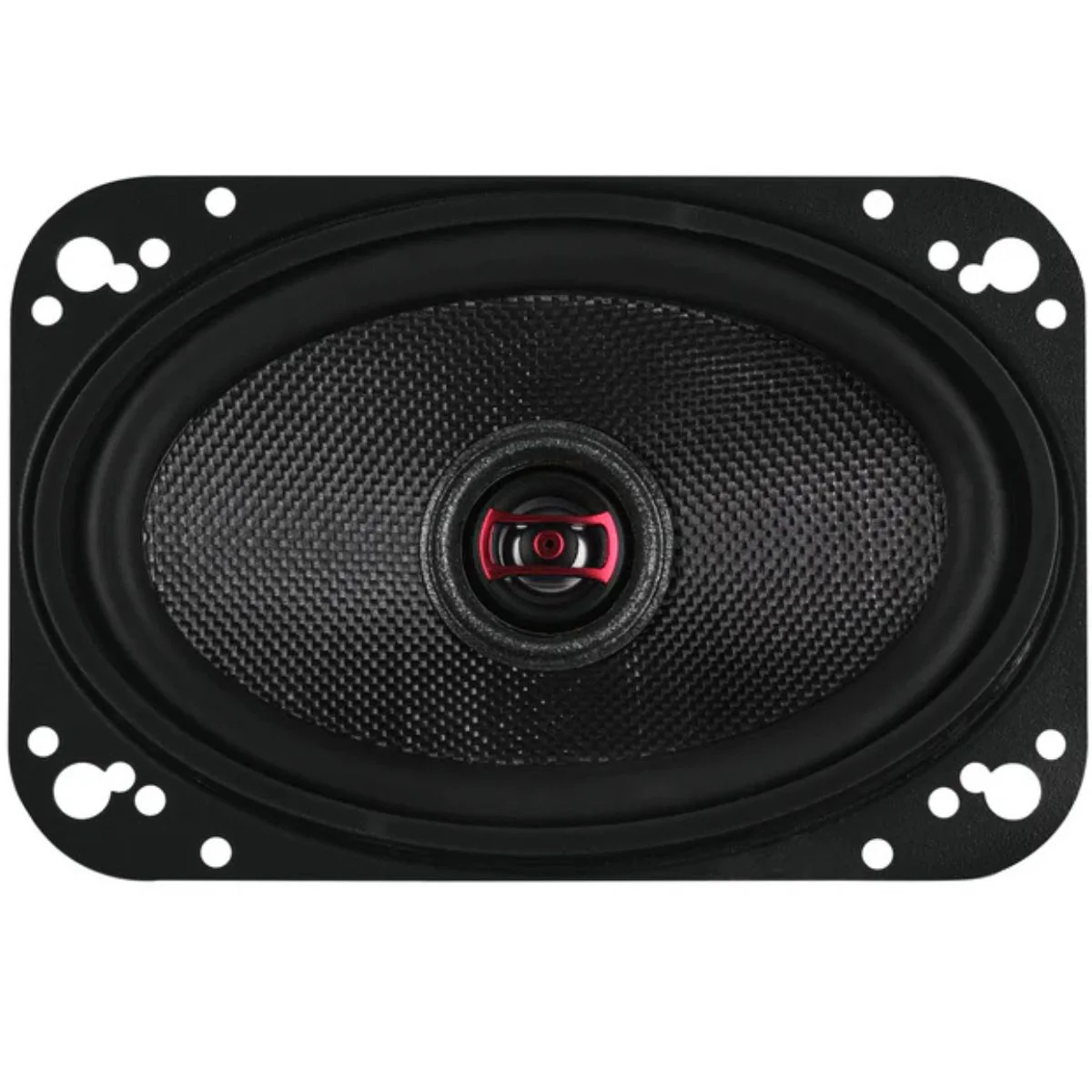

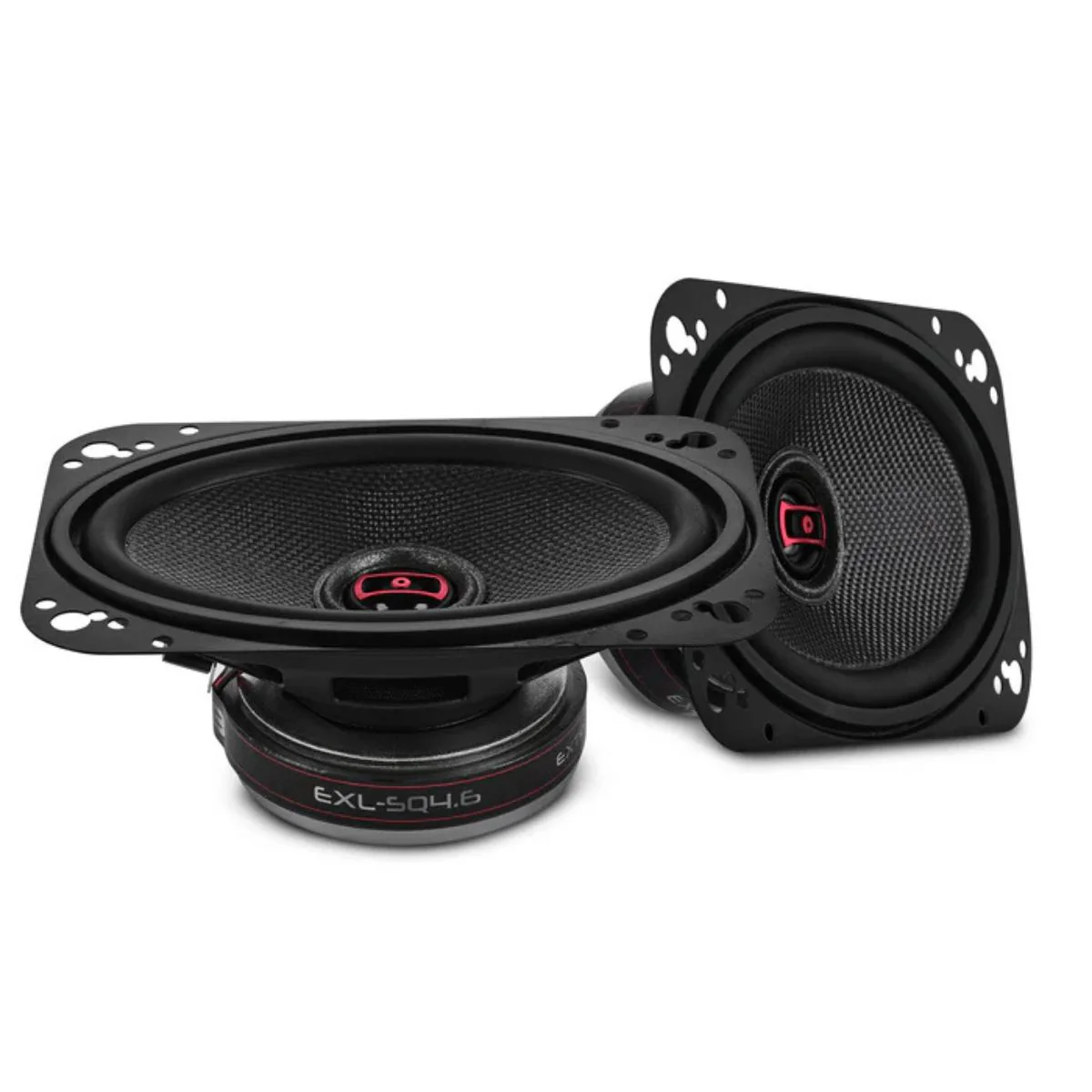

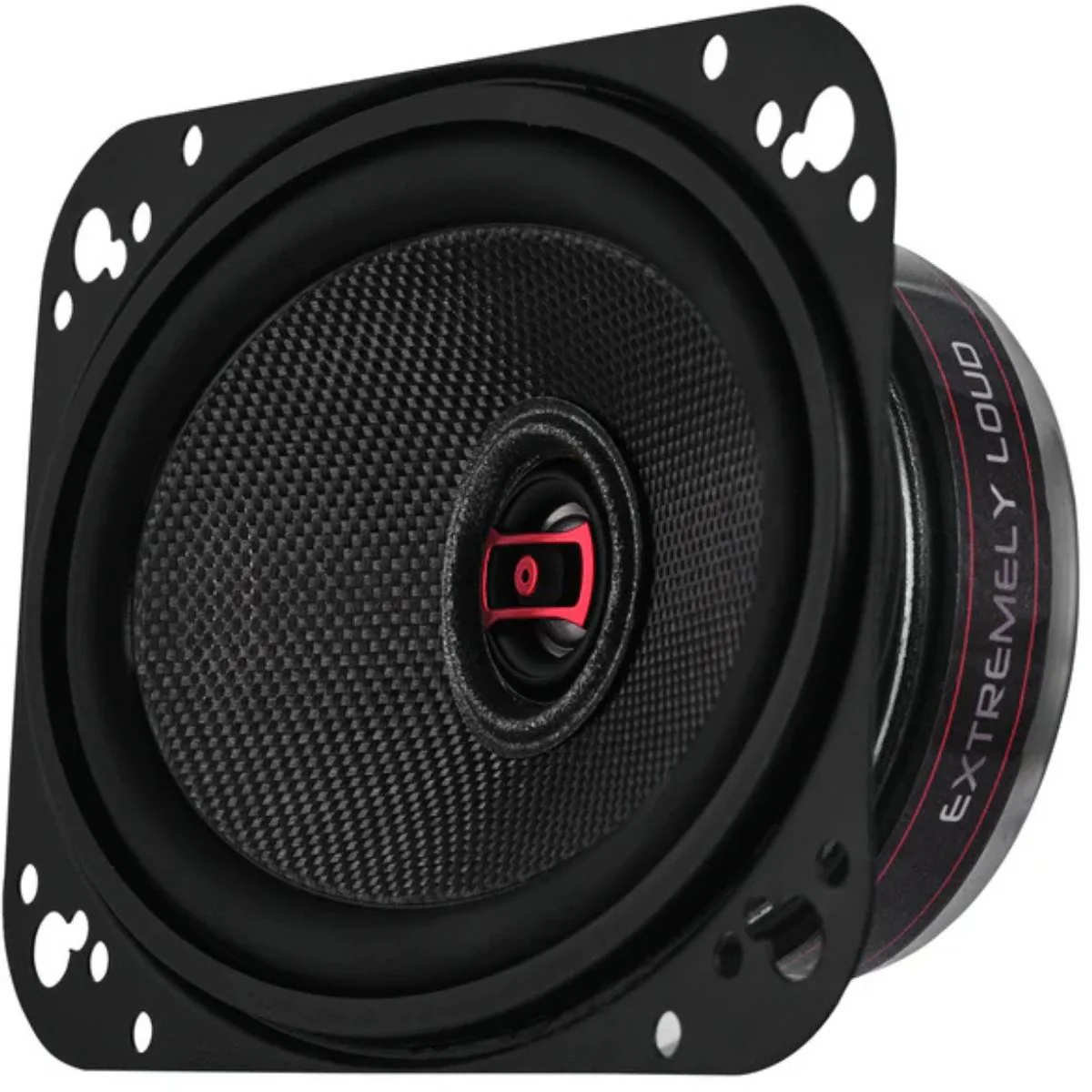

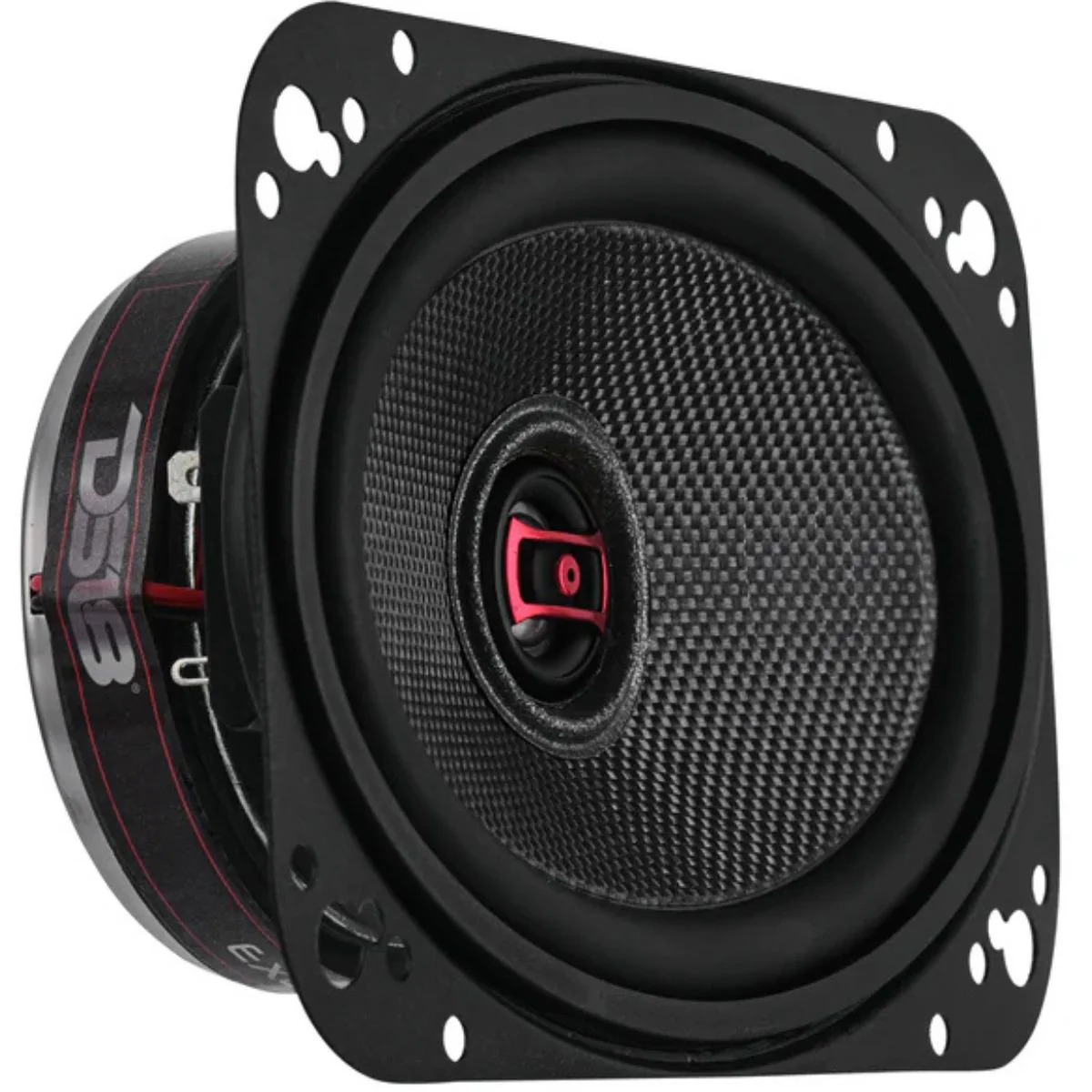

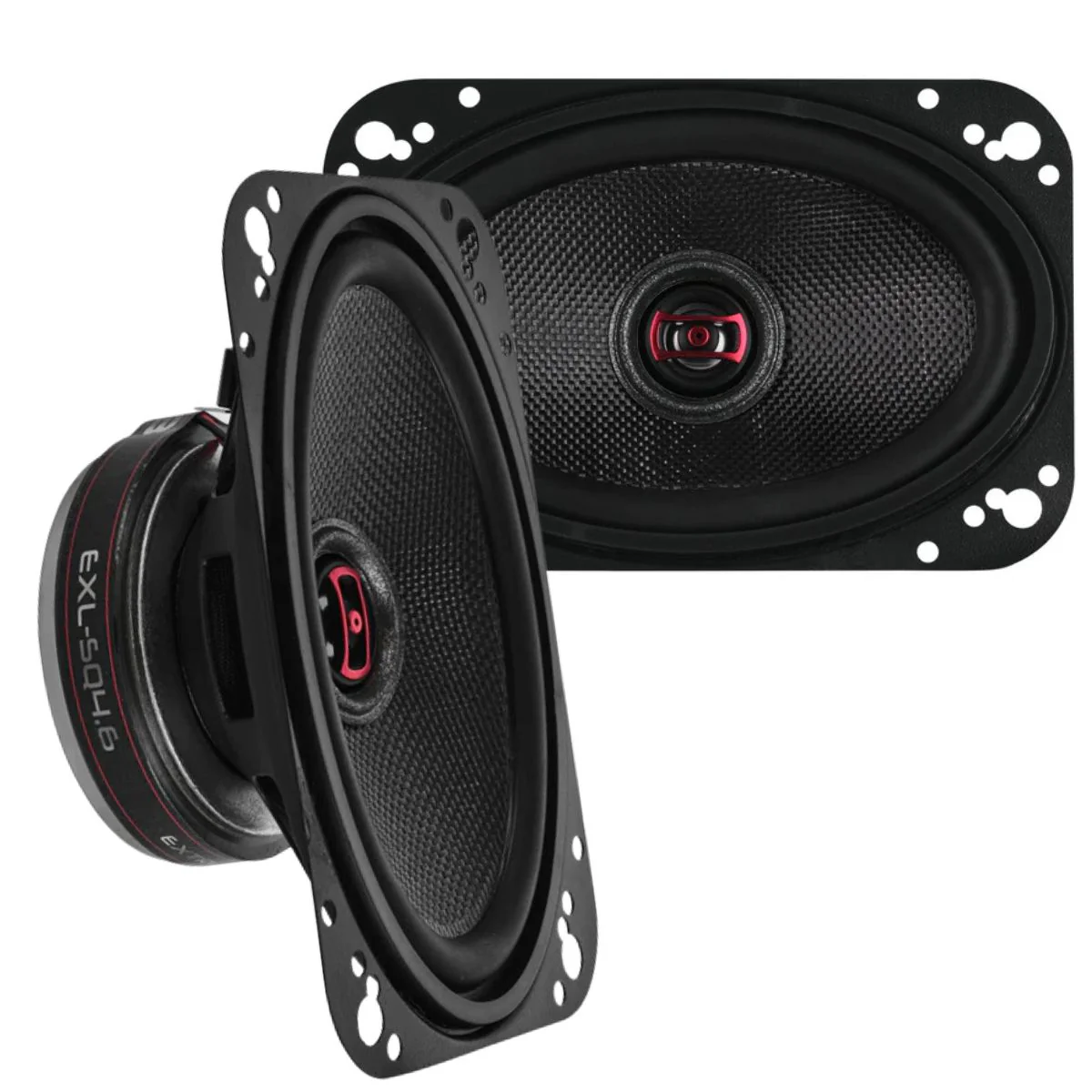

DS18 4x6†60W RMS 3-Ohm 2-Way Coaxial Speaker pair w/ Fiber Glass Cone EXL-SQ4.6

Included Items

• (2) DS18 EXL-SQ4.6 4x6" 2-Way Coaxial Speakers

The EXL-SQ4.6 is your weapon of choice for crisp sound and precision detail that cuts through road noise with ease. Built for both performance and durability, these 4x6†coaxials handle 60W RMS / 260W MAX while delivering smooth highs, tight mids, and responsive low-end.

Whether you’re upgrading factory speakers or building a custom system, the EXL-SQ4.6 transforms any ride into a rolling soundstage.

Features

• Powerful Performance - 60W RMS / 260W MAX for clean daily sound.


• Glass Fiber Cone - Stiff and responsive, with a rubber surround for added durability.


• Bright Highs - 0.8" neodymium tweeter with Mylar diaphragm for crisp clarity.


• Pro-Grade Design - 1†ASV voice coil with copper winding for reliability.


• Built Tough - Steel black basket with barium magnet motor (9 oz).


• Pair Sold - Each box includes two speakers.

Specifications

• Nominal Diameter: 4x6" (101.6 Ã 152.4 mm)


• Configuration: 2-Way Coaxial


• Impedance: 3-Ohms


• RMS Power: 60W


• MAX Power: 260W


• Sensitivity: 87 dB (1W/1m)


• Frequency Response: 80Hz -22kHz


• Recommended Hi-Pass Crossover: 100Hz


• Pair or Single: Pair


• Grille Included: No

Woofer

• Cone Material: Glass Fiber


• Surround Material: Rubber


• Voice Coil Diameter: 1†(25.5 mm)


• Voice Coil Former: ASV


• Winding Material: Copper


• Basket Material: Steel (Black Finish)


• Magnet Material: Barium


• Magnet Weight: 9 oz

Tweeter

• Diameter: 0.8†(20.3 mm)


• Voice Coil Diameter: 0.5†(13 mm)


• Diaphragm Material: Mylar


• Magnet Material: Neodymium

Thiele & Small Parameters

• Equivalent Volume (Vas): 3.6L / 0.12 ft


• Free Air Resonance (Fs): 96 Hz


• Mechanical Factor (Qms): 4.964


• Electrical Factor (Qes): 1.136


• Total Factor (Qts): 0.924


• DC Resistance (Re): 2.8-Ohms

Dimensions:

• Overall Diameter: 4x6" / 102 Ã 155 mm


• Overall Depth: 2.37" (60.4 mm)


• Mounting Depth: 2.15" (54.8 mm)


• Front Mount Baffle Cutout: 3.5 Ã 5.5" (91 Ã 140 mm)


• Motor Diameter: 3.14" (80 mm)

Why Choose the EXL-SQ4.6?

The DS18 EXL-SQ4.6 blends power, precision, and durability. From the glass fiber woofer to the neodymium tweeter, every component is engineered for performance. Upgrade your ride with speakers built to handle real-world listening - clear highs, tight mids, and robust mid-bass.
