• 8" hybrid loudspeaker designed for motorcycles, ATVs, UTVs, and Jeeps
• 200W RMS power handling with 400W max power for high-performance output
• 2-way system with a 2" woofer and 1" titanium diaphragm compression driver
• Slim, compact design for easy installation in tight spaces
• Includes protective grill for additional durability without compromising aesthetics

DS18 8" 2-Ohm 200W RMS Hybrid Slim Loudspeaker w/1" Compression Driver Horn

This Listing Includes:

• (1)  8" 2-Ohm 200 Watts RMS Shallow Hybrid Coaxial Mid-Range w/Driver. Ferrite & Neodymium Magnets With Grill

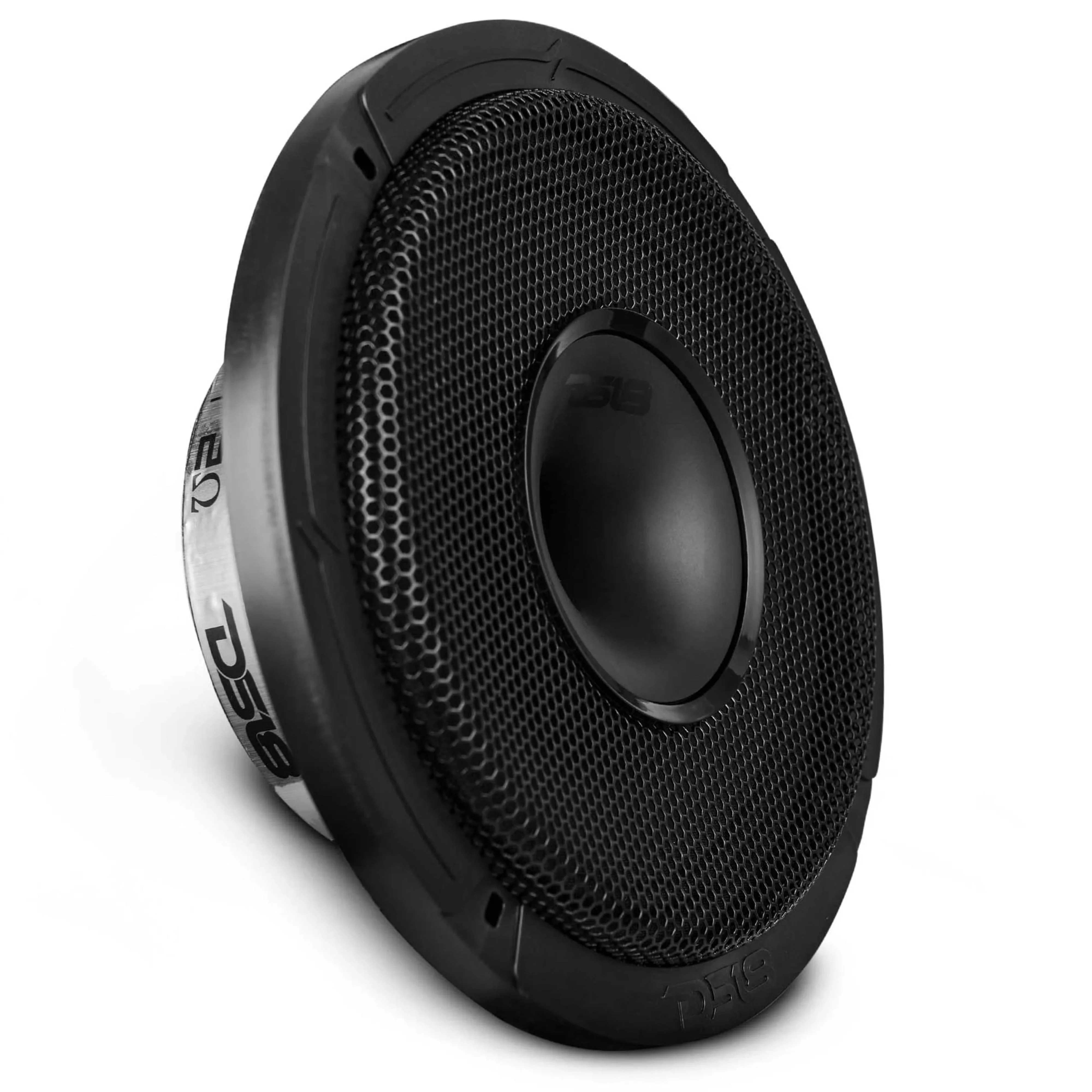

The DS18 PRO-HY8.2MSL is an 8-inch hybrid loudspeaker designed for motorcycles, ATVs, UTVs, and Jeeps. This compact speaker delivers powerful sound with a high sensitivity of 98dB, featuring a 2-way system that combines a 2-inch woofer made from advanced KSV and CCAW materials, and a titanium diaphragm driver with a neodymium magnet. With a frequency response of 100Hz to 20kHz and a recommended crossover of 120Hz high pass, it captures detailed audio. Its slim design includes a durable black steel basket and ferrite magnet for reliability in rugged environments. The speaker fits easily into tight spaces with its 8.2" diameter and 3.4" depth, and the included grill offers protection while maintaining its sleek look.

Specifications:

• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: 2 Ohms


• RMS Power Handling: 200W


• MAX Power Handling: 400W


• Sensitivity (1w/1m): 98dB


• Frequency Response: 100Hz - 20kHz


• Recommended HI Pass Crossover: 120Hz


• Number of Ways: 2 ways


• Pair or Single: Single


• Grill Included: Yes

Woofer Specifications:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: KSV


• Winding Material: CCAW


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color/Finish: Black


• Magnet Material: Ferrite


• Magnet Weight: 29.5 Oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 9.58L / 0.33ft


• Excursion (one way) Xmax: 2mm


• Free Air Resonance Fs: 106Hz


• Mechanical Factor Qms: 8.083


• Electrical Factor Qes: 0.729


• Total Factor Qts: 0.669


• Mechanical Mass Mms: 13.886g


• Mechanical Compliance Cms: 0.147 mm/N


• BL Factor BL: 4.74


• Voice Coil Inductance Le: 48.9mH


• Cone Area Sd: 216.424 cm


• DC Resistance Re: 1.8 ohm


• Mechanical Mass w/o air Mmd: 12.088g

Driver Specifications:

• Voice Coil Diameter: 1" / 25.4mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 3" / 76.2mm

Speaker Measurement:

• Overall Diameter (Without Grill): 8.2" / 209mm


• Overall Diameter (With Grill): 8.6" / 219mm


• Overall Depth (Without Grill): 3.4" / 86mm


• Overall Depth (With Grill): 4" / 104mm


• Front Mount Baffle Cutout: 7.16" / 182mm


• Mounting Depth: 3.15" / 80mm


• Motor Diameter: 5.27" / 134mm
