• 2-Way Design: Provides a full range of frequencies for an exceptional audio experience.
• Compact Size: 4" size suitable for limitless audio applications.
• High Power Handling: 150 Watts for powerful, loud listening.

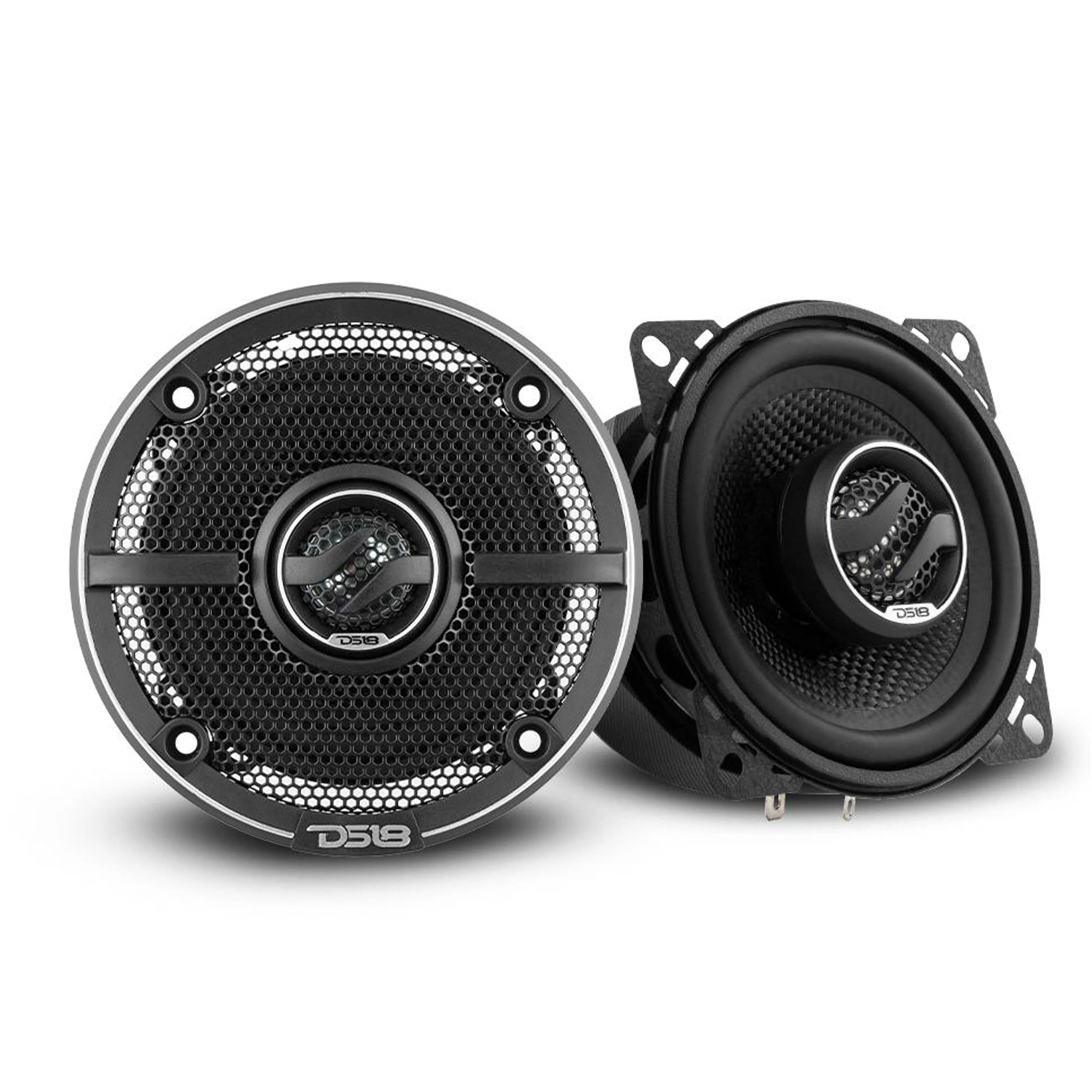

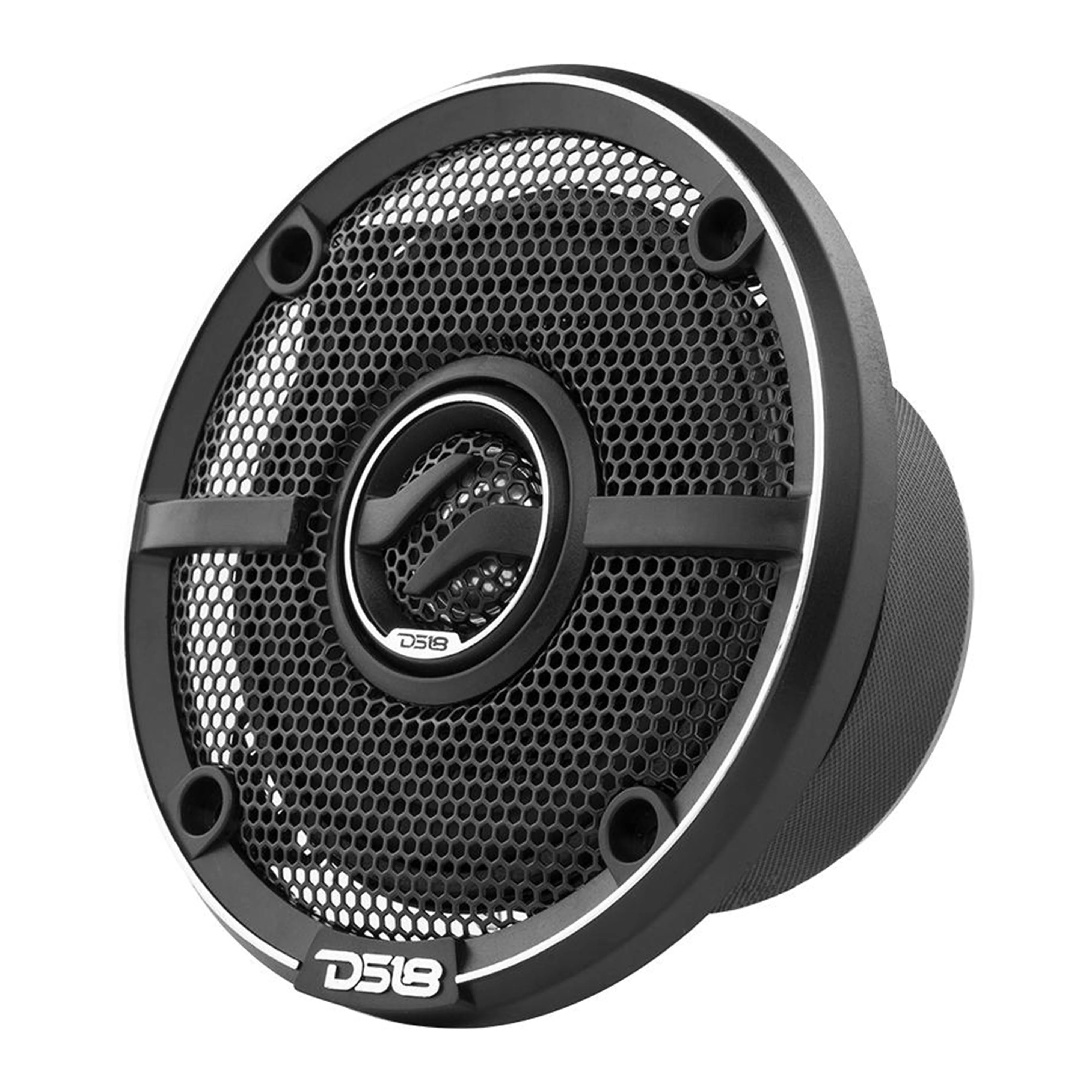

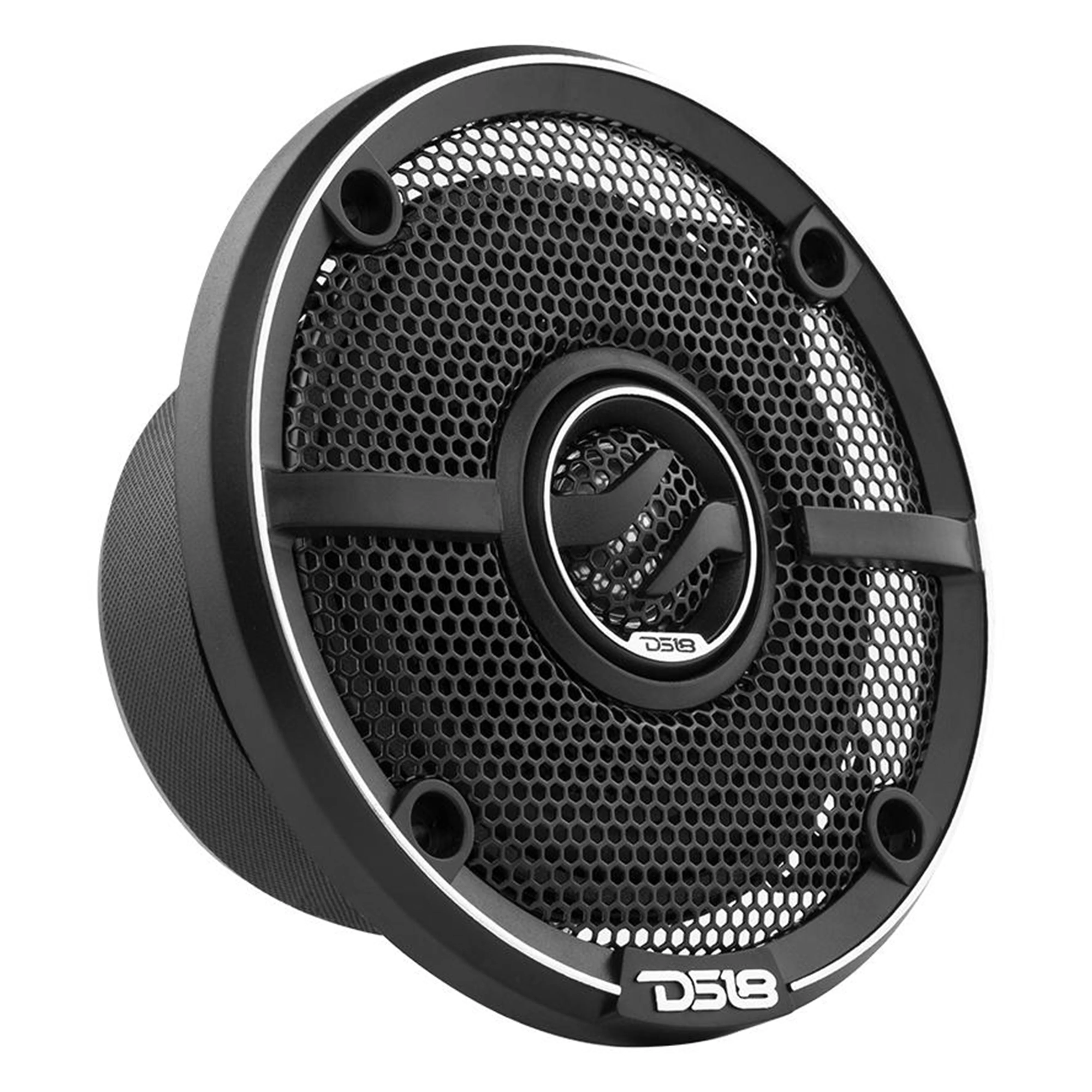

The ZXI series from DS18 is renowned for delivering exceptional audio quality and volume at an incredible value. The ZXI-44 4" coaxial speaker, designed for audio enthusiasts, offers a broad frequency range and impressive loudness. The 2-way design ensures a complete audio experience, making every sound memorable. Its compact 4" size makes it versatile for various applications.

This Listing Includes:

• (2) DS18 4" Coaxial Speakers ZXI-44

Specifications per Speaker:

• Nominal Diameter: 4"


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 50 Watts


• Max Power Handling: 150 Watts


• Sensitivity (1w/1m): 88dB


• Frequency Response: 80Hz - 20KHz


• Recommended High-Pass Crossover: 100Hz


• Speaker Type: 2-Way

Midrange Specifications:

• Voice Coil Diameter: 1" (25.5mm)


• Voice Coil Former Material: KSV


• Winding Material: EISV


• Cone Material: Glass Fiber


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Barium Ferrite


• Magnet Weight: 10.9 Oz / 310g

Tweeter Specifications:

• Nominal Diameter: 1" (25.4mm)


• Voice Coil Diameter: 0.8" (20.4mm)


• Voice Coil Former Material: KSV


• Winding Material: EISVM


• Diaphragm Material: PEI


• Magnet Material: Neodymium


• Magnet Weight: 0.3 Oz / 8.5g

Thiele & Small Parameters:

• Equivalent Volume: 1.59L


• Excursion (one way): 2.3mm


• Free Air Resonance: 95Hz


• Mechanical Factor: 9


• Electrical Factor: 0.8


• Total Factor: 0.74


• Mechanical Mass: 8.47g


• Mechanical Compliance: 364.9mm/N


• BL Factor: 4.583


• Cone Area: 55.4cm


• DC Resistance: 3.5 Ohm


• Mechanical Mass (without air): 8.0g

Dimensions:

• Overall Diameter: 3.94" (100mm)


• Overall Depth: 2.80" (71mm)


• Front Mount Baffle Cutout: 3.66" (93mm)


• Mounting Depth: 2.20" (56mm)


• Motor Diameter: 3.31" (84mm)

Package Dimensions:

• Length: 12"


• Width: 5.75 "


• Height: 3.25"


• Weight: 3.95 lb

Elevate your audio experience with the DS18 ELITE ZXI-44 speakers. Designed for superior sound quality and performance, these speakers are perfect for any audio setup. Enjoy the full range of sound and powerful performance that DS18 is known for.
