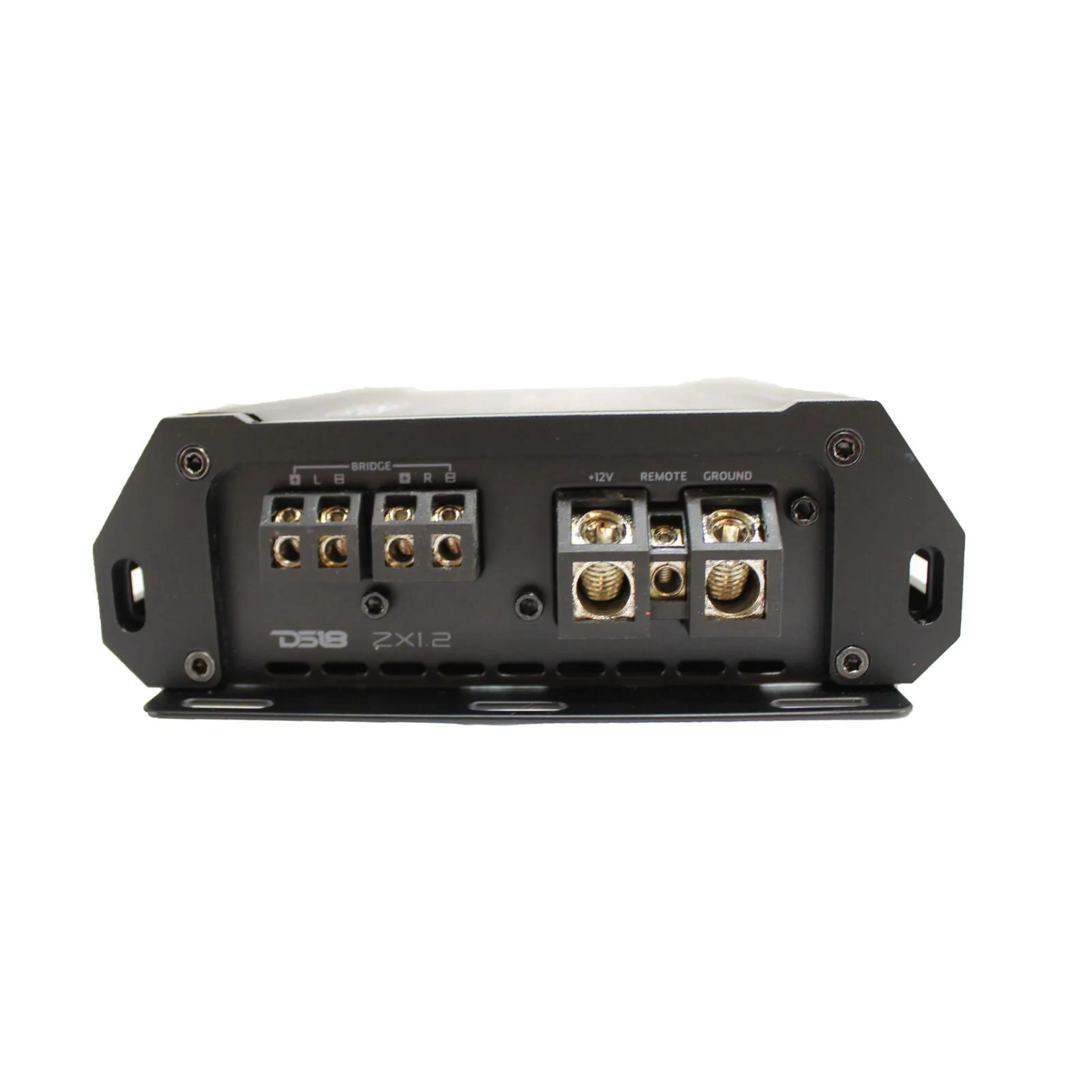

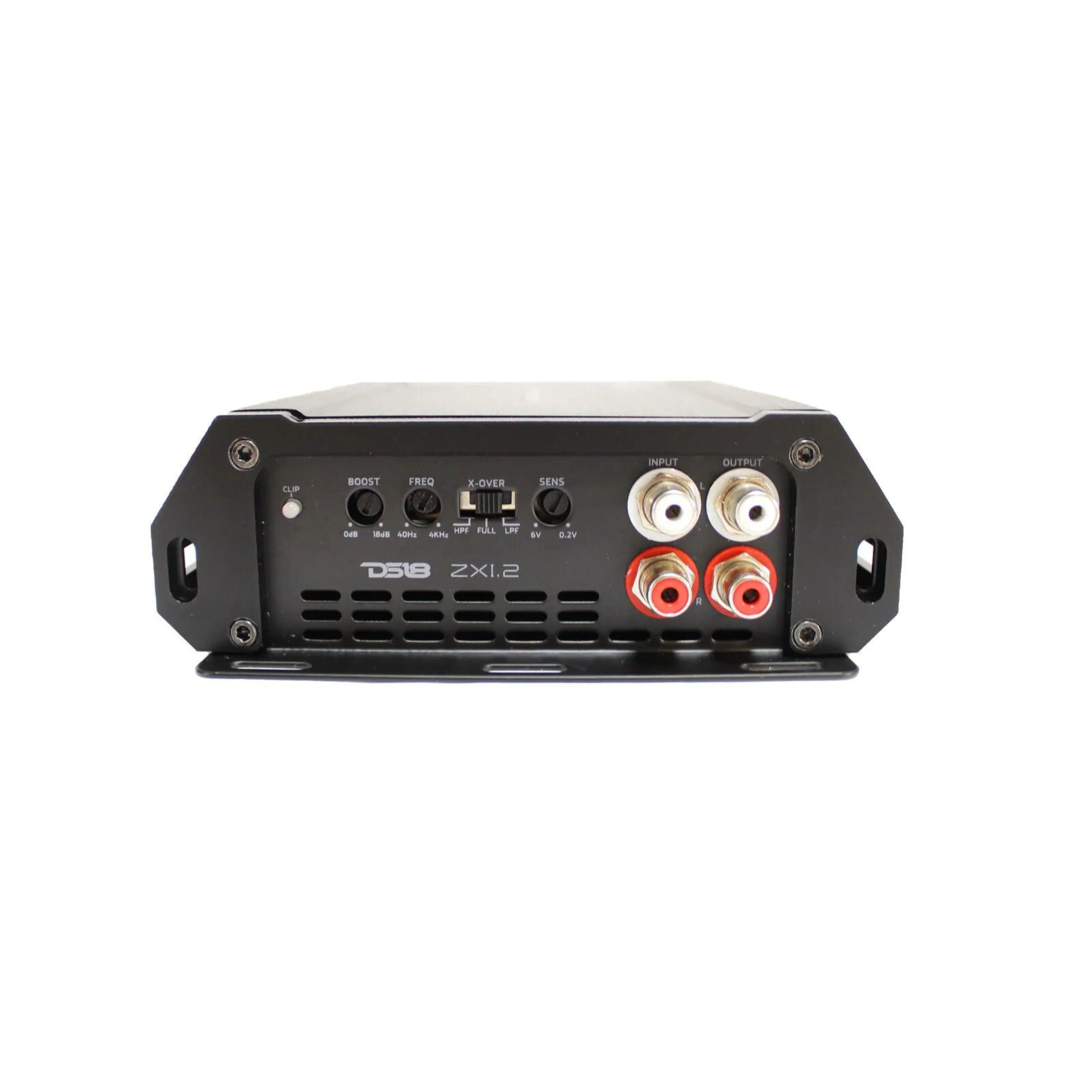

DS18 Elite 4 Ohm 500 Watt 2-Channel Full Range Class D Amplifier ZXI.2

This Listing Includes:

• (1) Amplifier

Features:

• IRS Full Range Digital Circuit Design Class-D


• LED Power and Protection Indicator


• RMS Power @ 4 Ohm: 100W x 2CH


• RMS Power @ 2 Ohm: 185W x 2CH


• RMS Power @ 4 Ohm Bridge: 370W x 1 CH


• Peak Power @ 4 Ohm: 150W x 2CH


• Peak Power @ 2 Ohm: 500W x 4CH


• Peak Power @ 4 Ohm Bridge: 500W x 1CH


• Minimum Impedance: 2 Ohm


• Frequency Response: 20 - 20KHz


• THD: 0.10%


• Input Sensitivity: 0.2-6V


• Signal/Noise Ratio: >90dB


• Crossover High Pass: 40-4KHz


• Crossover Low Pass: 40-4KHz


• Bass Boost: 0-18dB


• Operation Voltage: 8.5-16.8V


• Fuse Rating: 35A


• Power Input Size: 4GA

Dimensions:

• Length 7.1"


• Width 5.7"


• Height 1.9"
