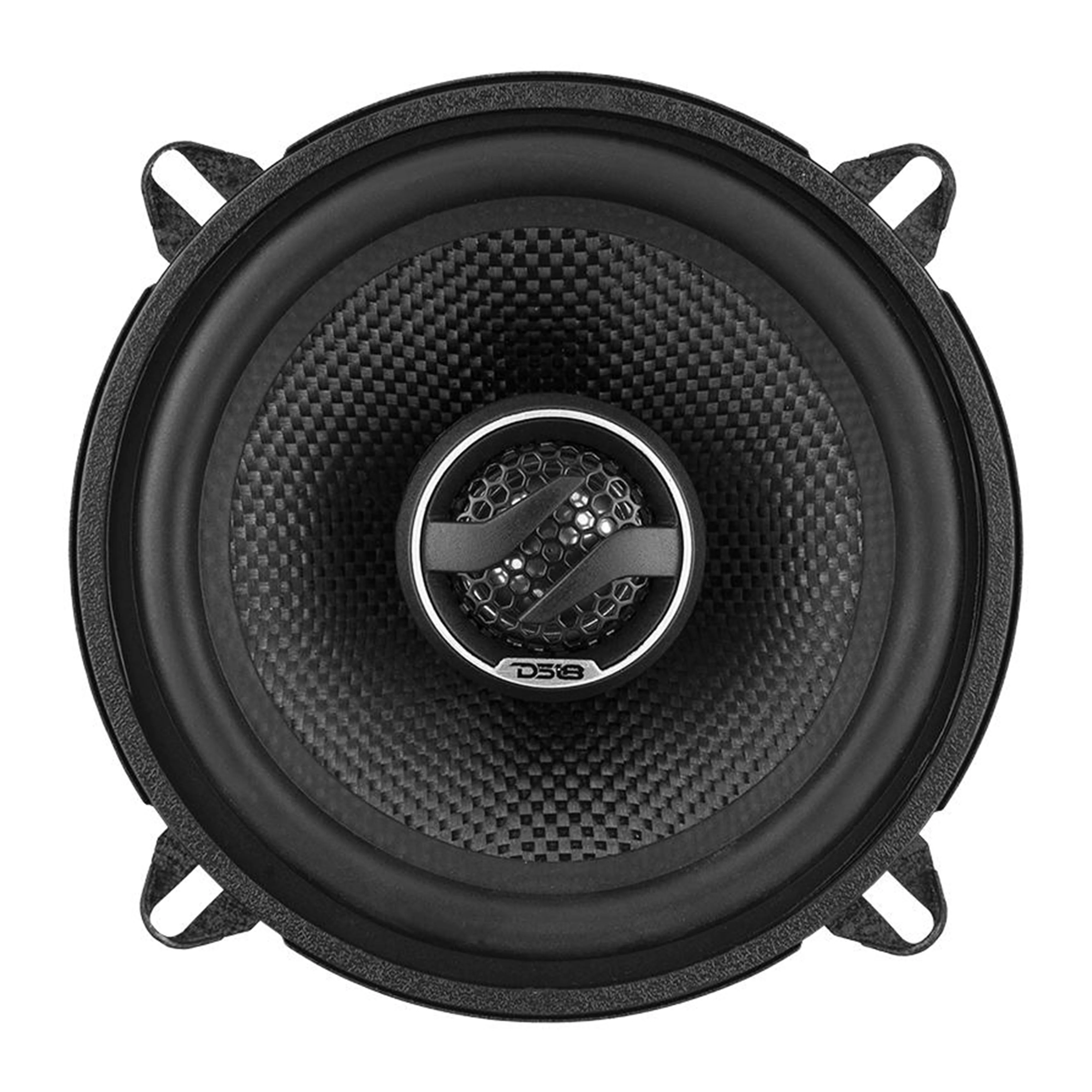

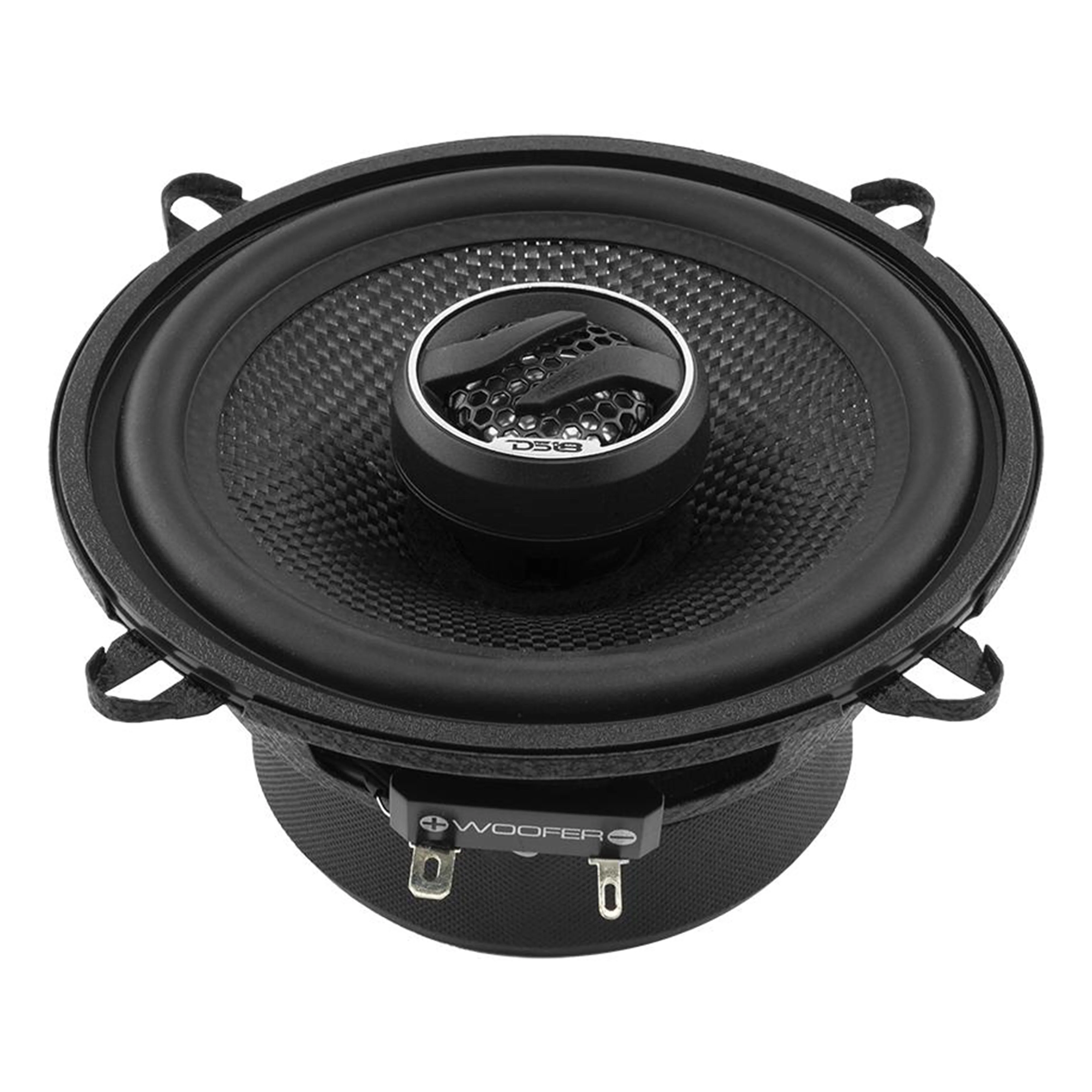

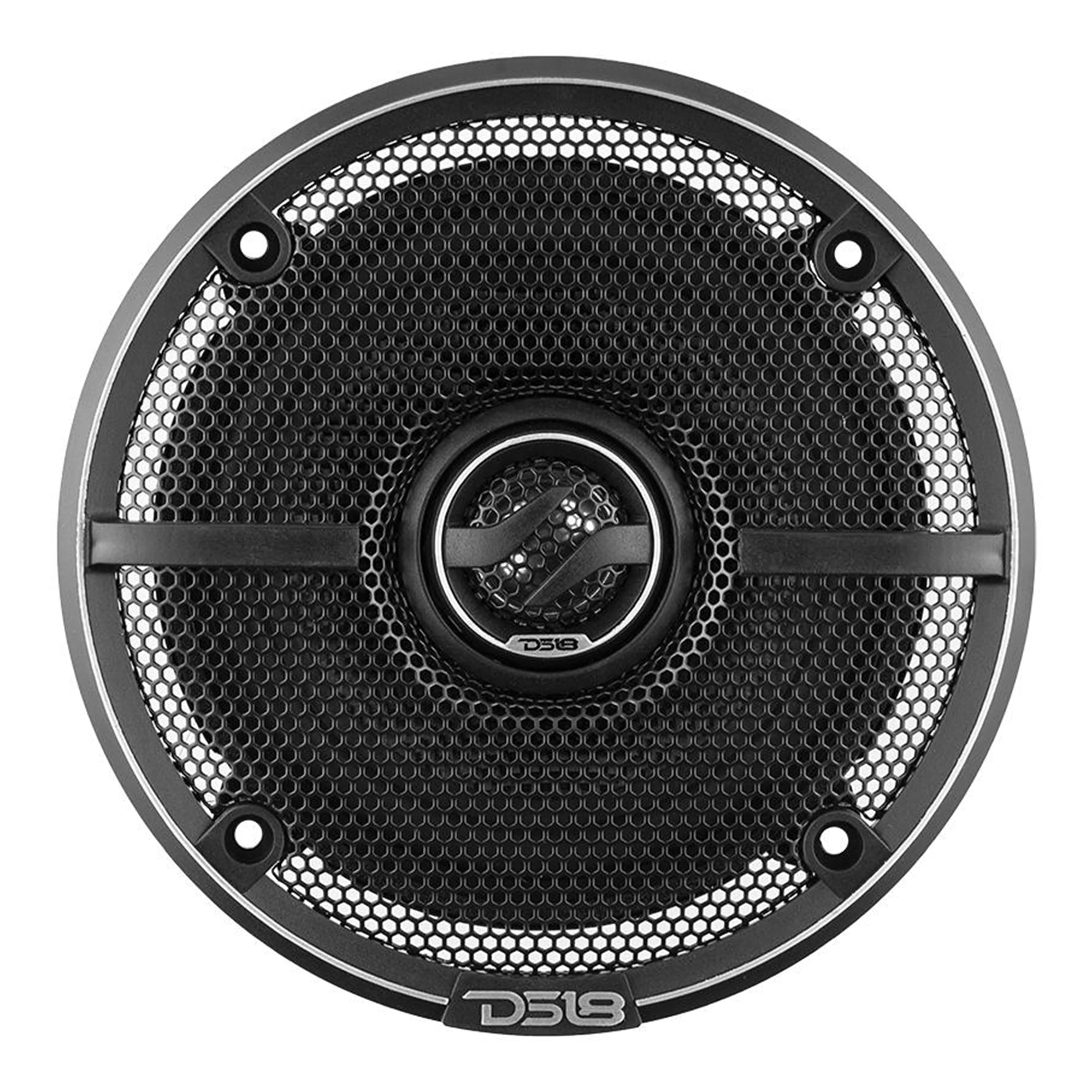

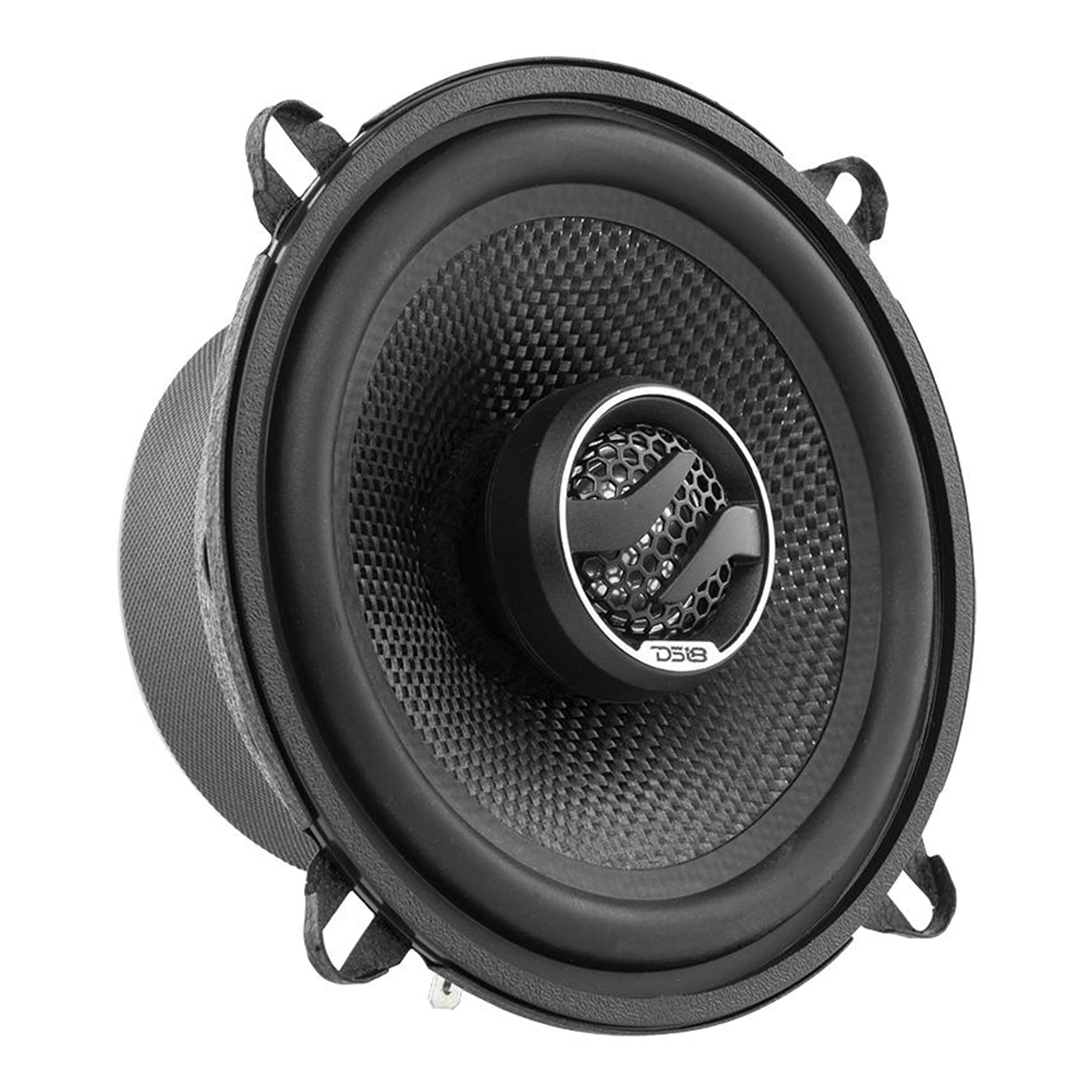

DS18 ELITE 5.25" Coaxial Speakers 180W 4 Ohm 2-Way Pair /w Kevlar Cone ZXI-5254

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 5254 is a 5.25" inch, 4 ohm coaxial speaker designed for audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

This Listing Includes:

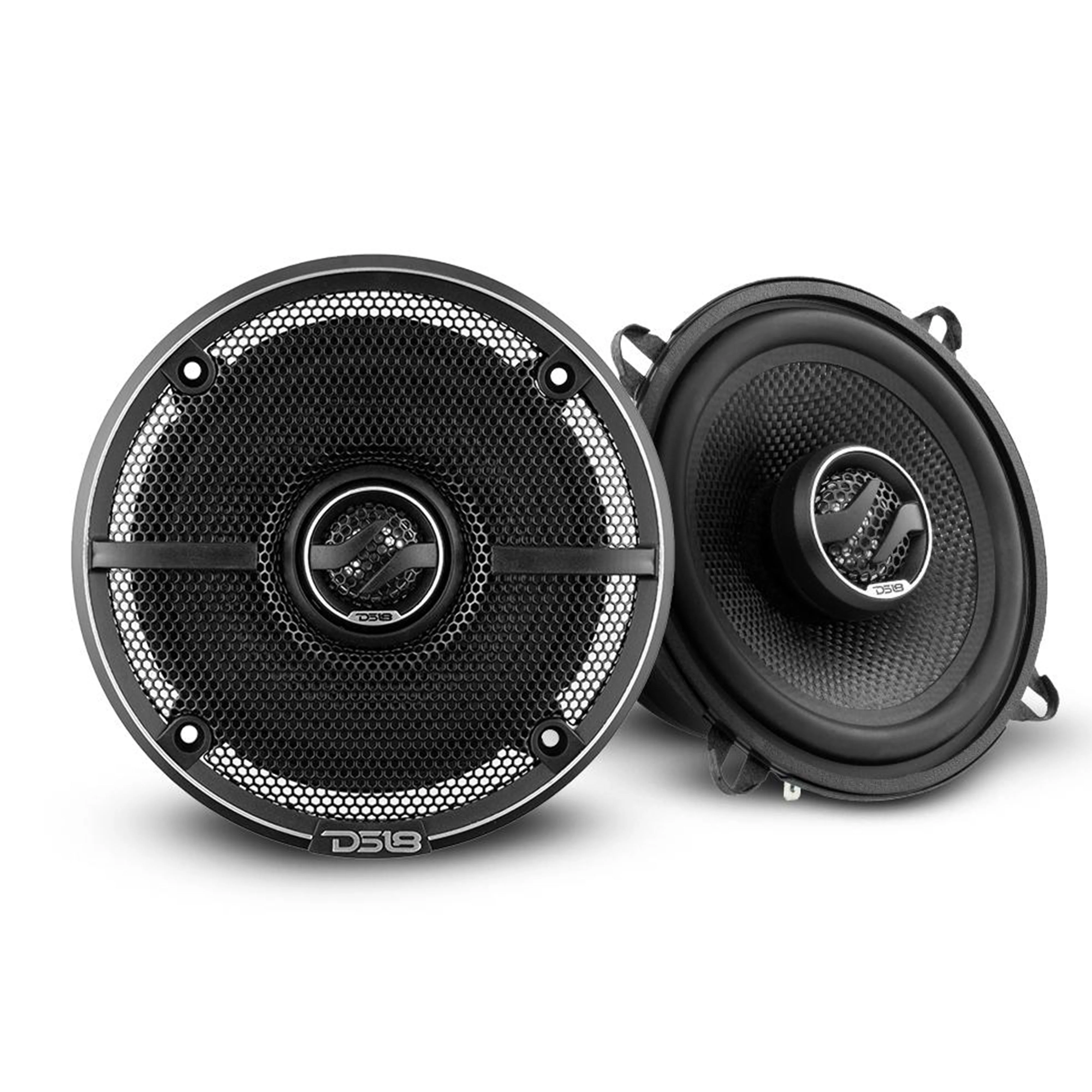

(2) DS18 5.25" Coaxial Speakers ZXI-5254

Features:

- High Power handling of 180 Watts for loud listening.

- Small 5.25" size for limitless audio applications.

- 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.

SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 5.25" (129mm)

Nominal Impedance: 4 Ohm

RMS Power Handling: 60 Watts

MAX Power Handling: 180 Watts

Sensitivity (1w/1m): 89dB

Frequency Response: 40Hz-20Khz

Recommended HI Pass Crossover: 60Hz

Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:

Voice Coil Diameter: 1" (25.5mm)

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 10.9 Oz / 310g

TWEETER SPECIFICATIONS:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:

Equivalent Volume: 4.86L

Excursion (one way): 2.3mm

Free Air Resonance: 77Hz

Mechanical Factor: 8.39

Electrical Factor: 0.87

Total Factor: 0.79

Mechanical Mass: 9.93g

Mechanical Compliance: 457mm/N

BL Factor: 4.321

Cone Area: 86.5cm

DC Resistance: 3.5 Ohm

Mechanical Mass w/o air: 9.0g

MEASUREMENTS:

Overall Diameter: 5.08" (129mm)

Overall Depth: 2.80" (71mm)

Front Mount Baffle Cutout: 4.45" (113mm)

Mounting Depth: 2.28" (58mm)

Motor Diameter: 3.31" (84mm)
