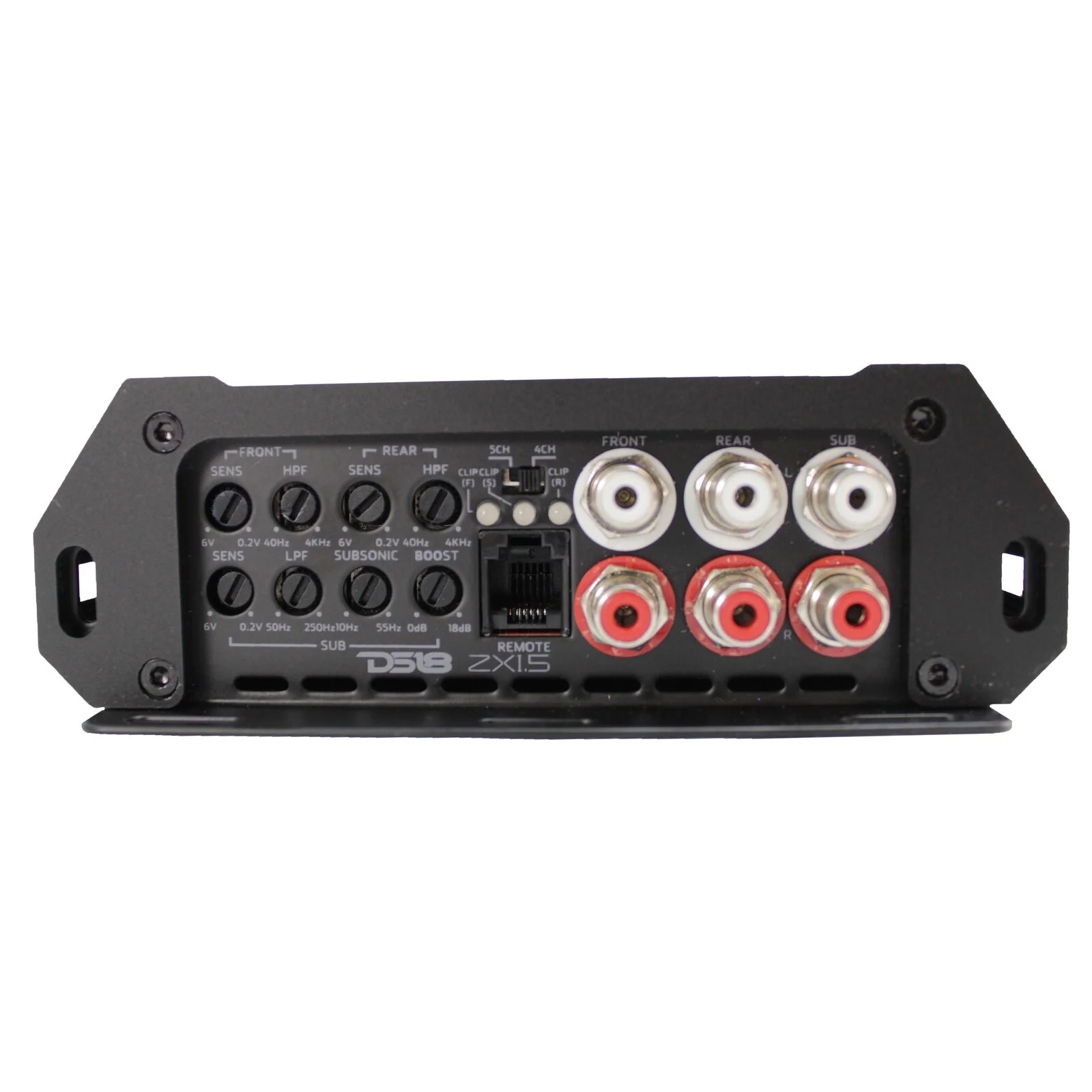

DS18 Elite ZXI.5 5 Channel 1800 Watts Class D Full-Range Amplifier

This Listing Includes:

• (1) Amplifier

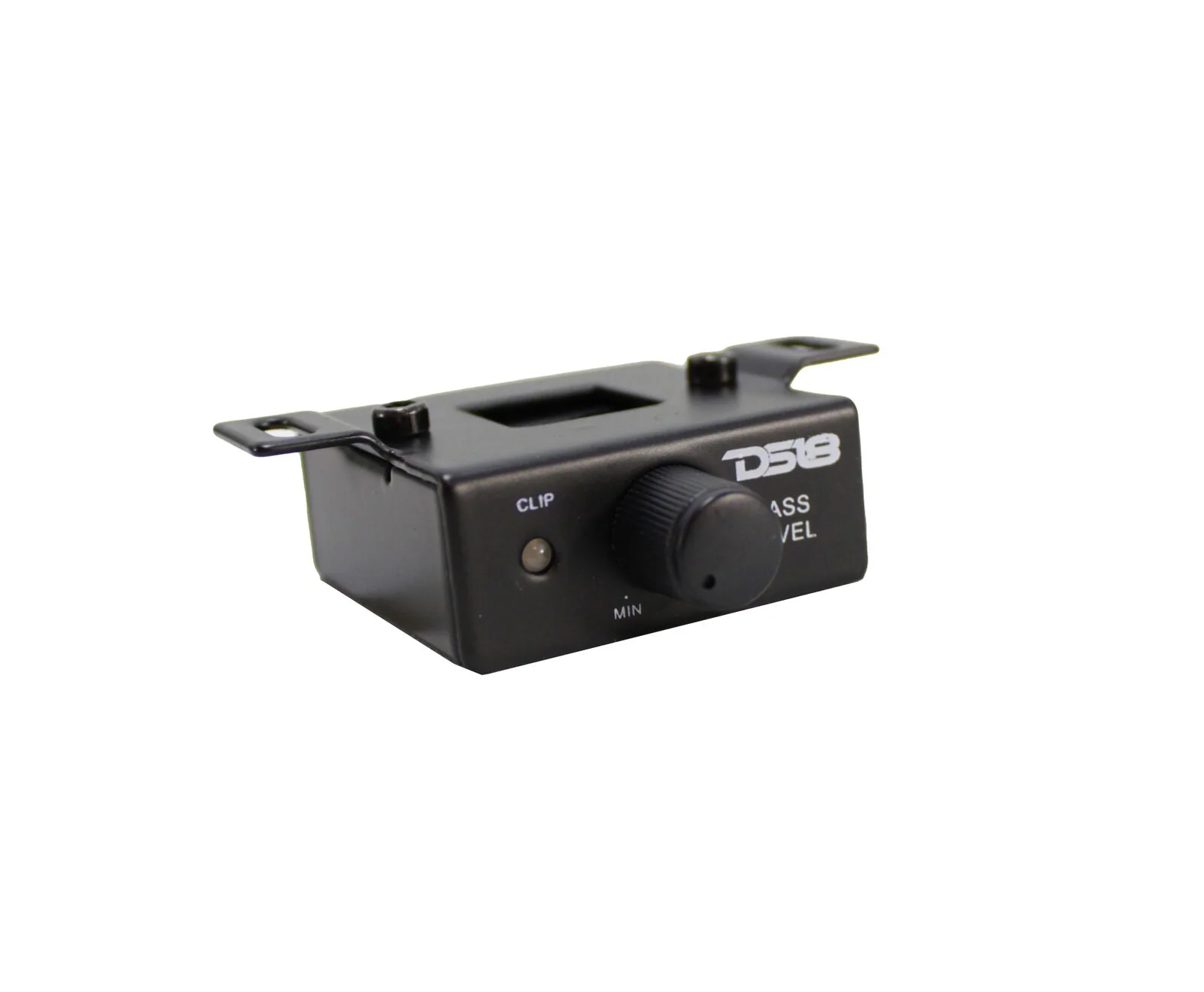

• (1) Bass Knob

Features:

• 5 Channel


• IRS Full Range Digital Circuit Design Class D


• LED Power and Protection Indicator

Specifications

• RMS Power @ 4 Ohm: 125W x 4 Ch + 420W


• RMS Power @ 2 Ohm: 170W x 4CH +705W


• RMS Power @ 1 Ohm: SUB 1000W x 1 CH


• RMS Power@ 4 Ohm Bridged: F&R CHS: 340W x 2CH


• Peak Power @ 4 Ohm: 200W x 4CH + 680W


• Peak Power @ 2 Ohm: 300W x 4CH + 1000W


• Peak Power @ 1 Ohm: SUB: 1500W x 1CH


• Peak Power @ 4 Ohm Bridge: F&R CHS: 600W x 2CH


• Minimum Impedance: F&S CHS: 2 Ohm / SUB: 1 Ohm


• Frequency Response: 20-20KHZ


• THD: 0.10%


• Input Sensitivity: 0.2-6V


• Signal/Noise Ratio: More than 90 dB


• Subsonic Frequency: 10-55Hz


• Crossover High Pass: 40-4KHz


• Crossover Low Pass: 50-250Hz


• Phase: 0-180 DEGREES


• Bass Boost: 0-180dB


• Operation Voltage: 8.5-16.8V


• Power Input Size: 4GA


• Remote Knob: Yes

Dimensions:

• Length: 14.2"


• Width: 5.7"


• Height: 1.9"
