• Powerful Output: 6 x 200W RMS @ 4 Ohm or 6 x 250W RMS @ 2 Ohm for strong, clear audio across multiple channels.
• Bridgeable Design: Combine channels to power subs at 3 x 500W RMS @ 4 Ohm bridged.
• Custom Sound Control: Variable HPF/BPF/FULL crossover with adjustable 0–12dB bass boost @ 45Hz.
• Compact & Efficient: Class D digital design with 75% efficiency and <0.01% THD.
• Fully Protected: Thermal, overload, short circuit, and clipping protection for long-term reliability.

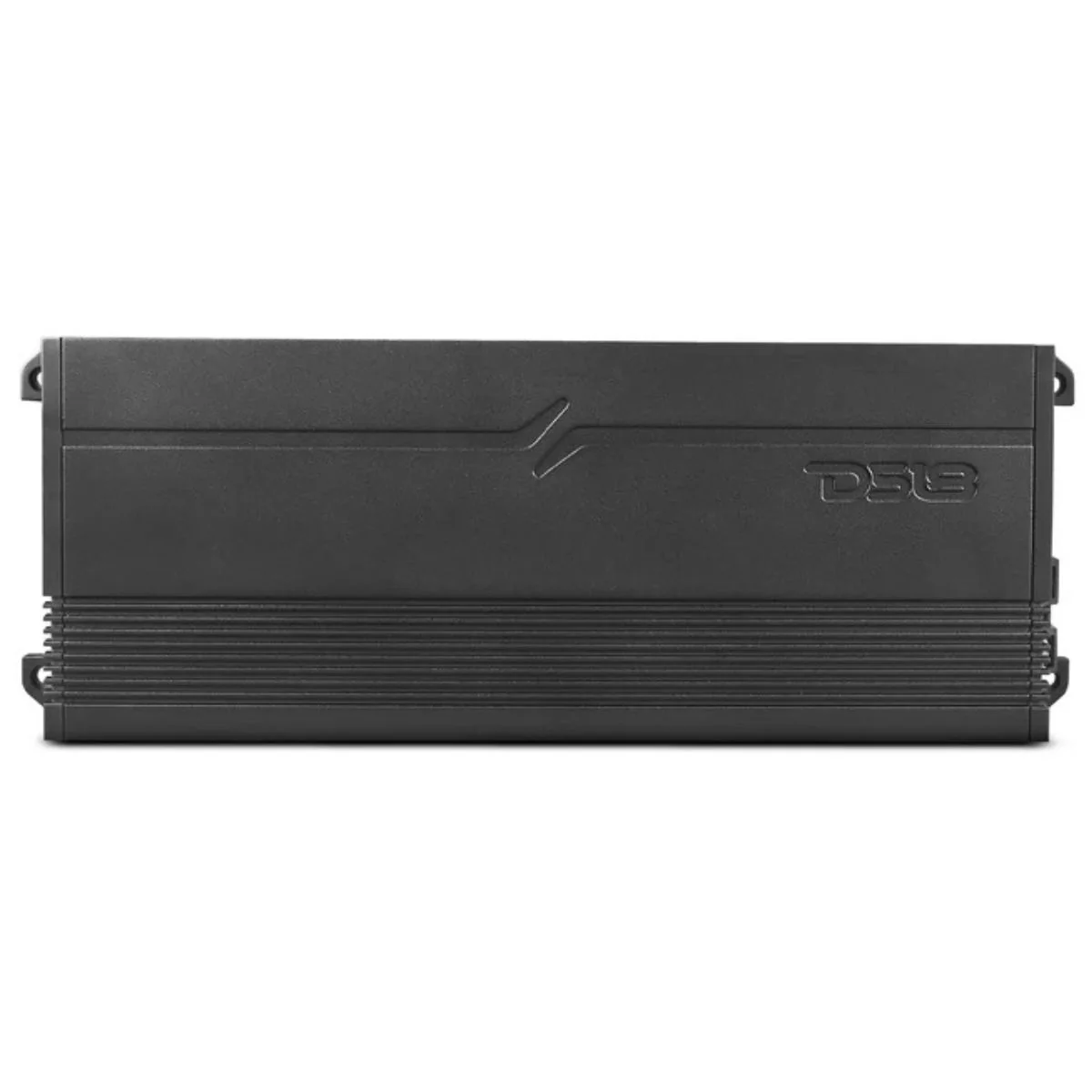

DS18 GEN-X 3600 Watt Bridgeable 6-Channel Class D Full Range Amplifier G3600.6D

Included Items

• (1) DS18 GEN-X 6-Channel Class D Full Range Amplifier


• (1) Remote Level Control with Cable


• (1) User Manual

Unleash powerful, precise sound across six channels with the DS18 GEN-X G3600.6D 6-Channel Class D Full Range Amplifier. Delivering up to 200W RMS per channel at 4 ohms and 250W RMS per channel at 2 ohms, this amp provides the versatility and clean performance your system demands. For high-output setups, bridge into 3 channels at 500W RMS each at 4 ohms.

Fine-tune your system with variable high-pass, band-pass, and full-range crossovers, plus adjustable bass boost up to 12dB at 45Hz. Built with efficiency and reliability in mind, the G3600.6D maintains low distortion (<0.01% THD) and over 90dB signal-to-noise ratio.

Compact yet powerful, this amplifier features multiple input modes (2, 4, or 6 channels), a remote level control, and a full suite of protection circuits, including thermal, overload, DC output, and short-circuit protection. Finished in matte black, the G3600.6D is a stylish and durable addition to any audio build.

Features

• 6-Channel Class D Full Range Amplifier


• RMS Power: 6 x 200W @ 4 Ohm / 6 x 250W @ 2 Ohm / 3 x 500W @ 4 Ohm Bridged


• Frequency Response: 20Hz–20kHz with 0.01% THD


• Variable HPF/BPF/FULL crossovers, adjustable bass boost up to 12dB @ 45Hz


• Full protection suite: thermal, overload, DC output, short circuit, and clipping protection

Specifications

• Total Power (Peak): 3600W


• Amplifier Class: Digital (D)


• Amplifier Type: Full Range


• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged


• Signal to Noise Ratio: >90dB


• Efficiency @ 4 Ohm: 75%


• Input Impedance: 22K


• Channel Separation: 57dB


• Damping Factor: 75


• Low-Level Input Range: 0.25–6V


• Selectable X-Over: HPF / HPF-BPF-FULL (5/6CH)


• Crossover Filter Range: HPF: 10–250Hz / LPF: 50–250Hz


• Fuse Rating: 3 x 40A


• Power Input Terminal: 4GA


• Weight: 2.2 kg

Dimensions:

• Length: 12.8"


• Width: 4.72"


• Height: 1.96"
