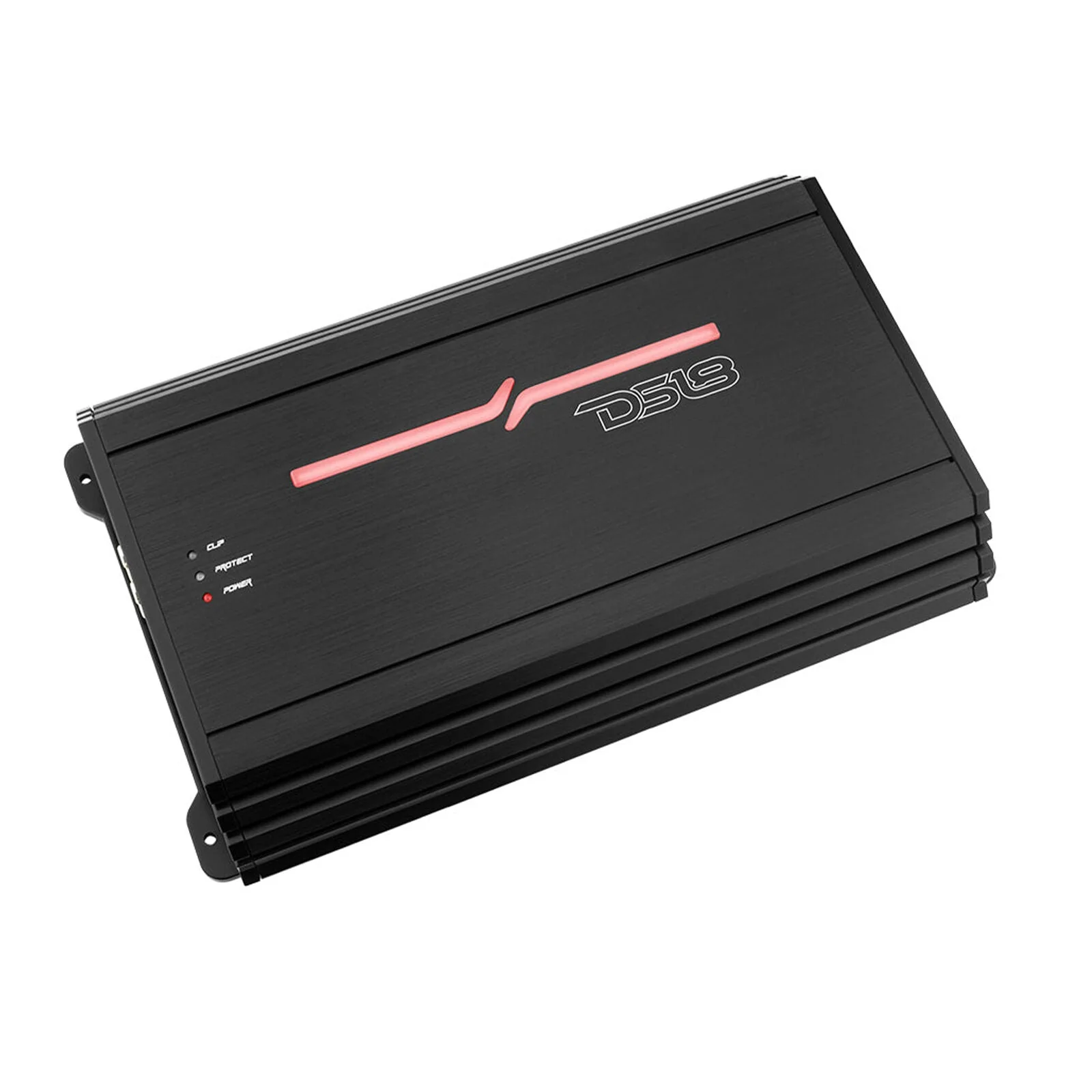

DS18 Monoblock Subwoofer Amplifier Class D 1000W Pro Car Audio Bass ZR1000.1D



The DS18 ZR Series amps are made to power all your subwoofers with incredible sound acuity and massive bass frequency responses. Easily tuned, this ZR1000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference!

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR1000.1D is made to deliver 1000 watts RMS @ 1-Ohm, 650 watts RMS @ 2-Ohms, and 380 watts RMS @ 4 ohms giving you the perfect power for your bass.



This Listing Includes:

(1) DS18 Amplifier ZR1000.1D

(1) Owners Manual

(1) Bass Knob

(1) Bass Knob Connector

(4) Phillip head Screws

(2) Wrenches



FEATURES:

-Digital Class D Subwoofer Monoblock

-MAX Wattage: 3000w Peak @ 1-Ohm

-Frequency Response: 10-220 Hz

-Signal to Noise Ratio: Greater Than 95Db

-Power and Ground Terminal: 4 Ga

-Minimum Impedance: 1 Ohm



SPECIFICATIONS:

POWER

Total Watts (Peak): 3000W

RMS Power @ 4 ohm: 380W

RMS Power @ 2 ohm: 650W

RMS Power @ 1 ohm: 1000W



AUDIO

Frequency Response: 10-220Hz

Signal to Noise Ratio: Greater than 95dB

Efficiency @ 4ohm: 80%

Damping Factor: 220

Input Impedance: 20K ohm

Channel Separation: N/A

Total Harmonic Distortion (THD): 0.01%

Low Level Input Range: 0.2-6V

High Level Input: No

Selectable X-Over: LPF Fixed

X-Over Filter Range: 40-180Hz

Bass Boost Range: 0-12db

Bass Boost Frequency: 30-80hz

Infrasonic Filter: 10-50hz

Phase Selector: No



DIMENSIONS:

Overall Length: 11.8"

Overall Wide: 7.24"

Overall Height: 2"

Heatsink Length :10.47"



WEIGHT: 5.8 lbs
