DS18 Monoblock Subwoofer Amplifier Class D 3600W & Bass Knob w/ Clip Indicator

The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released. We have redesigned the GEN-X series from the ground up to meet audio enthusiasts high standards and complete every goal for the system of their dreams with great power, reliability, and efficiency. The G3600.1D has a power rating of 500 Watts RMS at 4 Ohms, 900 Watts RMS at 2 Ohms, 1200 Watts RMS at 1 Ohm, and 3600 Watts MAX at the ohm load it was designed for, giving you pure and clean power on demand. This amp has the power to drive your subwoofer but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud. Built small and powerful so you can power your subs with great efficiency and capability without taking up much space.

Listing Includes:

(1) DS18 Monoblock Amplifier DS-G3600.1D

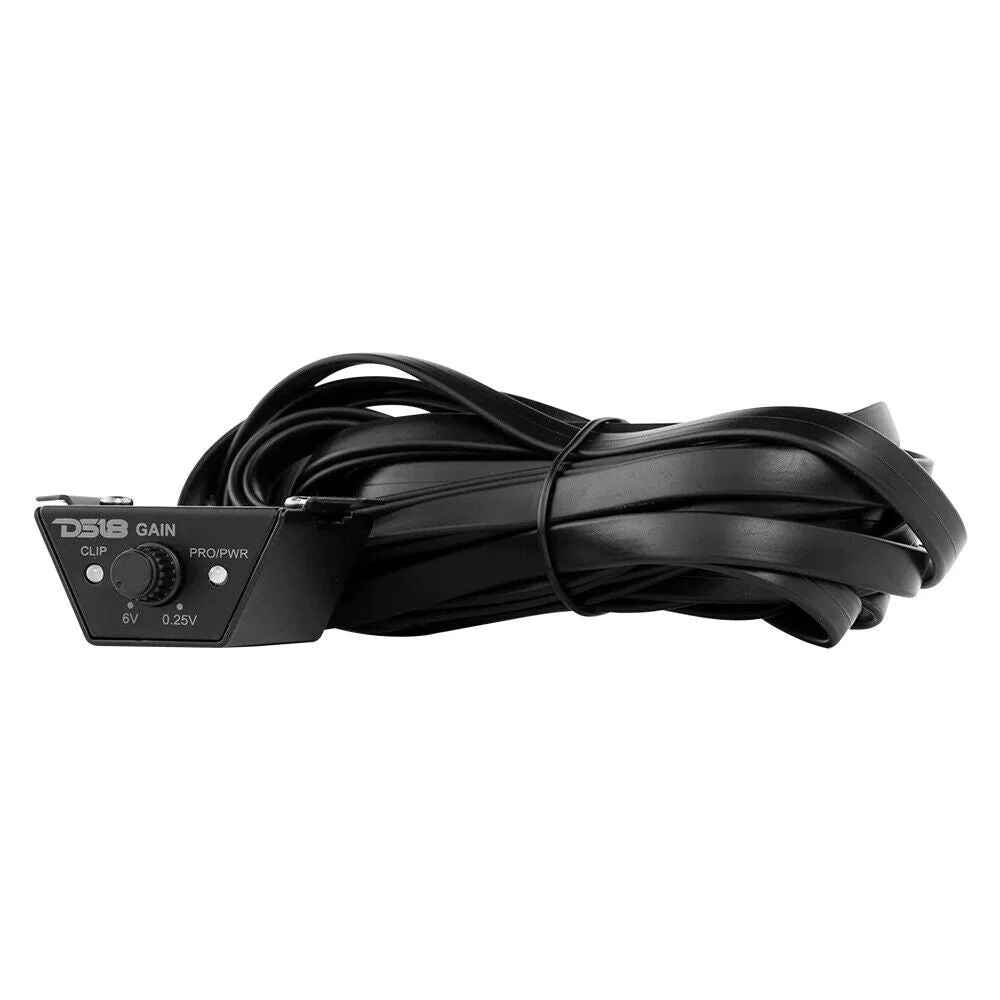

(1) Remote Gain Control Knob and Cable

(1) 5 Pin Wire Harness

(4) Phillip Head Screws

(4) Washers

(4) Spacers

POWER SPECIFICATIONS:

Total Watts (Peak): 3600W

RMS Power @ 4 Ohm: 500W

RMS Power @ 2 Ohm 900W

RMS Power @ 1 Ohm: 1200W

AUDIO SPECIFICATIONS:

Frequency Response: 10 - 500Hz

Signal to Noise Ratio: Greater than 93 dB

Damping Factor: 45

Input Impedance: 22 K

Total  Harmonic Distortion (THD): 0.0014%

Low Level Input Range: 0.25 -6V

High Level Input: Yes

Selectable X-over: Fixed LPF

X-over Filter Range: 35 - 250 Hz

Bass Boost Range: 0 - 12 dB

Bass Boost Frequency: Fixed @ 45 Hz

Infrasonic Filter: 10 - 50 Hz

FEATURES:

Amplifier Class: Digital (D)

Amplifier Type: Monoblock Subwoofer

Number of Channels: 1 Ch

Minimum Impendence: 1 Ohm

Led Indicator: Power / Protection / Clip

Power Input Terminal  Size: 4 GA

Fuse Size: External 120A

Remote Level Control: Yes

Thermal Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes

Clipping protection: Yes

Body Color / Finish: Matte Black

MEASUREMENTS:

Overall Length: 12" (305mm)

Overall Width: 4.72" (120mm)

Overall Height: 1.96" (50mm)

Heatsink Length: 10.15 (258mm)

Weight: 4.39 LBs (1.992 Kg)
