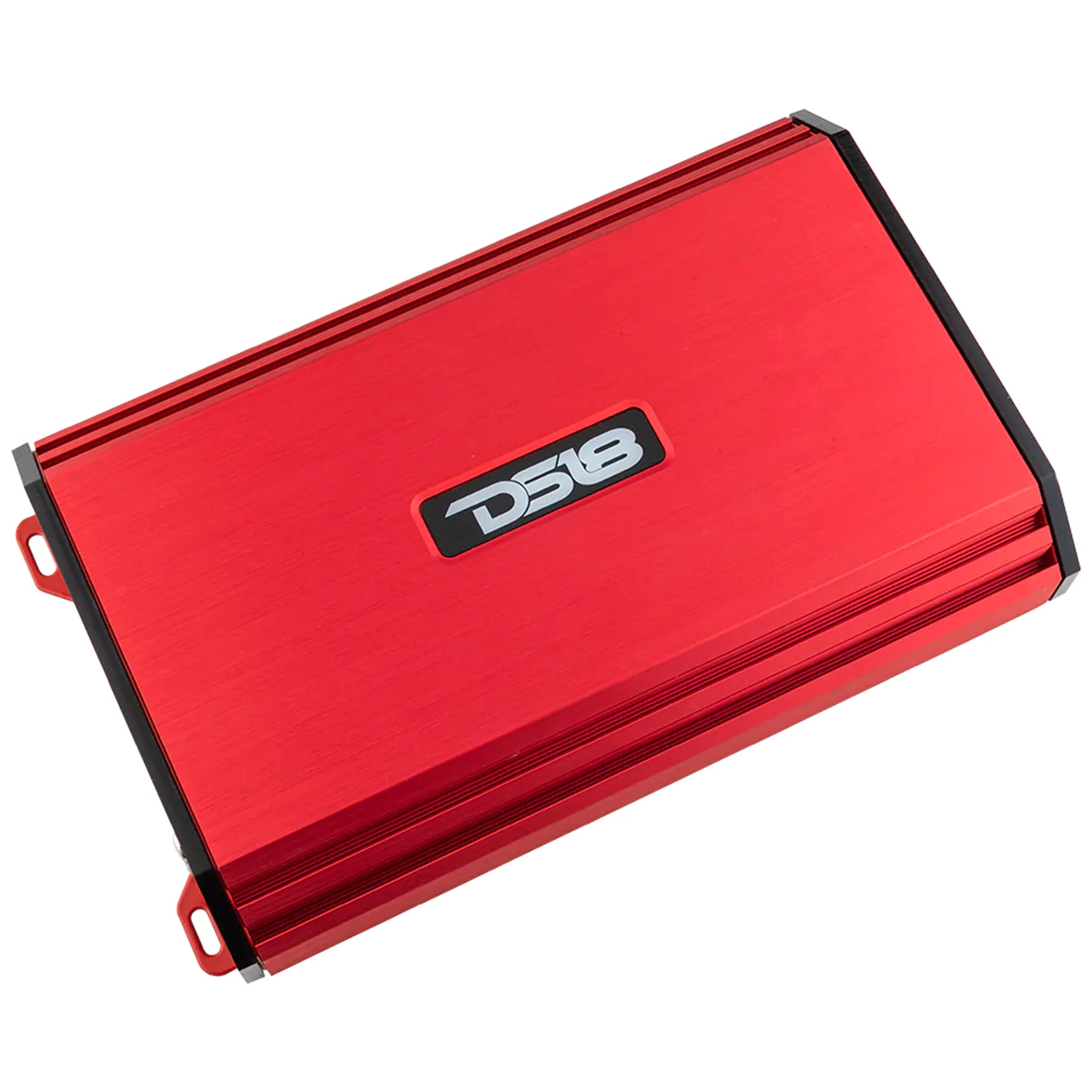

DS18 Select Red Monoblock Amplifier /w Bass Knob 3500 Watts Class D S3500.1D

This listing includes:

• (1) DS18 Monoblock Amplifier S3500.1D Red

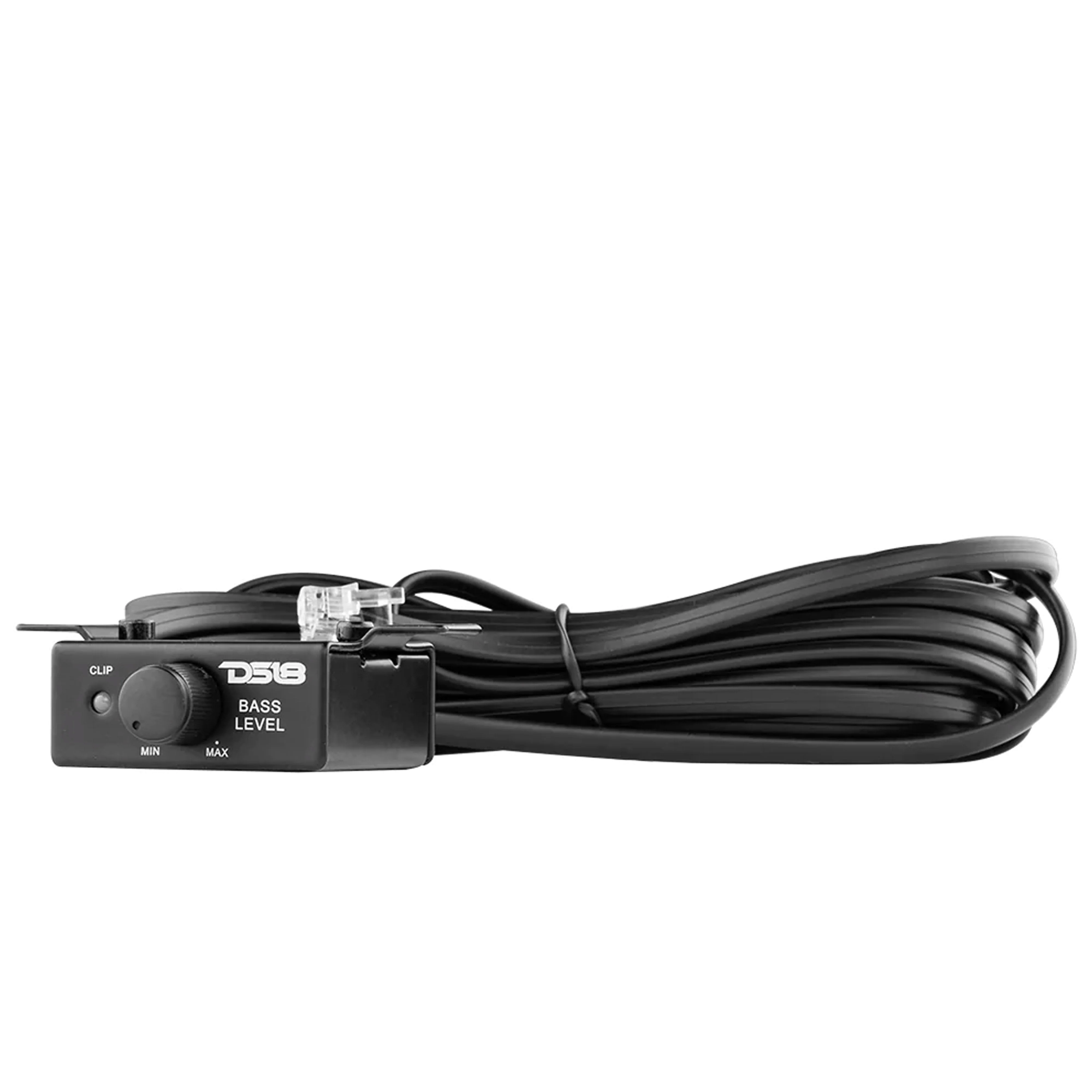

• (1) DS18 Remote Bass Knob

The SELECT series of amplifiers by DS18 are known for two things: legendary power and striking elegance. The brushed aluminum comes in red or silver and adds a nice touch of sleekness to your sound system. Each amplifier has adjustable crossover settings, gain control, and Hi/Lo pass filters to deliver powerful and accurate sounds that will make you feel like youre in a concert!



Product Highlights:

• Maximum output of 500W at 4 Ohms, 800W at 2 Ohms, and 1200W at 1 Ohm.


• Surface mount component technology.


• Audio precision quality control verification.


• Multilayer PCB trace layout.


• Clipping, power and protection LED indicator.


• Short circuit, thermal and voltage protection.


• Precise filters so you can get the perfect sound from your speakers.


• Total Watts (Peak): 3500 Watts


• RMS Power @ 4 OHM: 500 Watts x 1


• RMS Power @ 2 OHM: 800 Watts x 1


• RMS Power @ 1 OHM: 1200 Watts x 1


• RMS Power @ 4 OHM Bridge: N/A



AUDIO SPECIFICATIONS:

• Frequency Response: 20Hz ~ 500Hz


• Signal To Noise Ratio: >90dB


• Crossover Range: 50Hz ~ 250Hz


• Gain Range: 0.2 ~ 6V


• Total Harmonic Distortion (THD): <0.3%


• Bass Boost Range: 0 ~ 18dB


• Subsonic Filter: 10Hz ~ 55Hz



FEATURES:

• Amplifier Class: D


• Amplifier Type: Monoblock


• Number Of Channels: 1


• Minimum Impedance: 1 Ohm


• Led Indicator: Power-Protect/Clip


• Remote Level Control: Yes


• Thermal Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes


• Body Color | Finish: Brushed Red



DIMENSIONS:

• Overall Length: 9.76 (248mm)


• Overall Width: 5.82 (148mm)


• Overall Height: 1.87 (47.5mm)


• Unit Weight: 4.75 lbs
