• PEAK POTENCY - DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies
• PERFECTLY DESIGNED - The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. Easily tuned, The ZR500.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference
• AMAZING POWER - The ZR500.1D is made to deliver 500W RMS @ 1-Ohm, 300W RMS @ 2-Ohms, and 200W RMS @ 4-Ohms giving you the perfect power settings for your speakers

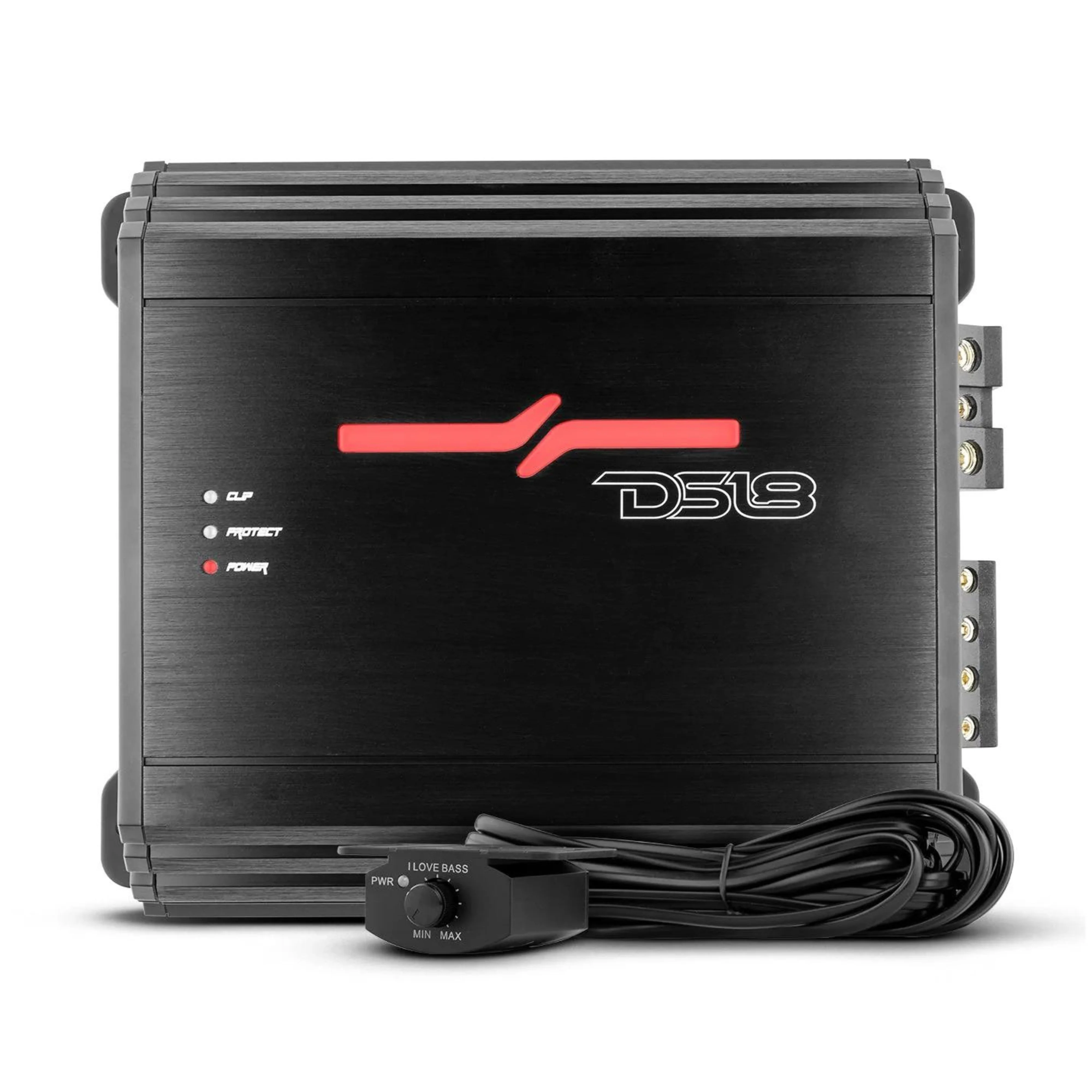

• BASS KNOB INCLUDED - Will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

DS18 ZR Series Monoblock Class D 500 Watt RMS 1 Ohm Amplifier ZR500.1D

This listing includes:

• (1) DS18 ZR500.1D Monoblock Amplifier

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential!

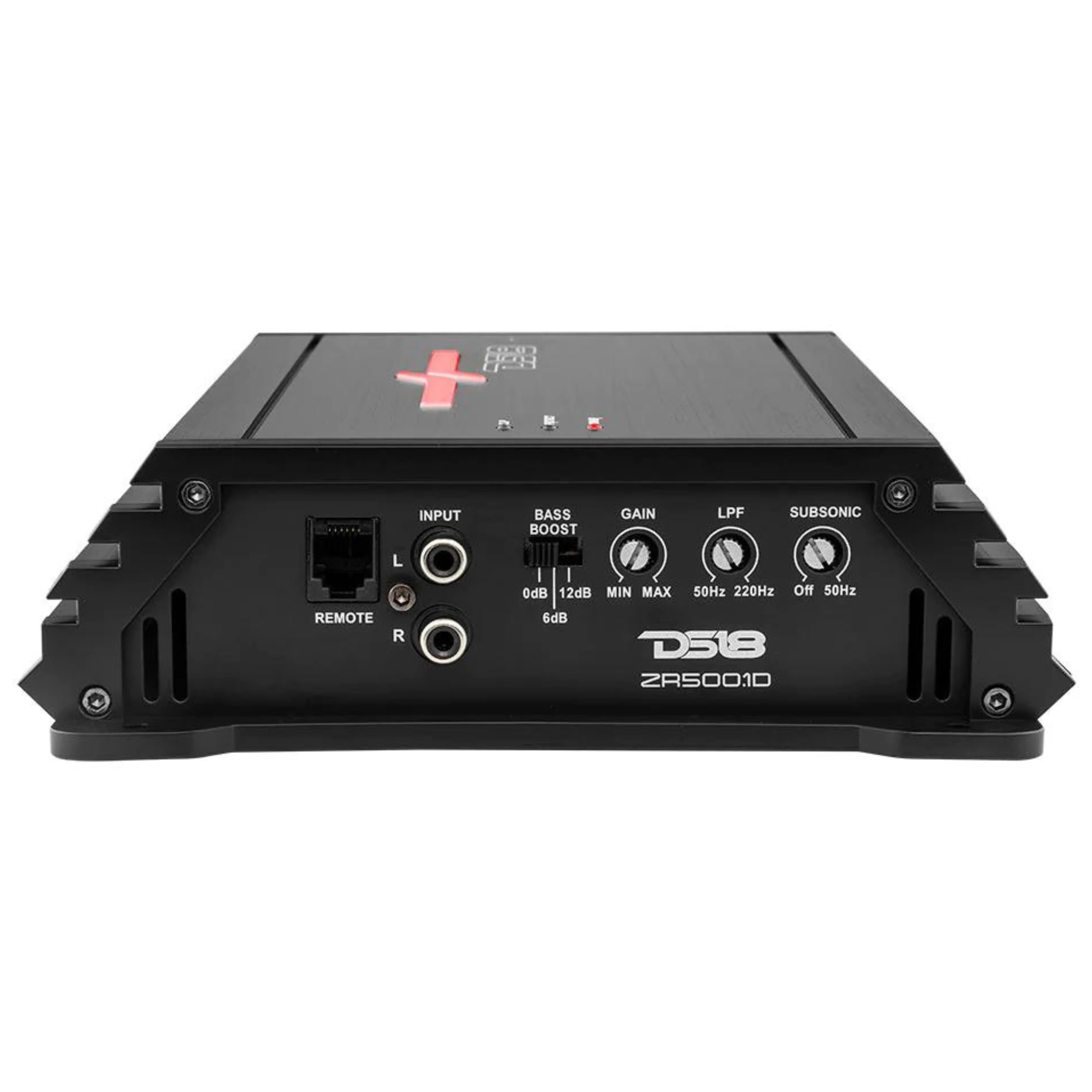

With DS18's ZR500.1D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Subsonic, as well as a Gain Knob and Bass Boost Switch Selector that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.

Delivering a commendable 200W RMS @ 4-Ohm, 300W RMS @ 2-Ohm, and 500W RMS @ 1-Ohm, the ZR500.1D provides the perfect amount of power to fuel your bass. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment.

The ZR500.1D is a testament to DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 2400 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.

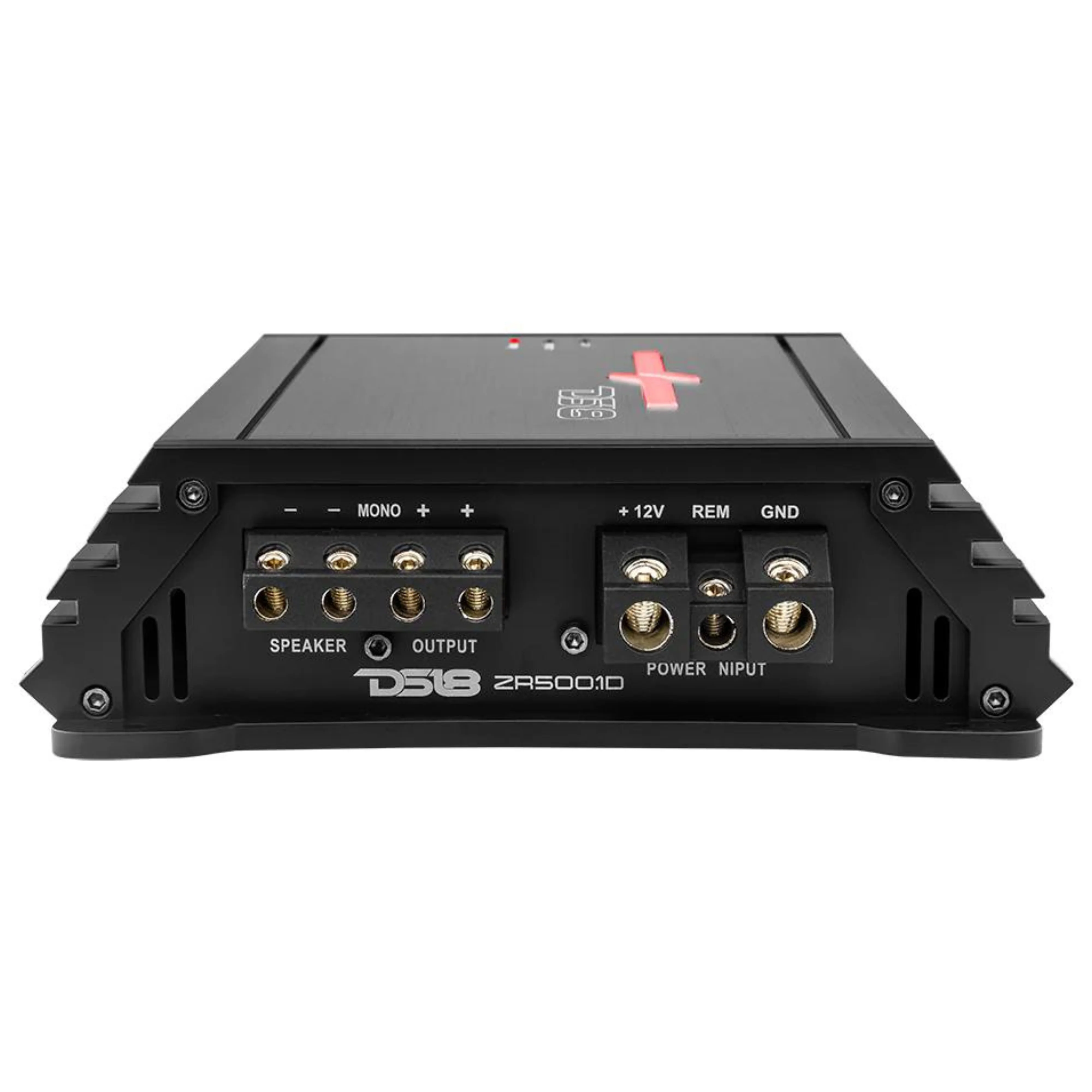

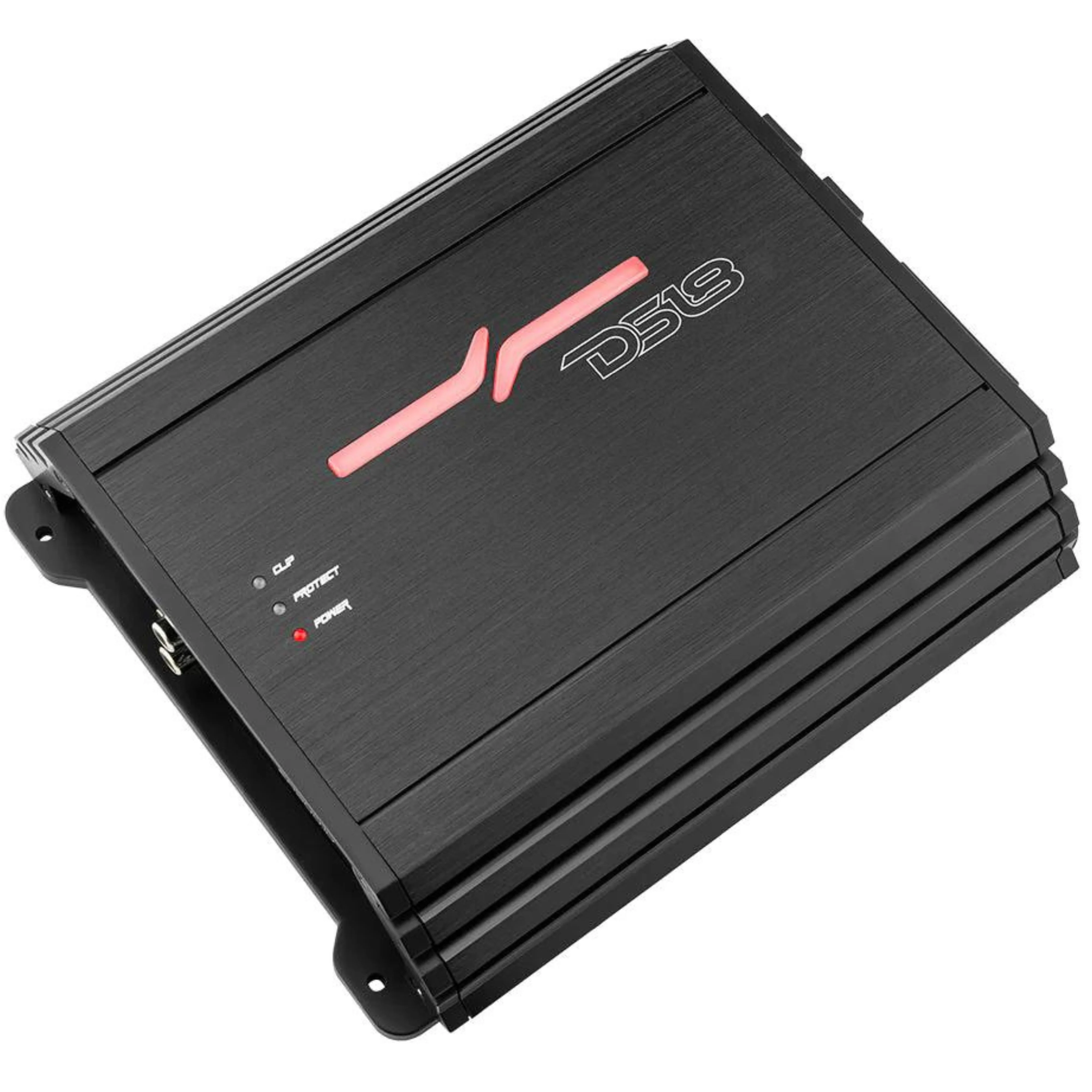

The ZR500.1D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your bass, allowing for seamless integration with your existing sound system and putting you in complete control of your soundstage.

Experience the DS18 difference today with the ZR500.1D and discover a new dimension of car audio excellence.

Specifications:

• Total Watts (Peak): 1500 W


• RMS Power @ 4 Ohm: 200W


• RMS Power @ 2 Ohm: 300W


• RMS Power @ 1 Ohm: 500W


• Frequency Response: 10-220Hz


• Signal to Noise Ratio: Less than 95dB


• Efficiency @ 4 Ohm: 85%


• Damping Factor: 160


• Input Impedance: 20K Ohm


• Channel Separation: N/A


• Total Harmonic Distortion(THD): 0.01%


• Low Level Input Range: 0.2-6V


• High Level Input: No


• Selectable X-Over: LPF Fixed


• X-Over Filter Range: 50-220Hz


• Bass Boost Range: 0 / 6 / 12 dB


• Bass Boost Frequency: 45Hz


• Infrasonic Filter: 10-50Hz


• Phase Selector: No

Features:

• Class: Digital


• Type: Monoblock


• Number of Channels: 1


• Minimum Impedance: 1 Ohm


• LED indicator: Clipping/Protect/Power


• Power Input Terminal Size: 4 GA


• Fuse Size: 60 A


• Remote Level Control: Yes / Dash Mount


• Cooling Fan: No


• Voltmeter: No


• Thermal Protection: Yes


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes <9 / >16 Volts


• Clipping Protection: Yes


• Body Color / Finish: Black Aluminum Brush

Measurements:

• Overall Length: 8.46"


• Overall Width: 7.24"


• Overall Height: 2"


• Heatsink Length: 7"


• Weight: 3.15LB
