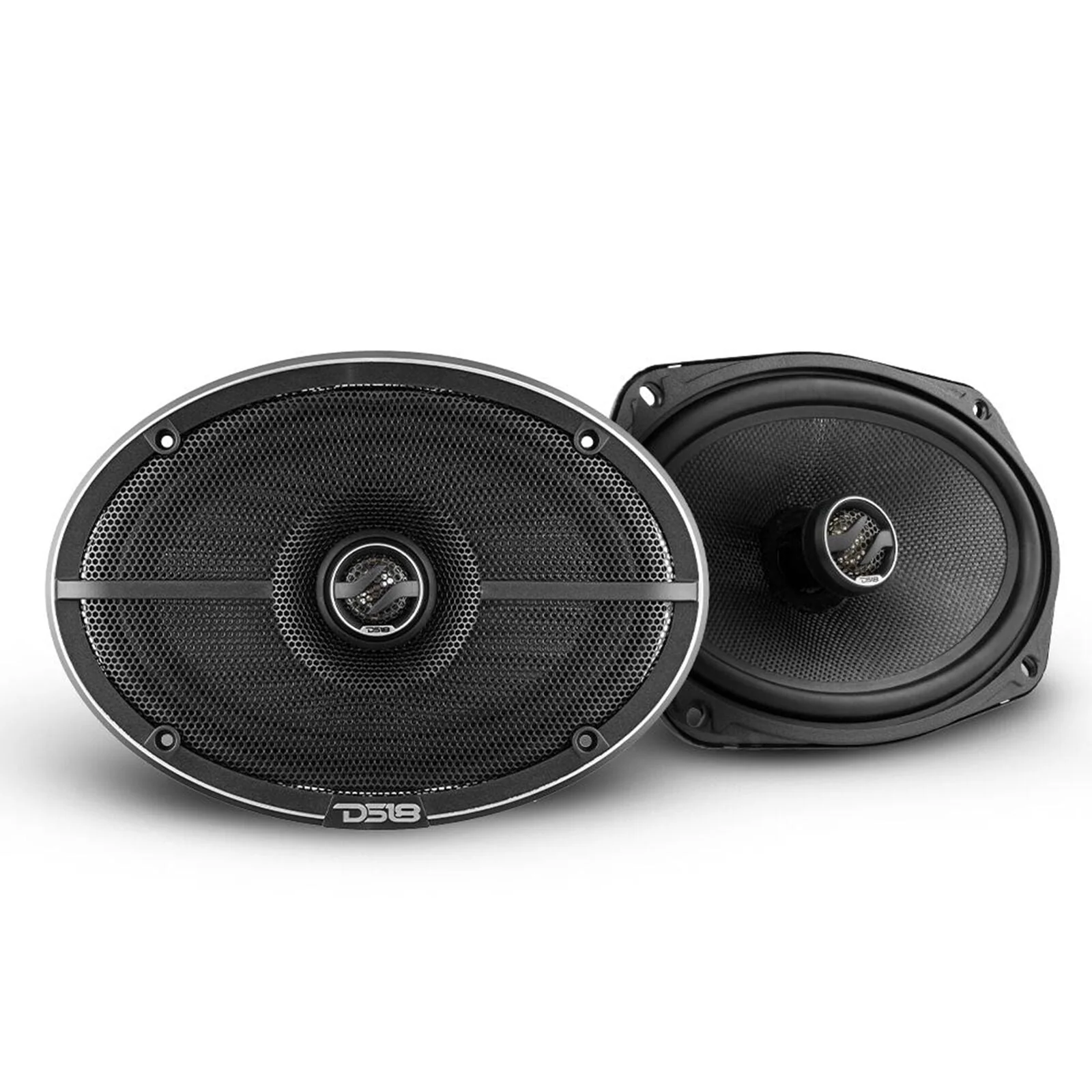

DS18 ZXI 6x9" 360W 2-Way + 6.5" 4-Ohm Car Audio Coaxial Door Speakers

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand.

This Listing Includes:

(1) Pair DS18 ZXI-694 6x9" Coaxial Speakers

(1) Pair DS18 ZXI-654 6.5" Coaxial Speakers

(8) Screws

(8) Washers

(2) Speaker wires

(1) Instruction Manual

ZXI 694 Features:

-High Power handling of 360 Watts for extra loud listening

-6x9" inch 2 way 4 ohm speaker gives amazing sound at all volumes

-2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember

ZXI 654 Features:

-Highly durable and extremely loud design built for the average to extreme audio systems.

-Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.

-The two-way design will bring a full range of frequencies to your ears and with great sound quality.

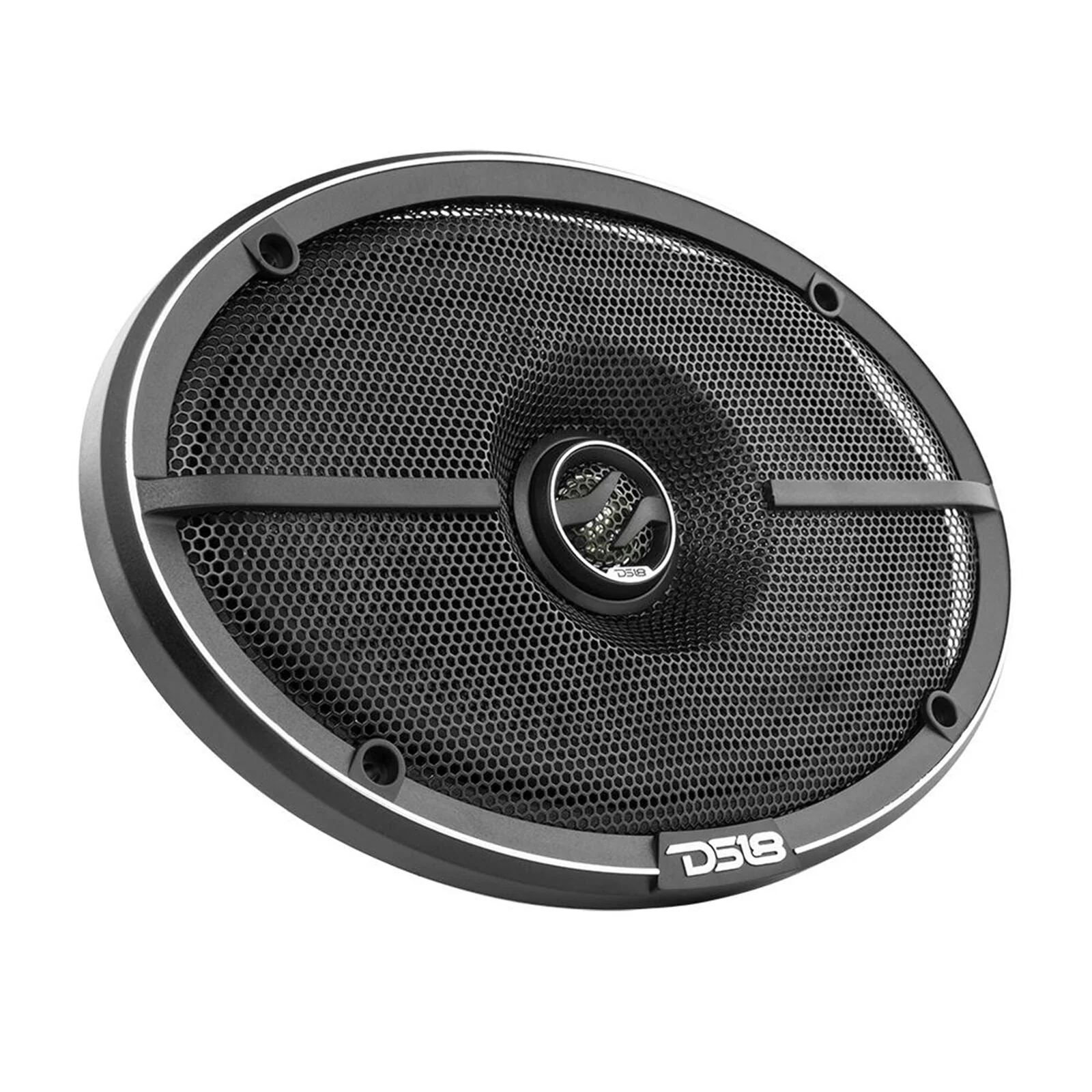

ZXI 694 GENERAL SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6x9"

Nominal Impedance: 4 ohm

RMS Power Handling: 120 Watts

MAX Power Handling: 360 Watts

Sensitivity (1w/1m): 92dB

Frequency Response: 31.5Hz-20Khz

Recommended HI Pass Crossover: 50Hz

Speaker Type: 2-Way

ZXI 694 MIDRANGE SPECIFICATIONS:

Voice Coil Diameter: 1.2" / 30.4mm

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 19.4 oz / 550g

ZXI 694 TWEETER SPECIFICATIONS:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 oz / 8.5g

ZXI 694 MEASUREMENTS:

Overall Diameter: 6.37" x 9.25" (162 x 235 mm)

Overall Depth: 3.66" / 93mm

Front Mount Baffle Cutout: 5.94"x 8.70" (151 x 221 mm)

Mounting Depth: 3.22" / 82mm

Motor Diameter: 4.09" / 104mm

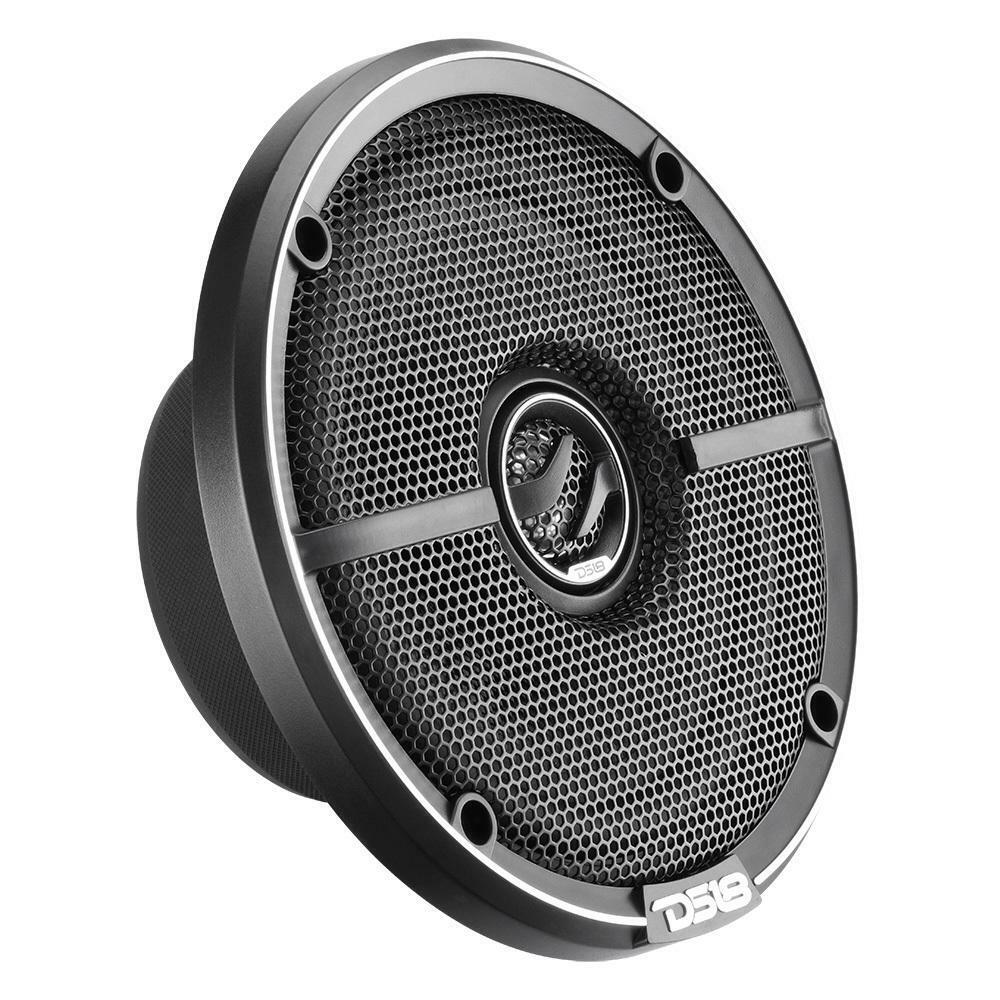

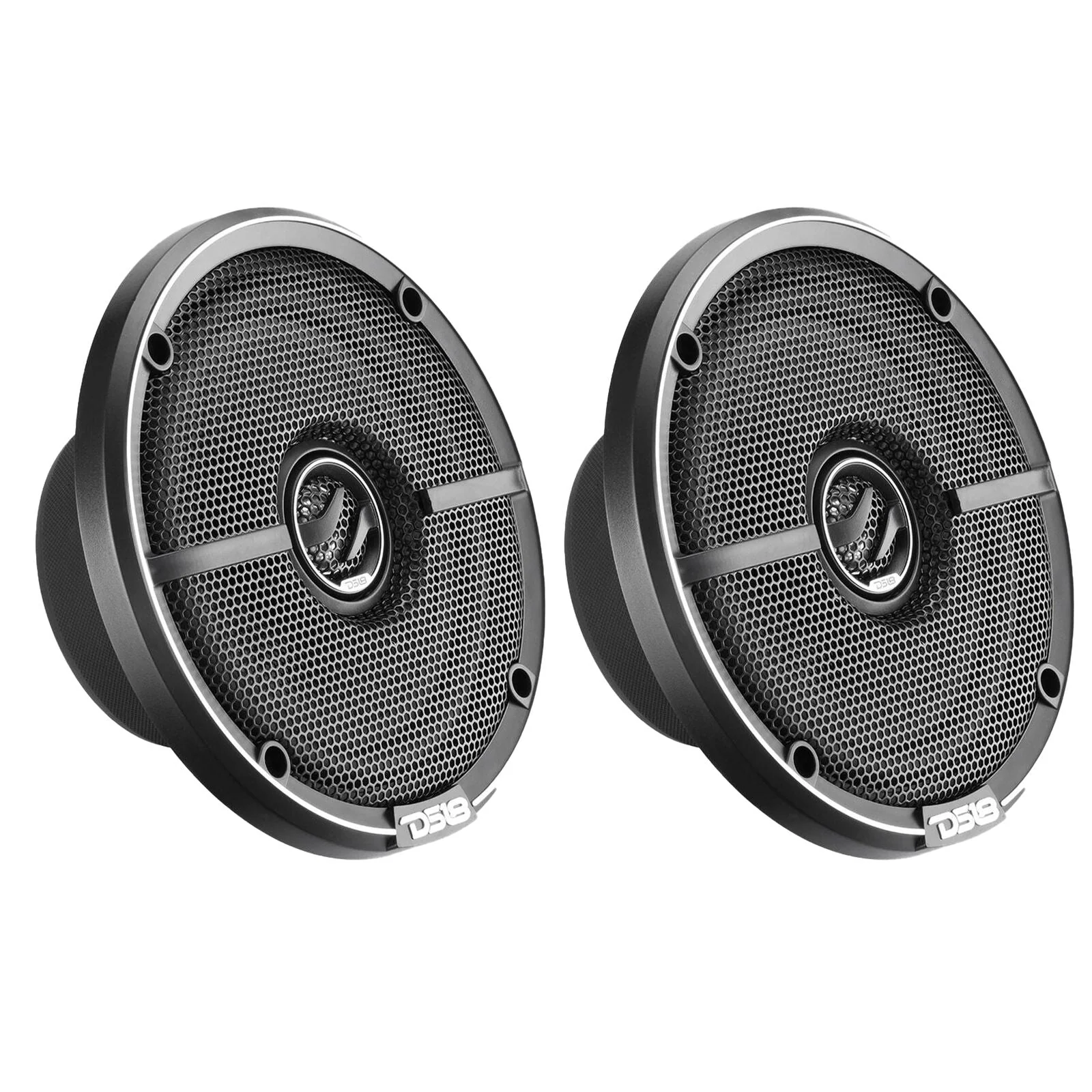

ZXI 654 GENERAL SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 ohm

RMS Power Handling: 80 Watts

MAX Power Handling: 240 Watts

Sensitivity (1w/1m): 89dB

Frequency Response: 40Hz-20KHz

Recommended HI Pass Crossover: 60Hz

Speaker Type: 2-Way

ZXI 654 MOTOR SPECIFICATIONS:

Voice Coil Diameter: 1" / 25.5mm

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 14.46 oz / 410g

ZXI 654 TWEETER SPECIFICATIONS:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 oz / 8.5g

Equivalent Volume: 10.84L

Excursion (one way): 2.7mm

Free Air Resonance: 64Hz

Mechanical Factor: 9.44

Electrical Factor: 0.79

Total Factor: 0.73

Mechanical Mass: 13.72g

Mechanical Compliance: 444mm/N

BL Factor: 5.1

Voice Coil Inductance: 228mH

Cone Area: 131cm2

DC Resistance: 3.5 ohm

Mechanical Mass w/o air: 12g

ZXI 654 MEASUREMENTS:

Overall Diameter: 6.50" / 165mm

Overall Depth: 2.83" / 72mm

Front Mount Baffle Cutout: 5.55" / 141mm

Mounting Depth: 2.36" / 60mm

Motor Diameter: 3.70" / 94mm

Combo Dimensions:

16.5" x 11.25" x 4.5" (L x W x H)
