Massive Audio EDGE Series 400 Watts RMS 4-Ohm 4-Channel Class A/B Amplifier
- Includes a built-in OEM Line Converter, handling up to 10 Volts of input, making installation simpler and more cost-effective.
- Equipped with an adjustable 1-Band Parametric EQ, offering up to 12dB bass boost for customized sound tuning.
- The amplifier offers X10 crossover adjustments, allowing for high pass, low pass, or band pass filtering.
- Built-in Auto Sensing Turn-on via Hi-Input, and 12V Remote Output for controlling external devices.
- Full MOSFET with High-Grade Switching Devices and built-in noise reduction circuitry for clear, noise-free sound.
Massive Audio EDGE Series 400 Watts RMS 4-Ohm 4-Channel Class A/B Amplifier
This Listing Includes:
- (1) Massive Audio 400W RMS Class A/B 4-Channel 4-Ohm Amplifier
The Massive Audio EDGE Series Amplifiers offer high-performance with a Nano Block Military Spec Circuit Board and N Drive MOSFET Power Supplies. Features include RCA inputs that accept up to 10 Volts, a DC offset music sensing system for Auto Turn On, and an adjustable 1-Band Parametric EQ with up to 12dB bass boost. Additional controls include switchable 12V output, X10 crossover adjustments (high pass, low pass, band pass), and a docking input for an optional 4 Farad Rail CAP Capacitor. These amplifiers are designed for powerful sound and precise control.
Key Features
- Built-In OEM Line Converter
- High Power in Extremely Small Heat Sink

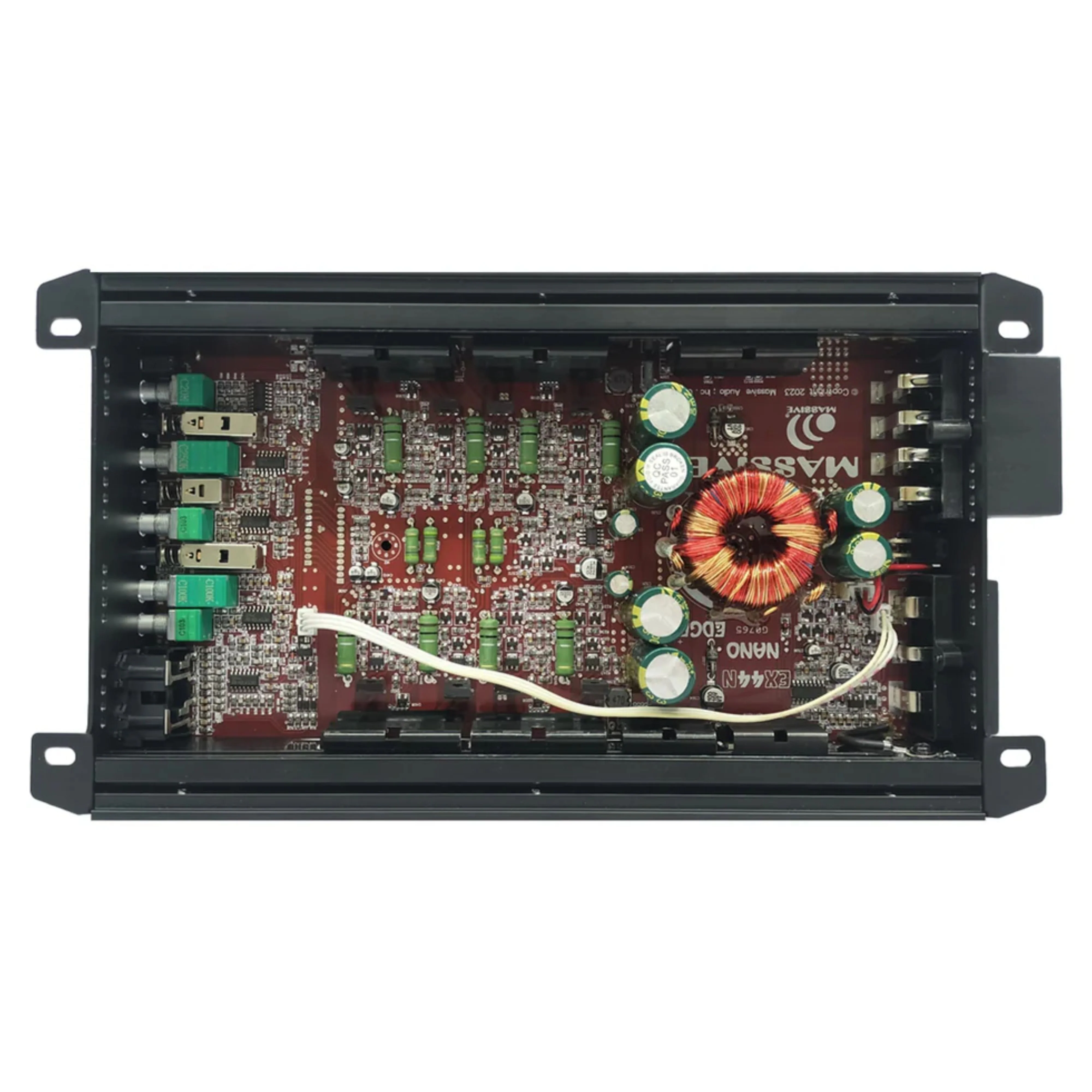

- Mil Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full Mosfet with High Grade Switching Devices
- Class AB Design
- CTA-2006Â Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next Gen Advanced 5 Way Protection
Specifications
- RMS Power (4 Ohm): 100W x 4
- PEAK Power: 400W x 2
- RMS Power (2 Ohm): 200W x 4
- Bridged RMS Power: 400W x 2
- Minimum Impedance (Stereo): 2 Ohm
- Minimum Impedance (Bridged): 4 Ohm
- Total Harmonic Distortion (THD): <0.05% @ 4 Ohm
- Signal-to-Noise Ratio (S/N): >90 dB
- Input Level: 0.4~10V (Hi Inputs or Low Inputs)
- Frequency Response: 10Hz - 25KHz
- Dimensions: 9.5 in x 5.9 in x 2.1 in
- Bass Remote: N/A
- Includes a built-in OEM Line Converter, handling up to 10 Volts of input, making installation simpler and more cost-effective.
- Equipped with an adjustable 1-Band Parametric EQ, offering up to 12dB bass boost for customized sound tuning.
- The amplifier offers X10 crossover adjustments, allowing for high pass, low pass, or band pass filtering.
- Built-in Auto Sensing Turn-on via Hi-Input, and 12V Remote Output for controlling external devices.
- Full MOSFET with High-Grade Switching Devices and built-in noise reduction circuitry for clear, noise-free sound.
Massive Audio EDGE Series 400 Watts RMS 4-Ohm 4-Channel Class A/B Amplifier
This Listing Includes:
- (1) Massive Audio 400W RMS Class A/B 4-Channel 4-Ohm Amplifier
The Massive Audio EDGE Series Amplifiers offer high-performance with a Nano Block Military Spec Circuit Board and N Drive MOSFET Power Supplies. Features include RCA inputs that accept up to 10 Volts, a DC offset music sensing system for Auto Turn On, and an adjustable 1-Band Parametric EQ with up to 12dB bass boost. Additional controls include switchable 12V output, X10 crossover adjustments (high pass, low pass, band pass), and a docking input for an optional 4 Farad Rail CAP Capacitor. These amplifiers are designed for powerful sound and precise control.
Key Features
- Built-In OEM Line Converter
- High Power in Extremely Small Heat Sink
- Mil Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full Mosfet with High Grade Switching Devices
- Class AB Design
- CTA-2006Â Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next Gen Advanced 5 Way Protection
Specifications
- RMS Power (4 Ohm): 100W x 4
- PEAK Power: 400W x 2
- RMS Power (2 Ohm): 200W x 4
- Bridged RMS Power: 400W x 2
- Minimum Impedance (Stereo): 2 Ohm
- Minimum Impedance (Bridged): 4 Ohm
- Total Harmonic Distortion (THD): <0.05% @ 4 Ohm
- Signal-to-Noise Ratio (S/N): >90 dB
- Input Level: 0.4~10V (Hi Inputs or Low Inputs)
- Frequency Response: 10Hz - 25KHz
- Dimensions: 9.5 in x 5.9 in x 2.1 in
- Bass Remote: N/A
Description
- Includes a built-in OEM Line Converter, handling up to 10 Volts of input, making installation simpler and more cost-effective.
- Equipped with an adjustable 1-Band Parametric EQ, offering up to 12dB bass boost for customized sound tuning.
- The amplifier offers X10 crossover adjustments, allowing for high pass, low pass, or band pass filtering.
- Built-in Auto Sensing Turn-on via Hi-Input, and 12V Remote Output for controlling external devices.
- Full MOSFET with High-Grade Switching Devices and built-in noise reduction circuitry for clear, noise-free sound.
Massive Audio EDGE Series 400 Watts RMS 4-Ohm 4-Channel Class A/B Amplifier
This Listing Includes:
- (1) Massive Audio 400W RMS Class A/B 4-Channel 4-Ohm Amplifier
The Massive Audio EDGE Series Amplifiers offer high-performance with a Nano Block Military Spec Circuit Board and N Drive MOSFET Power Supplies. Features include RCA inputs that accept up to 10 Volts, a DC offset music sensing system for Auto Turn On, and an adjustable 1-Band Parametric EQ with up to 12dB bass boost. Additional controls include switchable 12V output, X10 crossover adjustments (high pass, low pass, band pass), and a docking input for an optional 4 Farad Rail CAP Capacitor. These amplifiers are designed for powerful sound and precise control.
Key Features
- Built-In OEM Line Converter
- High Power in Extremely Small Heat Sink
- Mil Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full Mosfet with High Grade Switching Devices
- Class AB Design
- CTA-2006Â Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next Gen Advanced 5 Way Protection
Specifications
- RMS Power (4 Ohm): 100W x 4
- PEAK Power: 400W x 2
- RMS Power (2 Ohm): 200W x 4
- Bridged RMS Power: 400W x 2
- Minimum Impedance (Stereo): 2 Ohm
- Minimum Impedance (Bridged): 4 Ohm
- Total Harmonic Distortion (THD): <0.05% @ 4 Ohm
- Signal-to-Noise Ratio (S/N): >90 dB
- Input Level: 0.4~10V (Hi Inputs or Low Inputs)
- Frequency Response: 10Hz - 25KHz
- Dimensions: 9.5 in x 5.9 in x 2.1 in
- Bass Remote: N/A
