• Unleash Powerful Audio: 2000 Watts RMS ensures a dynamic and immersive audio experience for superior sound performance.
• Class-AB/D Technology: Combines the efficiency of Class D with the sound quality of Class AB, optimizing your audio system.
• Advanced Audio Customization: Features a built-in adjustable crossover, bass boost, and high/low pass filters for precise sound control.
• Durable and Reliable: Equipped with 4-way protection, including thermal, short circuit, and under/over voltage safeguards.
• Optimized Audio Control: Tri-mode capability and electronic crossover network enhance speaker performance and system versatility.
• Efficient Power Management: MOSFET power supply and superior power terminal management for consistent, high-quality performance.

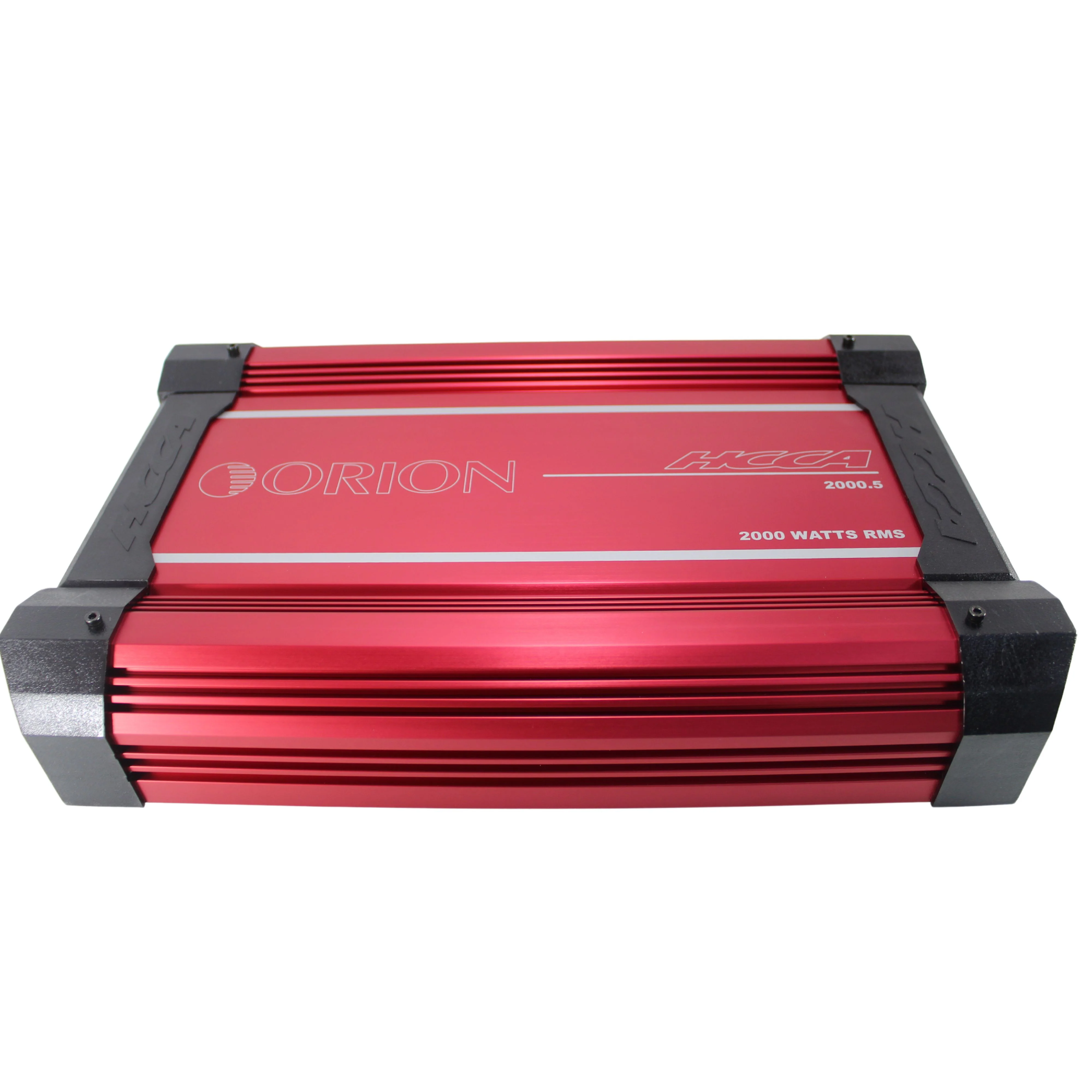

Orion 5-Channel 2000w RMS HCCA Series Class AB/D Amplifier - HCCA2000.5

This Listing Includes:

• (1) Orion 5-Channel 2000 Watts RMS Class AB/D HCCA Series Amplifier

Class-AB/D Amplification - Experience the synergistic power of Class-AB/D amplification, combining the efficiency of Class B with the sound quality of Class A and D.

2000 Watts RMS - Immerse yourself in a world of commanding audio power with 2000 Watts RMS, delivering impactful and detailed sound performance.

Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting reliability.

Sleek and Stylish Design - The amplifier's sleek design seamlessly integrates into your audio setup, adding sophistication to your system.

Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.

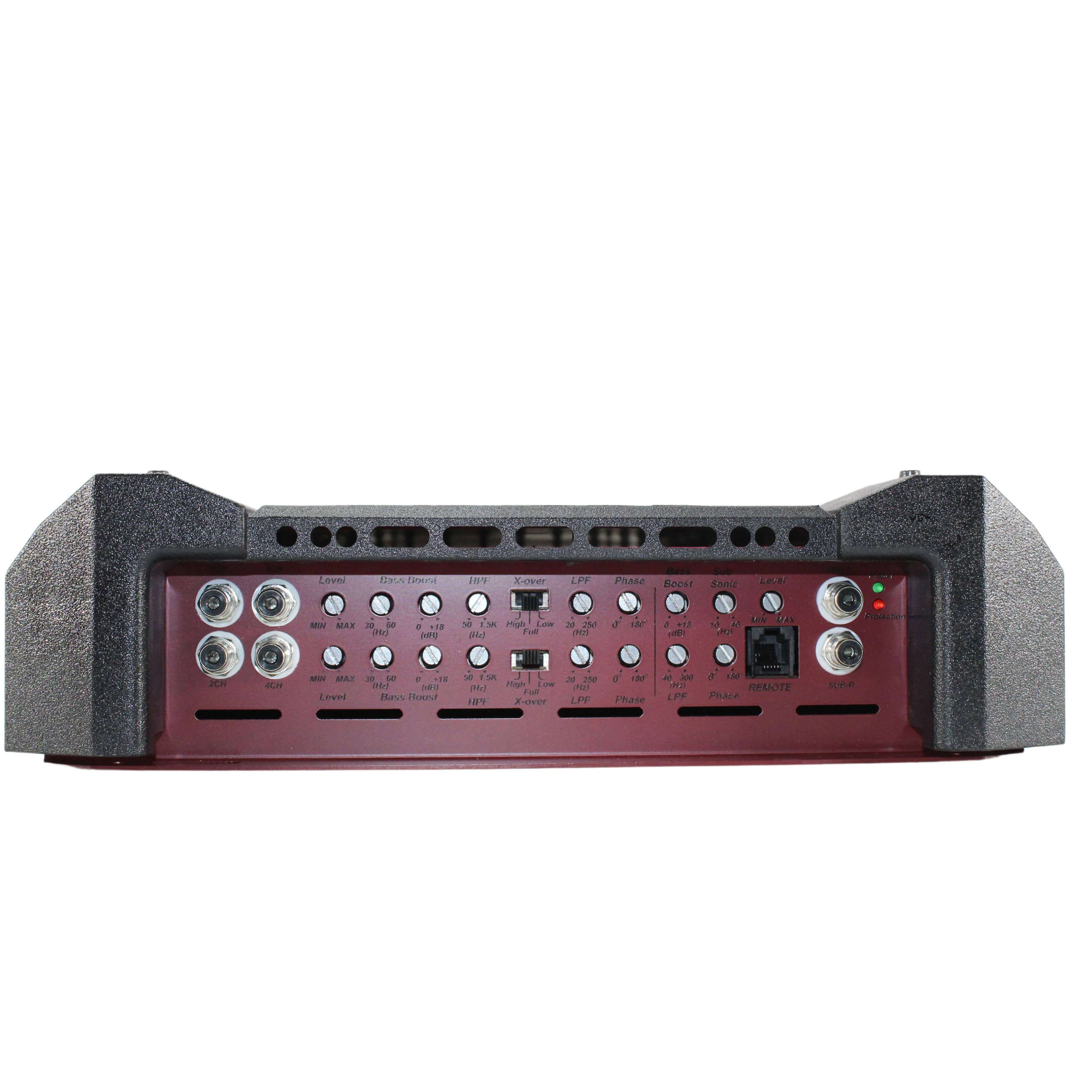

Key Features

• All MOSFET Power Supply


• Remote Gain Control


• Heavy Gauge Direct-WireHigh Current Power and Speaker Terminals


• Electronic Crossover Network


• Bass Boost Circuitry


• Tri-Mode Capable


• High-Pass/Low-Pass Filter Control


• Power and Protection LED Indicators


• Soft Turn-on/Turn-off


• Balanced Input (CMRR)


• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings

• 4x 220 + 650 RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x TBD + 1 x TBD


• 4x 330 + 1000 RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x TBD + 1 x TBD

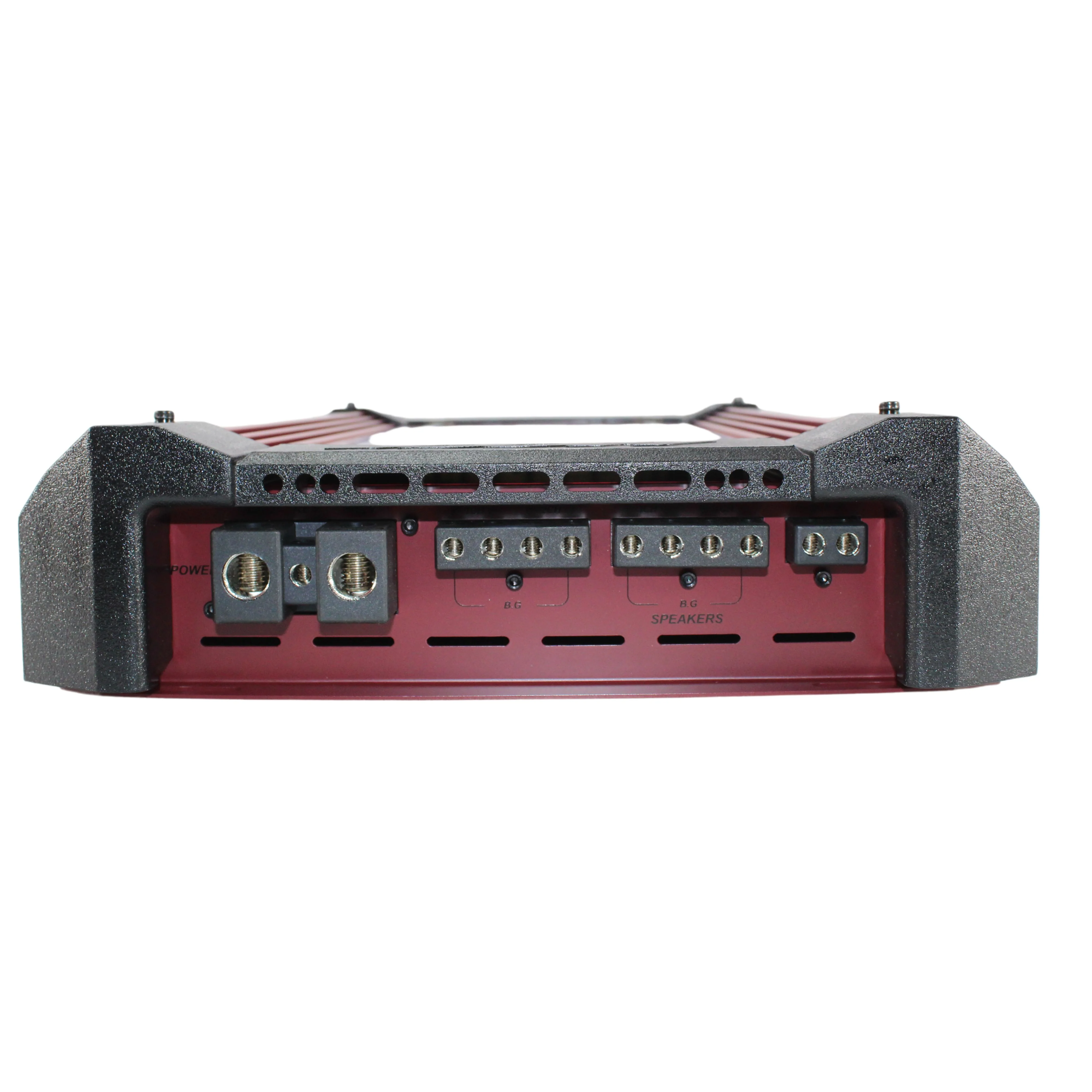

Power Terminal Management

• Positive Terminals: 1 x 0 AWG.


• Negative Terminals: 1 x 4 AWG,


• Remote Turn-ON Signal: 10 AWG.


• Speaker Output Terminals: 10 AWG.

Specifications

• Frequency Response 10Hz to 35kHz +/- 1 dB


• Linear Bandwidth 20Hz to 65kHz +/- 3 dB


• High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)


• Low Pass Crossover Continuously variable (40-300Hz)


• Phase shift control 0 to 180


• Bass Boost 0-18dB variable


• Distortion at Rated Power 0.005% THD+N


• Damping Factor > 200


• Input Sensitivity(RMS) 200mV to 6V


• Supply Voltage Range 9 to 16V


• Input Impedance 20K Ohms


• Amplifier Efficiency > 67% into 2 Ohms load at max. power


• SNR at rated output power and lowest impedance > 90dB


• Fuses: 200A recommended (not included)


• Dimensions (L x W x H): TBD" x 11.89" x 3.15" (TBDx302x80mm)
