• This Listing Includes: (1) Monoblock Amplifier BBD2500
• RMS Power @ 4-Ohms: 700Wx1 RMS Power @ 2-Ohms: 1100Wx1 Max Power @ 1-Ohm: 2500Wx1
• Minimum Speaker Impedance: 1-Ohm Mono
• Frequency Response: 50Hz-250Hz (100dB)

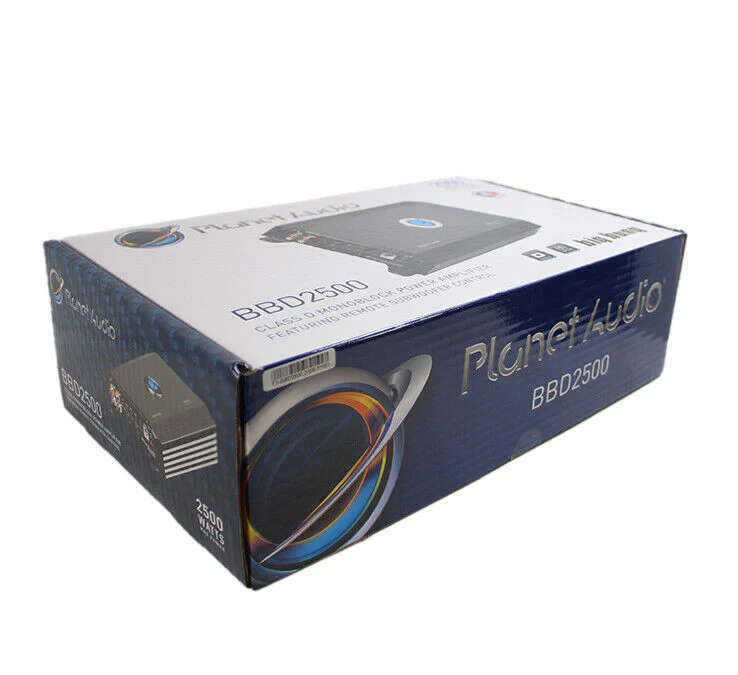

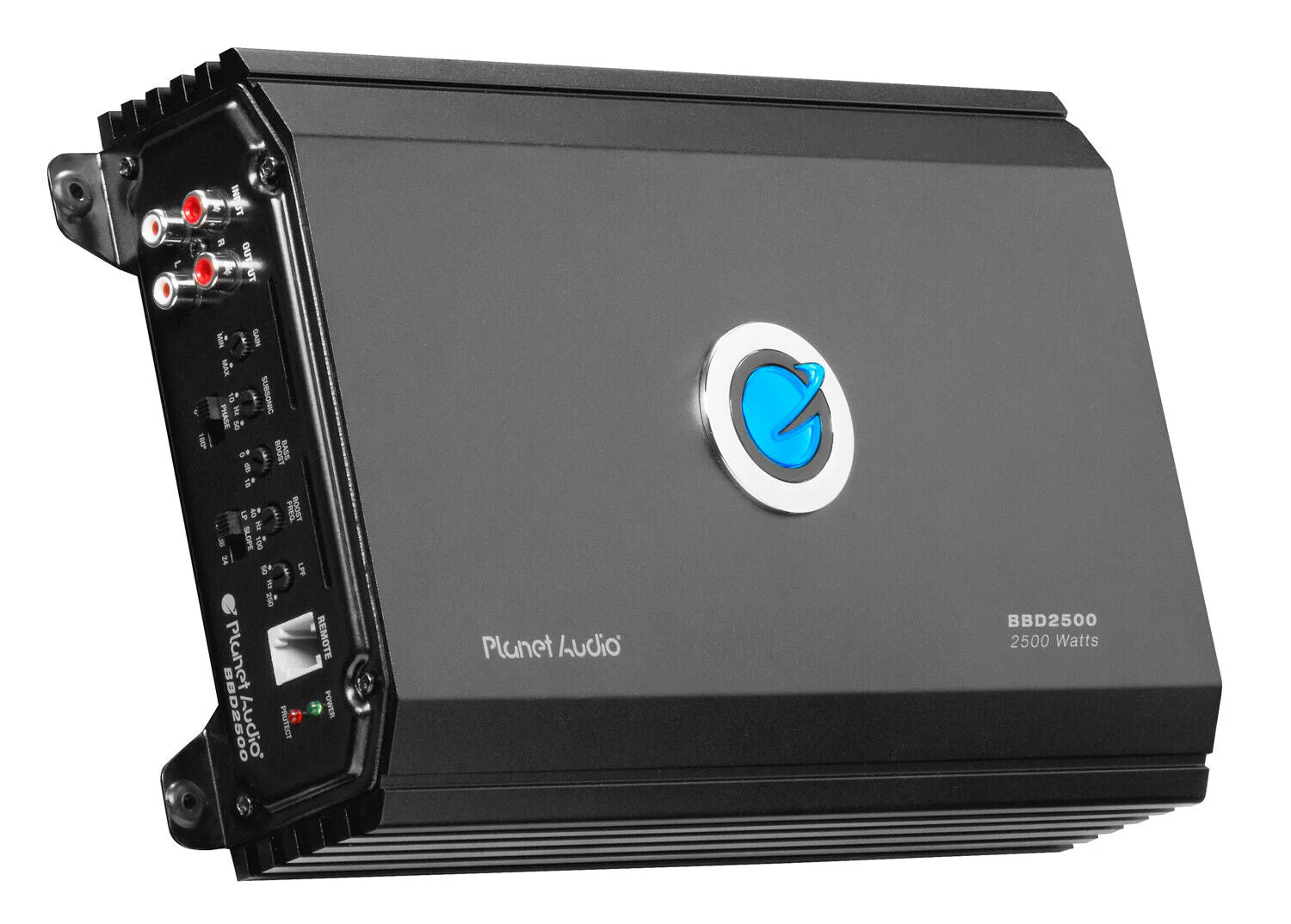

Planet Audio Big Bang Class D Monoblock Amplifier 2500W 1-Ohm BBD2500

This Listing Includes:

• (1) Monoblock Amplifier BBD2500

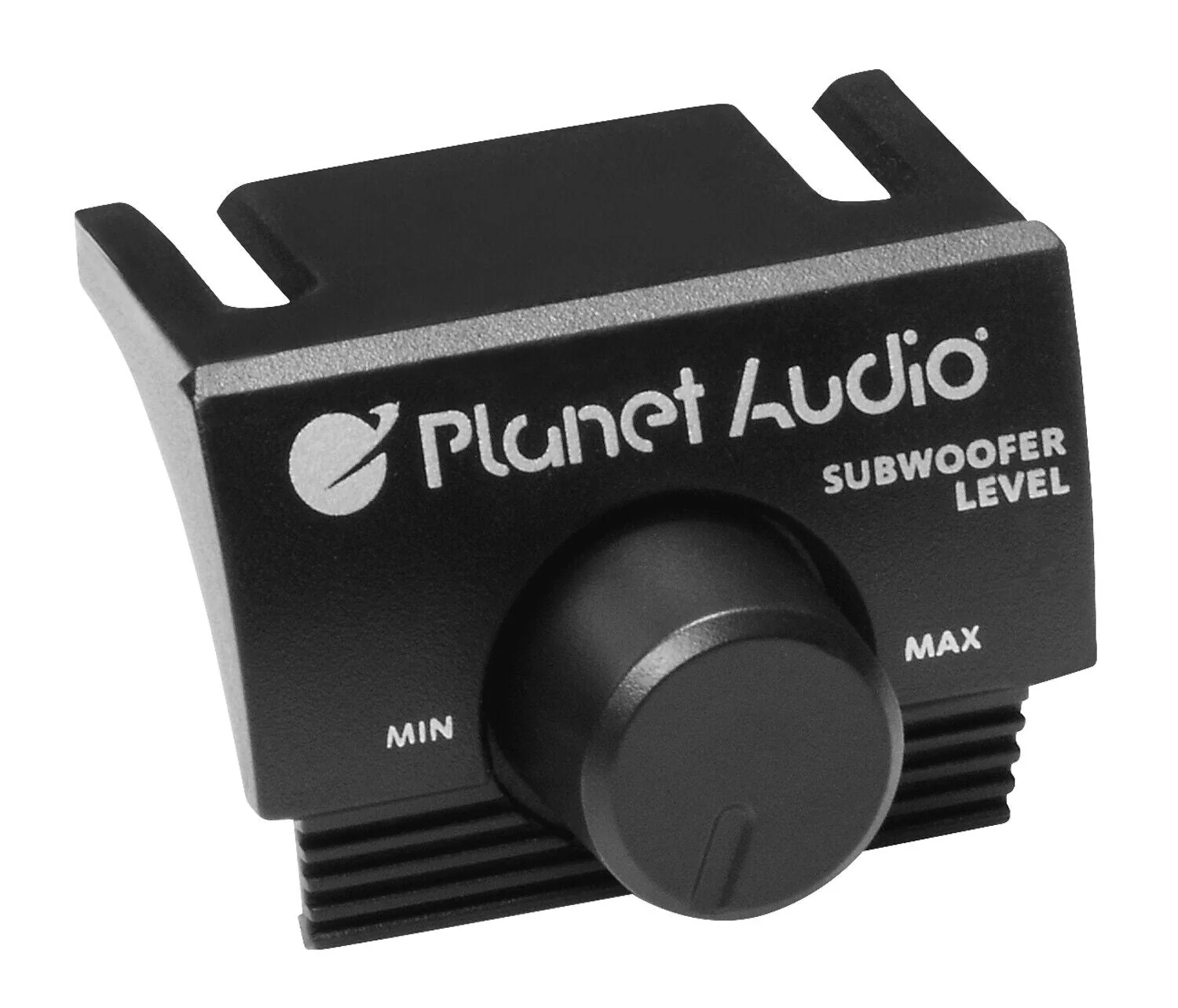

• (1) Bass Knob


• (1) Bass Knob Wiring


• (1) Manual

Specifications:

• Model: BBD2500


• RMS Power @ 4-Ohms: 700Wx1


• RMS Power @ 2-Ohms: 1100Wx1


• Max Power @ 1-Ohm: 2500Wx1


• Minimum Speaker Impedance: 1-Ohm Mono


• Input Impedance: 10K-Ohm


• Input Sensitivity: 100mV-4V


• Frequency Response: 50Hz-250Hz (100dB)


• Signal-to-noise ratio: 100dB


• Crossover/filter range:


• Lowpass: 50Hz-250Hz


• Subsonic: 10Hz-50Hz


• Bass Boost: Variable 0-+ 18dB


• Phase Shift: Variable 0/180 Degrees


• Fuse Rating: 40A x 3

Dimensions:

• Length: 16"


• Width: 9.5"


• Height: 5"
