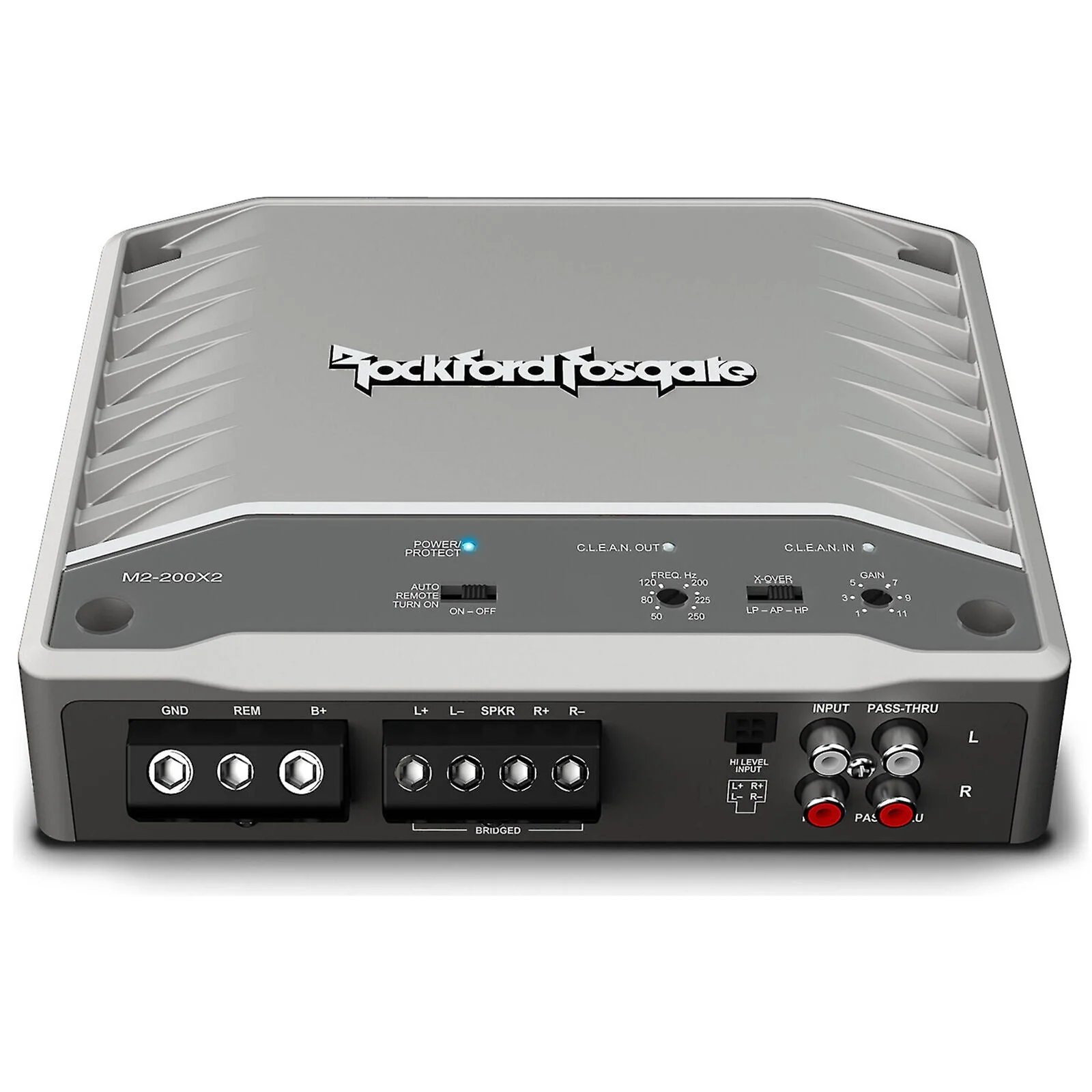

Rockford Fosgate M2-200X2 2 Channel 200 Watt Full Range Class D Marine Amplifier
- Bridgeable: Yes
- Number of Channels: 2
- Power Wire Gauge: 4 AWG
- Top Mounted Control Panel
Rockford Fosgate M2-200X2 2 Channel 200 Watt Full Range Class D Marine Amplifier
Designed to withstand the elements, the M2-200X2 Element Ready amplifier is a 200 watt, full-range class-D model, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.

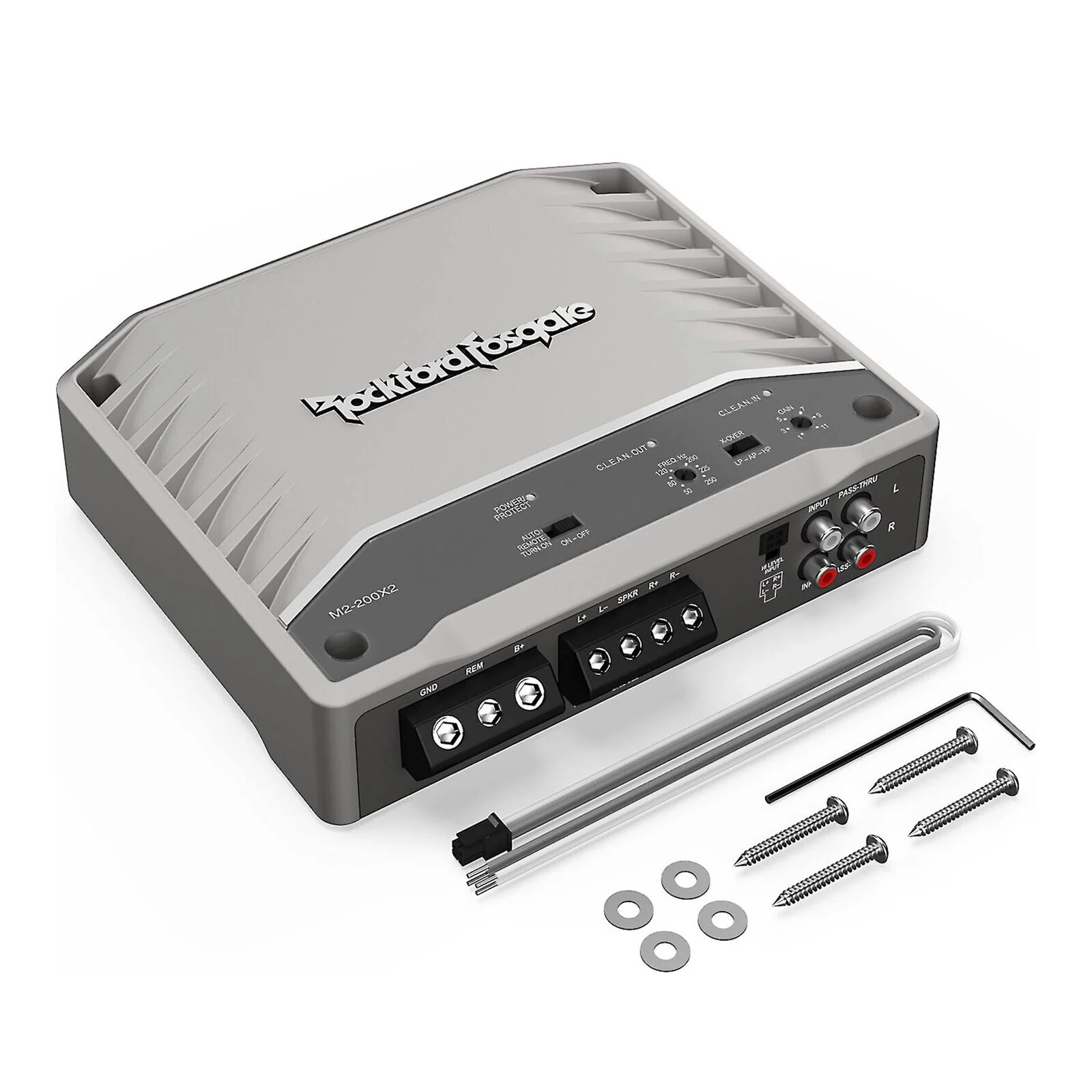

This Listing Includes:
(1) Marine Amplifier
(1) 7" Speaker Input Harness
(1) 3mm Hex Key
(4) 3/4" Screws
(4) Flat Washers
Features:
- Element Ready design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- UV stable powder coated cast aluminum heatsink
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top Mounted Control Panel
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Short Circuit & Over Current Protection
- Variable Infrasonic Filter
- Integrated Power and Speaker Terminals
- Balanced Differential Inputs eliminates noise picked up by signal cables
- RCA pass-thru outputs
- Integration with OEM and Aftermarket Radios
- "Auto-Sense" turn-on with remote out (high level in)
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- CEA-2006 Compliant & CE Compliant
Specifications:
Number of Channels: 2
Total Power(Sum of Rated Power): 200 Watts
Bridgeable: Yes
Frequency Response: 20 Hz - 20 kHz
Circuit Topology Class: Class D
Tone Controls: No
Remote Controls: No
Power Wire Gauge: 4 AWG
Power Input Connector: Compression Terminal Block
Speaker Wire Gauge: 8 AWG
Speaker Output Connector: Compression Terminal Block
Cooling: Convection
Operating Voltage: 9 - 16 VDC
Recommended Fuse(not included): 30 A
Max. Current Draw (13.8V Sinewave): 18 A
Rated Power(RMS Continuous Power):
50 Watts x 2 @ 4
100 Watts x 2 @ 2
200 Watts x 1 @ 4 Bridged/Mono
Dynamic Power(PVC/PowerCube):
60 Watts x 2 @ 4
107 Watts x 2 @ 2
215 Watts x 1 @ 4 Bridged/Mono
Input Sensitivity:
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Total Harmonic Distortion (THD+Noise):
4: Less Than 1.0%
2: Less Than 1.0%
Signal Input:
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output:
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Crossover Controls:
High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Visual Indicators:
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
Dimensions (HxWxD): 1.9" x 6.8"x 8.1"
