• POWERFUL OUTPUT: The M2-500X1 Monoblock Amplifier delivers 500 Watts of power, perfect for marine audio systems. This dynamic amplifier will greatly enhance your sound experience.
• ELEMENT READY DESIGN: This amplifier is engineered for outdoor use, featuring UV stable powder-coated aluminum, protecting it against water and dust, making it ideal for boats and other vehicles.
• ADVANCED TECHNOLOGY: Equipped with C.L.E.A.N. circuitry and a fully adjustable Punch EQ, this amplifier fine-tunes your audio settings, ensuring optimal performance and enhanced bass output.
• EASY INSTALLATION: Comes with all necessary accessories, including a remote control and wiring harness, ensuring convenient setup for both DIY enthusiasts and professionals.
• VERSATILE CONNECTIVITY: Features low-level and high-level inputs, allowing seamless integration with OEM and aftermarket radios — perfect for custom applications.

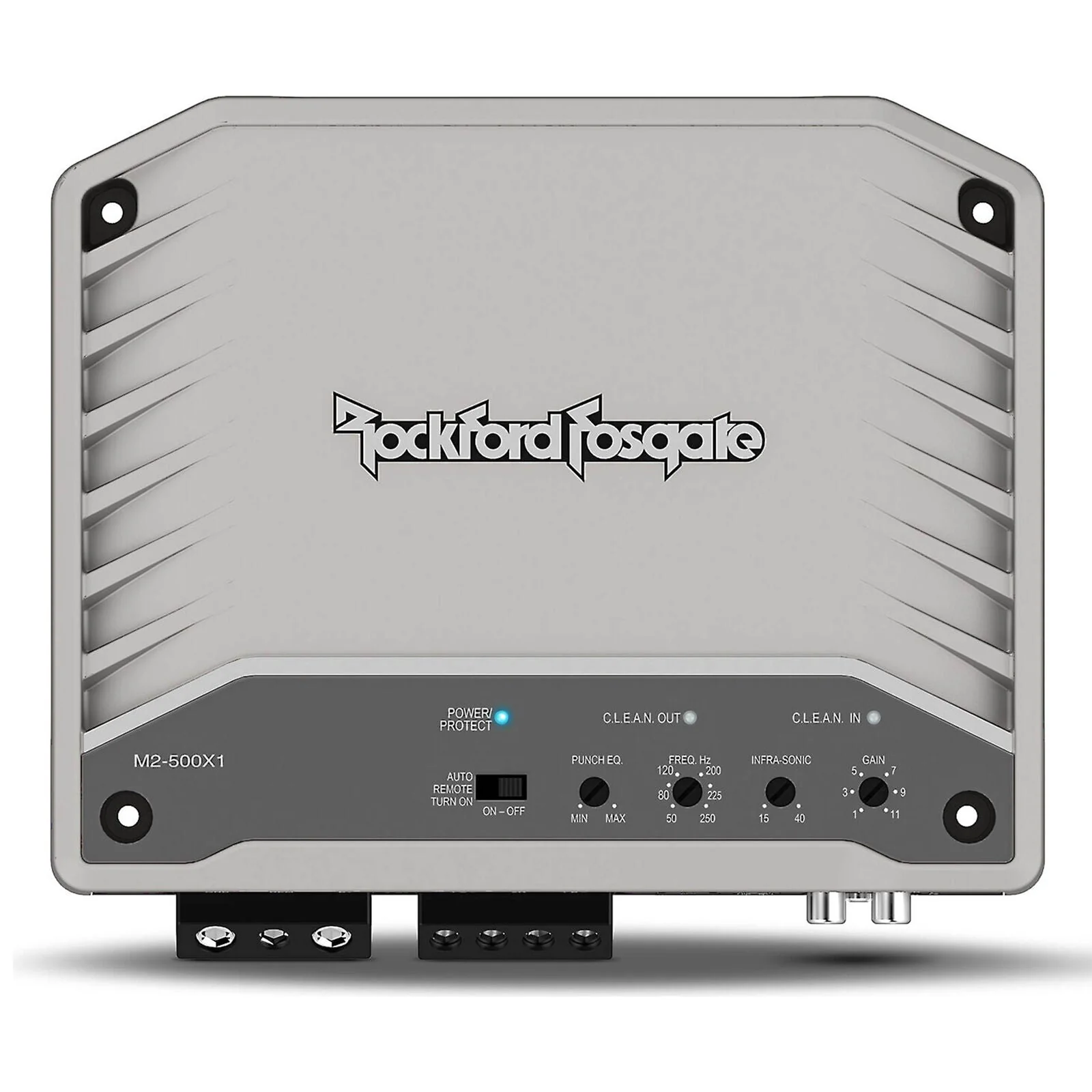

Rockford Fosgate M2-500X1 Monoblock 500 Watt Full Range Class D Marine Amplifier

This Listing Includes:

• (1) Amplifier


• (1) Remote Punch Level Control


• (1) 16.5' Remote Punch Level Control Cable


• (1) 7" Speaker Input Harness


• (1) 3mm Hex Key


• (4) 3/4" Screws


• (2) 1/2" Screws


• (5) Flat Washers


• (1) Nut

Designed to withstand the elements, the M2-500X1 Element Ready amplifier is a 500 watt, class-D model, capable of operating at 4 ohm or 2 ohm mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Features:

• Element Ready design protects against outdoor exposure


• Conformal coated circuit board protects against dust and water


• UV stable powder coated cast aluminum heatsink


• Zinc Nickel-plated Marine grade brass connection terminals


• C.L.E.A.N. input/output clip detection and indicator LEDs


• Continuously Variable On Board Punch EQ


• Includes RLC Remote Level Control


• Top Mounted Control Panel


• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers


• Short Circuit & Over Current Protection


• Variable Infrasonic Filter

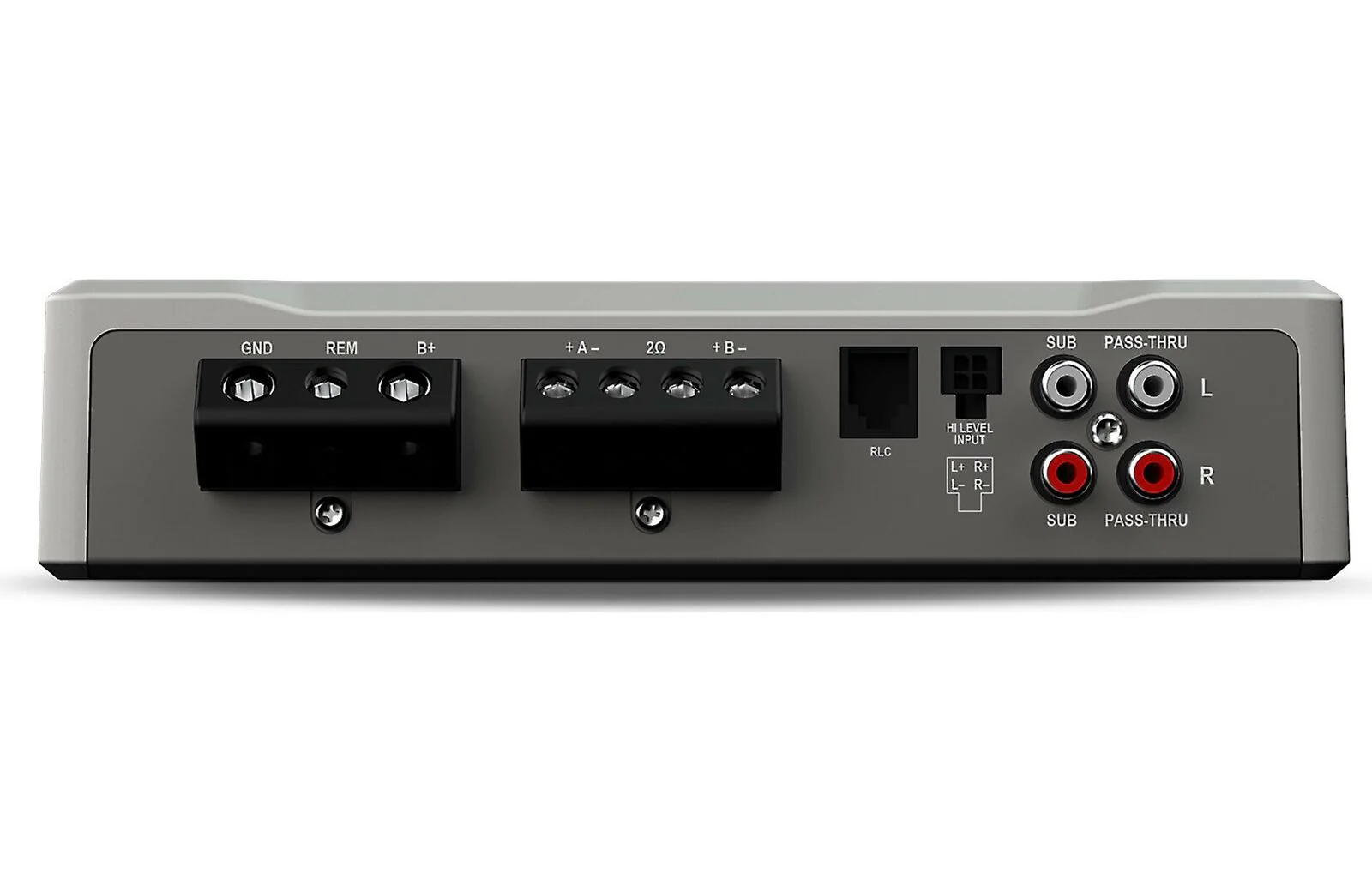

• Integrated Power and Speaker Terminals


• Balanced Differential Inputs eliminates noise picked up by signal cables


• RCA pass-thru outputs


• Integration with OEM and Aftermarket Radios


• "Auto-Sense" turn-on with remote out (high level in)


• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)


• Low Impedance Stability


• Proprietary testing using RATS (Rockford Automated Testing System)

Specifications:

• Number of Channels: 1


• Total Power(Sum of Rated Power): 500 Watts


• Bridgeable: No


• Frequency Response: 20 Hz - 250 Hz


• Circuit Topology Class: Class D


• Tone Controls: 0 to +18 dB @ 45 Hz


• Remote Controls: Yes


• Power Wire Gauge: 4 AWG


• Power Input Connector: Compression Terminal Block


• Speaker Wire Gauge: 8 AWG


• Speaker Output Connector: Compression Terminal Block


• Operating Voltage: 9 - 16 VDC


• Recommended Fuse(not included): 80 A


• Max. Current Draw (13.8V Sinewave): 52 A

Rated Power(RMS Continuous Power):

• 300 Watts x 1 @ 4


• 500 Watts x 1 @ 2

Dynamic Power(PVC/PowerCube):

• 350 Watts x 1 @ 4


• 590 Watts x 1 @ 2

Input Sensitivity:

• Low-Level: 150 mV - 4 V


• High-Level: 450 mV - 12 V

Total Harmonic Distortion (THD+Noise):

• 4: Less Than 1.0%


• 2: Less Than 1.0%

Signal Input:

• Low-Level: 2 RCA


• High-Level: 4-Pin Molex

Signal Output:

• Low-Level: 2 RCA


• (Pass-Thru active with RCA or Hi-Level input)

Crossover Controls:

• Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth


• Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth

Dimensions (H x W x D): 1.9" x 6.8" x 8.5"
